Victorian Plumbing CARTT8562 Thermostatic Cartridge for Chatsworth/​Arezzo Shower Valves

SUMMARY

Victorian Plumbing CARTT8562 Thermostatic Cartridge for Chatsworth and Arezzo Shower Valves

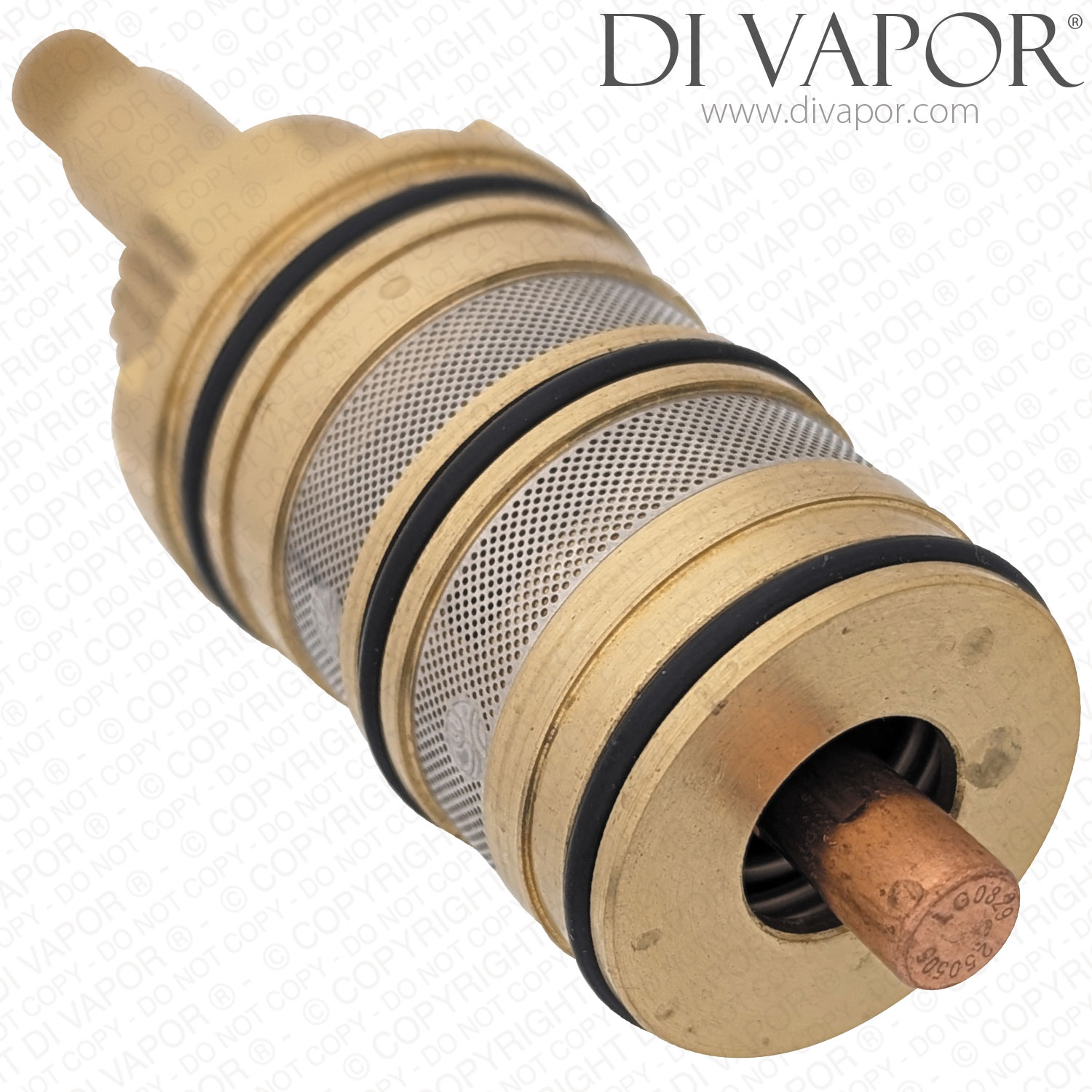

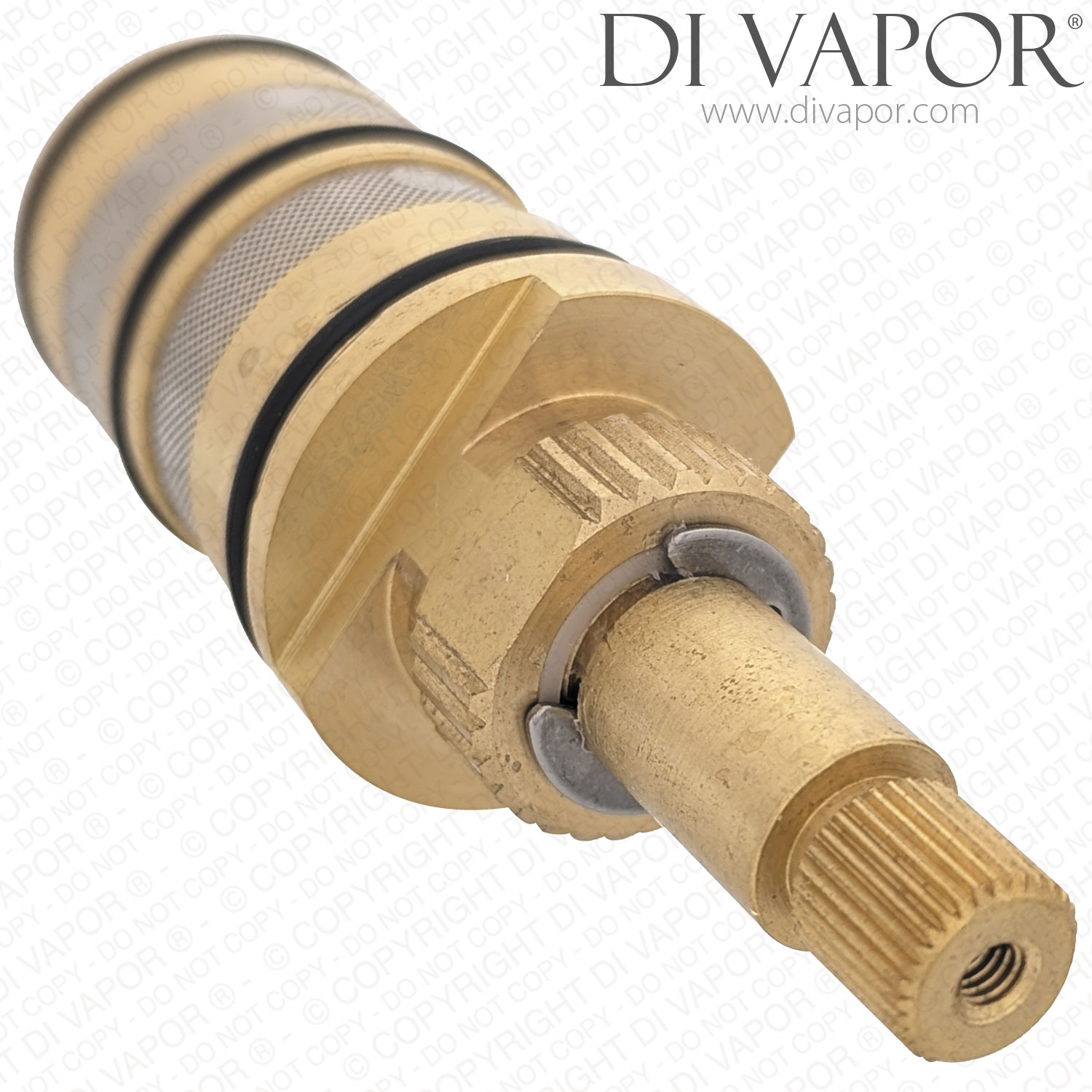

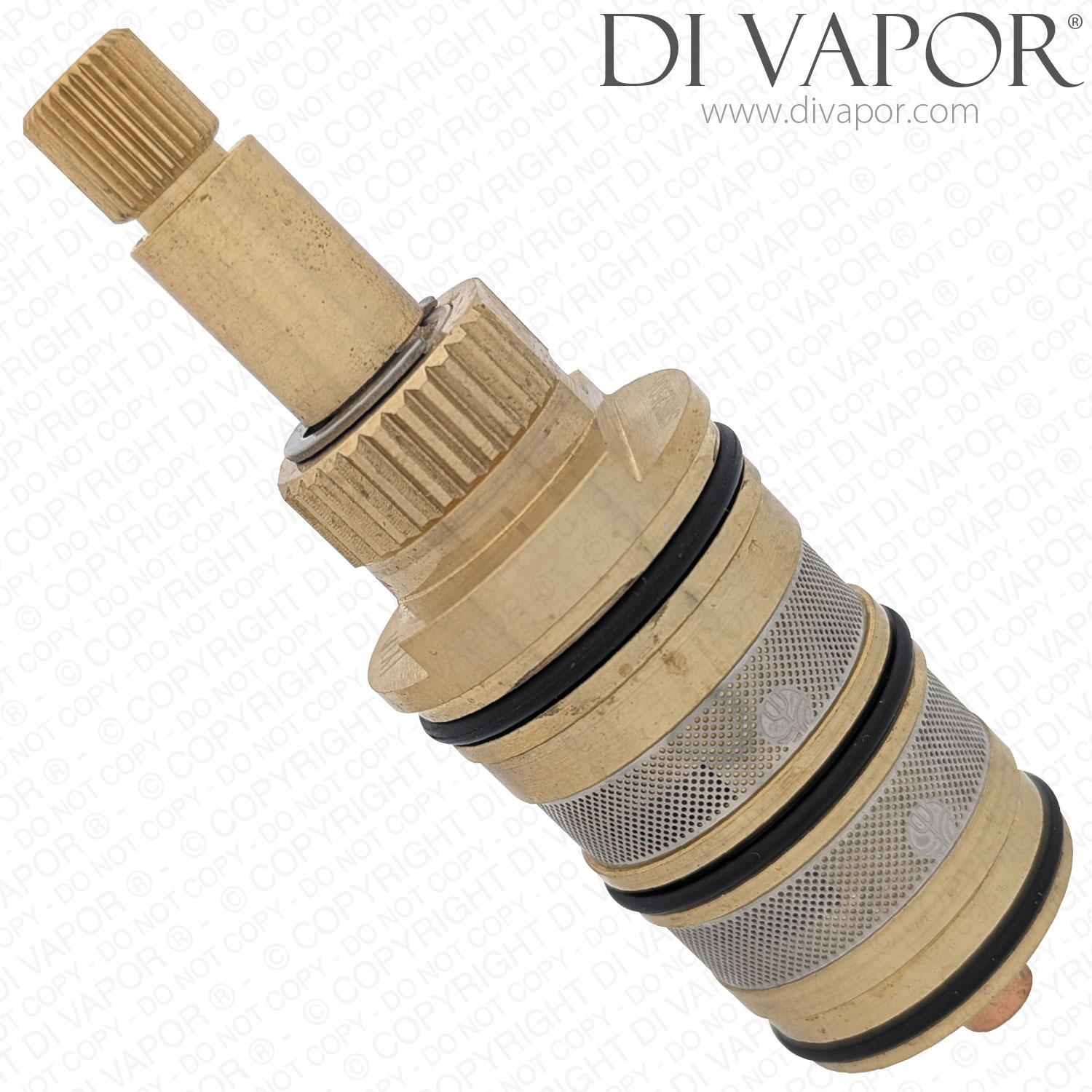

The Victorian Plumbing CARTT8562 is a thermostatic cartridge for selected Chatsworth and Arezzo concealed shower valves. It controls the mixed water temperature in the shower valve and is positioned behind the central temperature control on the valve body.

This cartridge is used where the temperature control cartridge is worn, scaled or no longer regulating correctly. Before ordering, visually compare the existing cartridge with CARTT8562, including the body shape, spline count, height and diameter, as variations can exist between similar looking Chatsworth and Arezzo valves.

Technical Details

- - Part Number: CARTT8562

- - Part type: thermostatic shower valve cartridge

- - Material: plastic body with ceramic disc

- - Height: 93.7mm

- - Diameter: 33.2mm

- - Splines: 32

- - Valve context: twin and triple concealed thermostatic shower valve applications

- - Inlet context from the valve installation layout: 3/4 inch hot and cold female inlets

- - Outlet context from the valve installation layout: 1/2 inch female outlets

- - Control layout on the triple valve: top and bottom controls operate on/off flow and the middle control operates temperature

- - Temperature setting context: factory setting is approximately 38 degrees C when the red markings are aligned

- - Maximum temperature check context: approximately 42 degrees C when the temperature control is turned fully anti-clockwise

Confirmed Compatible Models

- - Arezzo Fluted Round Modern Triple Concealed Shower Valve - Matt Black - AZFRV2MB

- - Chatsworth 1928 Antique Brass Traditional Shower with Concealed Valve 8 Head + Handset - CH63VABPK1

Installation and Checking Notes

Isolate the water supply before removing the valve trim and cartridge assembly. On the triple concealed valve, the red markings on the stop rings and cartridge should be aligned when refitting so the valve returns to the approximate 38 degrees C setting. If the shower only runs hot or cold after installation, check that the hot and cold supplies have not been reversed and that the cartridge has been installed in the correct orientation.

Troubleshooting

- - Symptom: shower runs hot or cold after installation. Likely Cause: hot and cold supplies reversed or faulty thermostat. Solution: check supply orientation and cartridge condition.

- - Symptom: shower does not run hot enough. Likely Cause: hot water temperature or temperature adjustment issue. Solution: check the hot supply and recalibrate the stop ring position if required.

- - Symptom: low or no flow. Likely Cause: blockage, incorrect operating conditions or pressure imbalance. Solution: check filters, supplies and pressure before replacing the temperature cartridge.

- - Symptom: leaking when the valve is off. Likely Cause: debris in the flow control cartridge or faulty flow control cartridge. Solution: inspect the flow cartridge rather than assuming the thermostatic cartridge is the cause.

Related Spares You May Need

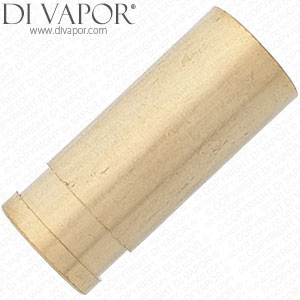

- - Cartridge Handle Adapter used with Victorian Plumbing CARTT8562 Thermostatic Cartridge

- - Chatsworth & Arezzo CARTT8001B Flow Cartridge Compatible Spare

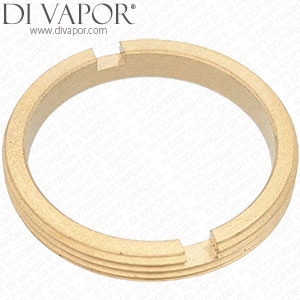

- - CARTT8562 Brass Thermostatic Cartridge Locking Ring - for Victorian Plumbing CARTT8562Q

- - Non-Return Check Valve Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - Compatible Spare

- - Shower Valve Flow Control Handle Adapter Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - Compatible Spare

- - Shower Valve Flow Control Handle Adapter Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - Compatible Spare - Brushed Brass

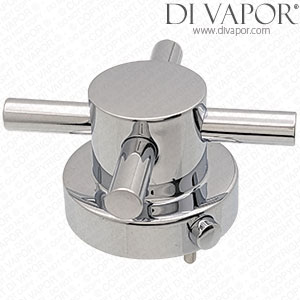

- - Cross Design Temperature Handle Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - Compatible Spare - Chrome

- - Square Temperature Handle Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - Compatible Spare - Matte Black

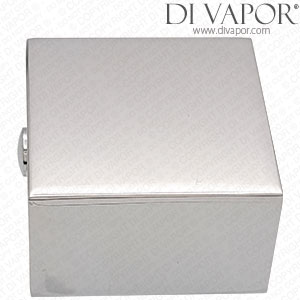

- - Square Temperature Handle Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - CARTT8562H6T Compatible Spare - Chrome

- - Square Temperature Handle Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - CARTT8562H6T Compatible Spare - Matte Black

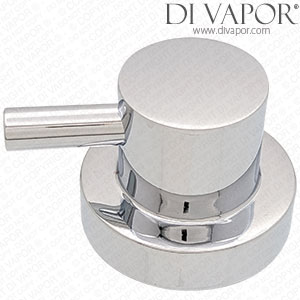

- - Round Temperature Handle Used on Same Valve as Victorian Plumbing CARTT8562 Thermostatic Cartridge - CARTT8562H6 Compatible Spare - Chrome
