VADO Infrared Sensor for IR-109 I-Tech Notion Touch Free Infrared Basin Mixer - IR-SPOUT/109
SUMMARY

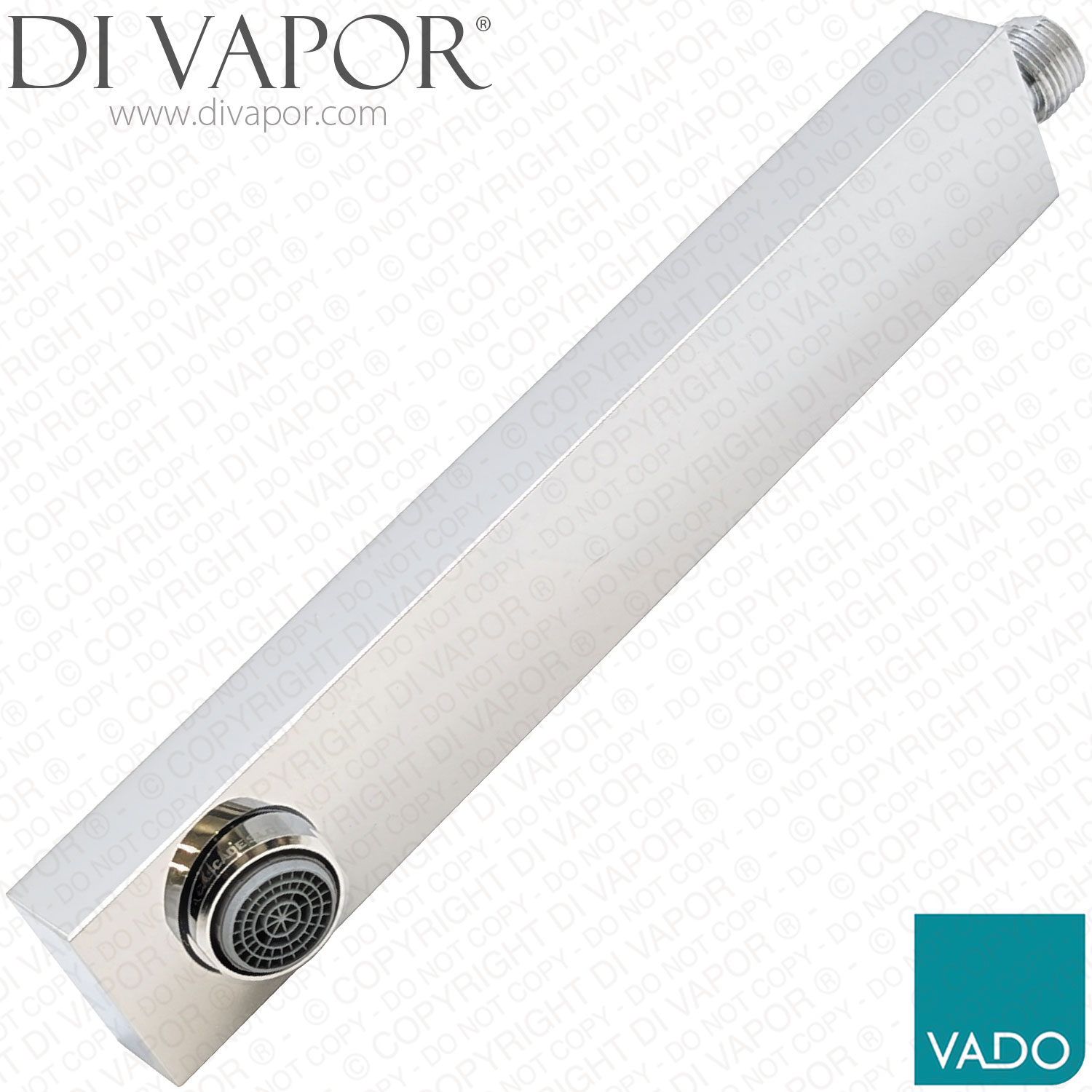

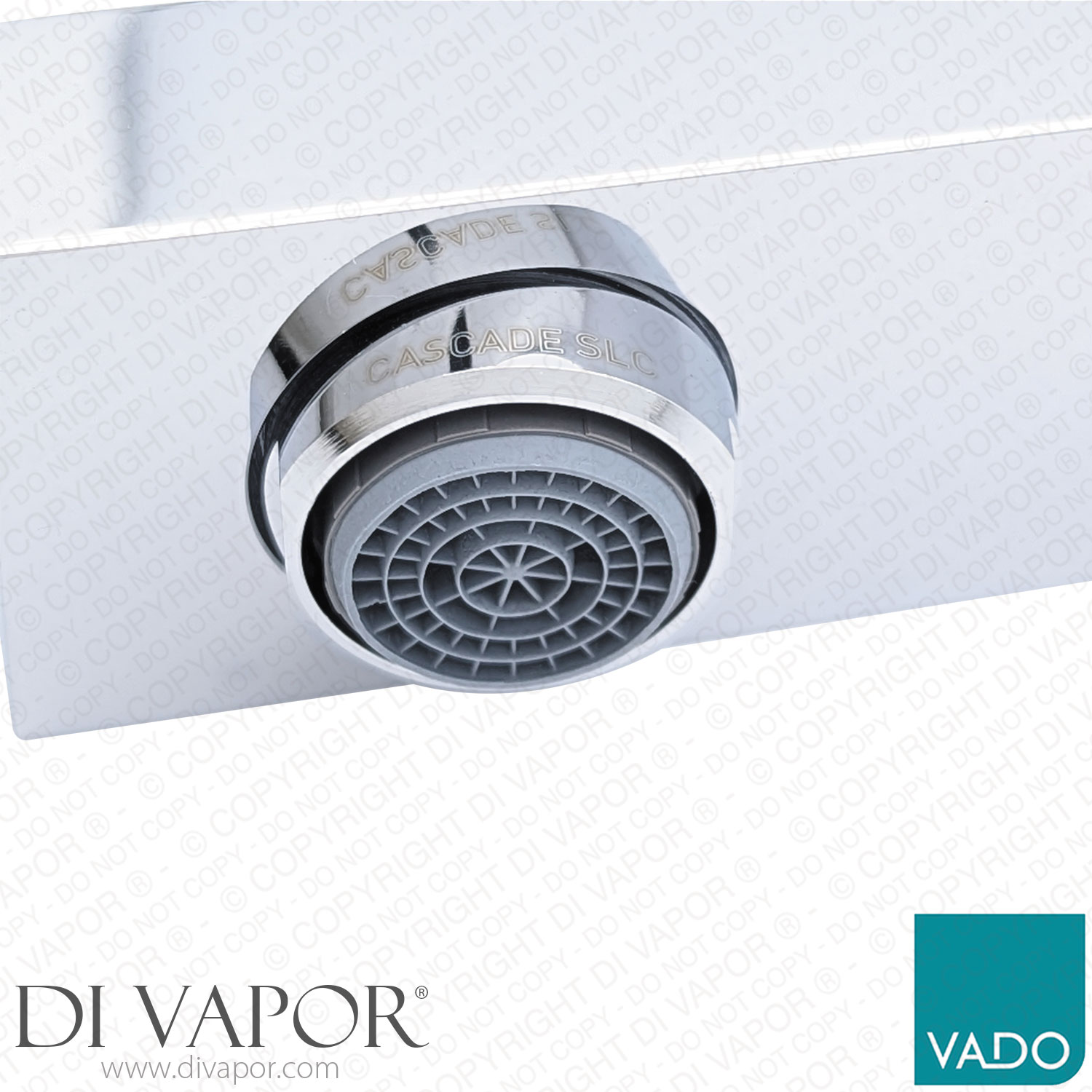

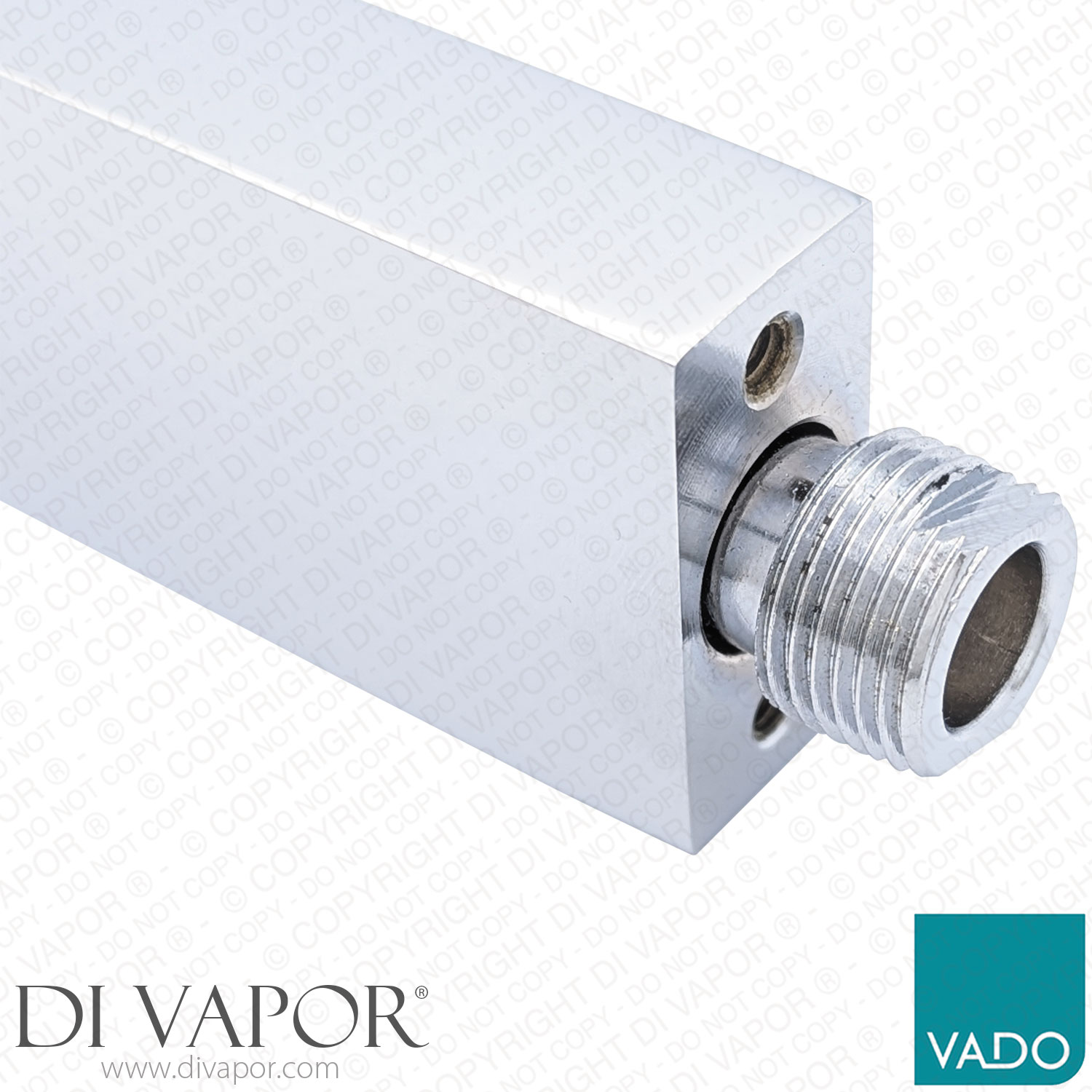

VADO IR-SPOUT/109 is an infrared sensor spare listed for the VADO IR-109/NOT-C/P I-Tech Notion touch free basin mixer wall mounted with square back plate.
This spare sits within the front operating area of the tap where the sensor controls touch free activation. On the IR-109/NOT-C/P installation layout the front assembly is shown with separate spout faceplate sensor and fixing screw parts, so it is important to match the exact code before ordering.
Technical Details
- - Used on the IR-109/NOT-C/P wall mounted infra-red basin mixer with square back plate.
- - Host mixer finish: chrome.
- - Host mixer drawing shows a 152 mm x 152 mm back plate with approximately 200 mm overall spout length and 175 mm projection.
- - Common faults around this assembly can include no activation intermittent triggering or water failing to shut off if the sensor window is dirty.
Before you order check
- - Check the exact part code IR-SPOUT/109 from your existing part or parts list.
- - Do not order from appearance alone because separate spares are also listed for this tap including the sensor only part IR-SENSOR/NOT-109 the spout only part IR-109/NOT-SPOUT-C/P the square faceplate IR-109/NOT-FP-C/P and the plate screw IR-109/NOT-SCREW.
Confirmed Compatible Models
Related Spares You May Need
- - Vado IR-109/CONTROL Spare Control Box - 6V - 0.2A - IPX6
- - Vado IR-SENSOR/NOT-109 Sensor for IR-109/NOT-C/P Sensor Tap
- - Vado IR-109/NOT-SPOUT-C/P Sensor Tap Spout for IR-109/NOT-C/P
- - VADO Square Faceplate for IR-109/NOT-C/P I-Tech Notion Touch Free Infrared Basin Mixer Wall Mounted
- - Vado IR-109/NOT-SCREW Sensor Tap Plate Screw for IR-109/NOT-C/P
