Vado IDE-145C-CONTROL Wall Mounted Digital Shower Control Panel

SUMMARY

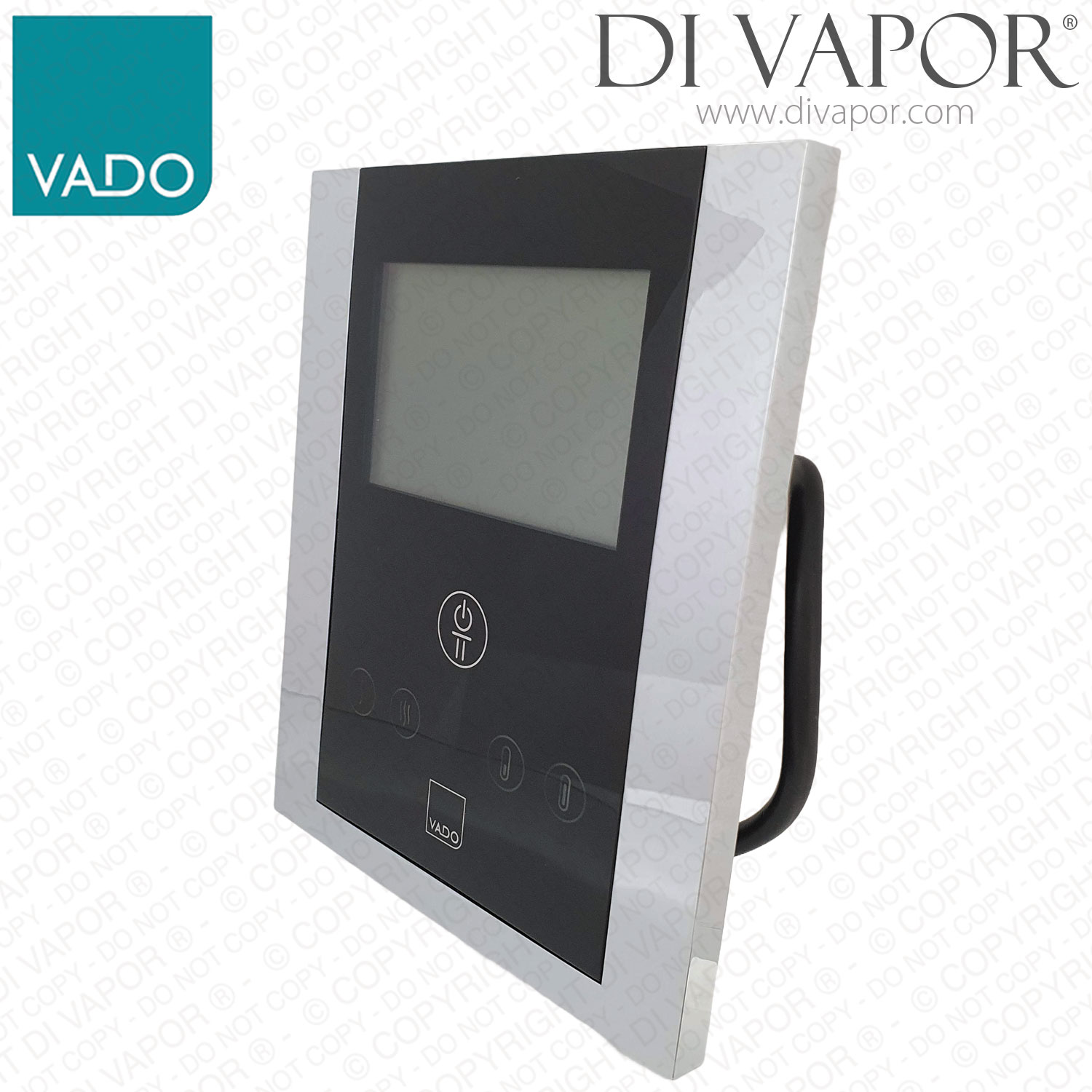

Vado IDE-145C-CONTROL is a wall mounted digital shower control panel used as the electronic user interface on a matching Vado digital shower installation. It is the control panel only and is designed for touch-button operation from the finished wall surface.

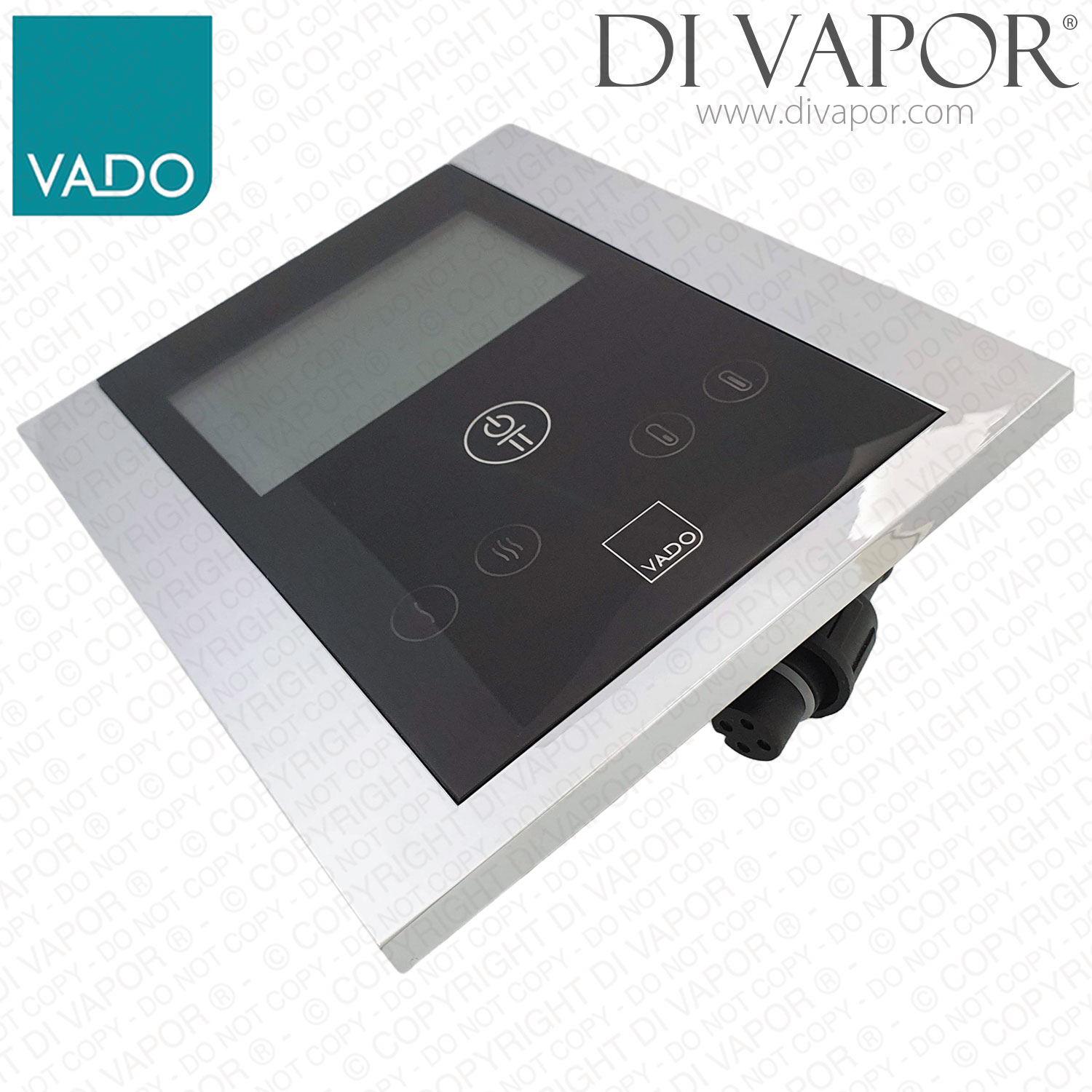

This panel provides on or off control plus separate touch buttons for flow decrease, flow increase, temperature decrease and temperature increase, allowing the user to control everyday shower operation from the wall mounted face.

Technical Details

- - Exact part code: IDE-145C-CONTROL

- - Approximate visible face size: 112mm wide x 131mm high

- - Approximate projection from wall: 7mm

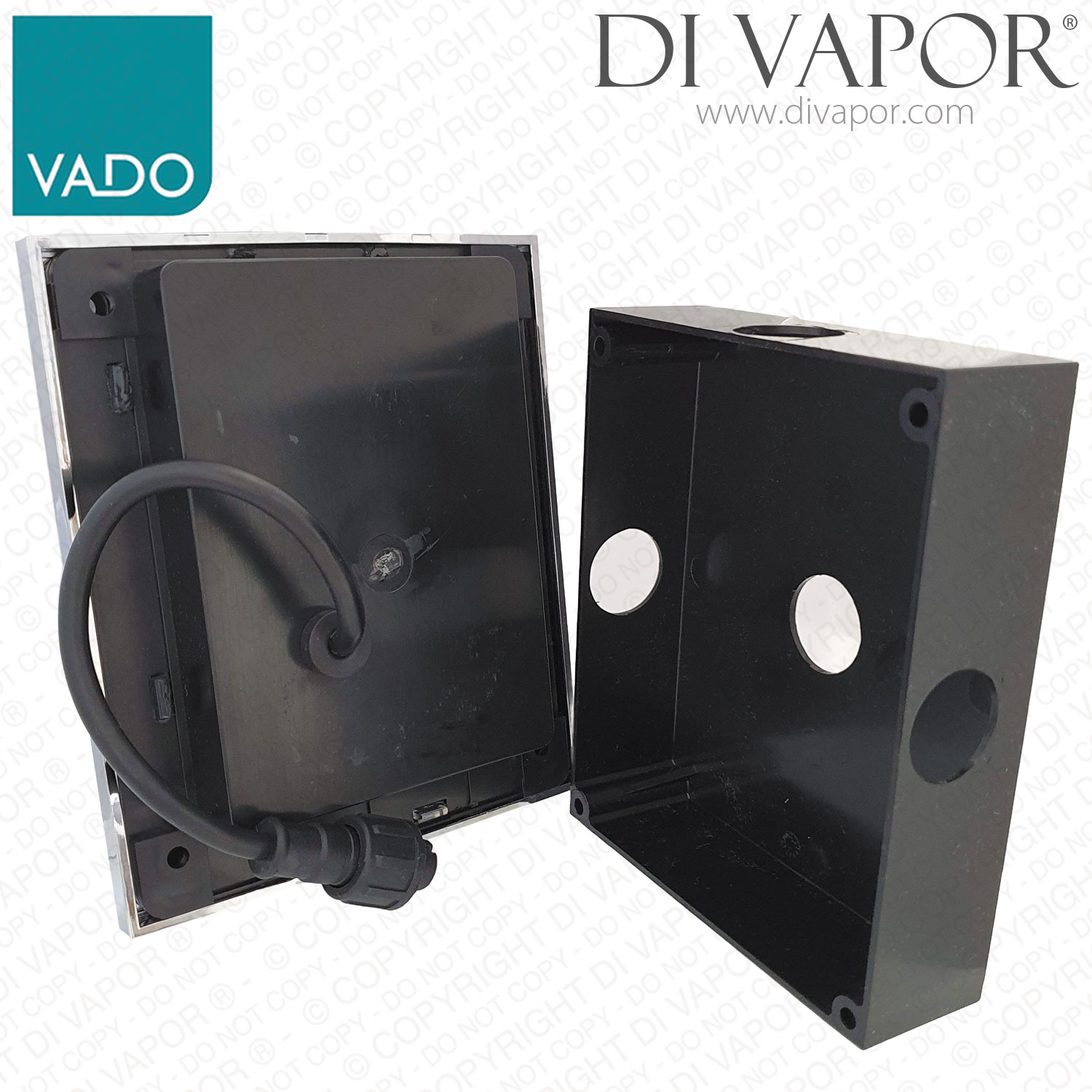

- - Approximate wall recess for the panel box: 98mm x 117mm x 30mm deep

- - Control layout: on or off, flow down, flow up, temperature down, temperature up

- - Control format: 3 flow settings and 7 temperature settings

- - Automatic switch-off after 15 minutes if no buttons are pressed

Common Signs of Failure

- - Touch buttons do not respond

- - Flow or temperature can no longer be adjusted correctly from the panel

- - LED warning or start-up fault indication is present on the panel

Before you order check

- - The exact code on your existing part is IDE-145C-CONTROL

- - The front size and button layout match your existing panel

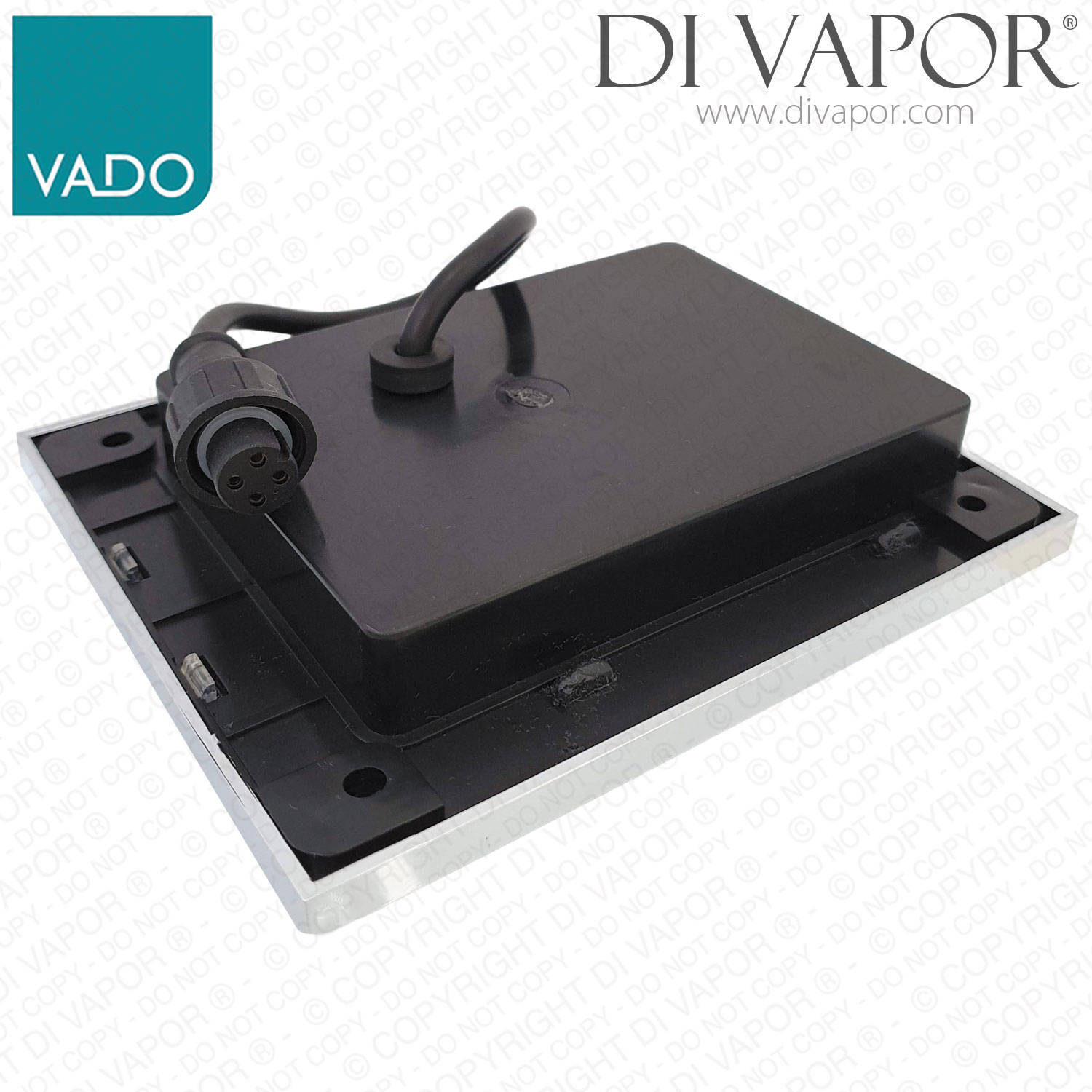

- - The recess size and connector arrangement match your installation

- - You do not confuse this panel with IDE-145-CONTROL or the separate IDE-145C-CPU control unit
