Vado FL-801-33/​2SX 33mm 2 Way Diverter Cartridge with Stop

SUMMARY

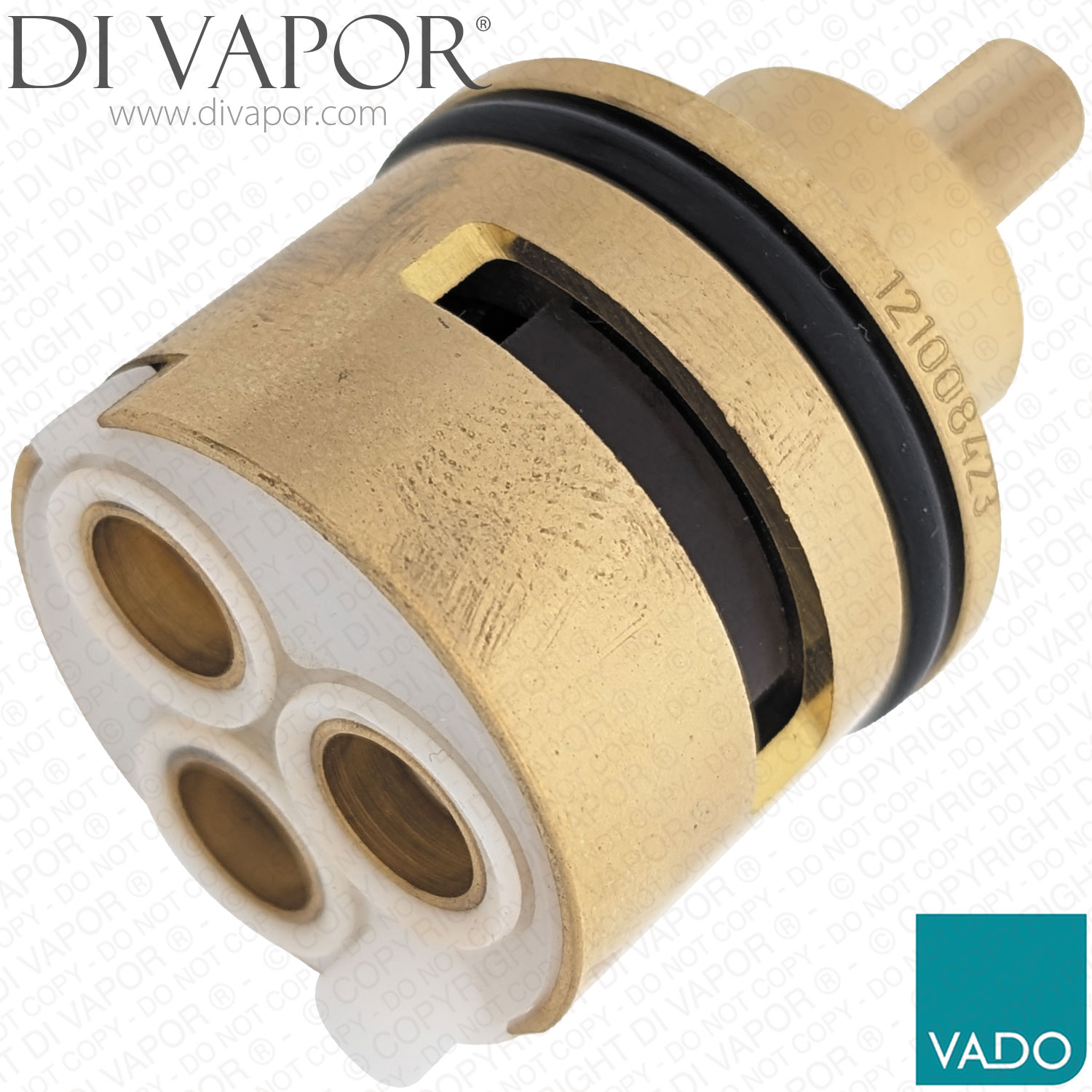

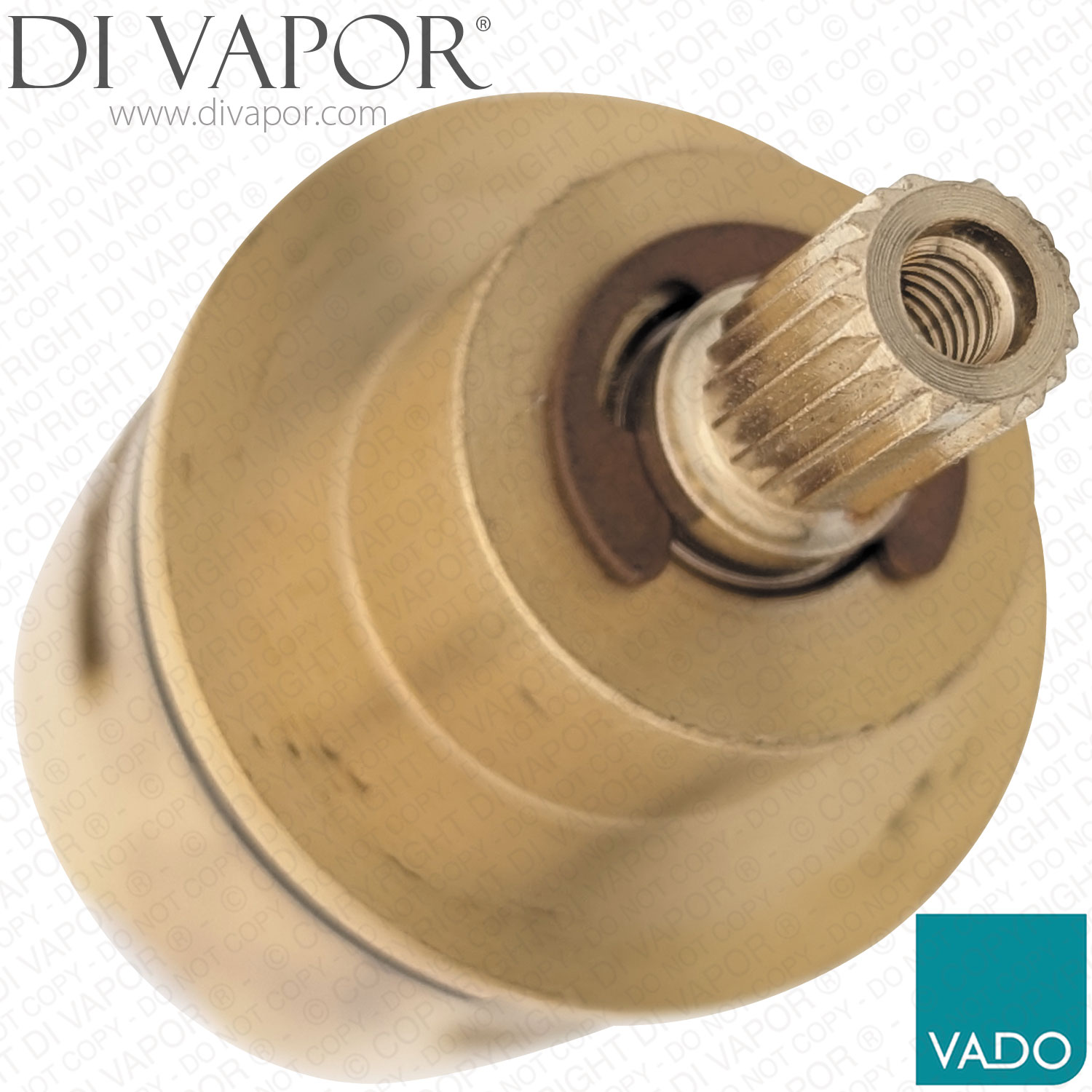

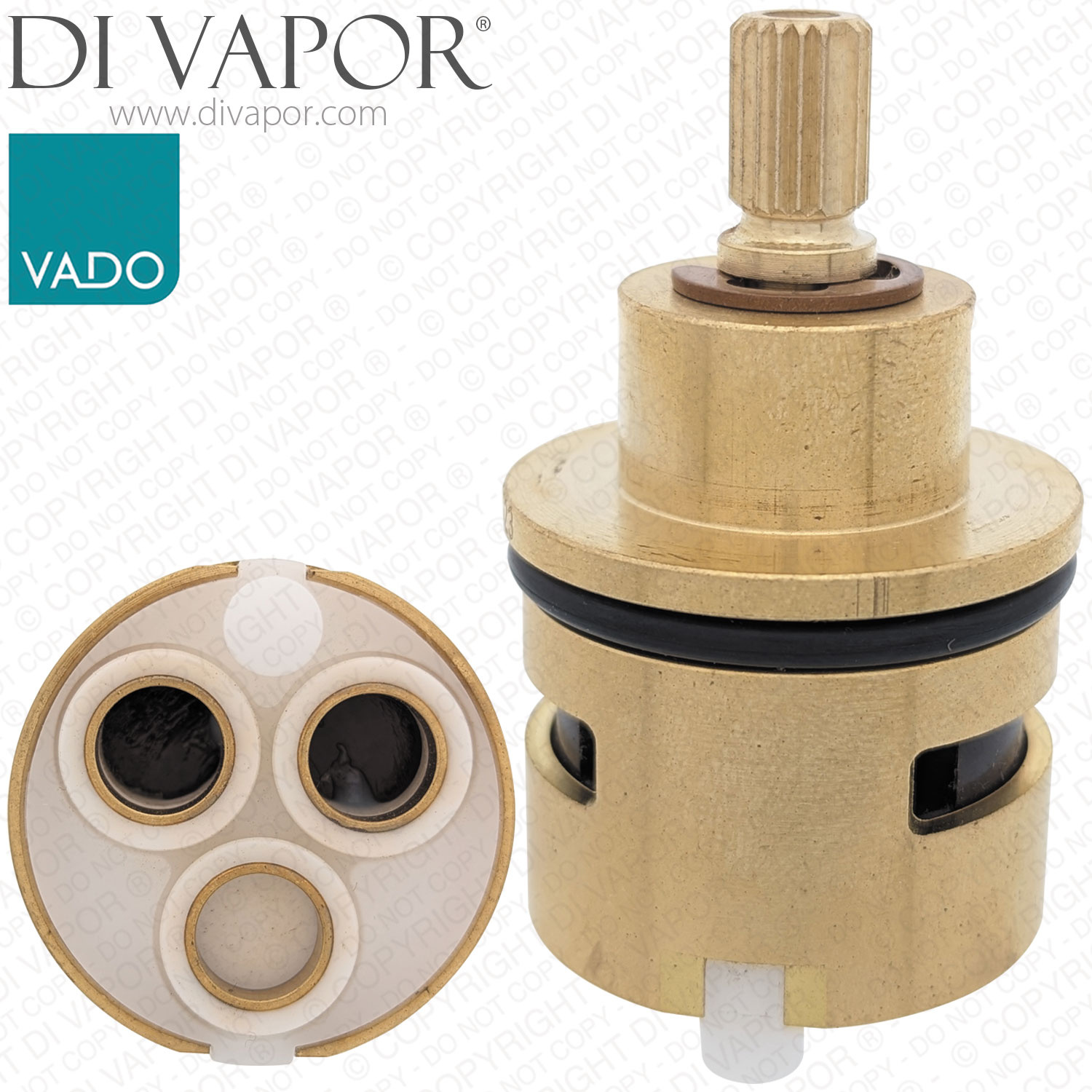

Vado FL-801-33/2SX Diverter Cartridge

The Vado FL-801-33/2SX is a ceramic diverter cartridge used in selected Vado bath shower mixers and concealed thermostatic valves. It directs water flow between outlets such as a bath spout and a shower handset. This part is suitable only for valves that specify FL-801-33/2SX in their technical documentation.

Function

This multi outlet diverter insert is used in Vado thermostatic mixer valves to switch flow between connected outlets while the thermostatic cartridge controls temperature. It is only appropriate where the official parts list states this cartridge code.

Confirmed Compatible Vado Models

• ARR-232T-CP Arrondi four hole thermostatic bath shower mixer with spout and handset
• TAB-123TWO-ARR-CP Tablet Arrondi two handle two outlet concealed thermostatic shower valve
• TAB-223TWO-ARR-CP Tablet Arrondi two handle two outlet concealed thermostatic shower valve with mini kit
• TAB-1283WO-B-ARR-CP Tablet Arrondi three outlet three handle concealed thermostatic bath valve with integrated bath outlet and handset

Other Arrondi and Tablet Arrondi valves may also use this diverter where their technical sheets list the same code. Always check the spare parts diagram or the code on the removed component.

Selection and Identification

Compatibility should be confirmed by referencing the official spare parts diagram or by matching the code on the existing diverter. Vado uses multiple diverter designs and they are not interchangeable based on appearance.

Signs That Replacement May Be Needed

Flow emerging from more than one outlet reduced ability to switch between spout and handset stiff or inconsistent diverter movement or water dripping from an unused outlet.

Purpose of Replacement

Installing a new FL-801-33/2SX diverter in a compatible Vado valve can restore correct outlet control and improve flow performance without replacing the entire mixer assembly.
