Vado FL-202-RTC 1/​2" Ceramic Disc Cartridge Right Turn Close (Clockwise)

SUMMARY

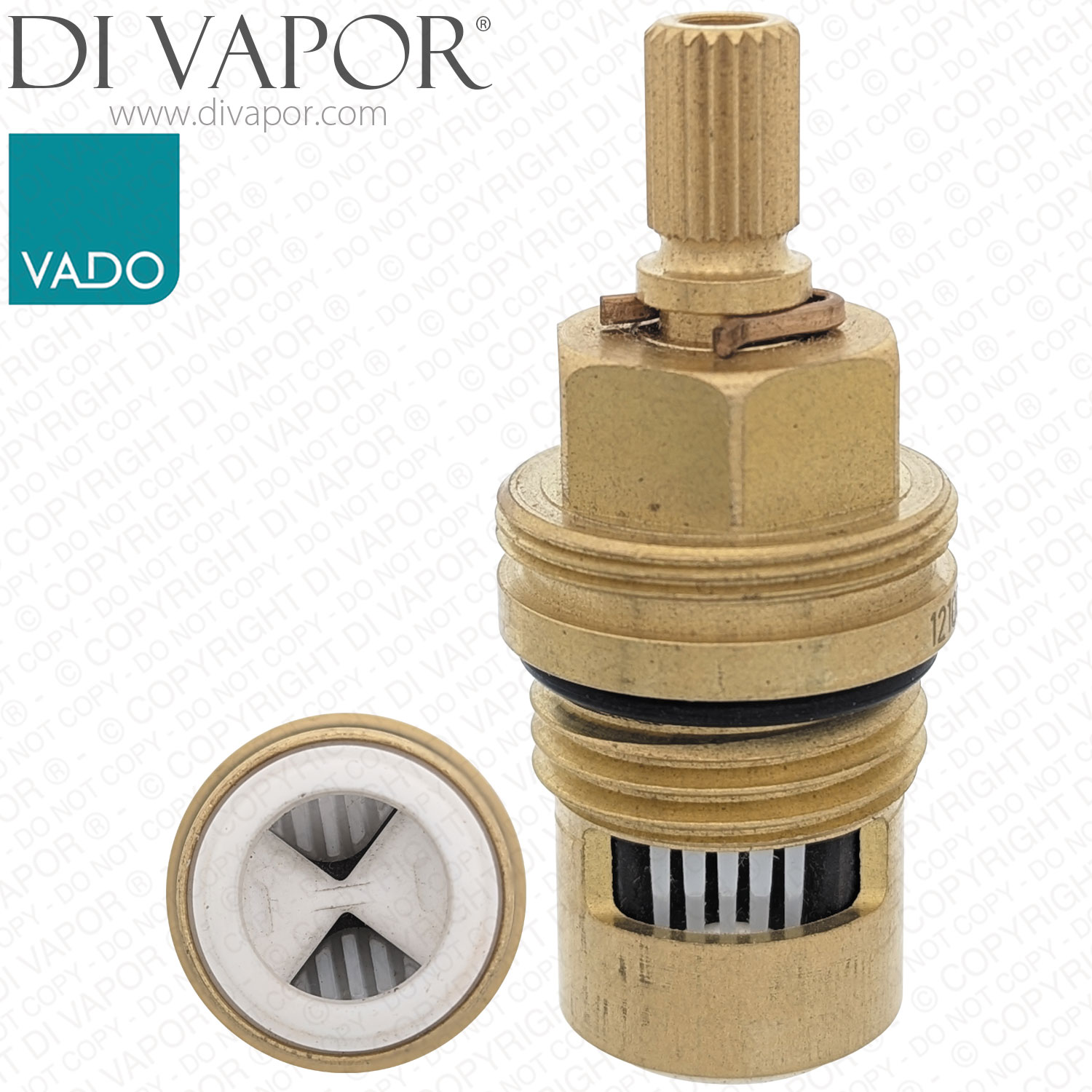

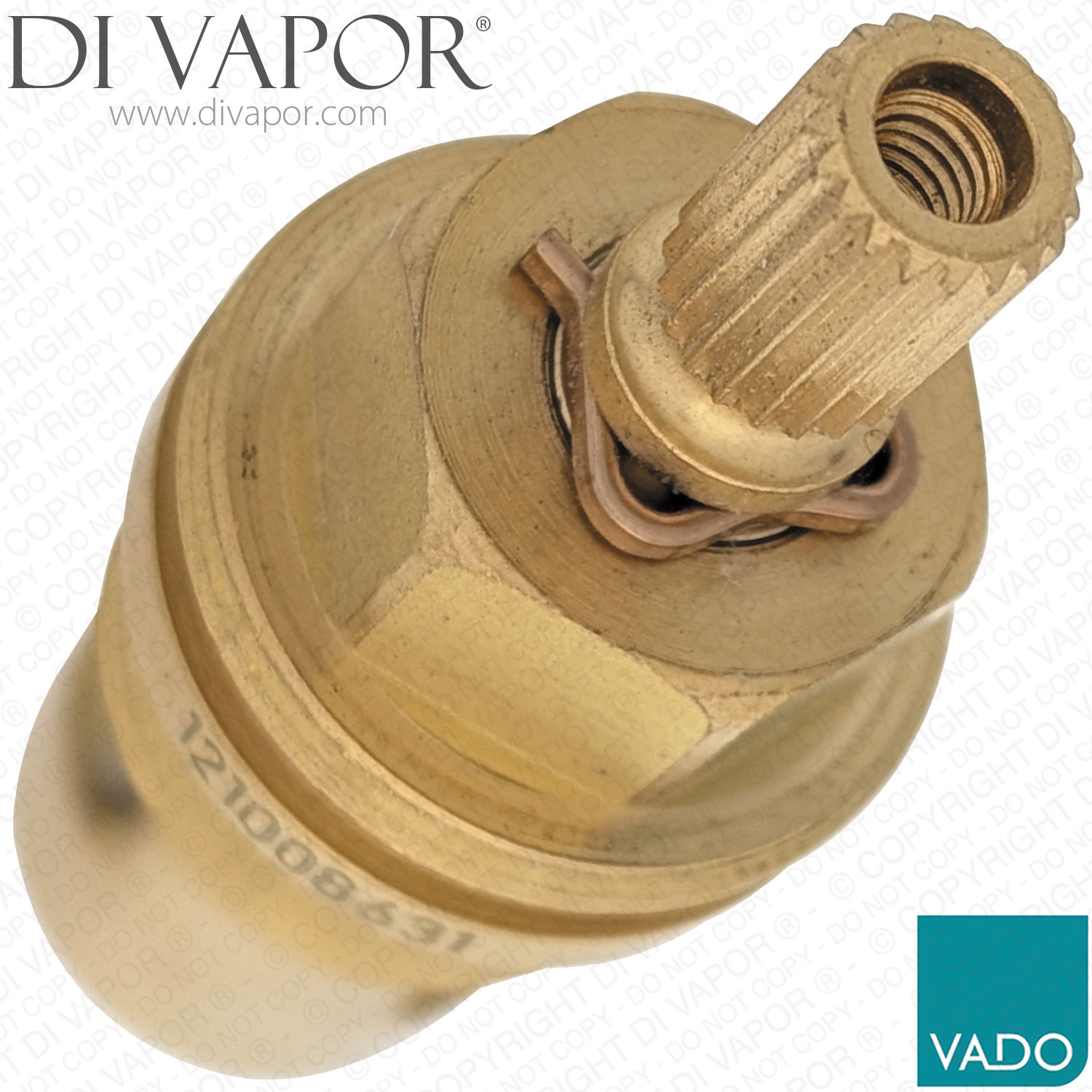

Vado FL-202-RTC 1/2 Inch Hot Ceramic Disc Cartridge Right Turn Close

The Vado FL-202-RTC is a 1/2 inch quarter turn ceramic disc cartridge used as the hot side flow control in selected Vado Arrondi three hole basin mixer taps. It provides on off shut off and smooth hot water flow control when fitted in a valve body designed for this cartridge.

Function

This cartridge operates the internal ceramic discs on the hot water side of the mixer. Turning the handle opens or closes the hot water path delivering controlled flow and a positive shut off when the tap is turned fully off.

Confirmed Compatible Vado Models and Collections

• ARR-101-CP Vado Arrondi three hole deck mounted basin mixer tap with lever handles
• ARR-201-CP Vado Arrondi three hole deck mounted basin mixer tap with cross handles

These Arrondi basin mixer models are documented as using cold ceramic cartridge FL-202-LTC and hot ceramic cartridge FL-202-RTC. Only install FL-202-RTC in mixers whose product or spare parts documentation specifies this cartridge code.

Technical Notes

FL-202-RTC is a 1/2 inch ceramic disc cartridge with right turn clockwise close action suitable for high pressure systems where Arrondi mixers are specified. It is designed for quarter turn operation with flexipipe connections and fixed spout arrangements used in the Arrondi range.

Selection and Verification

Before ordering confirm the mixer model code is ARR-101-CP or ARR-201-CP or that the removed hot cartridge is marked FL-202-RTC. Vado use several different cartridge families and similar looking cartridges may not seat correctly if the code or dimensions do not match.

When Replacement Is Recommended

Replace the FL-202-RTC cartridge if the hot side of the tap drips when off fails to shut off cleanly has restricted or irregular flow or if handle operation feels rough or stiff. Fitting the correct cartridge in a confirmed compatible Arrondi mixer restores smooth hot flow control and positive shut off without changing the complete tap.
