Burlington SP1558 Thermostatic Cartridge for HOX.052

SUMMARY

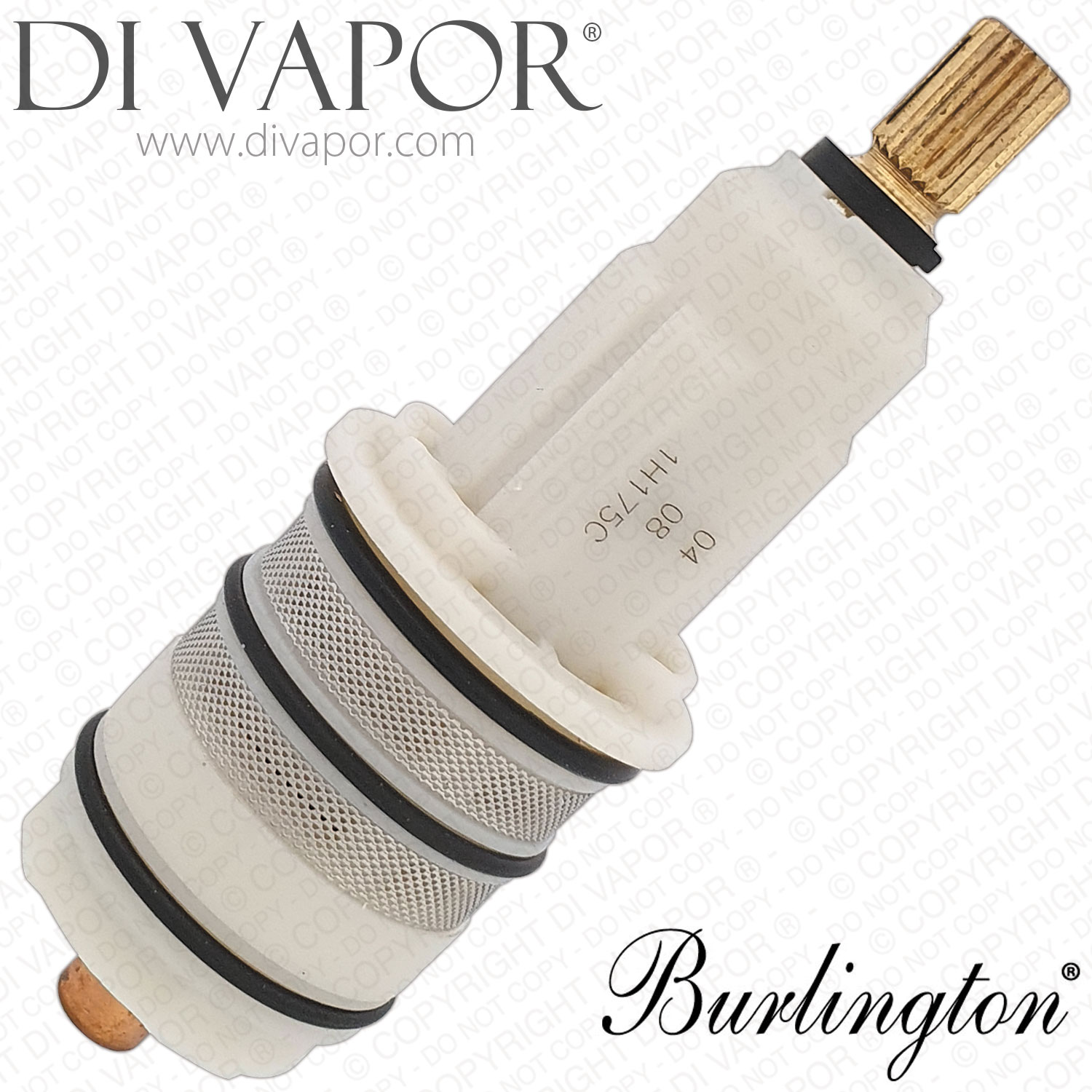

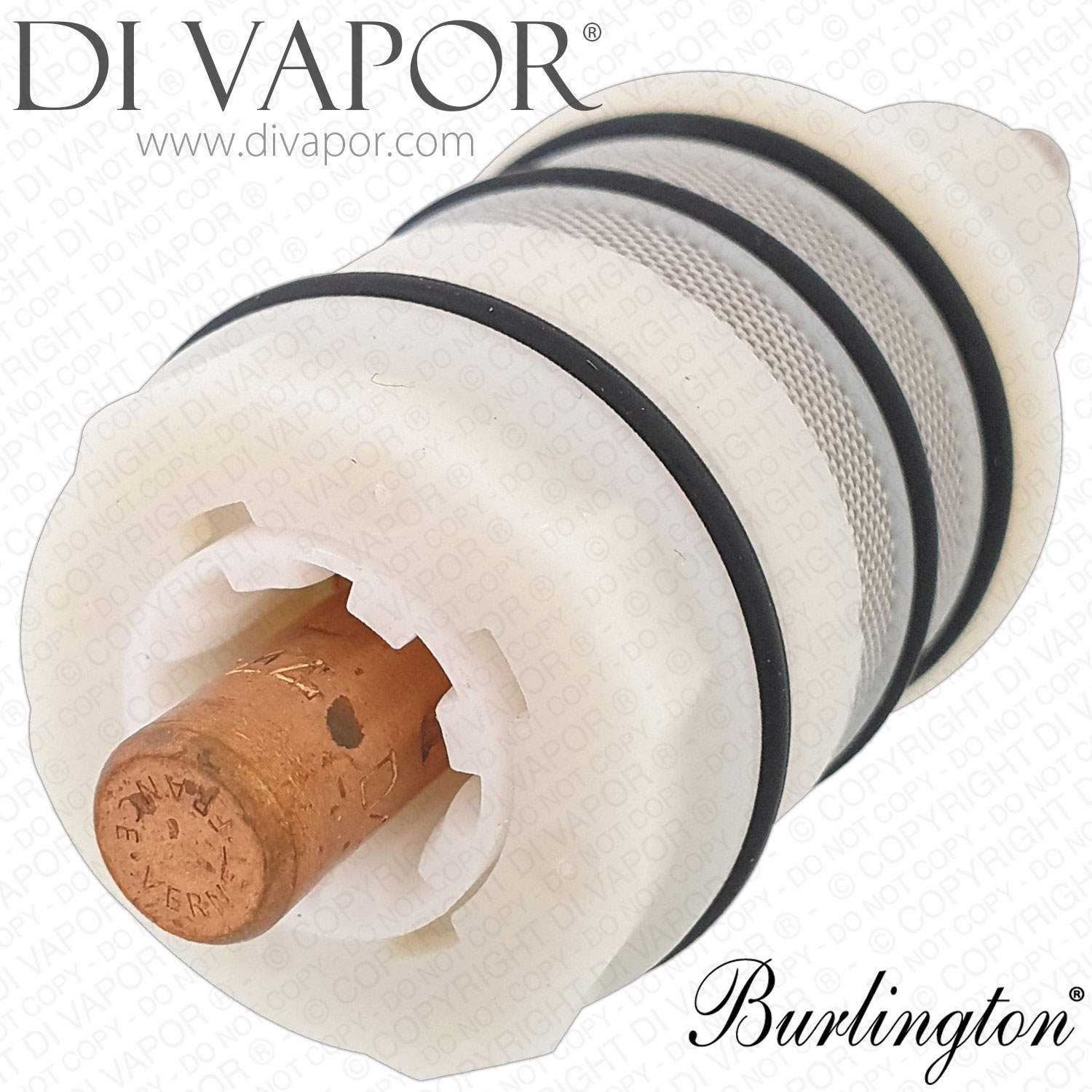

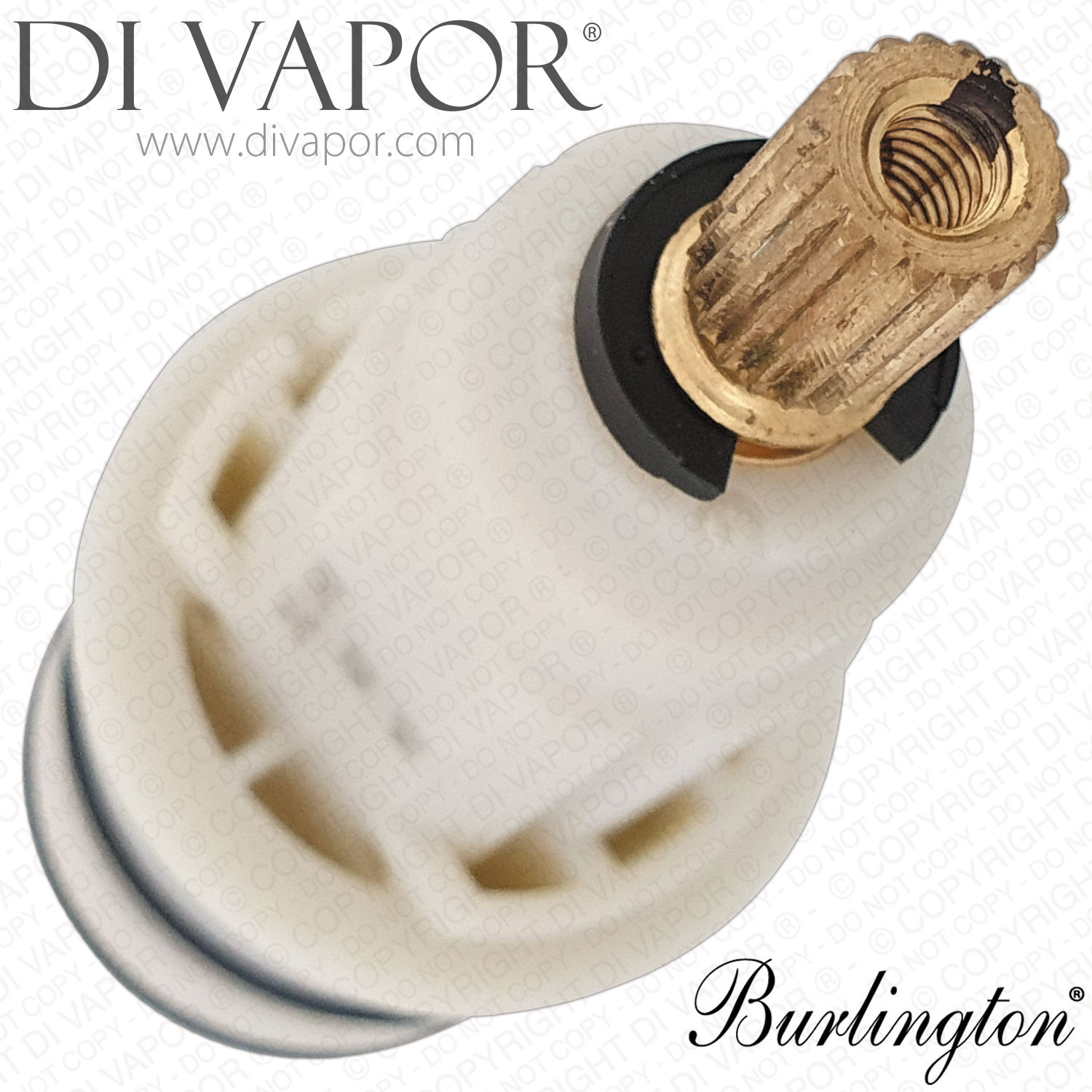

Burlington SP1558 Thermostatic Cartridge for HOX.052

This Burlington SP1558 is the thermostatic cartridge for the HOX.052 Hoxton thermostatic shower valve body. It is the temperature-control cartridge used in the HOX.052 valve across the chrome, matt black and brushed brass finish versions.

This cartridge controls the mixed showering temperature by responding to the hot and cold water supplies inside the valve body. It should be checked when the shower temperature does not correspond with the handle setting, when the valve will not run hot enough after calibration, or when the thermostatic control has become slow or unstable due to scale or debris.

Technical Details

- - Part Number: SP1558

- - Part type: thermostatic cartridge

- - Valve range: HOX.052 Hoxton thermostatic shower valve body

- - Valve outlet type: single outlet from the top of the valve body

- - HOX.052 valve inlet and outlet connection reference: G1/2

- - HOX.052 valve pipe centres: 150mm

- - HOX.052 valve body width reference: 288mm

- - HOX.052 valve body height reference: 66mm

- - HOX.052 valve body depth reference: 132mm

- - Recommended hot supply temperature for the HOX.052 valve: 55°C to 65°C

- - Maximum mixed shower outlet temperature reference: 46°C

- - Suggested temperature pre-set after servicing: 38°C

Confirmed Compatible Burlington Valve Models

- - HOX.052CP Hoxton Thermostatic Shower Valve Body Chrome

- - HOX.052MB Hoxton Thermostatic Shower Valve Body Matt Black

- - HOX.052BB Hoxton Thermostatic Shower Valve Body Brushed Brass

Fitting and Service Notes

Isolate the water supplies before removing the handle assembly or cartridge. After the temperature handle or cartridge has been removed, the thermostatic spindle should be recalibrated before refitting the handle. Turning the exposed spindle clockwise reduces the temperature and turning it anti-clockwise increases the temperature.

The cartridge can be removed for cleaning where debris or scale is affecting temperature response. Wash the thermostatic cartridge with clean running water, dry it and lightly grease the seals with silicone grease only before refitting all parts in sequence.

Troubleshooting

- - Symptom: output temperature does not match the selected temperature. Likely Cause: thermostat not adjusted to the water system. Solution: recalibrate the thermostatic spindle and refit the handle at the correct set temperature.

- - Symptom: shower will not run hot enough. Likely Cause: maximum temperature setting is incorrect or hot supply temperature is too low. Solution: check the water heater setting and recalibrate the valve.

- - Symptom: very low flow or no flow. Likely Cause: inadequate supply pressure or debris around internal components. Solution: check hot and cold feeds and inspect the valve filter and check valve.

Related Spares You May Need

- - Burlington SP1557 Flow Control Cartridge for HOX.052

- - Burlington SP1559 Check Valve for HOX.052

- - Burlington SP1560 Chrome Finish Flow Control Handle for HOX.052CP

- - Burlington SP1563 Chrome Finish Thermostatic Handle for HOX.052CP

- - Burlington SP1561 Matt Black Finish Flow Control Handle for HOX.052MB

- - Burlington SP1564 Matt Black Finish Thermostatic Handle for HOX.052MB

- - Burlington SP1562 Brushed Brass Finish Flow Control Handle for HOX.052BB

- - Burlington SP1565 Brushed Brass Finish Thermostatic Handle for HOX.052BB

Before ordering, match the valve code and finish against the existing HOX.052 valve body. The finish-specific handles are not interchangeable by finish reference, while SP1558, SP1557 and SP1559 are listed for HOX.052 all finishes.
