Stern Jupiter 2040 Touch Free Electronic Flush Valve for Urinals (125900) (Stainless Steel Finish)

SUMMARY

Stern Jupiter 2040 Touch Free Electronic Flush Valve for Urinals (125900) (AISI316 Stainless Steel)

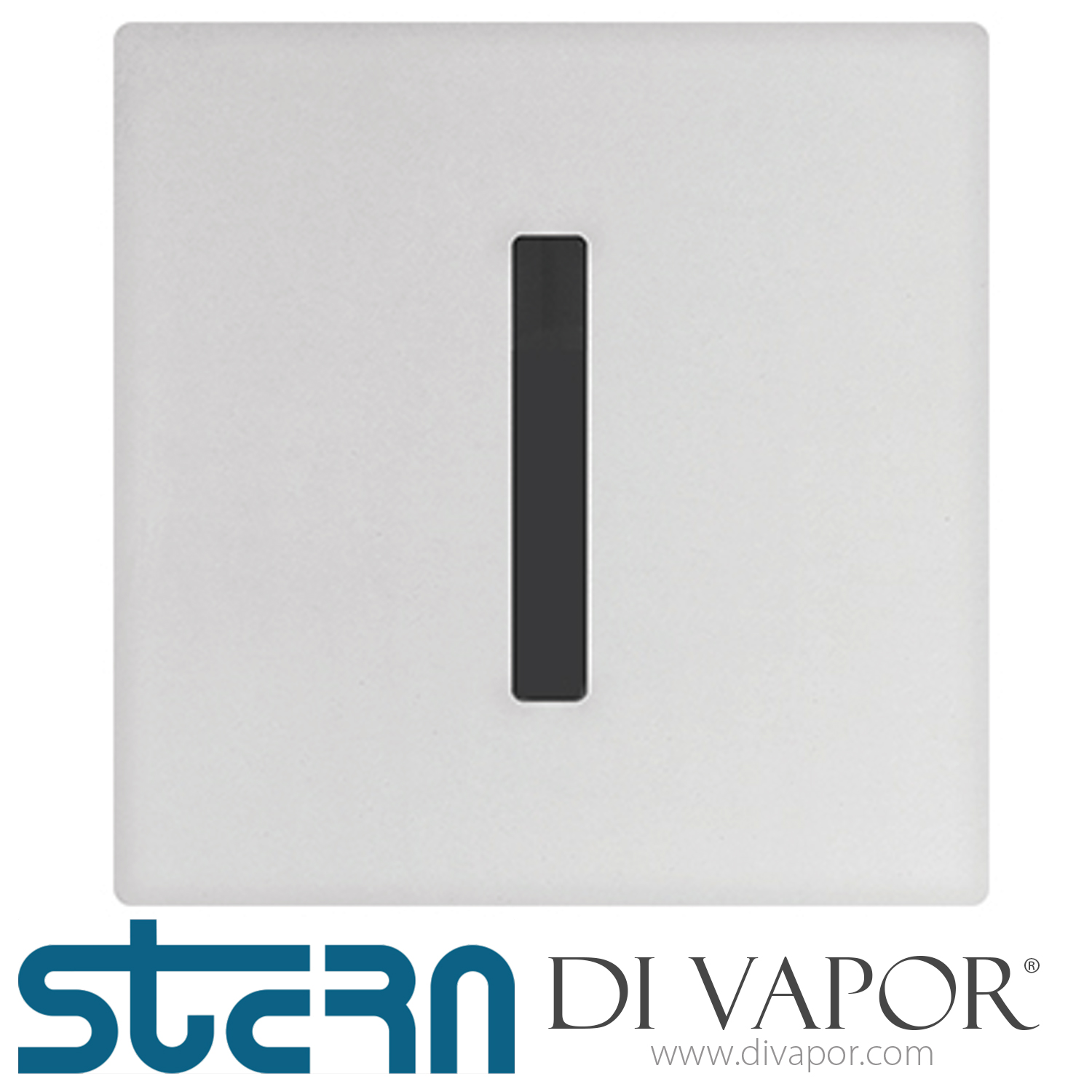

The faceplate measures 140mm x 140mm

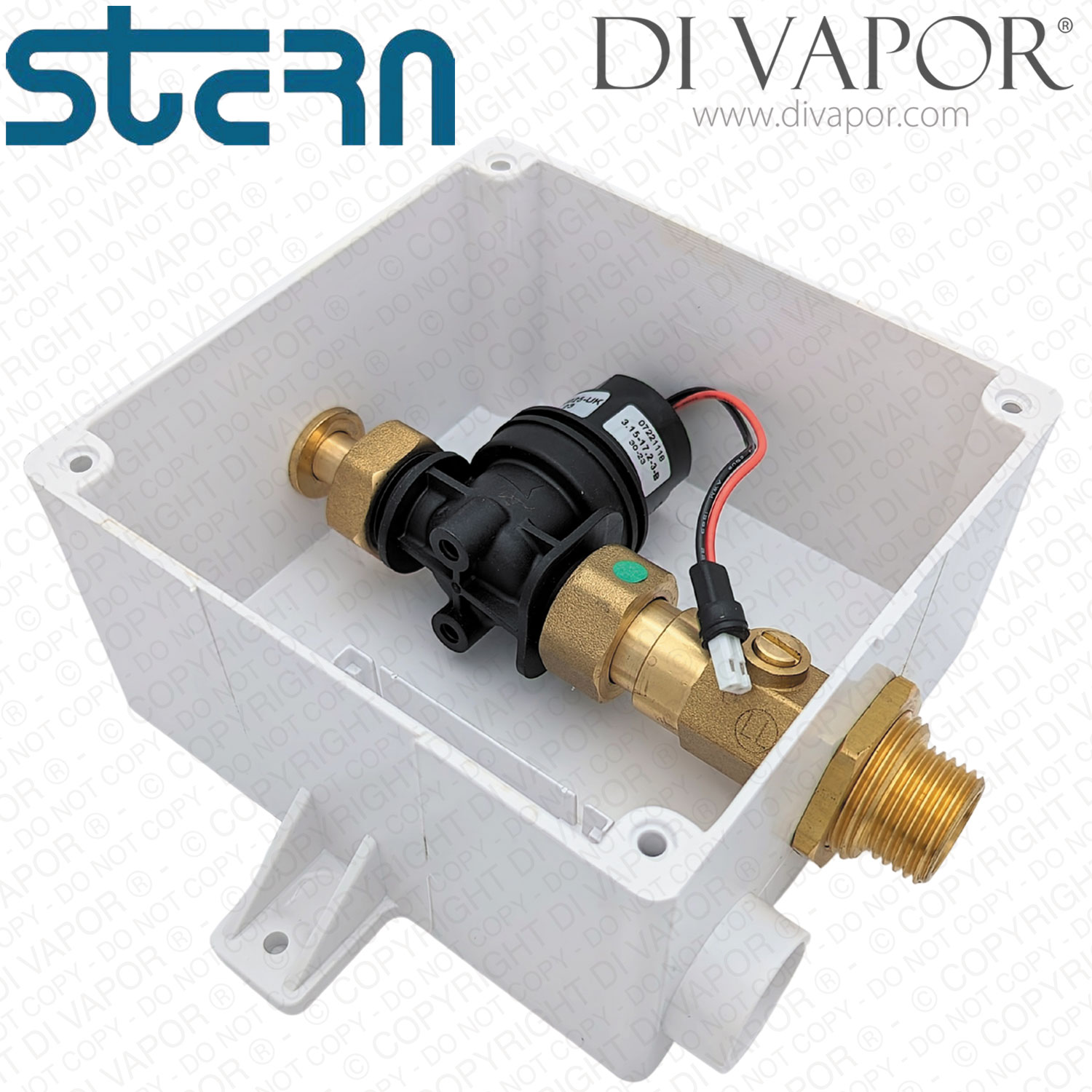

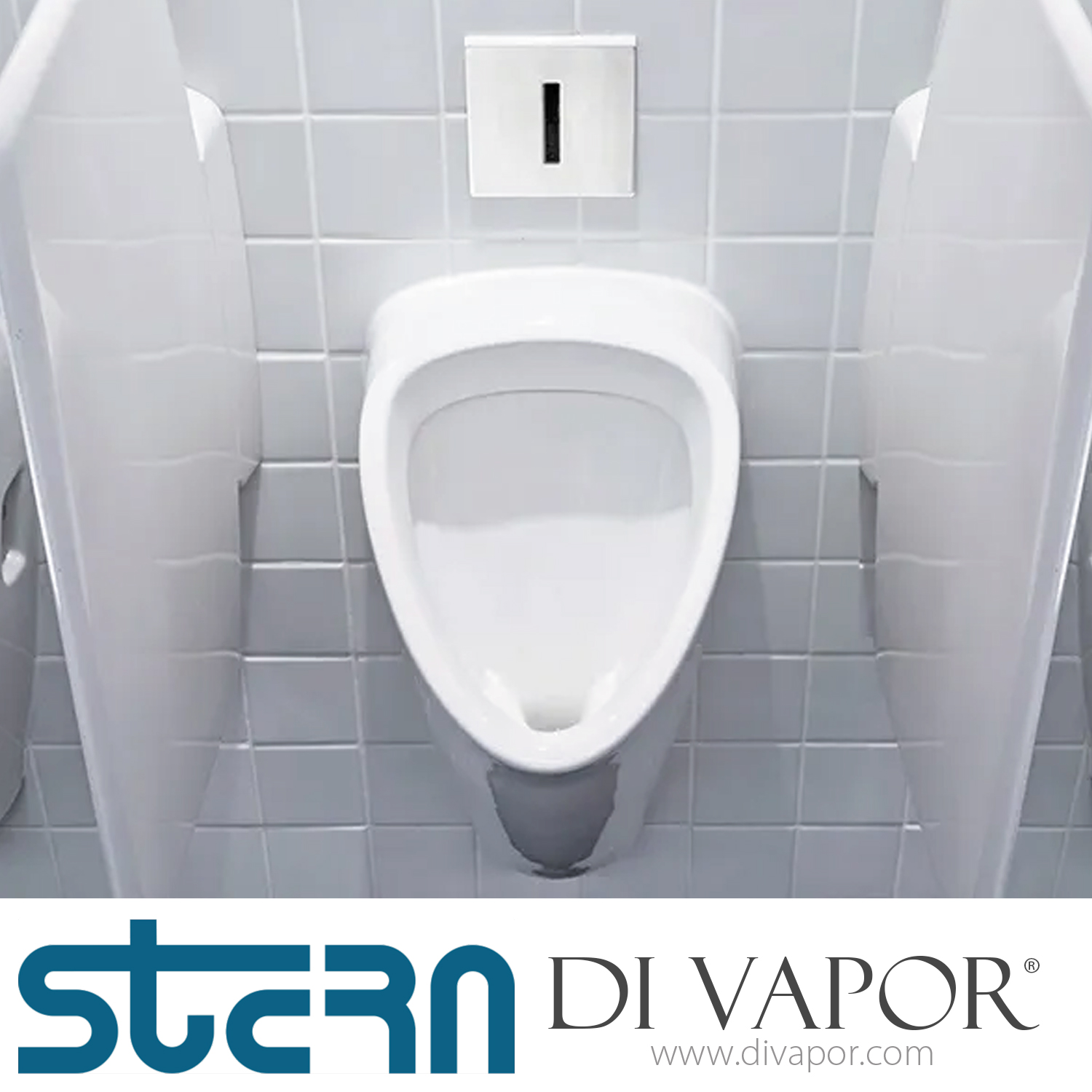

Stern Jupiter 2040 125900 is a concealed touch free electronic flush valve for urinals with a stainless steel faceplate. It is operated by an infrared sensor and is used to provide automatic urinal flushing once the user moves away from the urinal.

This battery powered Jupiter 2040 valve is intended for commercial and public washroom urinal installations where hands-free operation, water saving and hygiene flushing are required. The valve uses an internal 9V battery supply and the stainless steel panel gives a clean vandal-resistant front finish for exposed washroom areas.

Technical Details

- - Brand: Stern

- - Product code: 125900

- - Product type: concealed electronic flush valve for urinals

- - Operation: infrared sensor activation

- - Power supply: internal 9V battery for Jupiter 2040 125900

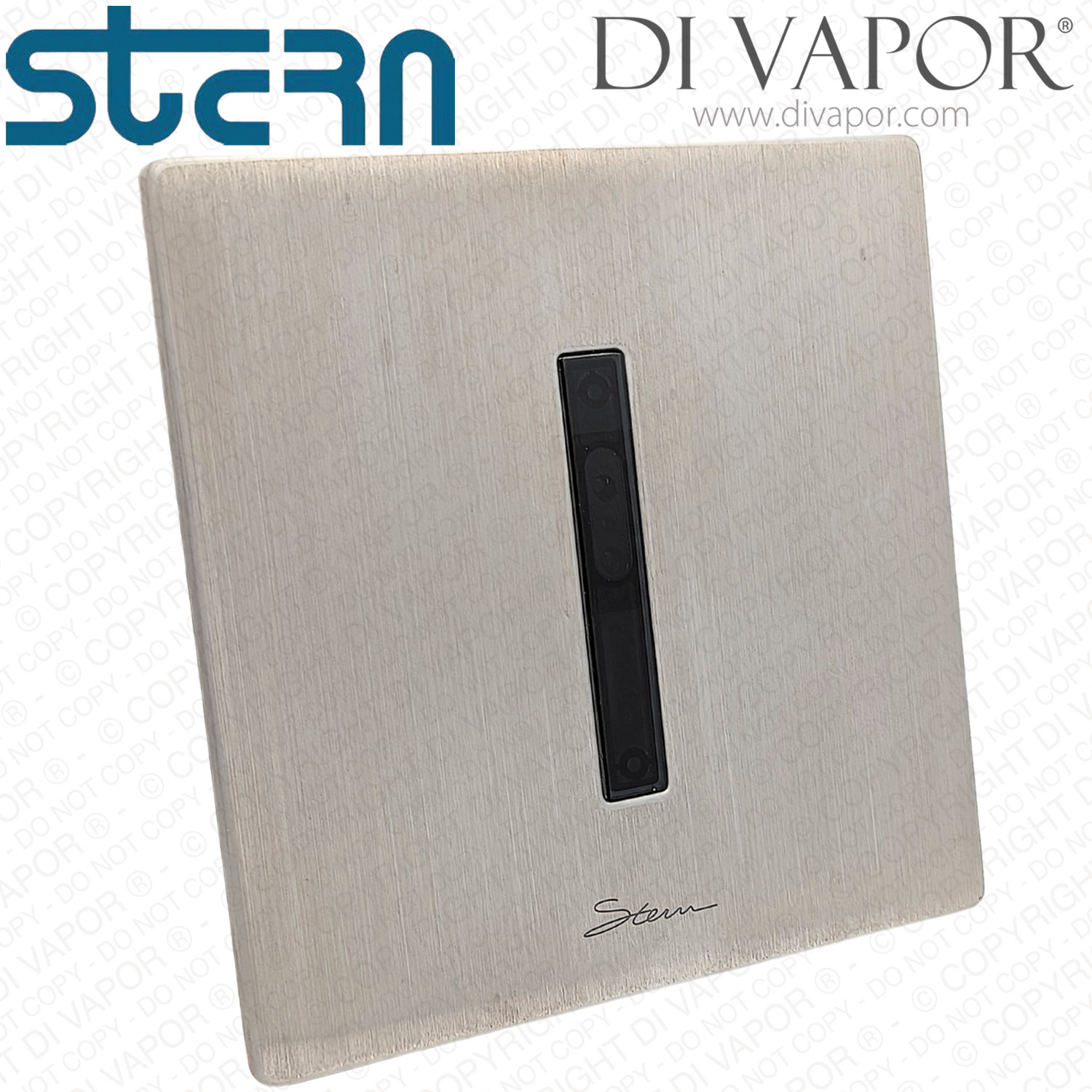

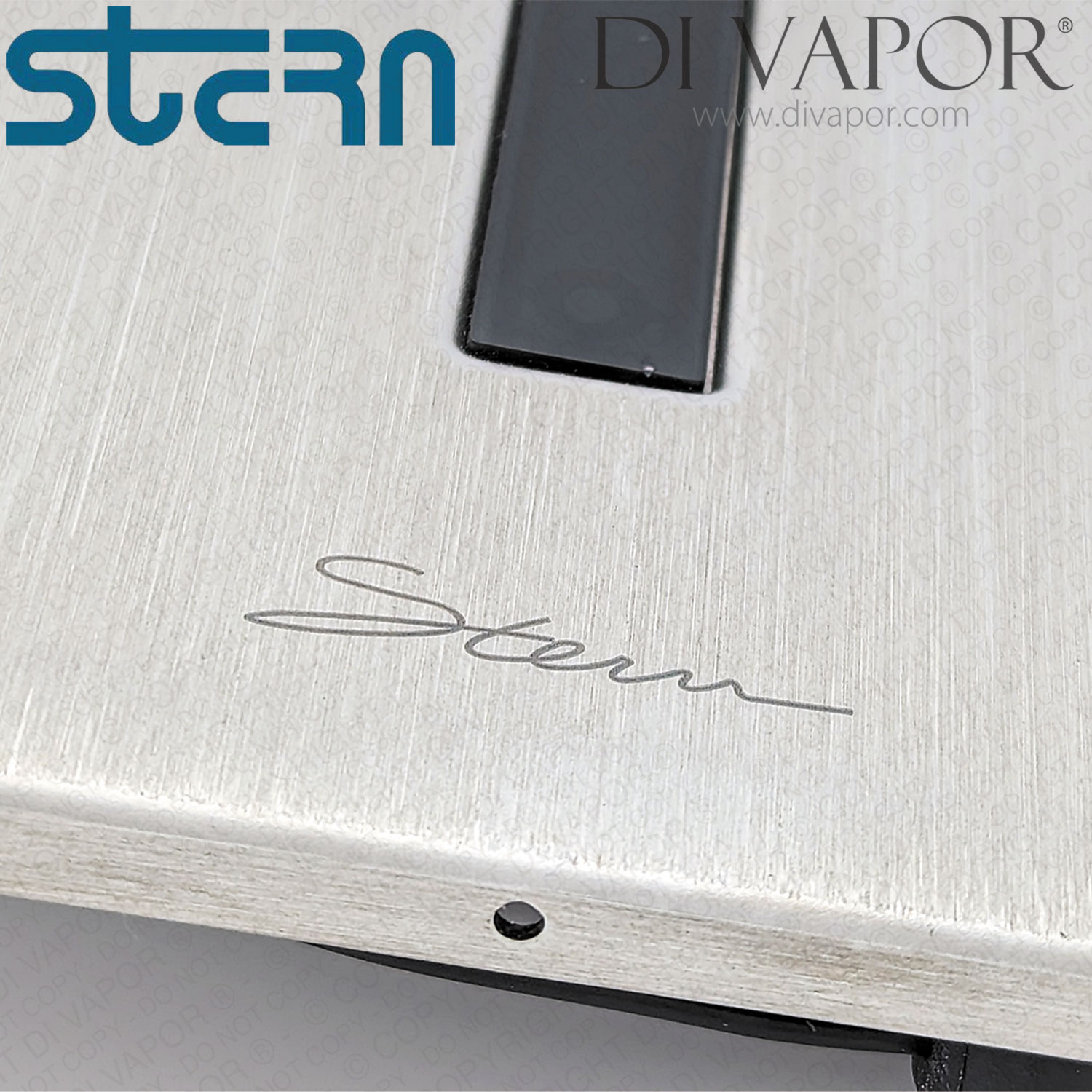

- - Faceplate finish: AISI316 stainless steel

- - Faceplate size: 140mm x 140mm

- - Recommended operating water pressure: 0.5-8.0 bar

- - Factory sensor range: 600mm

- - Factory flushing time: 6 seconds

- - Adjustable flushing time range: 3 to 20 seconds when set with the Stern remote control

- - 24 hour hygiene flush function included

Before Ordering and Installation Checks

Check that the existing valve is the Stern Jupiter 2040 battery version with code 125900 before ordering. The transformer powered Jupiter 2040 E and the H or HE variants use different power or panel arrangements.

Before installation the supply pipework should be flushed so debris, sealing tape or metal particles do not enter the valve. Avoid positioning the sensor directly opposite a mirror or another infrared electronic product as reflections can affect sensor operation.

Troubleshooting Checks

- - Symptom: sensor flashes continuously when a user enters range. Likely cause: low battery. Solution: replace the 9V battery.

- - Symptom: valve does not flush and the LED does not flash. Likely cause: sensor range, flat battery or reflection issue. Solution: check the battery, sensor position and surrounding reflective surfaces.

- - Symptom: valve does not flush and the LED flashes. Likely cause: disconnected electronic unit or solenoid connector, debris in the solenoid, diaphragm issue or excessive water pressure. Solution: inspect the internal connections and water pressure before replacing parts.

- - Symptom: reduced water flow. Likely cause: blocked filter. Solution: isolate the water supply, remove the filter, clean it and refit before checking for leaks.

Related Spares You May Need

- - Stern 07040214 Panel Kit for Jupiter 2040 2040E

- - Stern 07220345 10-Pack Sensor Kit for Jupiter 2040

- - STERN 07221103 8-Pack Solenoid & Housing Kit

- - Stern 08530013 Filter

- - Stern 06530100 Battery Box

- - Stern 07100005 13B Remote Control with 13 Keys
