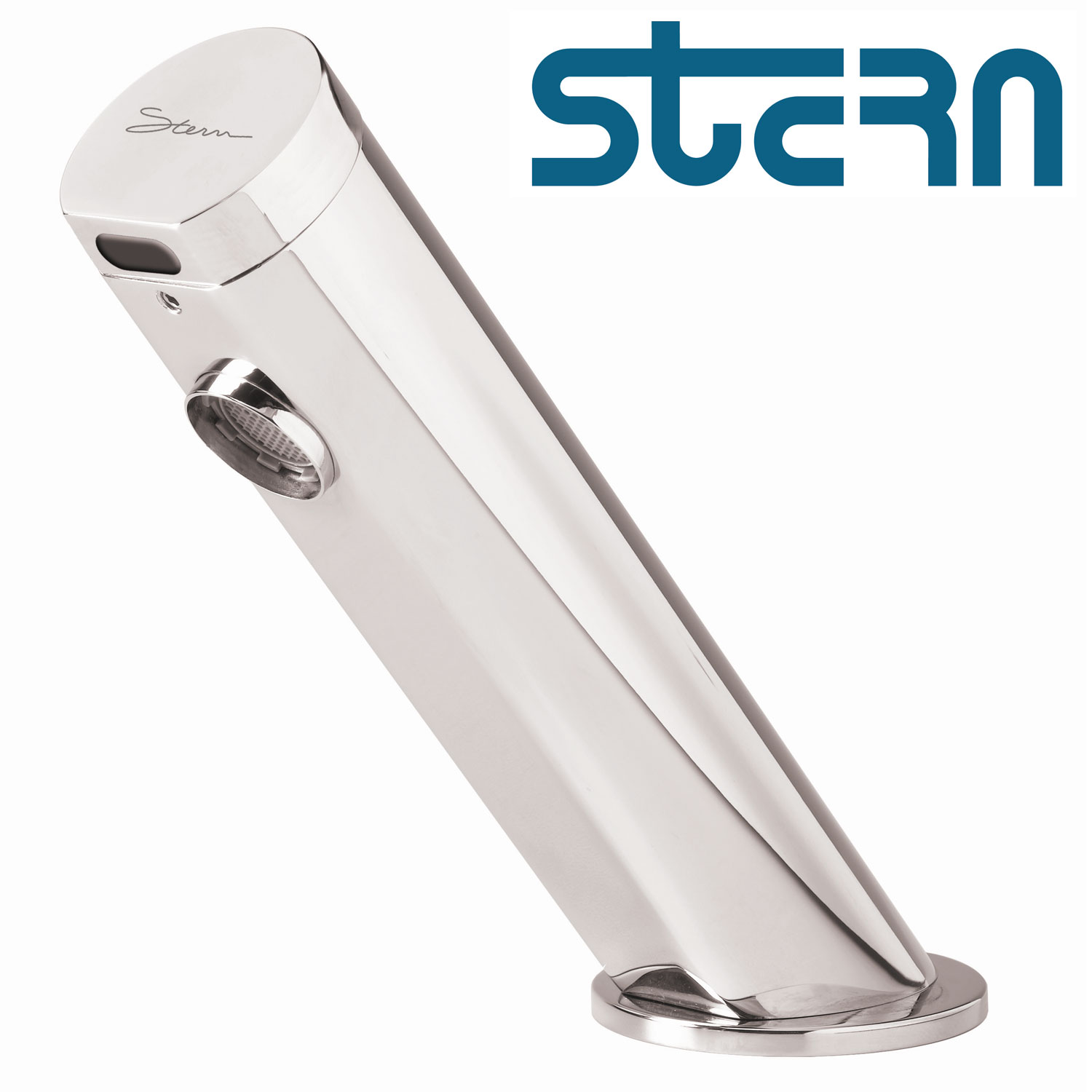

STERN 225710 TOUCH FREE Tap E AB1953 (UK Transformer)

Summary

STERN 225710 TOUCH FREE Tap E AB1953 (UK Transformer)

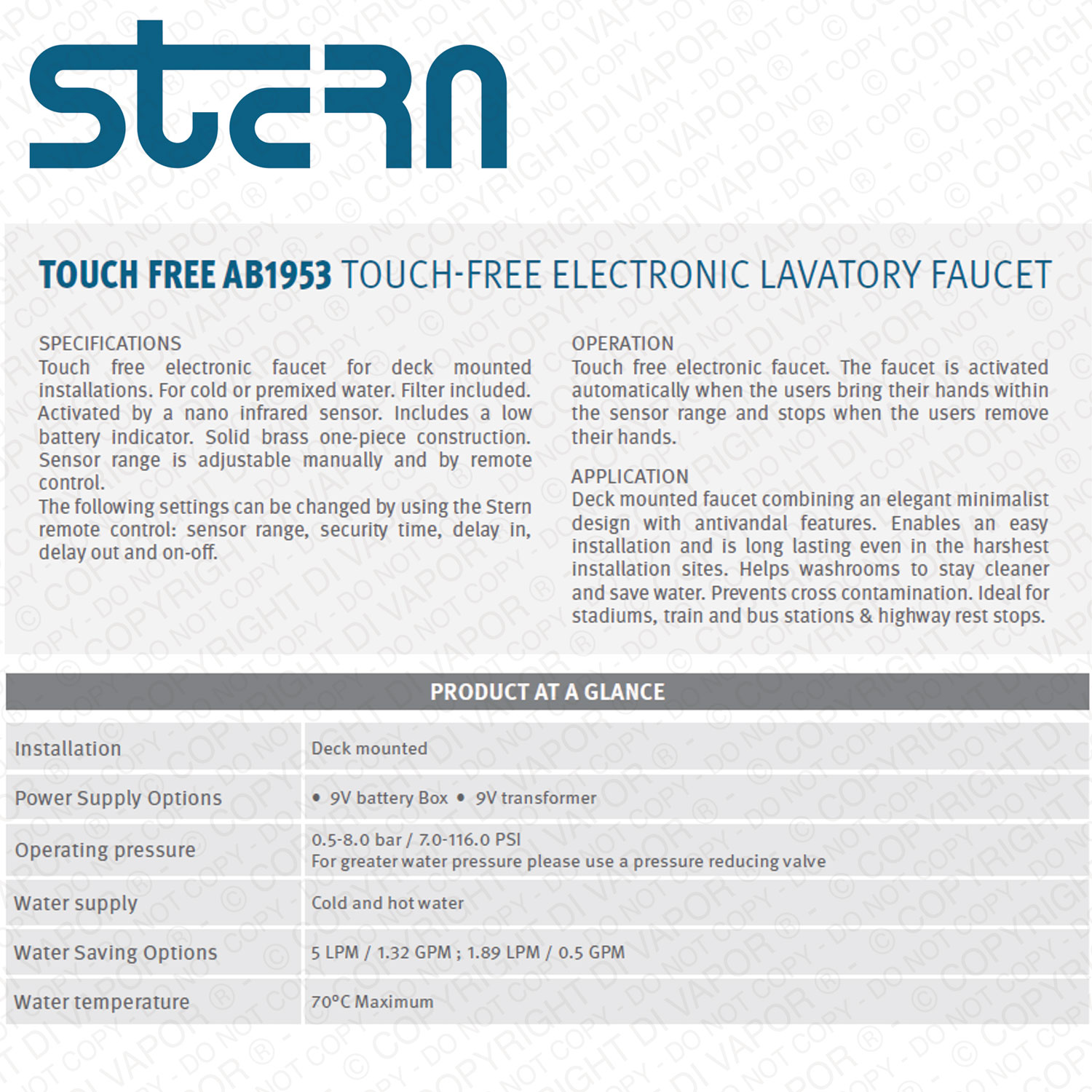

SPECIFICATIONS

Electronic lavatory faucet activated by infrared sensor. For cold or premixed water. Solid brass one-piece construction. Available with an internally mounted 9V battery, externally mounted 9V battery or a 9V transformer. Filters included. Sensor range is adjustable by remote control. Other sensor settings (delay in, delay out and security time) can also be adjusted by remote control. Faucet will automatically shut off after being used for more than 90 seconds. Sensor features a low battery level indicator.

OPERATION

Touch free electronic faucet .The faucet is activated automatically when the user brings his hands within the sensor range, and stops when the user removes his hands. APPLICATION Deck mounted faucet combining an elegant design with anti-vandal features. Helps washrooms stay cleaner and save water. Prevents cross contamination.

Installation

• Lavatory mounted

Power Supply

• 9V Transformer

Operating Pressure

• 0.5-8.0 BAr / 7.0-116 PSI. For a pressure over 8 bar use a pressure reducing valve.

Water Supply

• Cold or premixed water

Water Flow

• 6 LPM / 1.58 GPM - SSr PCA stream

Water Saving Options

• 6 LPM / 1.58 GPM ; 4 LPM / 1 GPM ; 3 LPM / 0.8 GPM 1.89 LPM / 0.5 GPM ; 1.3 LPM 0.35 GPM

Water Temperature

• 70 degree celsius Maximum

Security Time

• 90 seconds. Adjustable with Stern’s remote control.
