Ultra VH041A Square Flow Control Handle - Chrome
SUMMARY
Ultra VH041A Square Flow Control Handle - Chrome
The Ultra VH041A is a square chrome flow control handle for selected concealed thermostatic shower valve assemblies. It is used on the flow control or on-off side of the valve and should be checked against the existing handle shape, spline count and valve model before ordering.
This handle is metal with a chrome finish and has a square face. It is not the thermostatic temperature control handle; the matching square thermostatic handle is listed separately as VH041.
Technical Details
- - Part Number: VH041A
- - Handle type: square flow control handle
- - Finish: chrome
- - Material: metal
- - Face size: 42mm x 42mm
- - Height or depth: 31mm
- - Spline count: 20 splines
Confirmed Compatible Models
- - Ultra Series L Twin Concealed Thermostatic Shower Valve Chrome JTY301 Spare Parts
- - Premier / Nuie JTY302 Twin Thermostatic Shower Valve With Diverter Spare Parts
- - Ultra Series L Triple Concealed Thermostatic Shower Valve Chrome JTY303 Spare Parts
- - Premier / Nuie JTY311 Minimalist Square Shower Spare Parts
- - Hudson Reed PIOV31 Pioneer Square Twin Concealed Valve - Brass Trimset Shower Spare Parts
- - Ultra PBS012 TRIPLE Option 1 Shower Bundle Spare Parts
Before Ordering
- - Compare the existing handle with the square 42mm x 42mm face size.
- - Check the 20 spline connection before purchase.
- - Confirm whether the required handle is the flow control handle VH041A or the thermostatic control handle VH041.
- - If the shower is dripping from the head or outlet when turned off, the issue is normally linked to a flow cartridge or seal rather than the handle itself.
Related Spares You May Need

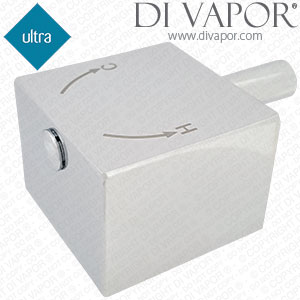

- - Ultra VH041 Square Thermostatic Control Handle - Chrome

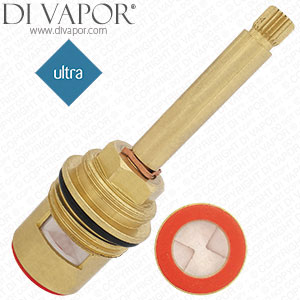

- - Ultra SVR22W G 3/4" Hot CD Valve WRAS Approved

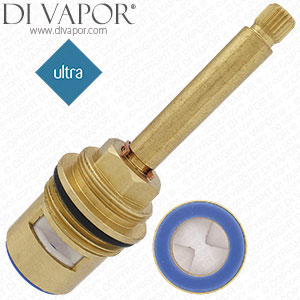

- - Ultra SVR21W G 3/4" Cold CD Valve Flow Cartridge
- - SC50T20 Crosswater Thermostatic Cartridge Valquest SC50-T20 and SC50T20-M
- - Ultra SVQ07 Diverter Cartridge for A3023 Triple Shower Mixer Valves
- - Ultra SVQ04 Flow Cartridge Shroud
- - Ultra SVQ05 Shroud For Valquest Twins / Triples
- - Premier V106 90mm Flow Cartridge
