Trevi Boost 0962586 Volume Control Flow Handle
Send a photo of your item and we'll help confirm it.
Summary
Trevi Boost 0962586 Volume Control Flow Handle (0962586)

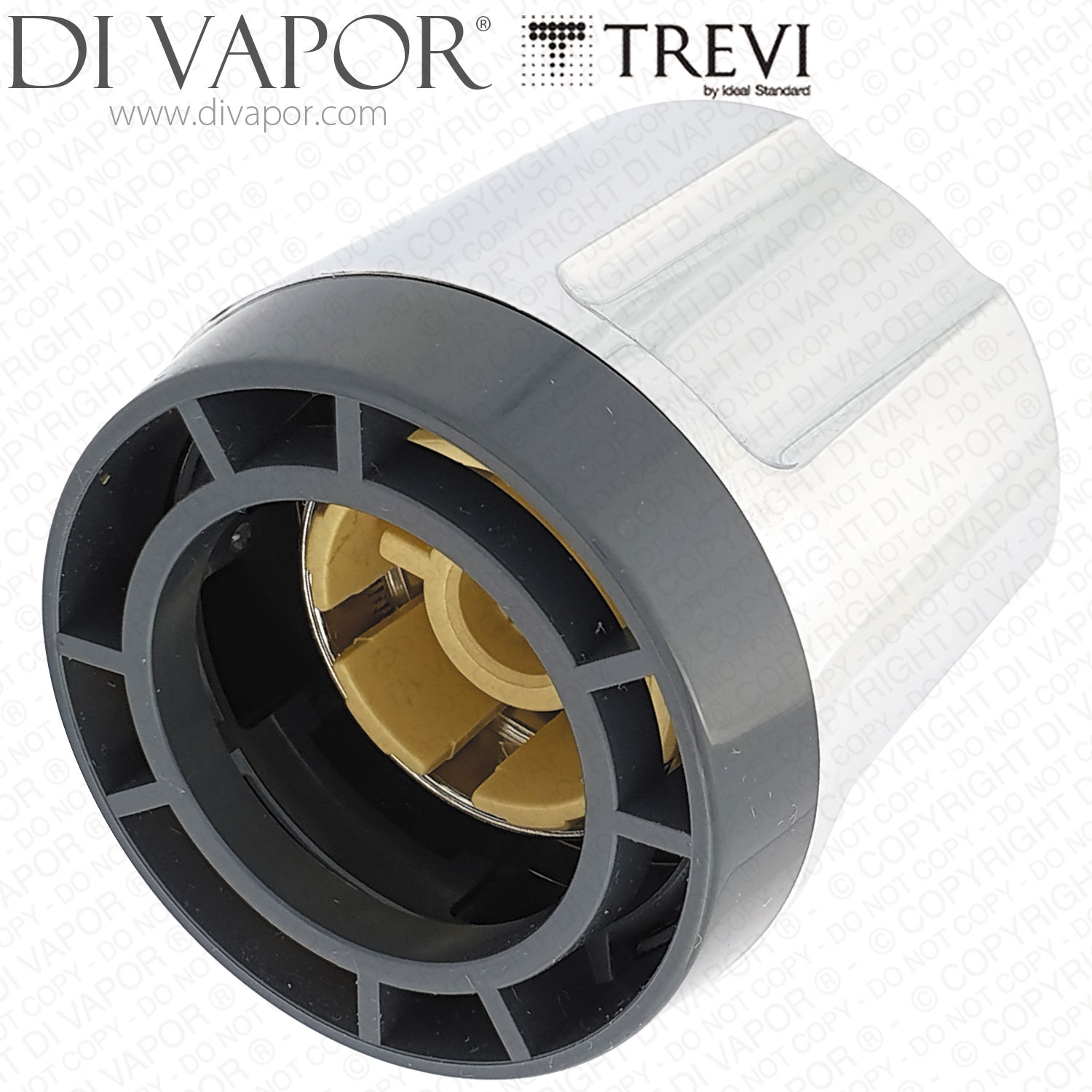

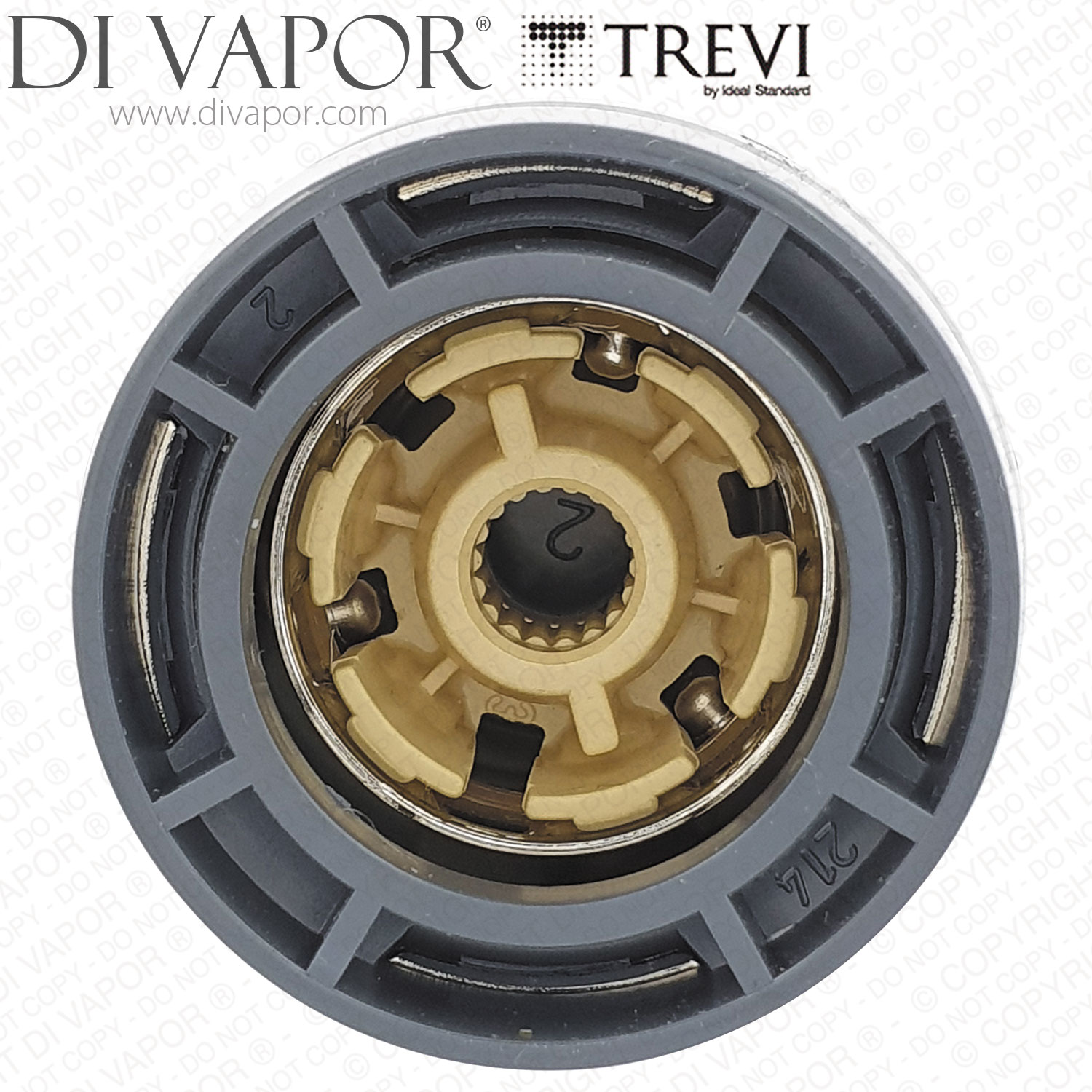

The Trevi Boost 0962586 volume control flow handle is an external shower valve handle used to operate the flow or volume control on Trevi Boost shower valve assemblies.
This handle is the customer-facing control used to turn and adjust the water flow. It works with the internal handle carrier and drive mechanism, so the existing carrier, clutch drive shaft gear set and flow cartridge should also be checked if the handle turns without engaging properly or the shower does not shut off fully.
Technical Details
| Brand | Trevi / Ideal Standard |
|---|---|
| Part Number | 0962586 |
| Part type | volume control flow handle |
| Application | Trevi Boost shower valve flow control |
| Diagram reference | volume control handle position Ref. 23 on the Trevi Boost E9005AA technical spares diagram |
| Associated manufacturer-style code shown for this position | A962586-- |
| Finish suffixes shown for the associated code | AA chrome, AZ light gold, AC white |
Before You Order
Check that the existing shower is a Trevi Boost valve and that the part required is the flow or volume control handle rather than the temperature handle. If the handle is damaged but the valve is still difficult to operate, inspect the Trevi Boost 096165900 Volume Control Handle Carrier, Trevi Boost 096306700 Clutch Drive Shaft Gear Set and Trevi Boost 096164800 Shower Cartridge before ordering.
Confirmed Compatible Models
- Trevi Boost Built-In Mains Pressure Shower Valve and Elipse BIV Shower Kit E9005AA GEN1
- Trevi E9105AA Boost Exposed Mains Pressure Shower Valve and Elipse EV Single Function Kit
Related Spares You May Need
- Trevi Therm A962599AA Shroud Cover Sleeve for Temperature Handle (Ideal Standard)
- Trevi A953154AA11 Shower Valve Faceplate (Ideal Standard)
- Trevi Boost 0963347 Temperature Control Handle
- Trevi Boost 096165900 Volume Control Handle Carrier
- Trevi Boost 096306700 Clutch Drive Shaft Gear Set
- Trevi Boost 096164800 Shower Cartridge
- Trevi Therm A962585NU Cap for Handles (Black)
- Trevi E918322NU Screw M4 x 9.5mm (Ideal Standard E918322NU)
- Trevi A960489NU Gear Slip Clutches for Trevi Therm & Boost Valves (Pair)
- Ideal Standard A911760 WASHERS for TREVI BOOST SHROUD
