A962589NU Ideal Standard / Trevi Trevitherm Temperature Control Nut
Send a photo of your item and we'll help confirm it.
Summary
A962589NU Ideal Standard / Trevi Trevitherm Temperature Control Nut
These Ideal Standard spares are compatible with shower valves:
- (PARENT-268) Trevi Boost Built-In Pressure Shower with Elipse
- (PARENT-270) Trevi Boost Exposed Shower
- Trevi Therm Shower with Red Override Button (Year: Before 1997)

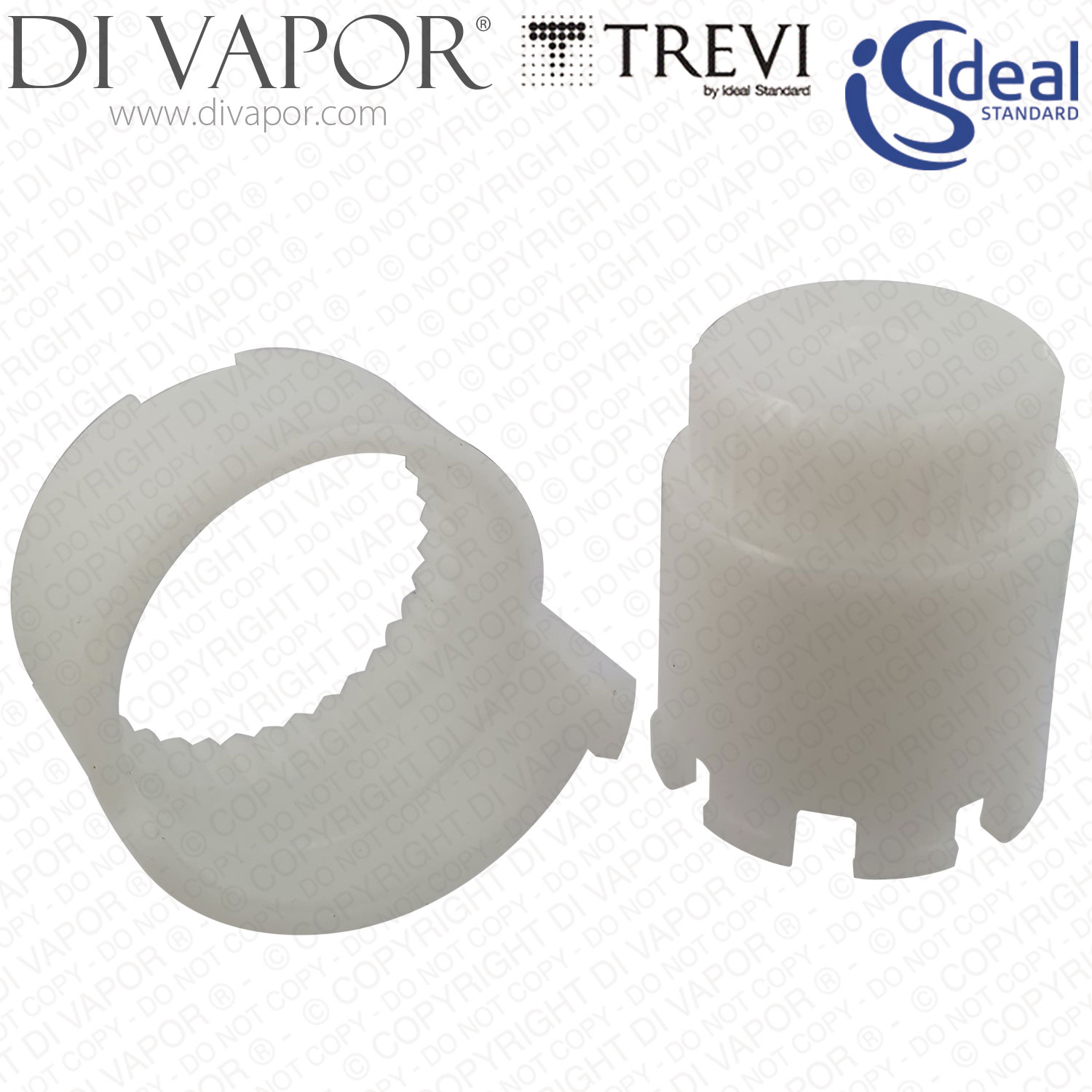

The Ideal Standard A962589NU is a temperature control nut, also known as a temperature handle carrier, for selected Trevi Therm, Trevitherm and Trevi Boost shower valves. It is the internal carrier behind the temperature control handle, not the complete handle or shower cartridge.
The threaded carrier supports the temperature handle as part of the shower's temperature adjustment assembly. A962589NU is the ordering code associated with the earlier part number 96258900.
Technical Details
| Part Number | A962589NU |
|---|---|
| Earlier part number | 96258900 |
| Component type | temperature control nut / temperature handle carrier |
| Fitting | threaded carrier within the temperature control assembly |
| Trevi Boost assembly position | reference 20 |
Confirmed Compatible Models
- Trevi Boost E9005AA built-in mains pressure shower valve with Elipse BIV kit
- Trevi Boost E9105AA exposed mains pressure shower valve with Elipse EV single function kit
- Trevi Therm MK1 300 built-in thermostatic shower valve
- Trevi Therm MK1 310 exposed thermostatic shower valve
For Trevi Therm showers, this listing applies to the older pre-1997 version with the red override button. Do not assume the same carrier is used in later Trevi Therm versions.
Before Ordering and Fitting
Confirm the shower model and compare the existing carrier and handle arrangement before ordering. Check the outer handle, retaining screw, shroud and temperature stop for damage as well as the nut. If a Trevi Boost shower has been converted or fitted with different controls, identify the parts currently installed before selecting a spare.
Follow the shower's installation instructions when refitting the carrier, temperature stop and handle, and check the outlet temperature before use.
Related Spares You May Need
The following are separate spares for the shower assemblies listed above. They are not all used in every model or production version, so match each part to your shower and existing components.
- Trevi Boost A963347AA temperature control handle - discontinued reference
- Trevi A918416 temperature handle retaining screw
- Trevi A907294LJ temperature handle cap with T logo
- Trevi A962599AA temperature handle shroud
- Ideal Standard A911760 Trevi Boost shroud spacer washers
- Trevi Therm A963124NU temperature control extension
- Trevi A963074NU temperature control extension
- Trevi Boost A963348AA cartridge
- Trevi Therm A963068NU thermostatic cartridge for pre-1998 valves
- Ideal Standard A963069NU cartridge seal servicing kit
- Trevi A952501NU flow cartridge
- Trevi A960489NU gear slip clutches - pair
- Trevi Boost A953155NU11 gear spindle
- Trevi A963067NU 84mm gearbox assembly with two gears and spindle - check the installed spindle length before ordering
- Ideal Standard A922539 volume handle carrier
- Trevi Boost A962586AA volume control handle
- Trevi A962585NU black volume handle cap
- Trevi E918322NU volume handle screw
- Trevi A953154AA11 built-in shower faceplate - discontinued reference
- Trevi A953161AA11 exposed shower faceplate in chrome
- Trevi A962601NU cover plate seal
- A918434AA chrome cover plate screw - compatible spare
- A961160AA chrome fixing screws - compatible spare
- Trevi A923142 black gearbox cover - discontinued reference
- Ideal Standard E4745AA Trevi 135cm shower hose in chrome
Use our part identification service if you need help finding the right spare.
