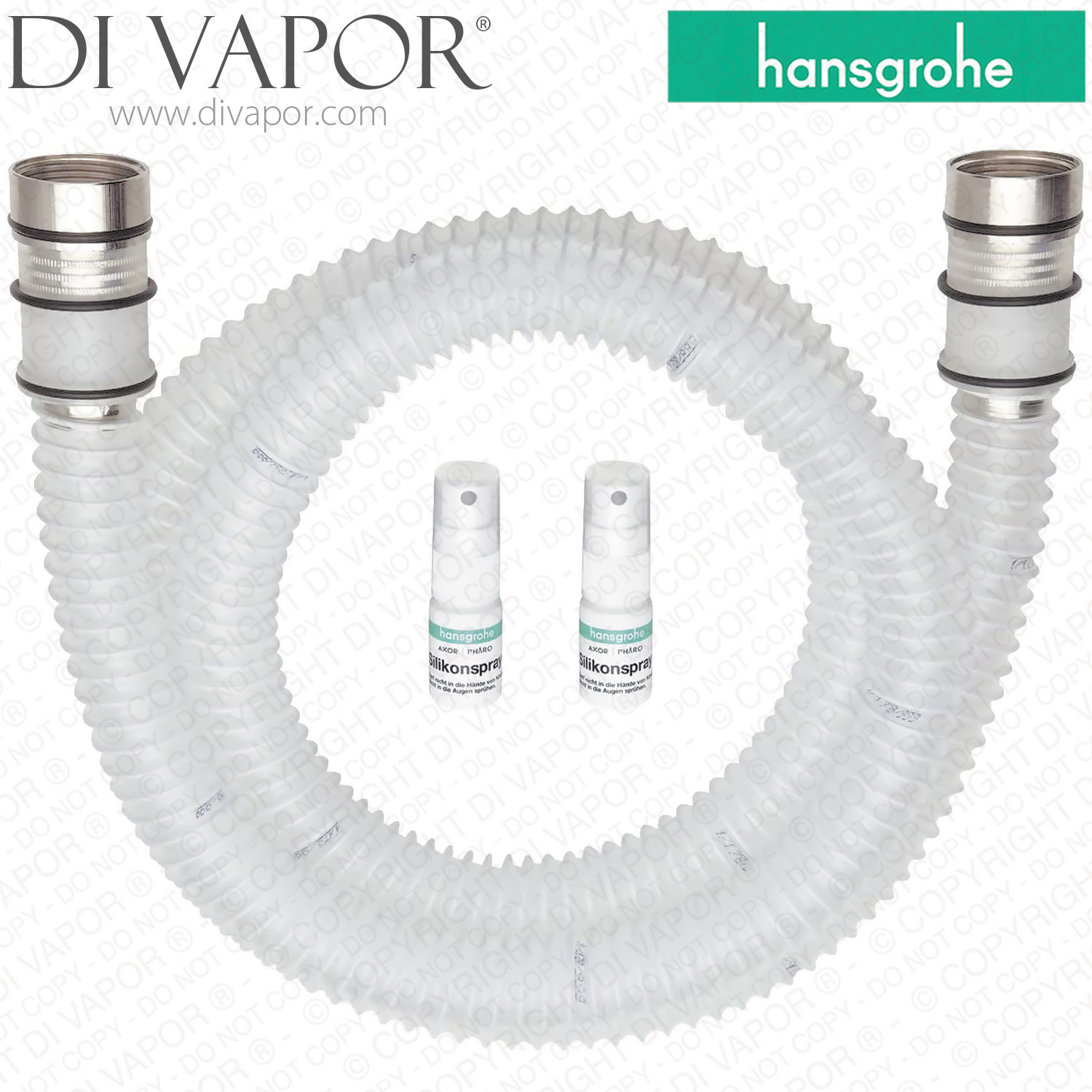

Hansgrohe 94108000 2 Metre Secuflex Shower Hose (HG-94108000)

SUMMARY

Hansgrohe 94108000 Secuflex Outer Hose 2000mm for Pull-Out Bath Hand Showers

Hansgrohe 94108000 is a Secuflex outer hose for selected retractable hand shower arrangements fitted to rim-mounted and tile-mounted bath mixers and bath thermostats. The Di Vapor Part Number is HG-94108000.

This outer hose guides and protects the separate inner shower hose as the hand shower is pulled from and returned to its holder. It is not the water-carrying inner hose. Check the existing part and system diagram carefully to distinguish 94108000 from the separate Hansgrohe 94148000 inner metal shower hose.

Technical Details

- - Brand: Hansgrohe.

- - Manufacturer code: 94108000.

- - Part type: Secuflex outer hose.

- - Current specified length: 2000mm.

- - Application: pull-out hand shower arrangements used with selected rim-mounted and tile-mounted bath mixer systems.

- - Supplied component: outer Secuflex hose only.

- - The inner metal shower hose, hand shower holder, pressure hose, Secuflex box and associated fittings are not included.

- - Earlier Hansgrohe spare-parts diagrams for some installations identify the same 94108000 code as a 2.25m Secuflex hose. Order by the exact code and system diagram rather than hose length alone.

Function and Maintenance

The Secuflex outer hose forms the protective guide through which the inner hand shower hose moves. Inspect or replace it if the outer hose is split, crushed, distorted, contaminated or preventing the hand shower from pulling out and retracting smoothly.

Clean and service the Secuflex route if the pull-out action becomes difficult. The guide tube, sleeve, hose brake, holder assembly and inner shower hose should also be inspected because wear or contamination in these components can restrict movement.

Before Ordering

- - Confirm that the existing hose or spare-parts diagram shows code 94108000.

- - Check the exact bath mixer or basic-set article number and construction period.

- - Confirm that the required part is the outer Secuflex hose rather than the 94148000 inner metal shower hose.

- - Inspect the surrounding holder, guide, sleeve and inner hose for additional damage before dismantling the system.

Confirmed Compatible Models

- - Hansgrohe 13444180 Basic Set for 4-Hole Rim Mounted Bath Mixer >06/17.

- - Hansgrohe 13444180 Basic Set for 4-Hole Rim Mounted Bath Mixer 10/09 - 05/17.

- - Hansgrohe 13444180 Basic Set for 4-Hole Rim Mounted Bath Mixer 08/91 - 09/09.

- - Hansgrohe 13437180 Basic Set for 3-Hole Rim Mounted Single Lever Bath Mixer >07/11.

- - Hansgrohe 14445180 Basic Set for 4-Hole Tile Mounted Bath Mixer 09/98 - 10/17.

- - Hansgrohe 15460180 Ecostat Basic Set for 4-Hole Rim Mounted Bath Thermostat 09/98 - 05/18.

- - Hansgrohe 15465180 Basic Set for 4-Hole Tile Mounted Thermostat 09/98 - 05/18.

- - Hansgrohe 15480180 Basic Set for 4-Hole Rim Mounted Bath Mixer >10/17.

- - Hansgrohe 15480187 Basic Set for 4-Hole Rim Mounted Bath Mixer >12/20.

- - Hansgrohe 15482180 Basic Set for 4-Hole Rim Mounted Thermostatic Bath Mixer >10/17.

- - Hansgrohe 28380000 Secuflex Rim Mounted Bath Set 03/92 - 01/01.

- - Hansgrohe 28380000 Secuflex Rim Mounted Bath Set 02/01 - 02/07.

- - Hansgrohe 28380000 Secuflex Rim Mounted Bath Set 03/07 - 04/09.

- - Hansgrohe 28380000 Secuflex Rim Mounted Bath Set 05/09 - 10/10.

- - Hansgrohe 28380000 Secuflex Rim Mounted Bath Set >11/10.

- - Hansgrohe 28380800 Secuflex Rim Mounted Bath Set 02/98 - 01/01.

- - Hansgrohe 28380800 Secuflex Rim Mounted Bath Set 05/09 - 10/10.

- - Hansgrohe 28380820 Secuflex Rim Mounted Bath Set 04/10 - 10/10.

- - Hansgrohe 28380830 Secuflex Rim Mounted Bath Set 04/10 - 10/10.

- - Hansgrohe 28382000 Rim Mounted Bath Set 10/17 - 12/19.

- - Hansgrohe 19418000 Rim Mounted Bath Set with Hand Shower 10/10 - 12/16.

- - Hansgrohe 19418000 Rim Mounted Bath Set with Hand Shower >01/17.

Related Spares You May Need

- - Hansgrohe 96433000 Shower Holder Assembly - used on selected Secuflex bath mixer installations.

- - Hansgrohe 94148000 Secuflex Inner Metal Shower Hose 2.0m - the separate water-carrying hose fitted inside the Secuflex arrangement.

Use Di Vapor's Find a Part service if the bath mixer code, construction period or required hose type is unclear.
