MX ZJS Non-Return Check Valve for Atmos Select Shower Valve

SUMMARY

MX ZJS is a non-return check valve assembly for MX Atmos Select 3 way shower valves. It is used inside the valve body to help maintain one-way water flow and prevent reverse flow through the inlet side of the valve.

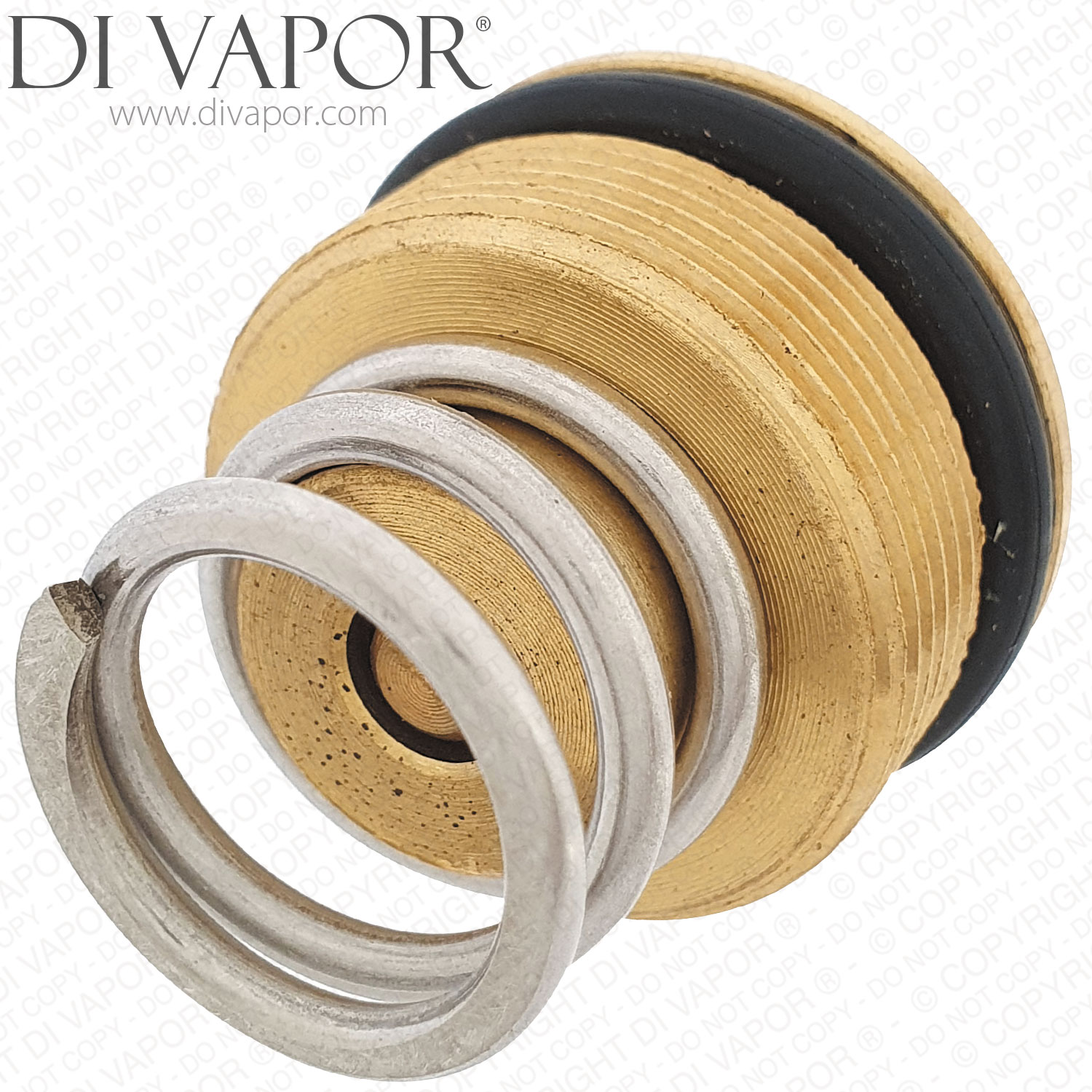

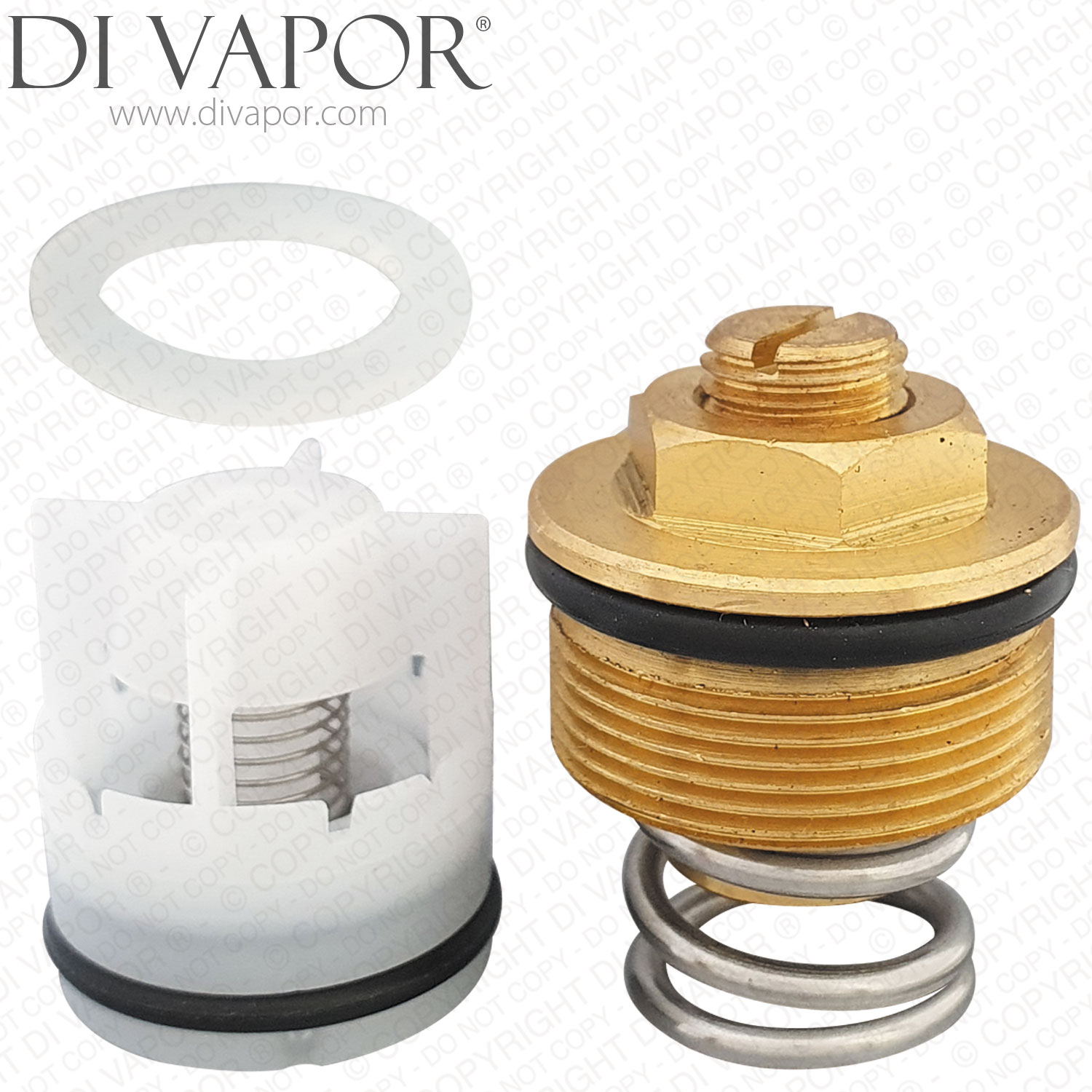

This spare includes the brass housing and the internal plastic non-return valve shown for MX-ZJS. It is intended for the Atmos Select valve platform used on verified HLI and HLG shower versions.

Technical Details

- - Brass housing external thread diameter: 21.9mm

- - Brass housing diameter at widest point: 23.6mm

- - Brass housing total height excluding spring: 24mm

- - Brass housing hex nut flat to flat: 13.9mm

- - Plastic non-return valve diameter: 20mm

- - Plastic non-return valve height: 22.1mm

Before you order check

- - Your shower is an MX Atmos Select 3 way valve

- - Your valve version matches one of the confirmed models below

- - The measured dimensions match your original brass housing and internal check valve

Confirmed Compatible Models

- - MX Group Atmos Select 3 way valve - round handles (HLI) Shower Spares

- - MX Group Atmos Select Square 3 way valve (HLG) Shower Spares

Related Spares You May Need

- - MX ZKN Thermostatic Cartridge Replacement

- - MX ZHG On/Off 3/4 Inch Flow Cartridge for Atmos Shower Valves - 32 Splines

- - MX Atmos Select Flow Cartridge Retaining Nut

- - MX Atmos Select Thermostatic Cartridge Retaining Nut for ZKN Cartridge

- - MX ZKA 4-Way Diverter Cartridge for Atmos Select Shower Valves - 32 Splines

- - MX Atmos Select Round Thermostatic Control Knob for the HLI round-handle version

- - MX Atmos Select Round Flow Control Knob for the HLI round-handle version

- - MX Atmos Select Square Flow Control Handle - ZDH for the HLG square-handle version

- - MX Atmos Select Square Temperature Control Handle - ZBG for the HLG square-handle version
