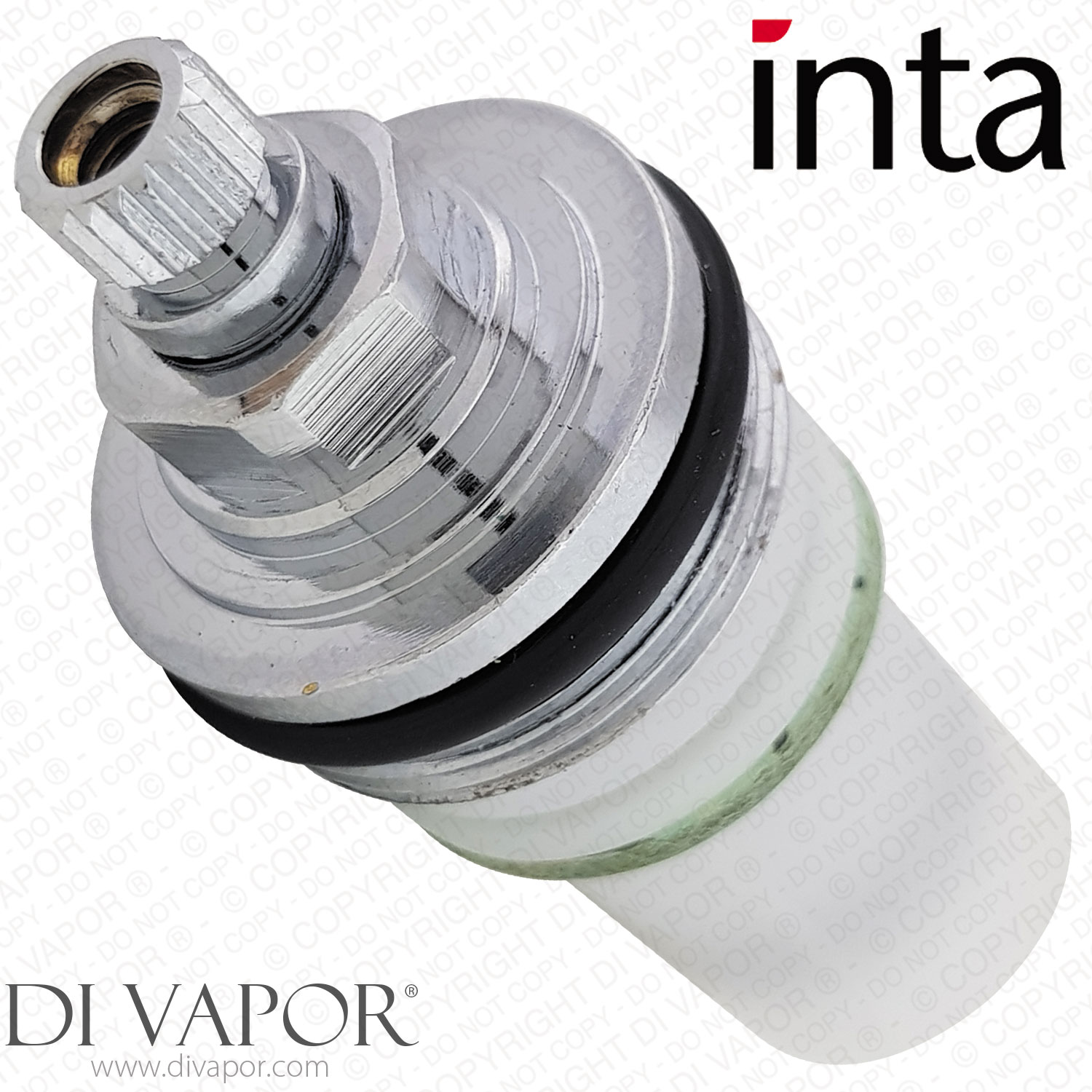

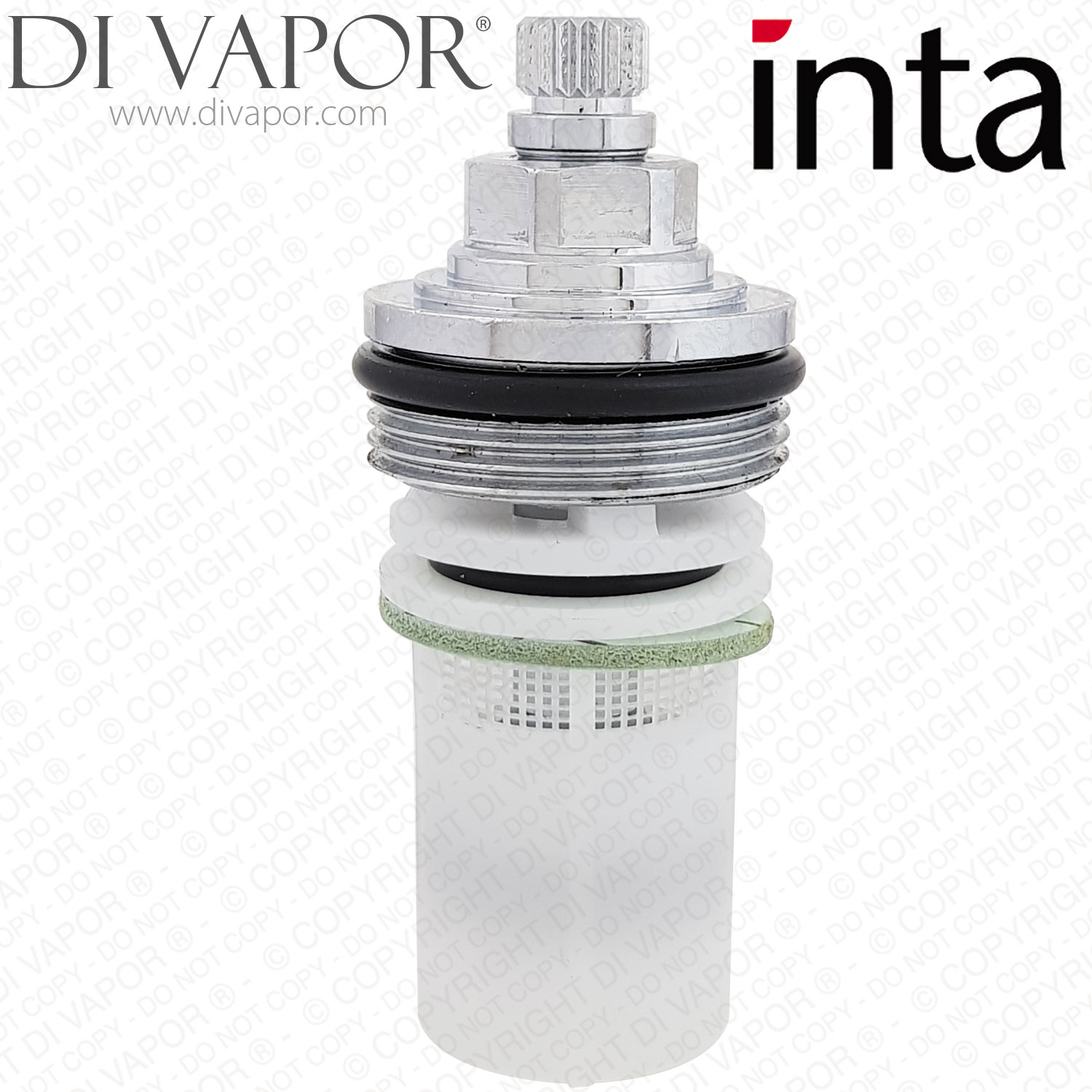

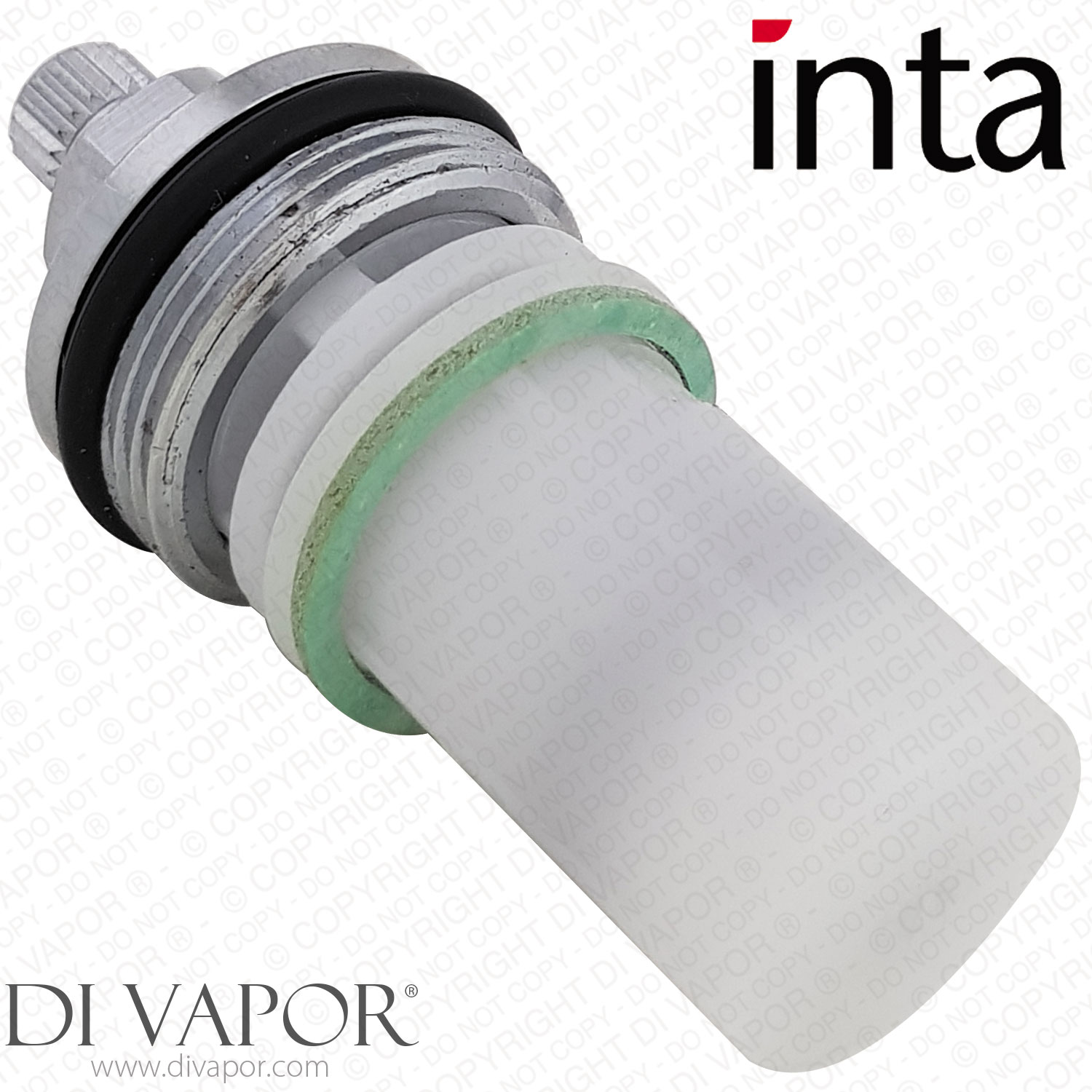

INTA ID09050 30 Second Pushtap Non-Concussive Self Timed Tap Cartridge
Send a photo of your item and we'll help confirm it.
Summary
INTA ID09050 30 Second Pushtap Non-Concussive Self Timed Tap Cartridge Cartridge for NC14030CP
The INTA ID09050 is a 30 second Pushtap non-concussive self timed tap cartridge used as the timed flow control cartridge for NC14030CP.
This cartridge is designed for push-button timed operation, allowing water flow to start when pressed and then shut off automatically after the timed cycle. It is used to help restore controlled timed flow where the original cartridge is sticking, failing to close fully, running for the wrong duration or no longer operating smoothly.
Technical Details
| Brand | INTA / Inta |
|---|---|
| Part code | ID09050 |
| Di Vapor Part Number | IN-ID09050 |
| Cartridge type | 30 second Pushtap non-concussive self timed tap cartridge |
| Operation | push-button timed self-closing flow control |
| Total length | approximately 63.1 mm |
| Diameter at thread | approximately 25.99 mm |
| Top spline diameter | approximately 7.7 mm |

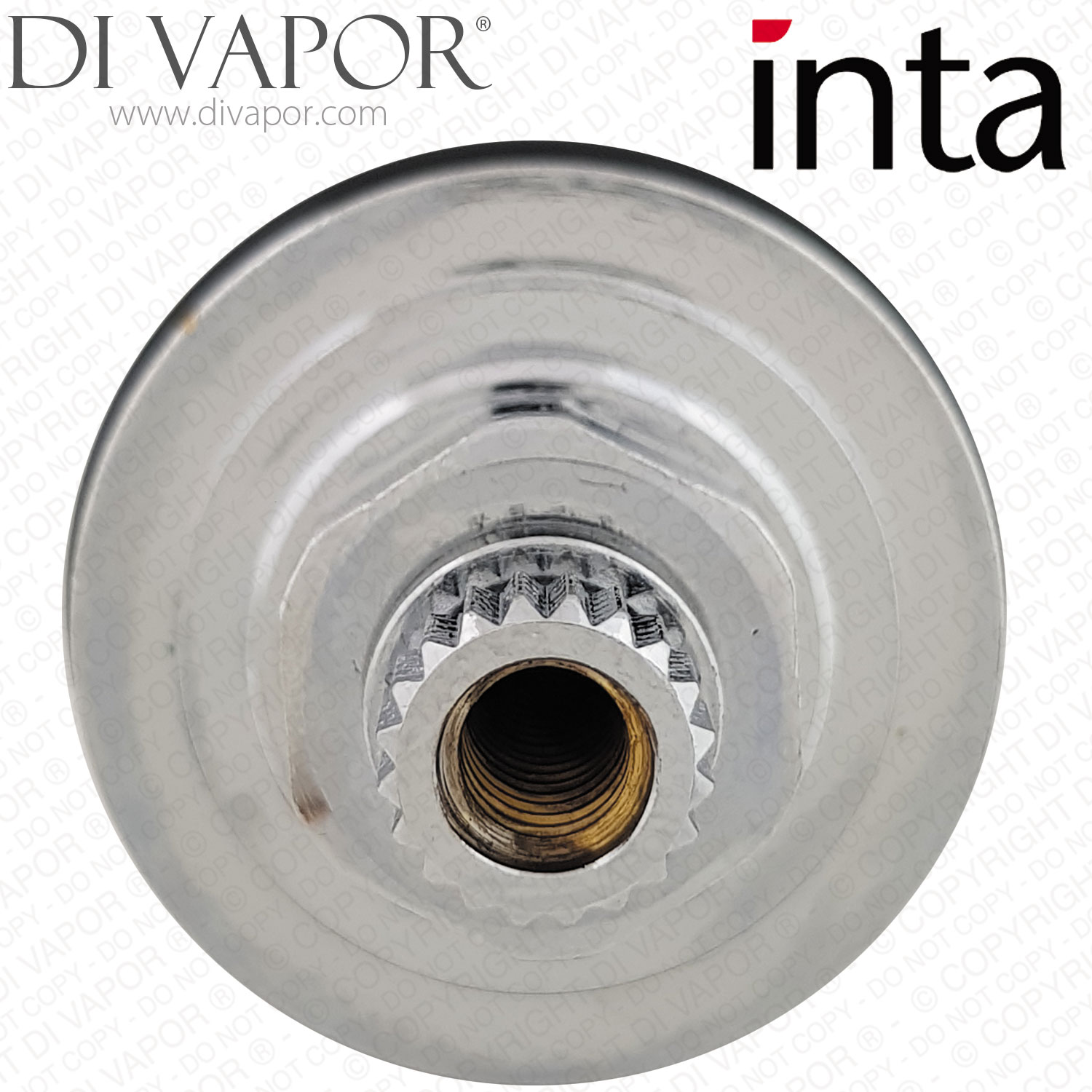

| Top spline teeth / notches | 20 |
| Construction details | brass and plastic body with white / chrome visible components and 1 O-ring |
| Grub screw hole | no |
| Long spline | no |
Confirmed Use
- NC14030CP
Before You Order Check
Before ordering, compare the cartridge code, timed operation, spline count, thread diameter, overall length and existing cartridge layout. Do not select this cartridge for NC140CP or TF99730CP unless the existing valve documentation or original cartridge code confirms ID09050.
Installation Note
Isolate the water supply before removing the original cartridge. Check the valve body for debris, limescale or damaged seals before fitting the new cartridge, as contamination in the housing can prevent correct timed closure.
