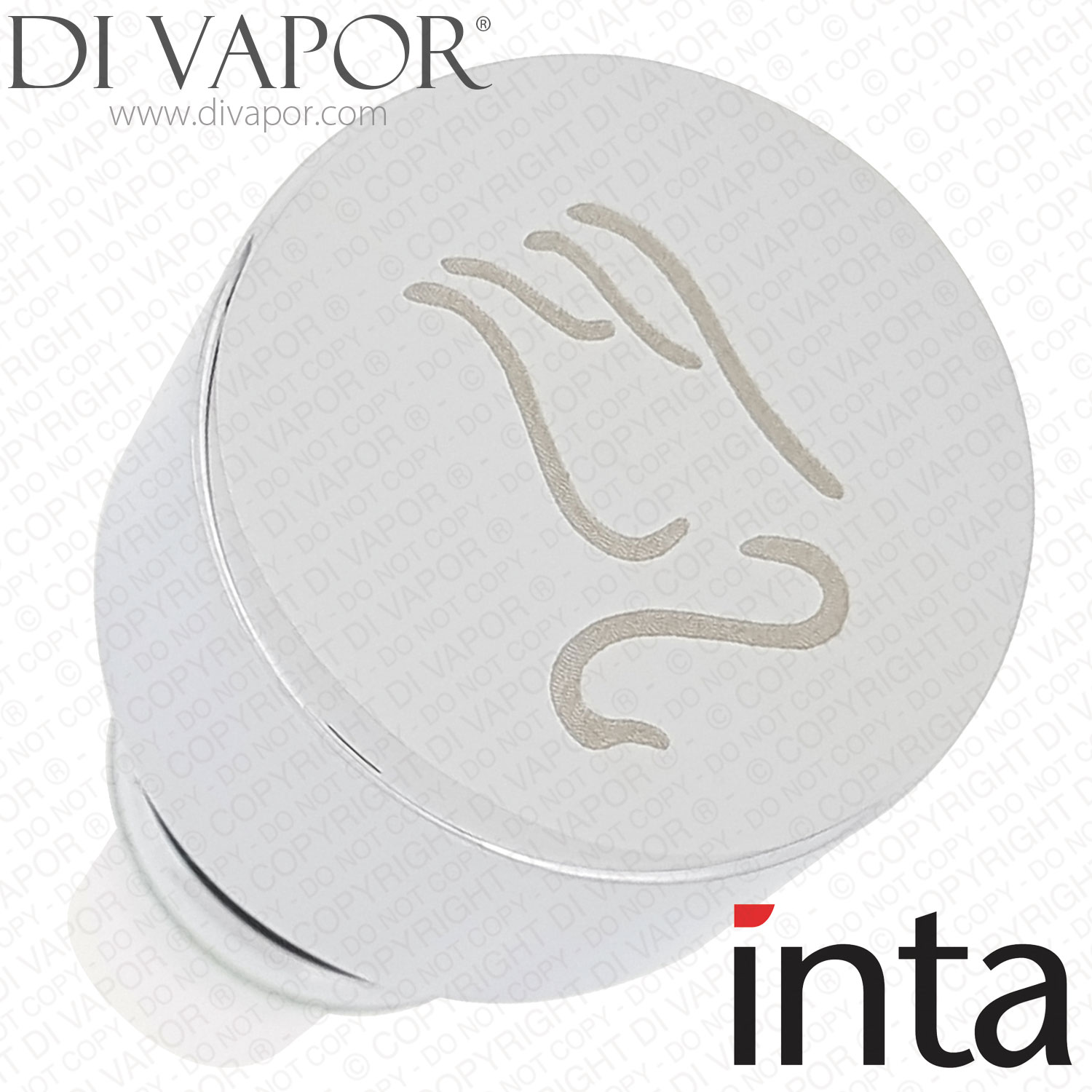

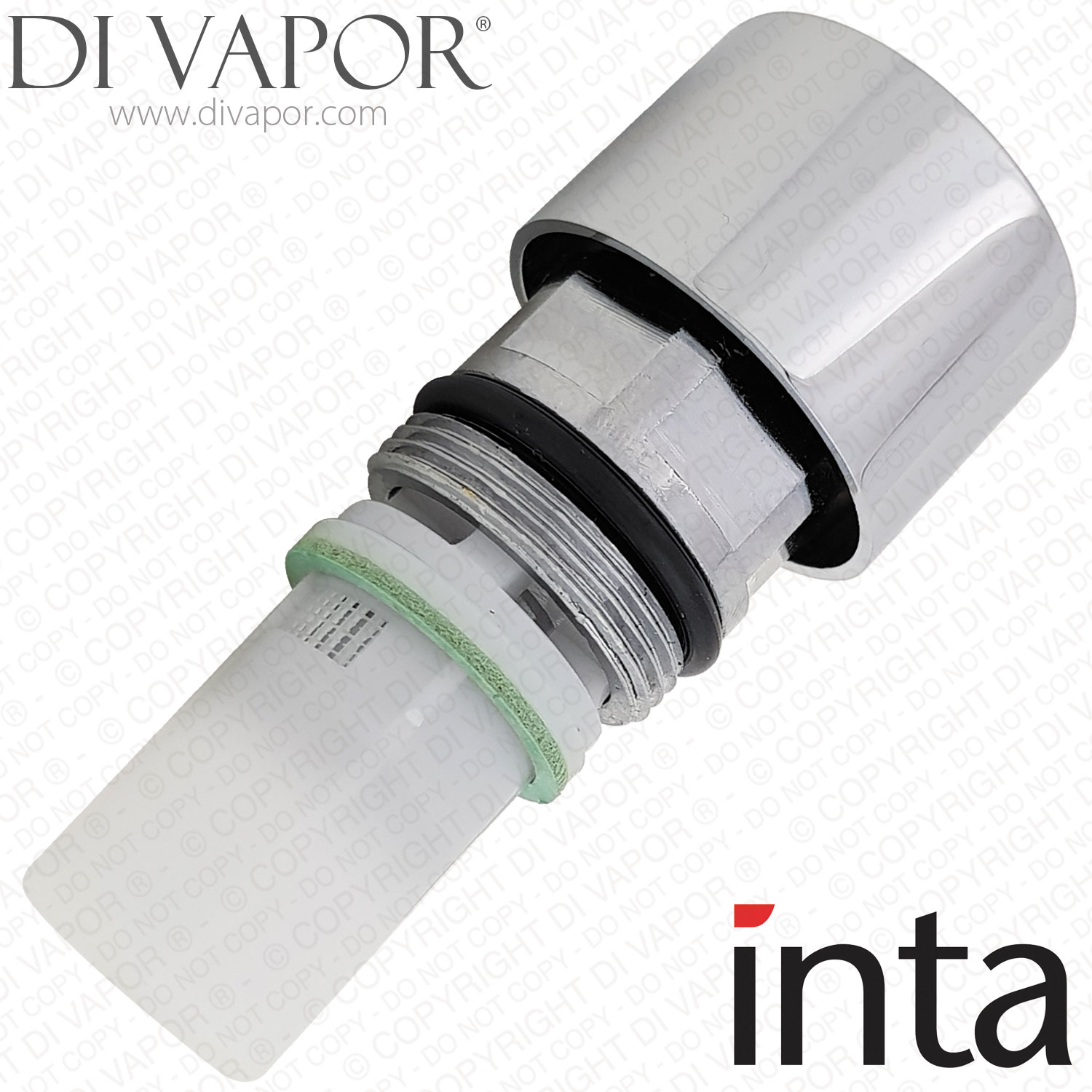

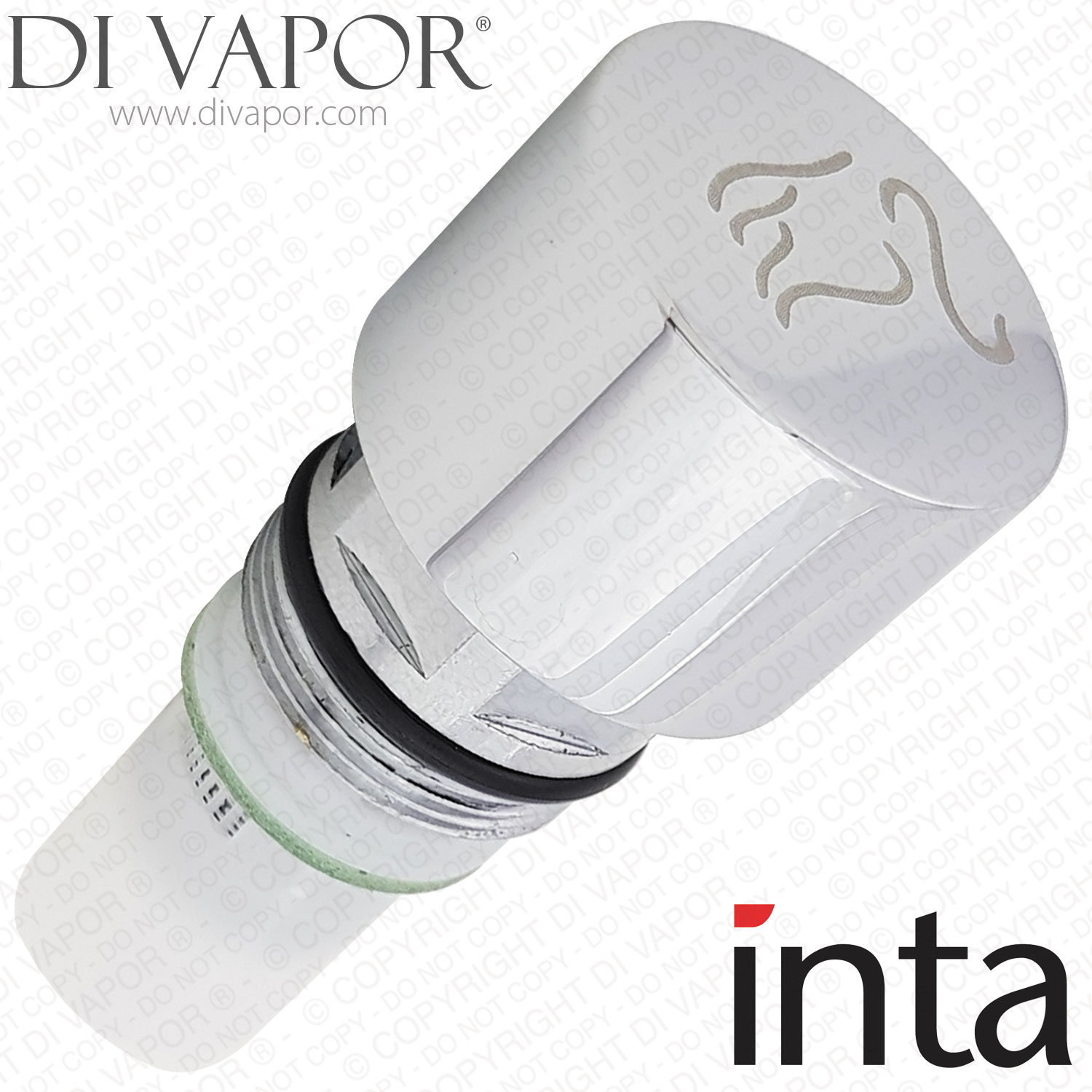

INTA ID0026 is a 3 second Pushtap Swan logo non-concussive self timed tap cartridge with gasket for selected Inta timed-flow tap and shower control applications.
This cartridge is the internal self-closing control that starts water flow when the push control is pressed and then shuts the flow off automatically after the timed cycle. It is used where short timed delivery is required to help reduce water waste in washroom and shower installations.
Technical Details
- - Brand: INTA / Intatec
- - Exact cartridge code: ID0026
- - Cartridge type: 3 second non-concussive self timed tap cartridge with gasket
- - Material recorded for the cartridge: brass
- - O-rings recorded for the cartridge: 1
- - Grub screw hole recorded: No
- - Long spline recorded: No
A worn timed-flow cartridge can cause the push control to stick, fail to start flow, fail to shut off cleanly after the timed cycle or allow water to continue dripping from the tap outlet or shower head after the control should have closed.
Confirmed Fitment
- - (NC133CP) Inta Swan 3 Second Non-Concussive Basin Tap
- - (TF9973CP) Inta 3 Second Concealed Time Flow Control
Before You Order Check
Check the existing cartridge code, timed-flow duration and appliance model before ordering. ID0026 is the 3 second version and should not be confused with 15 second Inta timed-flow cartridges used in other systems.
