INTA ID0022 15 Second Pushtap Non-Concussive Self Timed Tap Cartridge with Gasket for NC173 & NC130

Summary

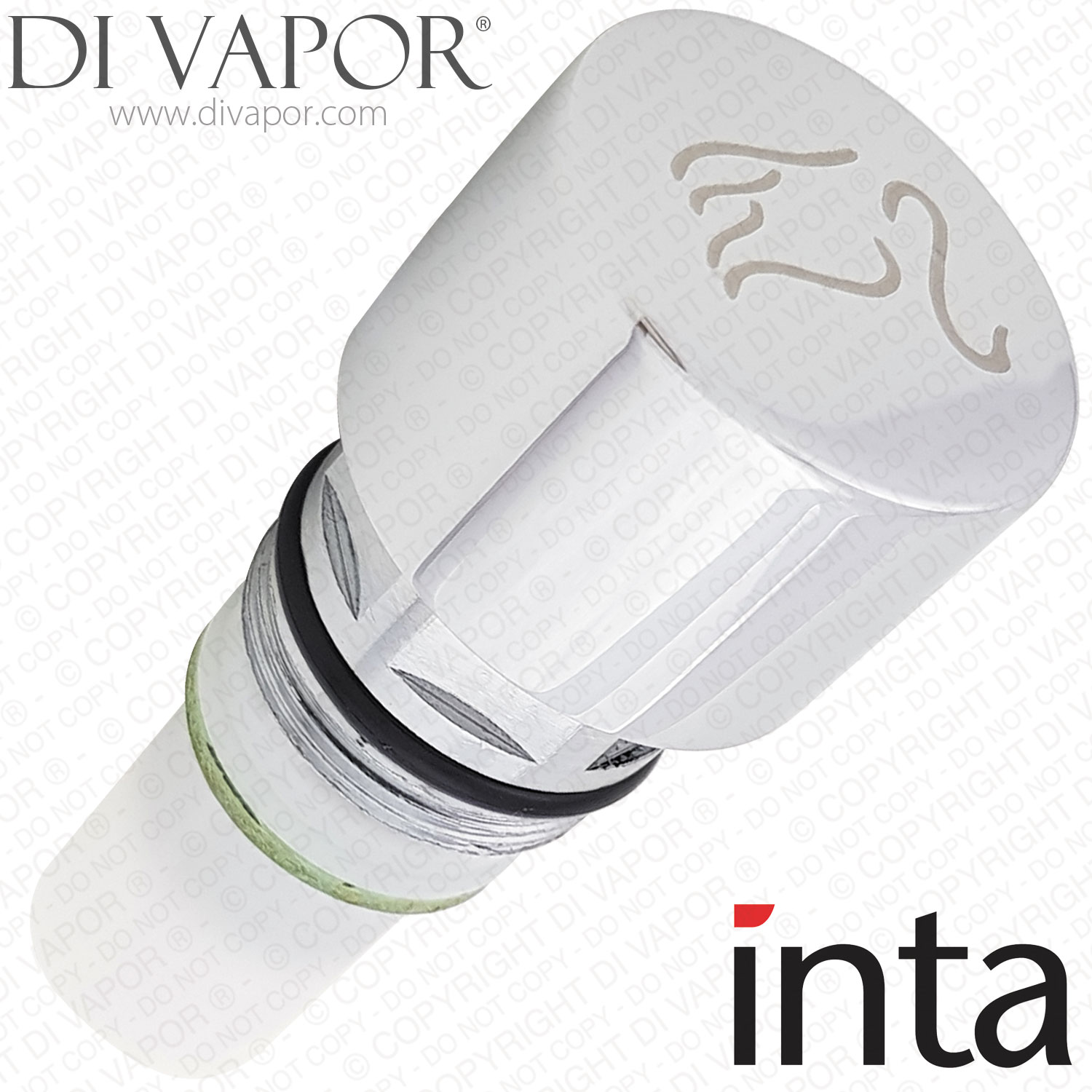

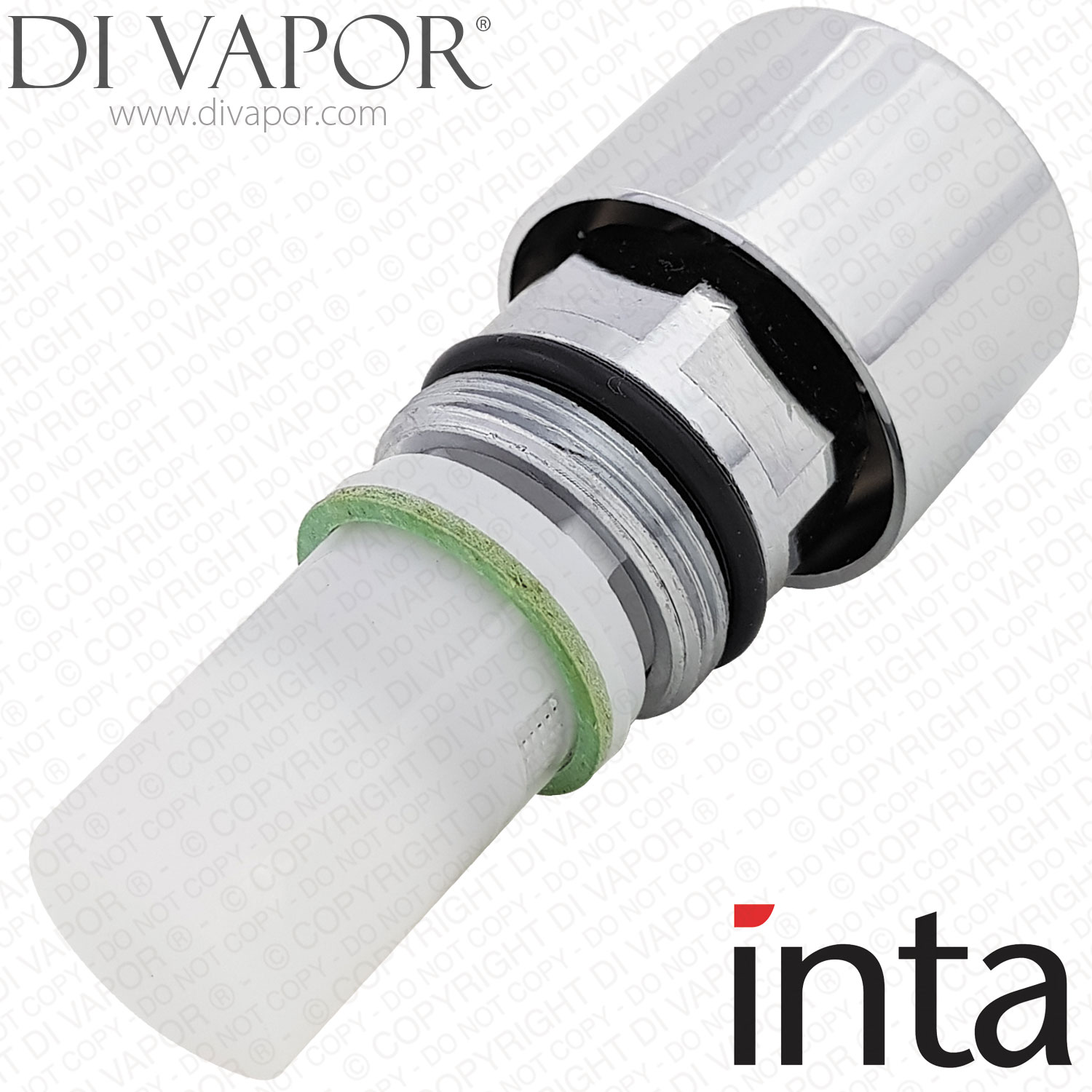

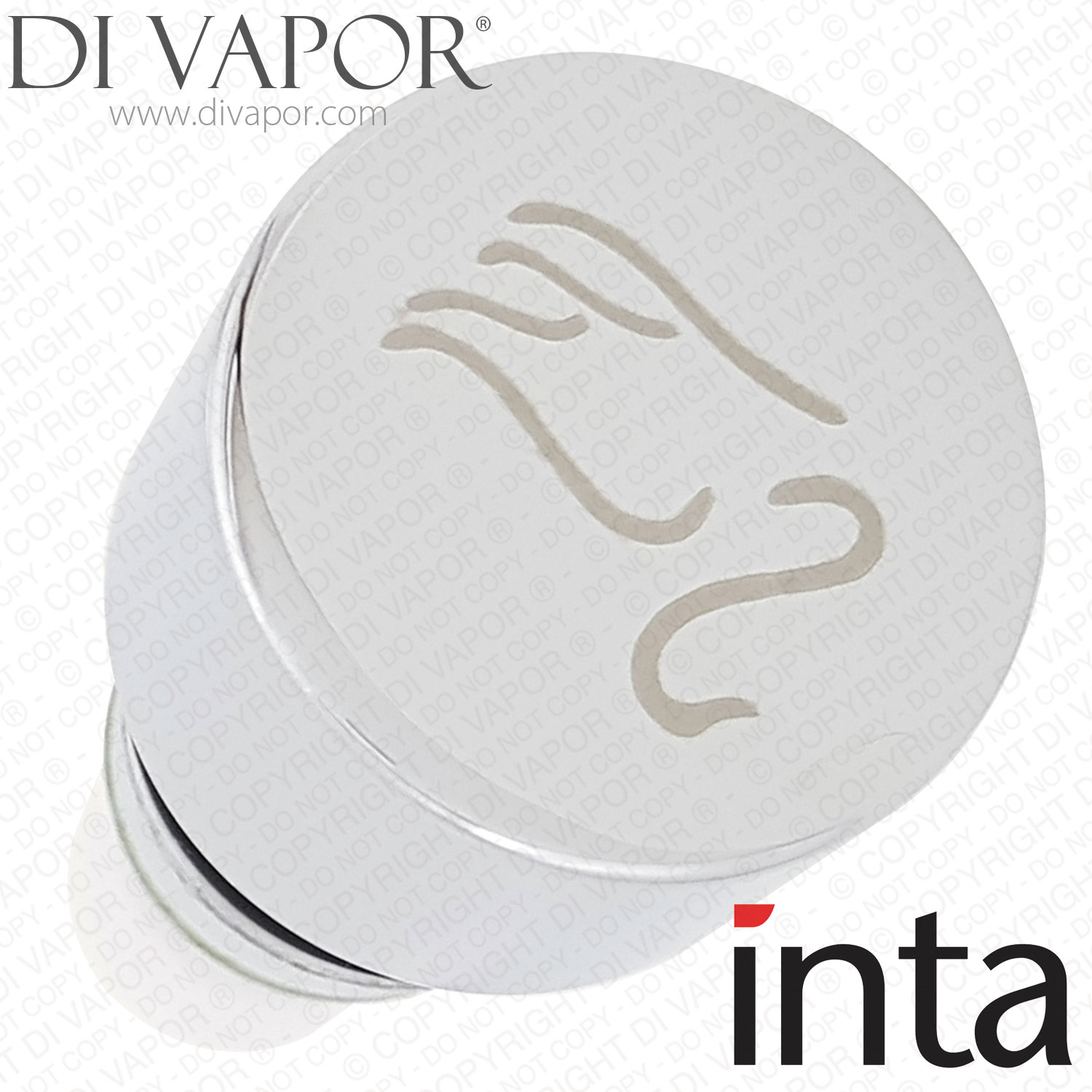

INTA ID0022 15 Second Pushtap Non-Concussive Self Timed Tap Cartridge with Gasket

The Inta ID0022 is a 15 second Pushtap non-concussive self-timed tap cartridge supplied with gasket for selected Inta timed-flow push tap controls.

This cartridge controls the timed flow operation inside the tap. When the tap button is pressed, water flow starts and then closes automatically after the timed cycle, helping to reduce water waste in commercial, public and high-use washroom settings.

Technical Details

• Supplied with gasket

Confirmed Compatible Models

• Inta NC130CP Swan Non-Concussive Basin Tap
• Inta NC173 / NC173CP 15 Second Wall Mounted Non-Concussive Tap

Before Ordering

• Check the existing tap model and cartridge code before ordering.
• Do not order from timing alone, as Inta also produced other non-concussive cartridges with different timed-flow settings.
• Confirm that the required cartridge is the 15 second ID0022 version and not a 3 second cartridge or another timed-flow control.

Common Fault Symptoms

• Symptom: tap does not stay open for the expected timed cycle. Likely Cause: worn or failing timed-flow cartridge. Solution: replace the cartridge with the correct ID0022 cartridge where the tap model matches.
• Symptom: tap continues running or shuts off too quickly. Likely Cause: internal cartridge wear, contamination or incorrect cartridge fitted. Solution: isolate the water supply, inspect the existing cartridge and confirm the part code before replacement.
