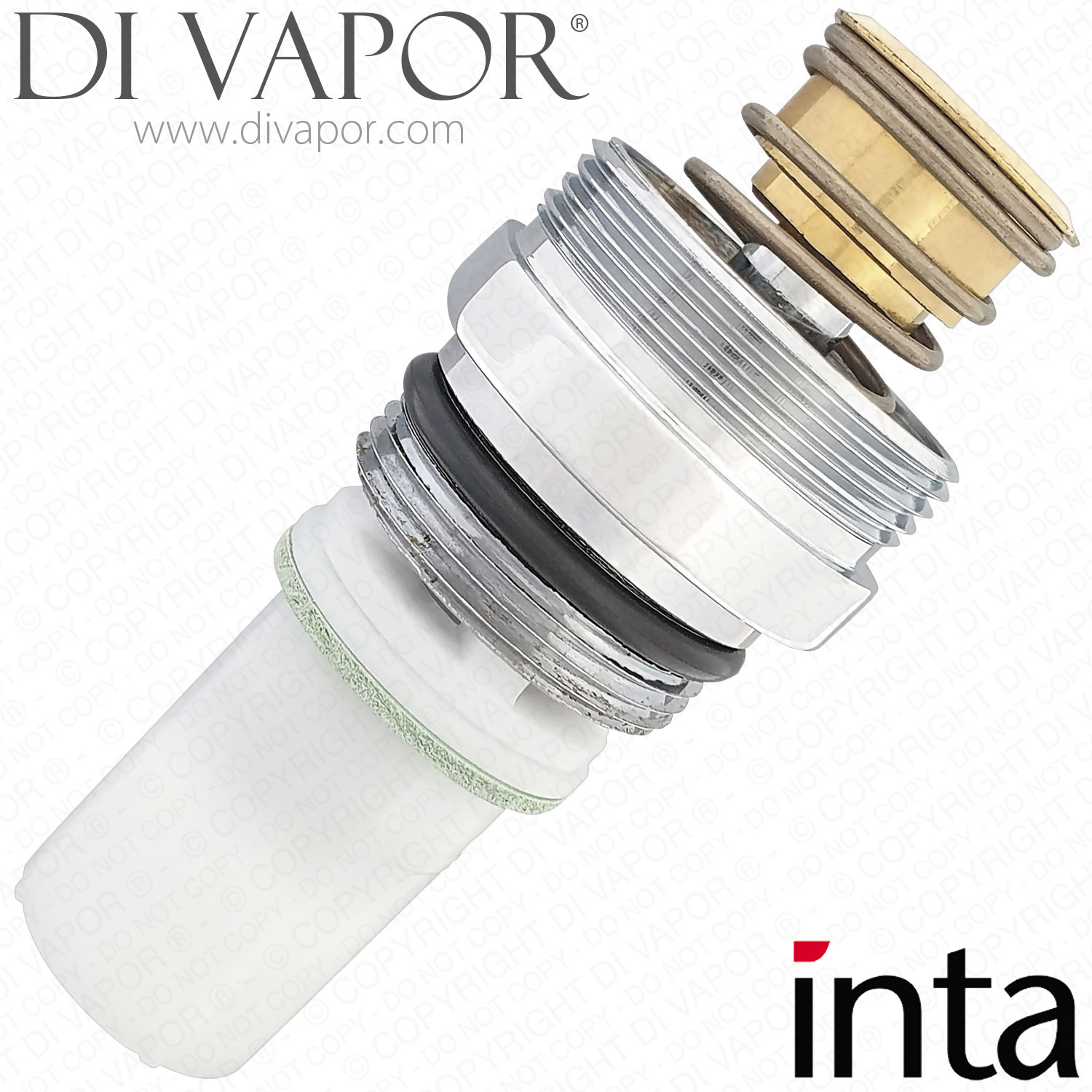

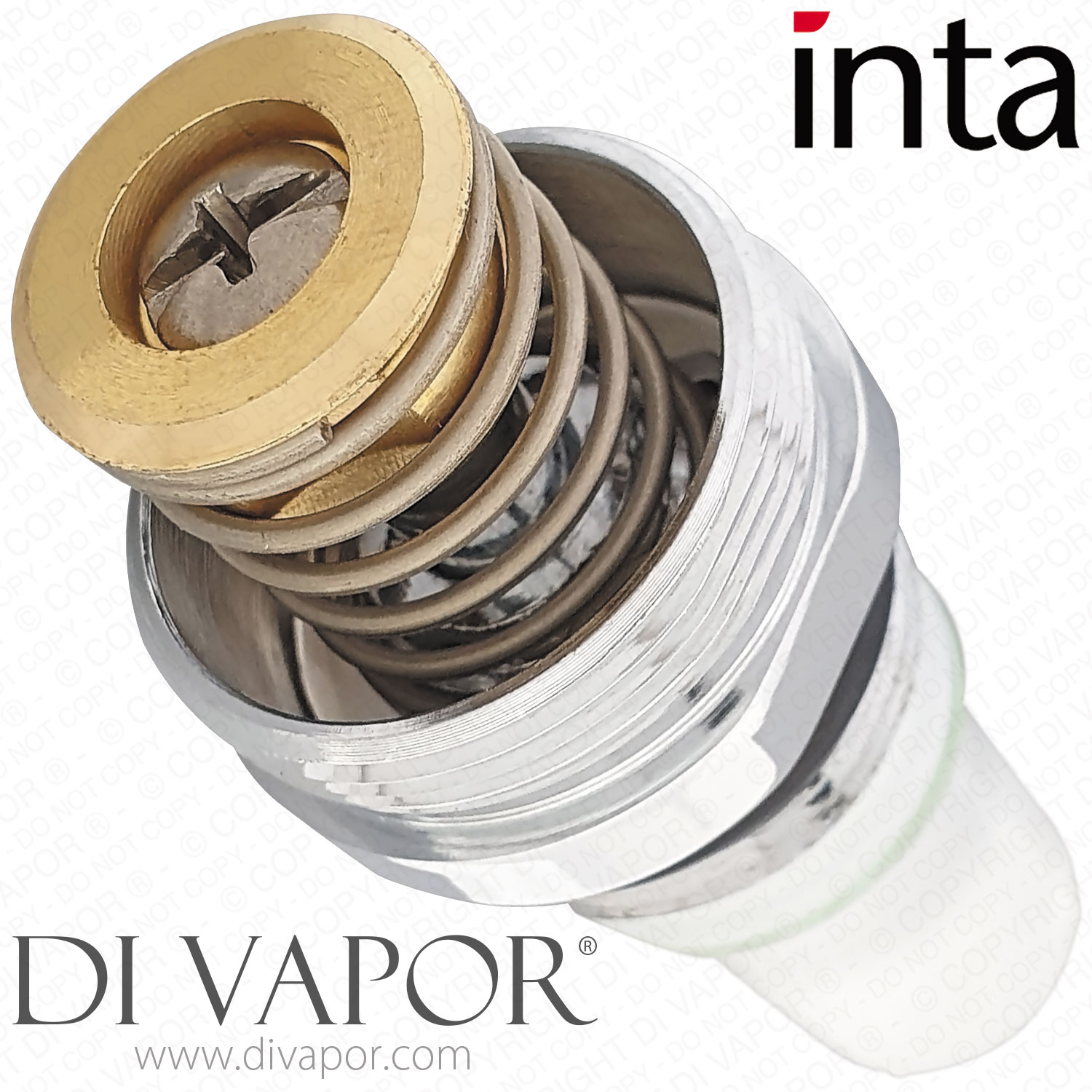

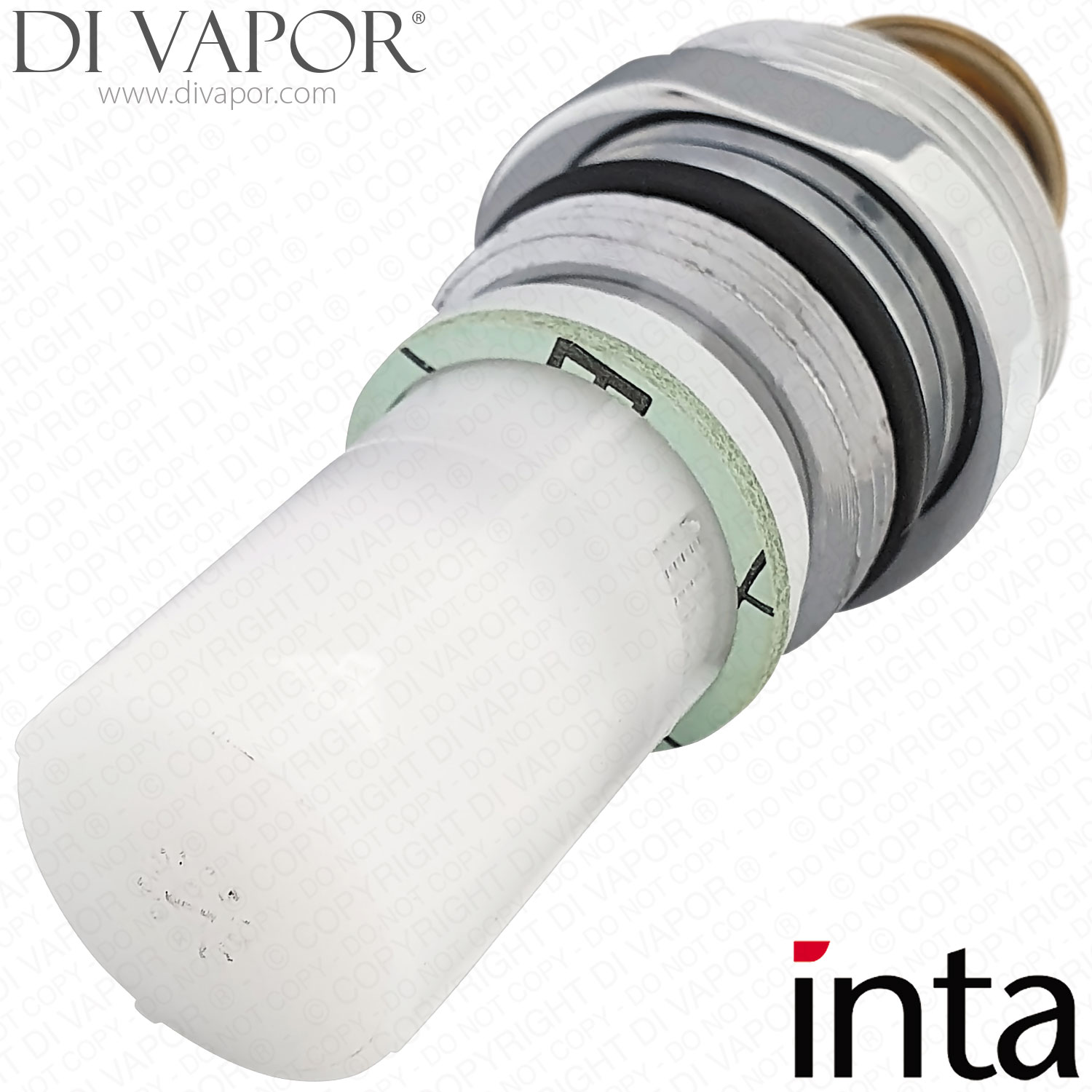

Inta ID0019 Push Cartridge - 15 Second for NC190CP/​NC200CP

SUMMARY

Inta ID0019 Push Cartridge - 15 Second for NC190CP/NC200CP

The Inta ID0019 is a 15-second push cartridge for selected Inta multi-directional non-concussive taps, including wall-mounted and basin-mounted push tap assemblies. It is used inside the tap control to provide the timed manual push operation and automatic shut-off action.

The cartridge is intended for taps where the control is pushed to start the water flow and then closes automatically after the timed run period. Check this part when the tap will not shut off correctly, the run time has changed, or the push action no longer starts or stops the flow as expected.

Technical Details

- - Brand: Inta

- - Part code: ID0019

- - Part type: 15-second push cartridge / cartridge pack

- - Timed run: 15 seconds at 1 bar

- - Application: Inta non-concussive multi-directional push taps

- - Listed host tap pressure data: 0.2 bar dynamic minimum and 10 bar static maximum

- - Listed host tap maximum inlet temperature: 65 degrees C

- - Listed host tap connection data includes G1/2 inch connections where shown for the tap model

Confirmed Tap Models

- - Inta NC190CP Non Concussive Multi Directional Wall Mounted Tap Spare Parts

- - Inta NC190CP5 Multi Directional Wall Mounted Tap with 5 litre per minute flow regulator

- - Inta NC200CP Non Concussive Multi Directional Basin Mounted Tap

- - Inta NC200CP.1 Non Concussive Multi Directional Basin Mounted Tap Spare Parts

- - Inta NC200CP5.1 Non Concussive Multi Directional Vandal Resistant Basin Tap Spare Parts

Before You Order

- - Confirm the tap model code before ordering because ID0019 is not listed for every Inta non-concussive tap.

- - Check whether the tap is the wall-mounted NC190CP type or the basin-mounted NC200CP / NC200CP.1 / NC200CP5.1 type.

- - If the existing cartridge has a different timing or code, match the code on the installed part before replacing it.

Common Symptoms

- - Symptom: tap does not shut off after the timed run. Likely Cause: worn or sticking push cartridge. Solution: isolate the water supply and inspect the installed cartridge code before fitting ID0019.

- - Symptom: tap run time is much shorter or longer than expected. Likely Cause: cartridge wear, pressure variation, or contamination. Solution: confirm system pressure and cartridge condition before ordering.

If the tap model cannot be identified, use Di Vapor's cartridge identification service with photographs and dimensions before ordering.
