Armitage Shanks B961295AA Avon 21 Cartridge - Non Mixing (Chrome)
Send a photo of your item and we'll help confirm it.
Summary
B961295AA Avon 21 Cartridge - Non Mixing (Chrome)
Armitage Shanks B961295AA is a non-mixing self-closing Avon 21 cartridge used in the built-in push-button valve assembly fitted to Avon 21 B8266 and B8266AA installations. It is the timed shut-off cartridge that sits behind the push button trim and controls the metered water flow cycle.
This spare is used where the valve does not shut off cleanly, the push button return is poor, or the cartridge and sealing points have worn with service. The measurements are listed below which are useful for checking an existing part before purchase.
Technical Details
| Part code | B961295AA |
|---|---|
| Type | non-mixing self-closing cartridge |
| Diameter at widest point | 40 mm |
| Total height | 89 mm |
| Diameter of bottom O-ring | 22.5 mm |
Before you order check
- Check the code on the removed cartridge and confirm the valve is an Avon 21 B8266 or B8266AA built-in push-button assembly.
- Check the three measured points above against the removed part.
- Older Avon 21 B8266 spares literature shows B960333AA at this cartridge position, while later Avon 21 service literature shows B961295 XX, so order by valve detail and cartridge code rather than dimensions alone.
Confirmed Compatible Models
- Armitage Shanks B8266AA Avon 21 Self Closing Push Button Built-In Valve Shower Spare Parts
- Armitage Shanks B8266 Avon 21 built-in self-closing valve
Related Spares You May Need

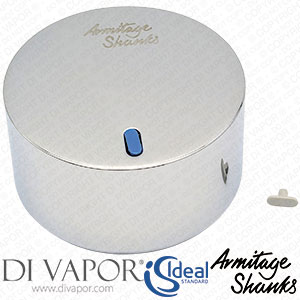

- Armitage Shanks B960635AA Avon 21 Push Button Handle Set
