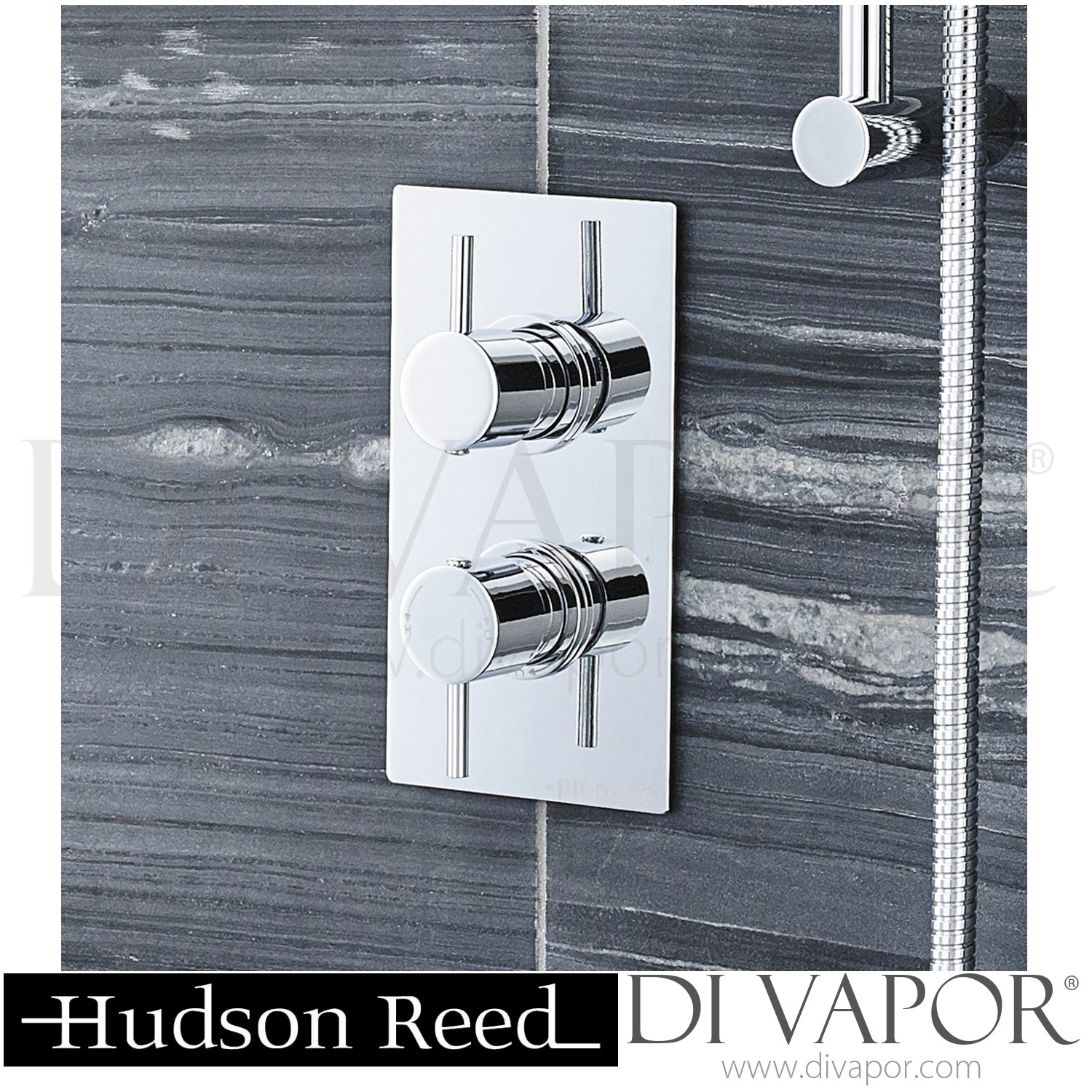

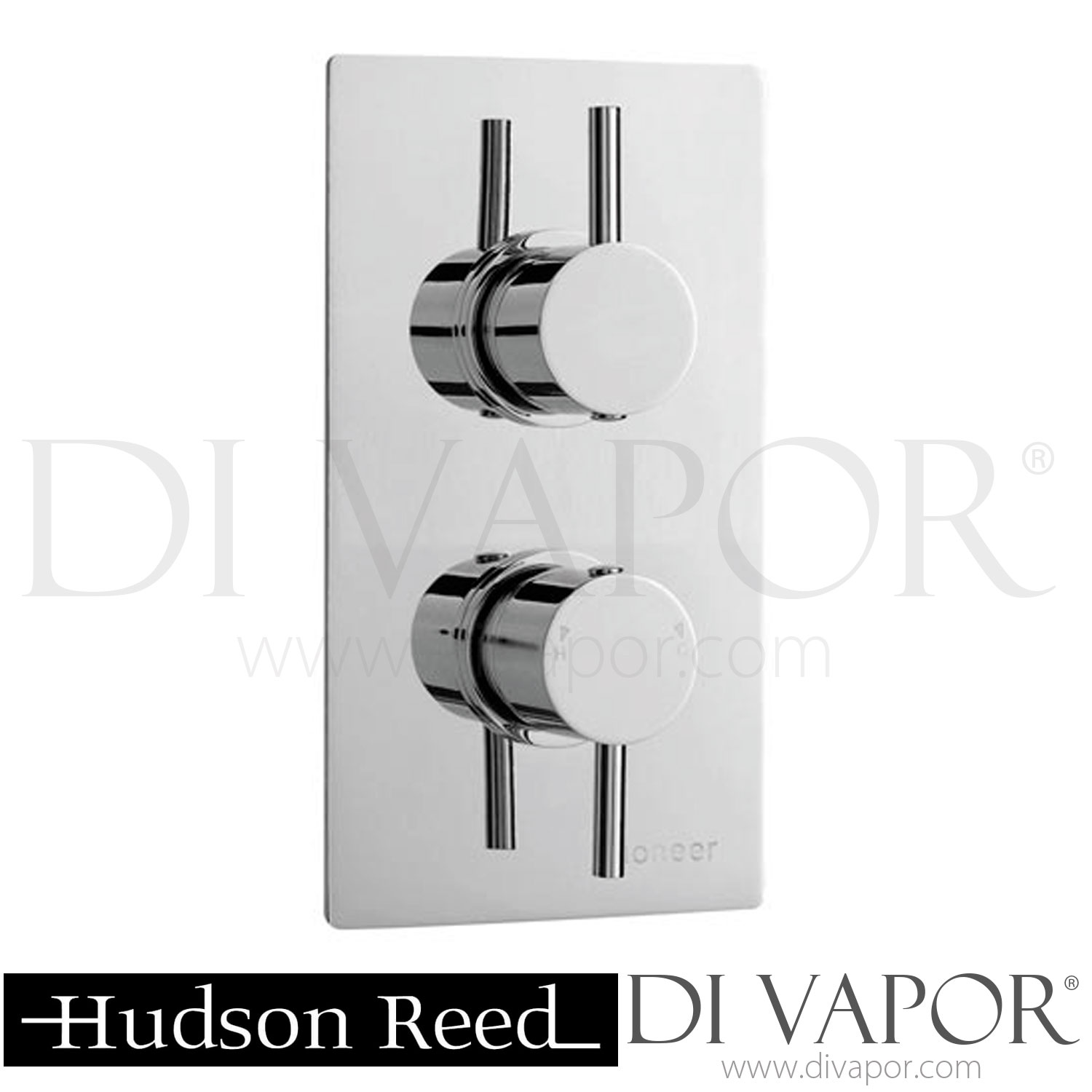

Ultra Pioneer Round Concealed Thermostatic Twin Shower Valve - PIOV21 Spare Parts

Ultra SVQ07 Diverter Cartridge for A3023 Triple Shower Mixer Valves Technical Information Total Length: 100mm (10cm) Diameter of Main Barrel: 40mm (4cm) Distance Between Locating Pins (centre to centre): 22mm (2.2cm) Length of Barrel Body (Including Locating Pins): 50mm S...

Premier V106 90mm Flow Cartridge Total Length (including bottom seal): 90mm Diameter at Widest Point: 35mm Top Spline Diameter: 7.8mm Top Spline Teeth / Notches: 20 Barrel Diameter: 23.6mm Lower Thread: 32.8mm Upper Thread (closer to spline): 24mm Bottom Seal Colour: Bl...

Ultra V107 ABS Collar For Thermostat External Diameter: 38.2mm Height: 39.4mm...

Ultra V108 Brass Collar For Flow Control

Ultra VH039 Quest Thermostatic Shower Handle

Ultra VH039A Quest Flow Control Shower Handle for 20 spline cartridges Control Knob Measurements: Diameter at Bottom: 42.1mm Total Height: 29.6mm Length of Lever Rod: 33.7mm For Cartridges with Splines: 20 splines (7.6mm in diameter)...
