Summary

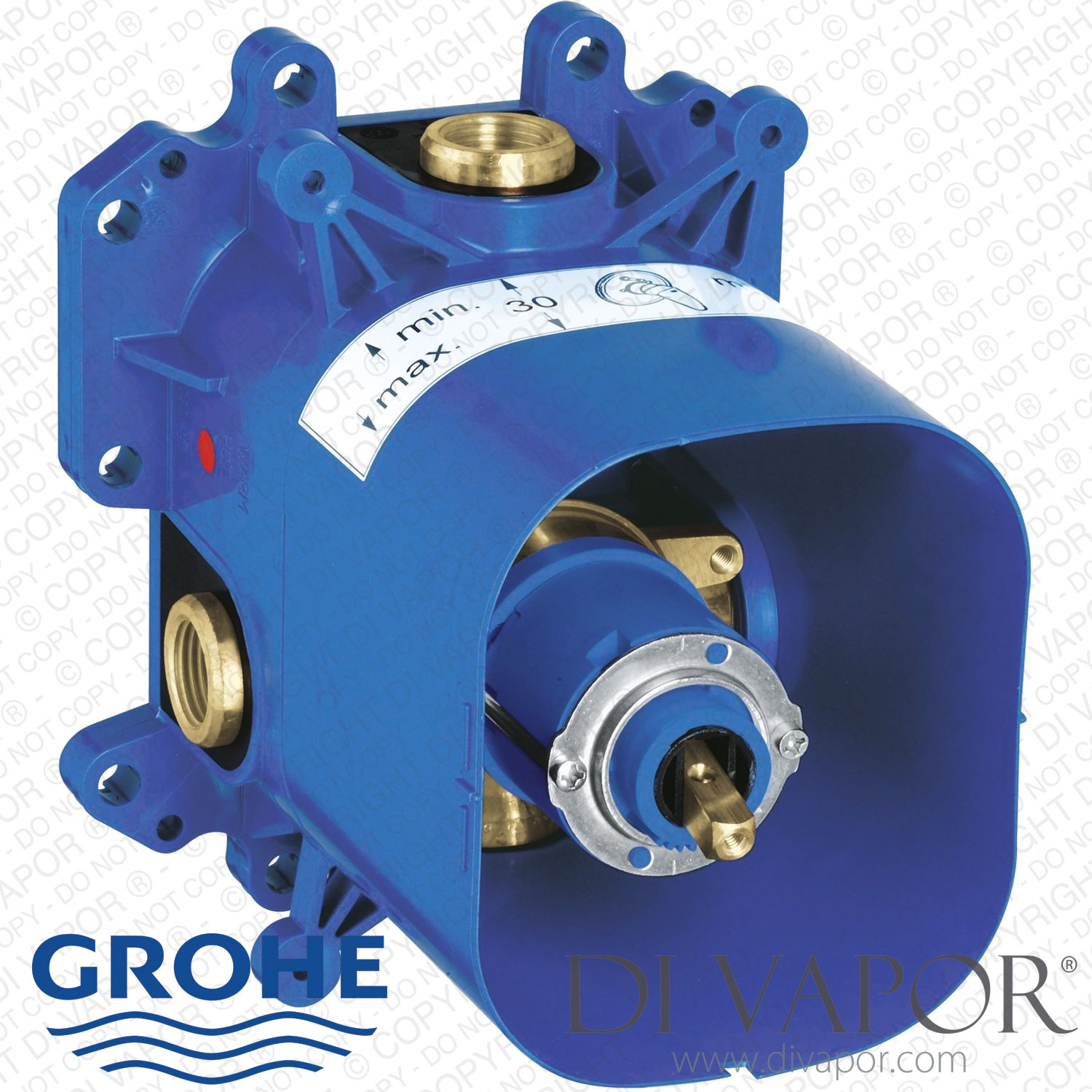

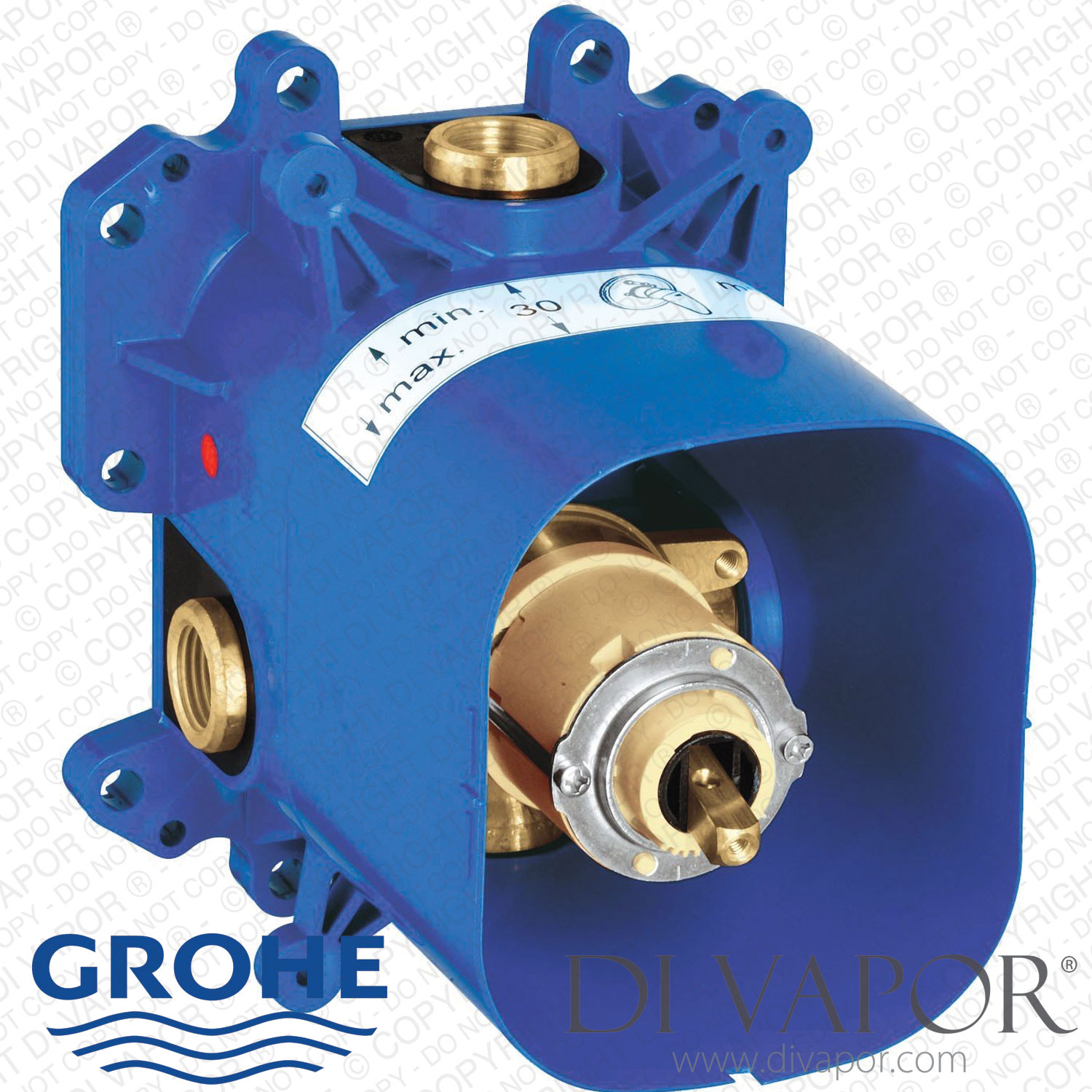

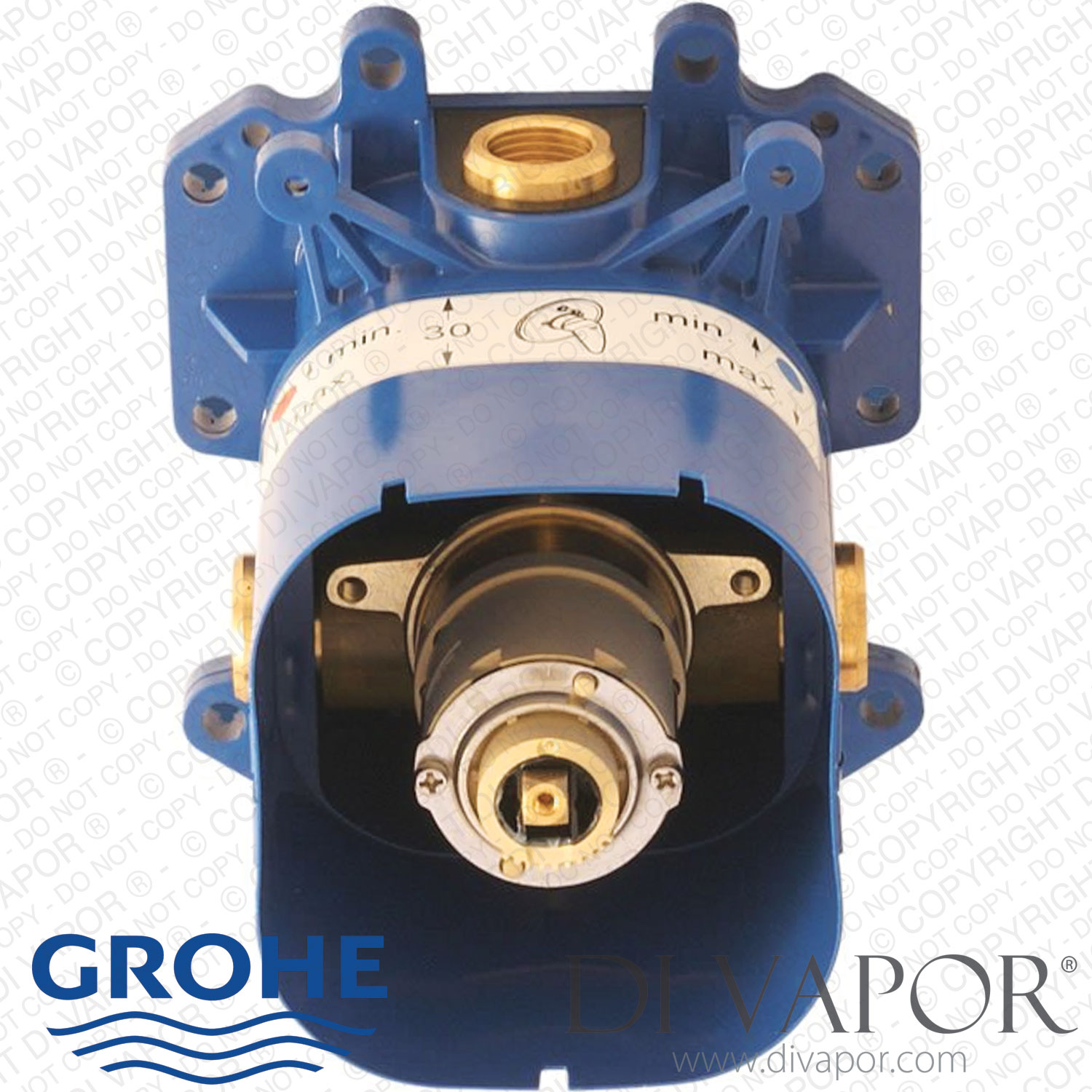

GROHE 35501000 Rapido E Universal Concealed Single-Lever Mixer Body

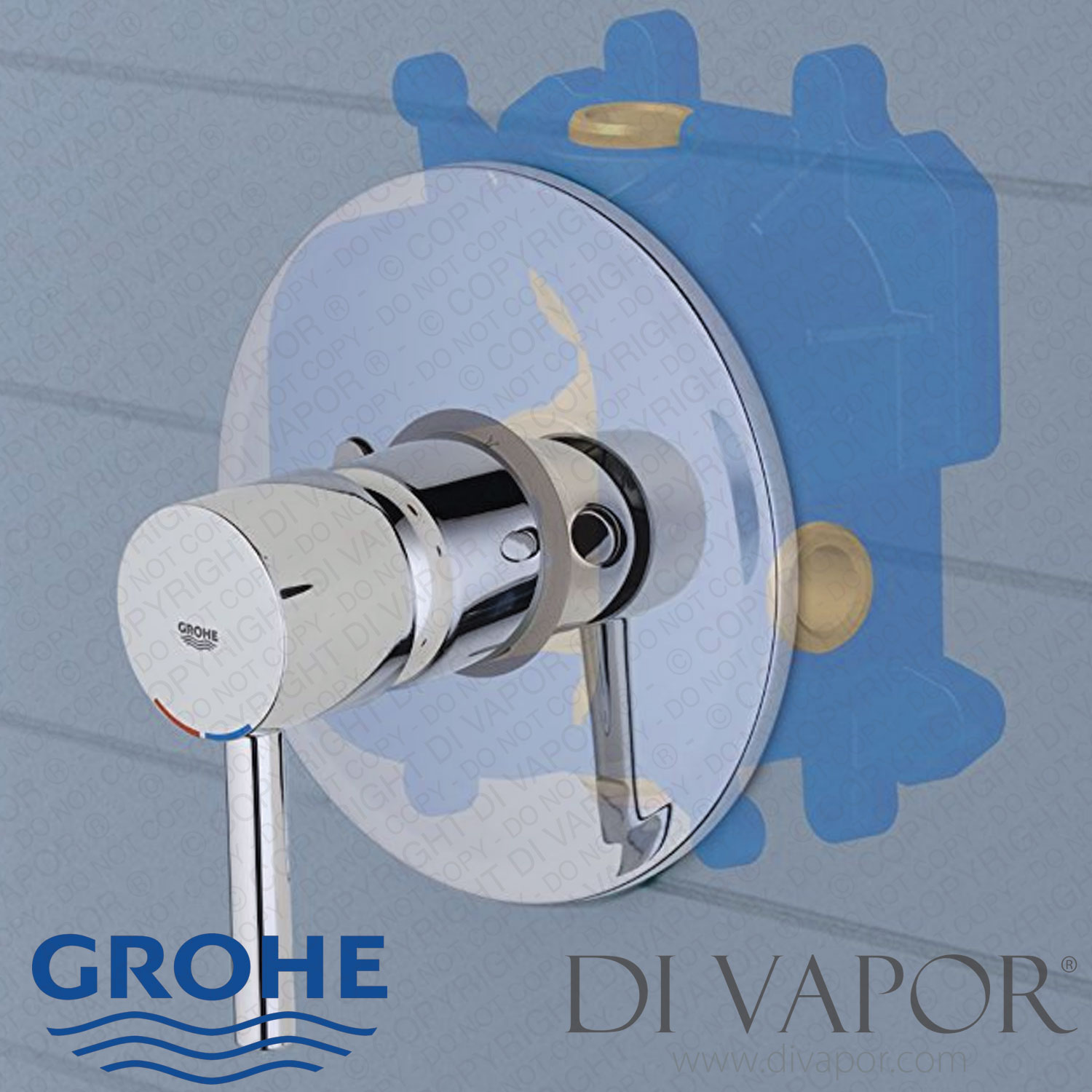

GROHE 35501000 Rapido E is a universal concealed single-lever mixer body designed as the in-wall installation unit for selected GROHE bath and shower mixer finishing trim sets. The valve is installed behind the finished wall surface and provides the concealed hydraulic body and cartridge assembly required for the corresponding manual single-lever control.
The 35501000 uses a 46mm GROHE SilkMove ceramic mixer cartridge and is suitable for concealed bath or shower mixer applications. The finishing trim is ordered separately. Where a bath/shower finishing set is used, the diverter is supplied as part of the appropriate finishing trim rather than being incorporated into the Rapido E rough-in body itself.
Technical Details
- Concealed installation
- Single-lever mixer body
- Suitable for selected bath mixer and shower mixer finishing trim sets

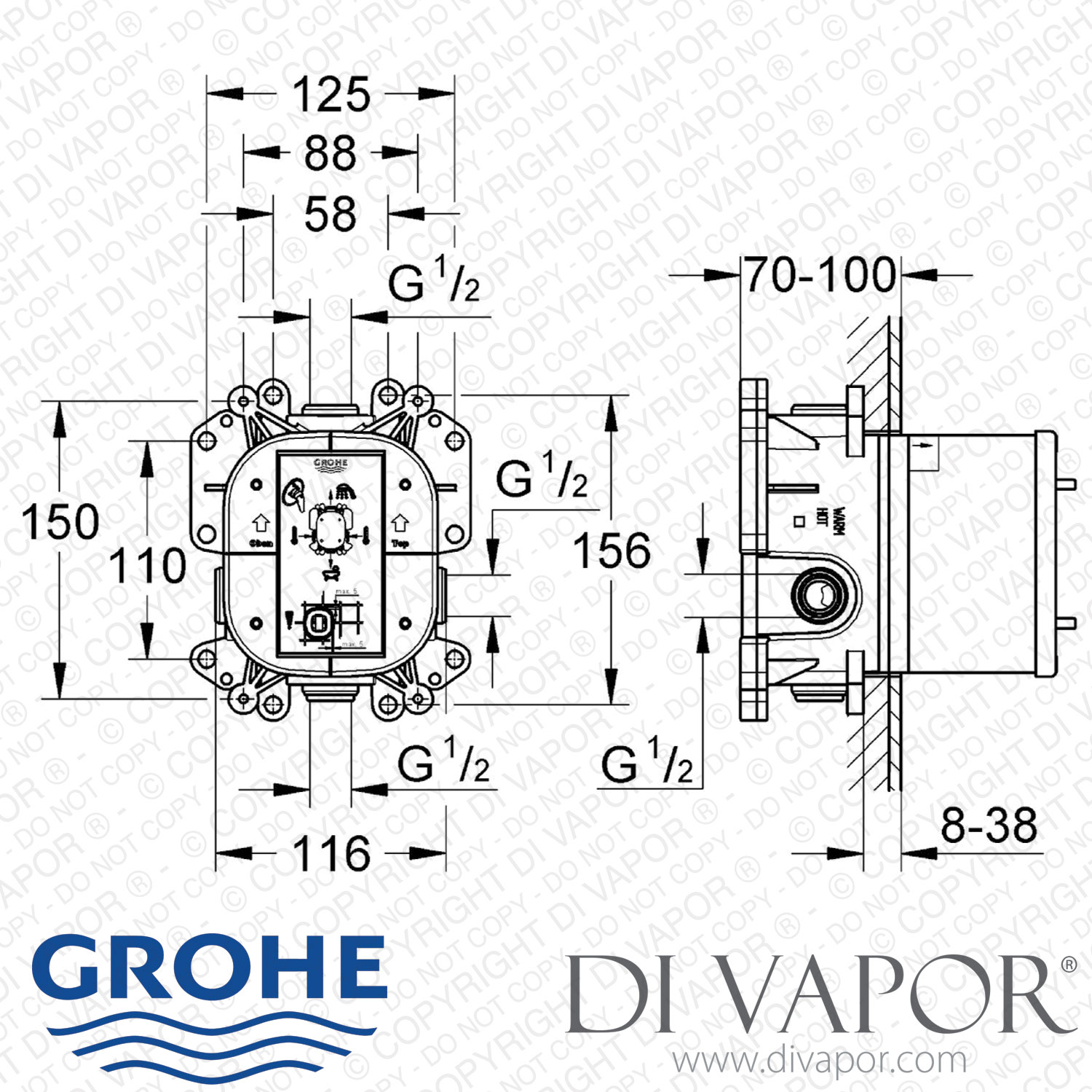

| Installation depth | 70-100mm |
|---|---|
| Cartridge | 46mm GROHE SilkMove ceramic cartridge |
- Adjustable flow limiter
| Connections | 1/2 inch |
|---|---|
| Body material | DR/DZR brass |
| Minimum recommended operating pressure | 1.0 bar |
- Premounted and factory-tested installation unit
- Built-in installation box with protective cap
- Suitable fixing arrangements for solid-wall and dry-cladding installation
- Wall-sealing material included
Product Generation
The 35501000 belongs to the earlier GROHE Rapido E concealed installation system. GROHE subsequently introduced the Rapido SmartBox system for newer concealed installations. This change of system should not be treated as confirmation that a Rapido SmartBox is a direct service replacement for an existing 35501000 installation.
Confirmed Compatible Models
- GROHE Essence 19285000 / 19286000
- GROHE Lineare 19297000 / 19296000
- GROHE Allure 19315000 / 19317000
- GROHE Atrio 19459001 / 19463001
- GROHE Euroeco Special 19537002
- GROHE Quadra 19456000 / 19455000
- GROHE Chiara 19155000 / 19156000
- GROHE Europlus 19536002 / 19537002
- GROHE Concetto 19346000 / 19345000
- GROHE Allure Brilliant 19785000
- GROHE 19789000 Allure Brilliant Single-Lever Shower Mixer
Before You Order
Check the existing concealed body and finishing trim carefully before ordering. GROHE has used several generations of concealed installation systems, and the presence of a later Rapido SmartBox installation should not be taken as evidence that 35501000 is interchangeable with it.
Related Spares You May Need
- GROHE 46048000 GRO46048 46mm Cartridge - the 46mm ceramic mixer cartridge used in the Rapido E 35501000
- GROHE 28151000 Relaxaflex Shower Hose 1500mm - 1500mm silver shower hose with 1/2 inch x 1/2 inch conical connections
- 150mm Universal Shower Hose - NXT734 - associated shower hose listed with the 35501000
