Grohe 24054001 Concetto Single-Lever Mixer with 2-Way Diverter Shower Spare Parts

SUMMARY

Shower Spares for Grohe 24054001 Concetto Single-Lever Mixer with 2-Way Diverter

Colour: Chrome

- Grohe Rapido SmartBox (35 600)

- Grohe SilkMove 46mm Ceramic Cartridge

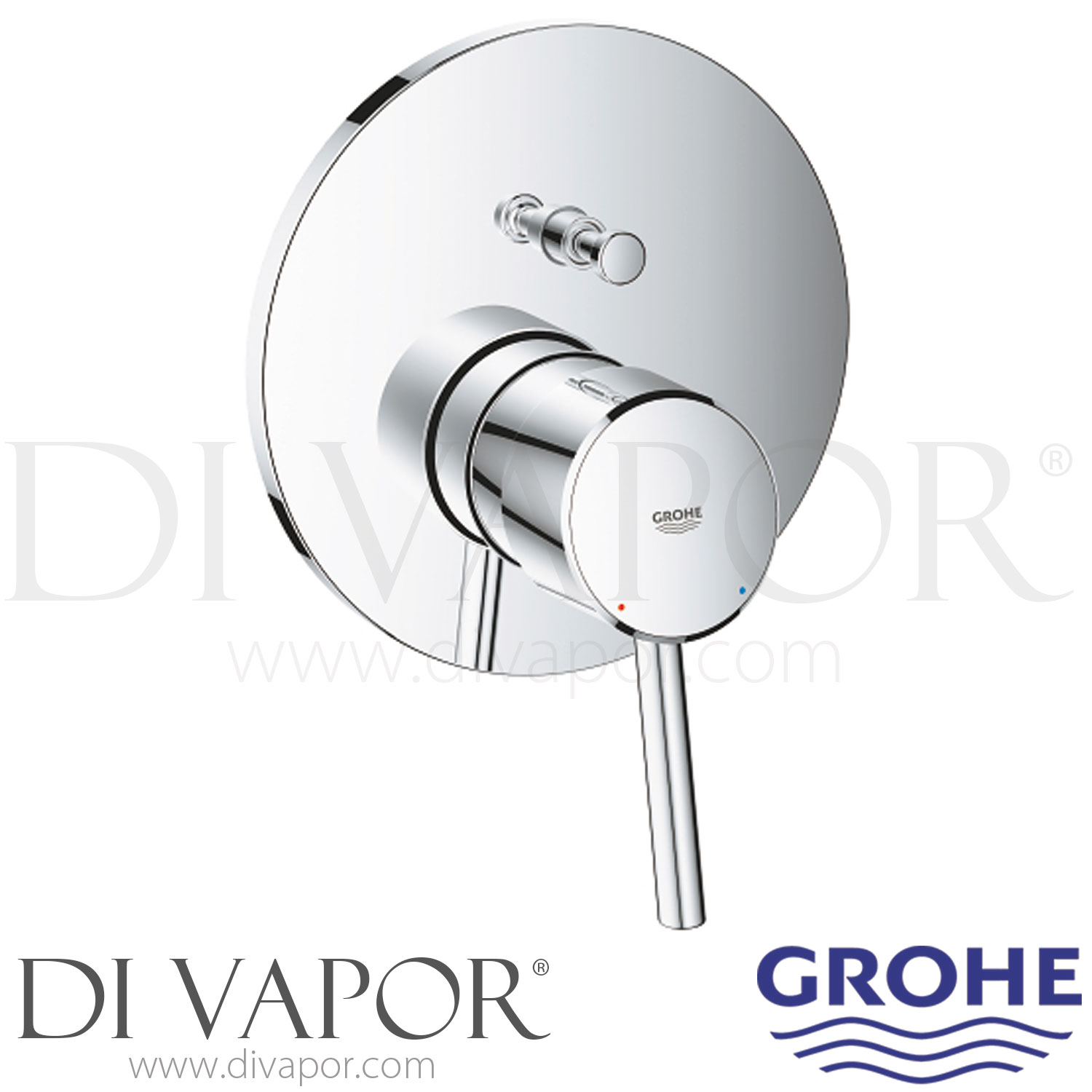

The GROHE 24054001 Concetto is a chrome concealed single-lever bath shower mixer trim with an automatic 2-way diverter, designed to control mixed water flow and switch between two shower or bath outlets. It is the final-installation trim and requires a suitable GROHE Rapido SmartBox concealed body behind the finished wall.

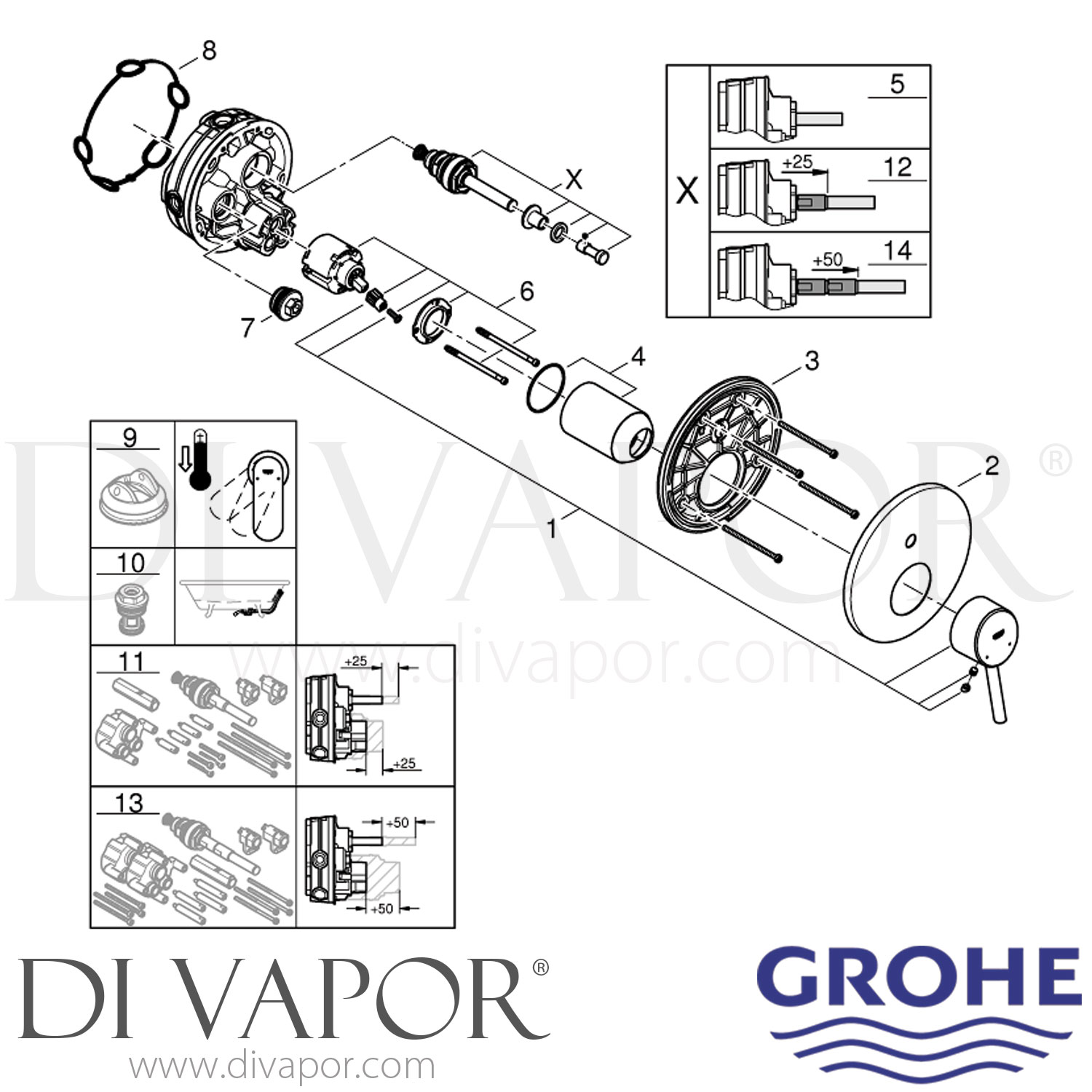

The mixer uses a GROHE SilkMove 46 mm ceramic cartridge for flow and temperature control, while the separate diverter mechanism directs water between the two connected outlets. For servicing, the Grohe spare parts listed below are items associated with this model.

Technical Details

- - Brand: GROHE

- - Range: Concetto

- - Category: Bath shower mixer

- - Product code: 24054001

- - Product type: Concealed single-lever mixer with automatic 2-way diverter

- - Finish: Chrome

- - Mixing cartridge: GROHE SilkMove 46 mm ceramic cartridge

- - Escutcheon: Metal

- - Fixing system: GROHE FastFixation

- - Escutcheon adjustment: Up to 6 degrees

- - Escutcheon diameter: 158 mm

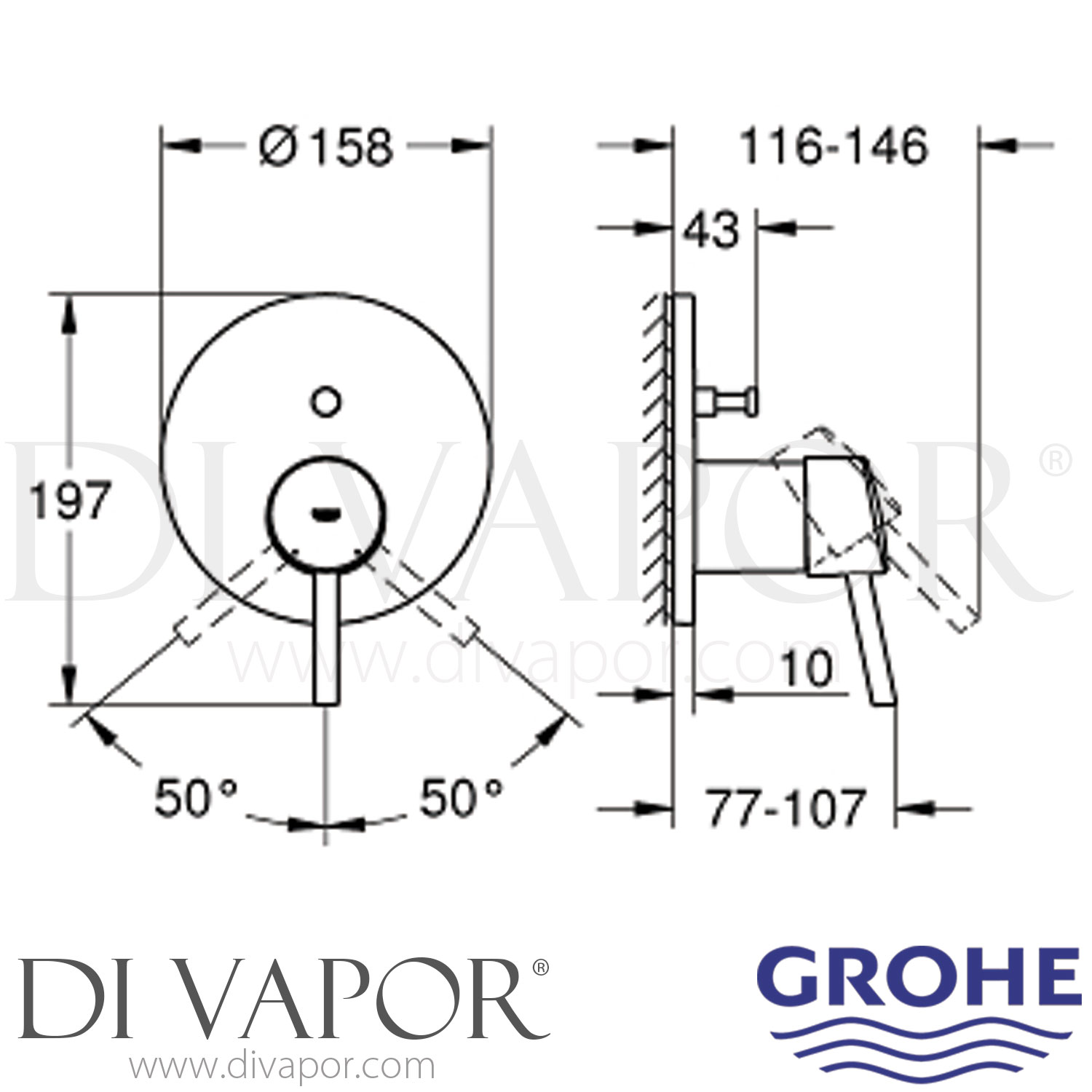

- - Overall vertical dimension shown in the GROHE drawing: 197 mm

- - Outlet B flow rate: 27 litres per minute

- - Outlet C flow rate: 27 litres per minute

- - Required concealed body: GROHE 35600000 Rapido SmartBox Universal Rough-In Box or GROHE 35604000 Rapido SmartBox

- - Concealed rough-in body is not included with the 24054001 trim

- - EAN: 4005176465413

Function and Servicing

The 46 mm mixing cartridge regulates water flow and temperature, while the 2-way diverter selects which connected outlet receives water. If the mixer becomes difficult to operate, fails to shut off correctly, or continues dripping from the shower head or bath spout when turned off, the cartridge is one of the principal service components to inspect. Problems switching reliably between the two outlets can indicate that the diverter mechanism also requires inspection.

Before You Order

Check the mixer reference is 24054001 and compare the required component with the existing part before ordering. Older GROHE documentation for this model shows some different diverter references from the current spare parts listing, so older and newer diverter codes should not be assumed to be interchangeable without confirming the installed version.
