Grohe 24051002 Eurostyle Cosmopolitan Single-Lever Shower Mixer Spare Parts

SUMMARY

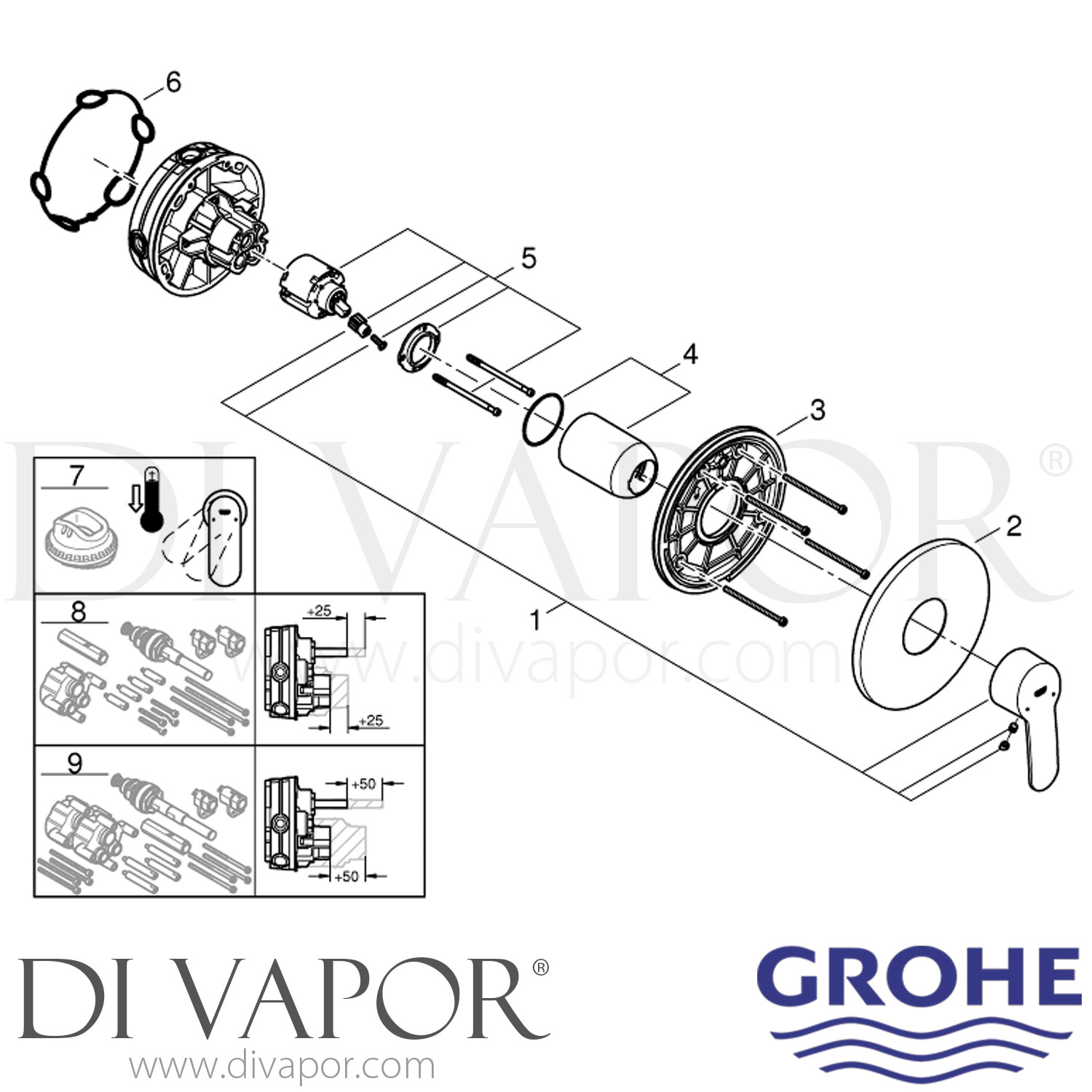

Spares for Grohe 24051002 Eurostyle Cosmopolitan Single-Lever Shower Mixer

- Set for Final Installation for Grohe Rapido Smartbox (35 600)

- Grohe SilkMove 46mm Ceramic Cartridge

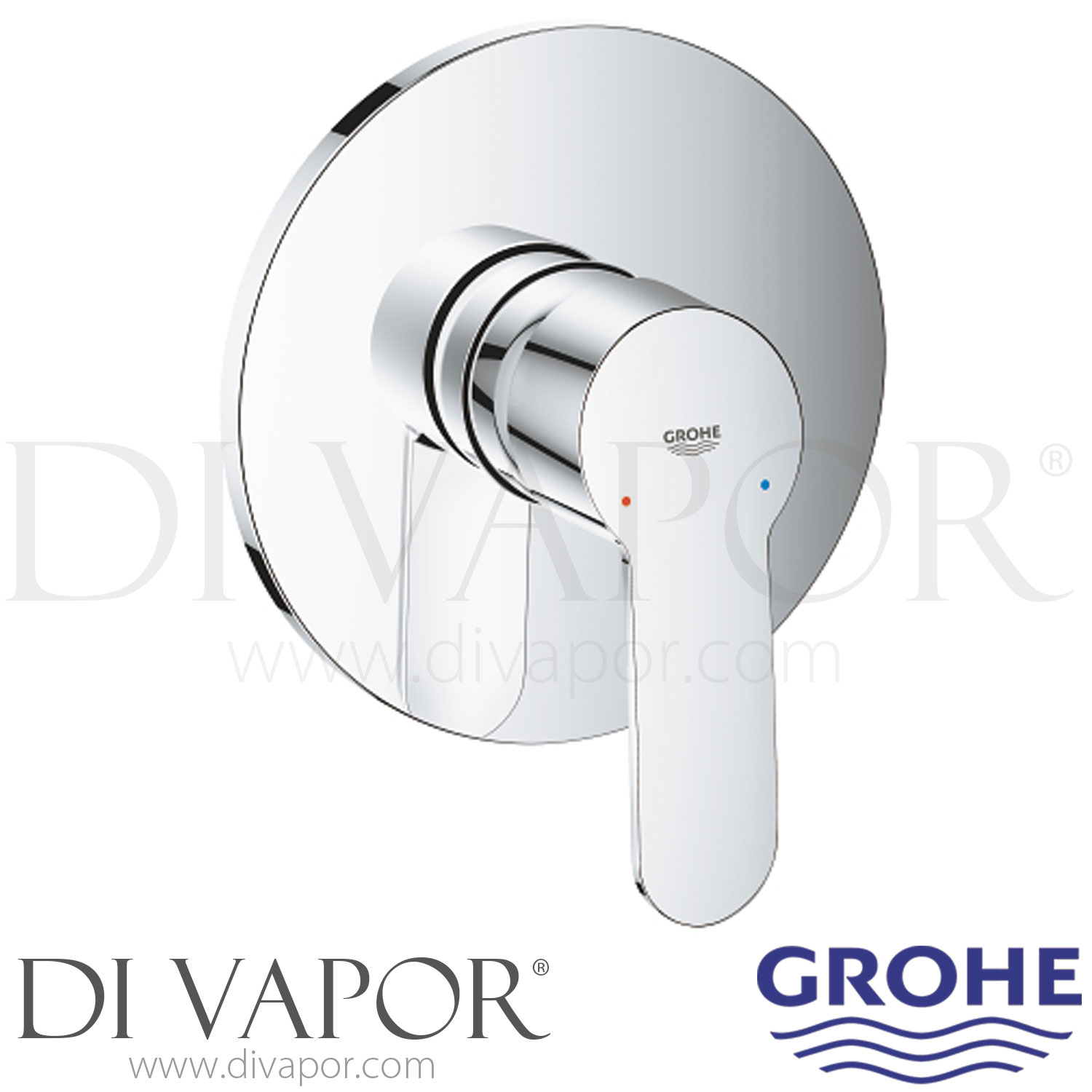

Grohe 24051002 is the Eurostyle Cosmopolitan concealed single-lever shower mixer final-installation trim set for a Rapido SmartBox concealed rough-in body. It provides the visible operating lever, circular escutcheon and 46 mm ceramic mixing cartridge, while the concealed rough-in body is ordered separately.

The single lever controls both water flow and mixed-water temperature. A worn ceramic cartridge can cause stiff or inconsistent lever operation, poor shut-off, or water dripping from the shower head when the mixer is turned off. When servicing this mixer, the Grohe spare parts listed below can be used to identify the correct cartridge and related shower hose shown for this model.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle Cosmopolitan

- - Category: Shower mixer

- - Product code: 24051002

- - Product type: concealed single-lever shower mixer final-installation trim set

- - Installation system: Grohe Rapido SmartBox 35 600 or 35 604

- - Rough-in set: not included

- - Mixer cartridge: Grohe SilkMove 46 mm ceramic cartridge

- - Finish: chrome, with Grohe LongLife finish

- - Lever and escutcheon: metal

- - Escutcheon diameter: 158 mm

- - Escutcheon depth: 10 mm

- - Alignment adjustment: up to 6 degrees after installation

- - Flow at 3 bar: 30 l/min through outlet B or C

- - EAN: 4005176465383

Confirmed Installation Systems

- - Grohe 35600000 Rapido Smartbox Universal Rough-In Box 1/2

- - Grohe Rapido SmartBox 35 604

Before You Order Check

Confirm that the mixer code is 24051002 and that the concealed installation uses a Rapido SmartBox 35 600 or 35 604. Compare the existing cartridge and trim arrangement before ordering, as several Grohe concealed single-lever mixers use visually similar service parts.
