Grohe 24049003 Eurostyle Single-Lever Mixer with 2-Way Diverter Spare Parts

SUMMARY

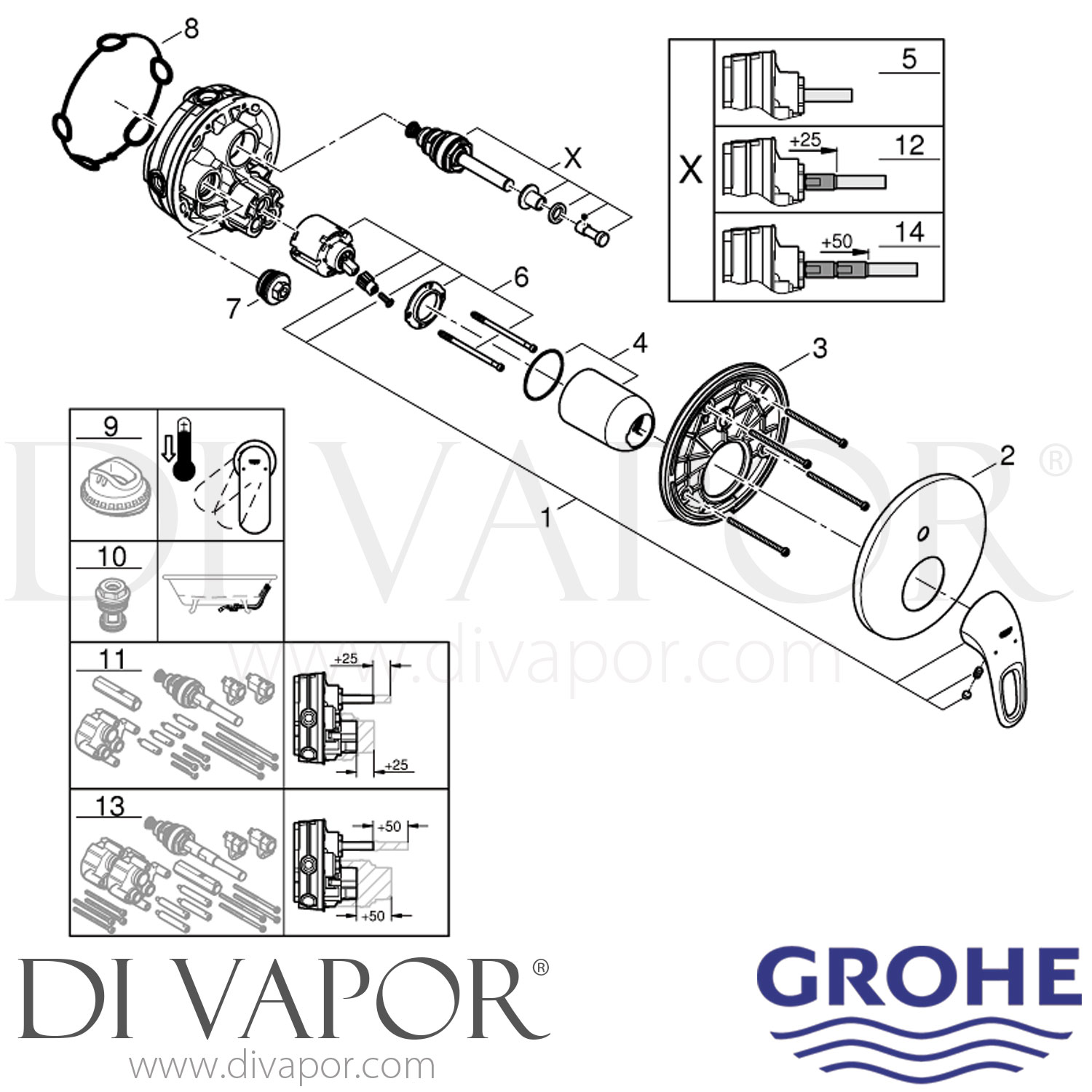

Spares for Grohe 24049003 Eurostyle Single-Lever Mixer with 2-Way Diverter

- Set for Final Installation for Grohe Rapido Smartbox (35 600)

- Grohe SilkMove 46mm Ceramic Cartridge

- Automatic 2-Way Diverter

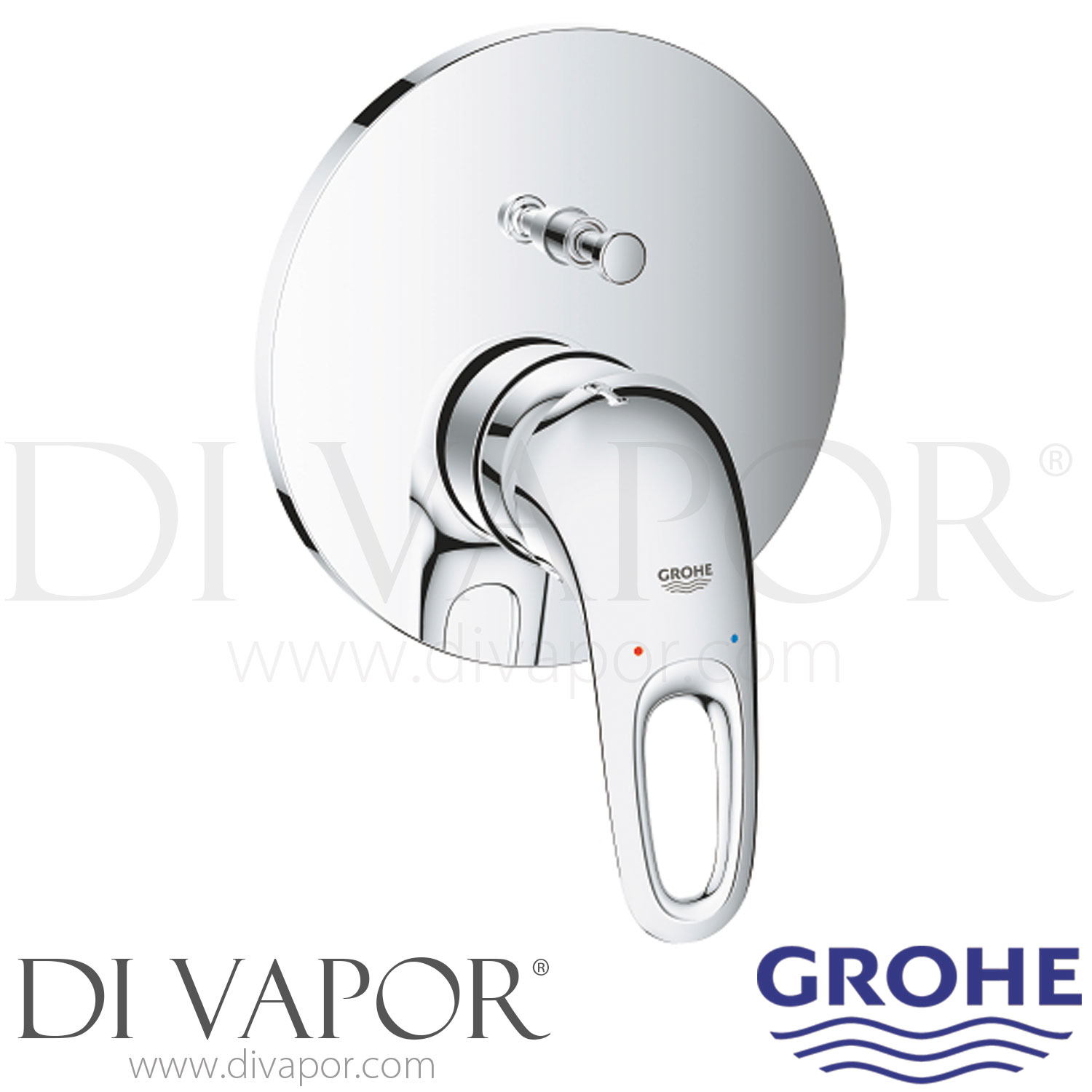

The GROHE 24049003 Eurostyle is a chrome concealed single lever bath shower mixer trim set with an automatic 2-way diverter, providing control of water flow, temperature, and selection between two outlet functions. It is designed for installation with the GROHE Rapido SmartBox concealed system, with the rough-in body ordered separately.

The mixer uses a GROHE SilkMove 46 mm ceramic cartridge for lever-operated flow and temperature control. For servicing, the available Grohe shower spare parts for this model include the 46 mm ceramic cartridge, along with the related shower hose listed below.

Technical Details

- - Brand: GROHE.

- - Range: Eurostyle 2015.

- - Category: Bath shower mixer.

- - Model: 24049003.

- - Installation type: Concealed mixer trim set.

- - Control: Single lever.

- - Diverter: Automatic 2-way diverter.

- - Cartridge: GROHE SilkMove 46 mm ceramic cartridge 46048000.

- - Finish: Chrome, with GROHE Long-Life finish.

- - Escutcheon: Metal, 158 mm diameter.

- - Overall front elevation: 205 mm.

- - Projection range: 77-107 mm.

- - Outlet flow: 27 l/min at outlet B, and 27 l/min at outlet C.

- - Rough-in system: GROHE Rapido SmartBox 35 600/35 604, ordered separately.

- - EAN: 4005176465369.

Before You Order

Confirm the mixer model code 24049003 on the existing installation or product documentation, and identify the component requiring replacement before ordering. The concealed rough-in body is not supplied as part of this trim set.
