Grohe 24047003 Eurostyle Single-Lever Mixer with 2-Way Diverter Spare Parts

SUMMARY

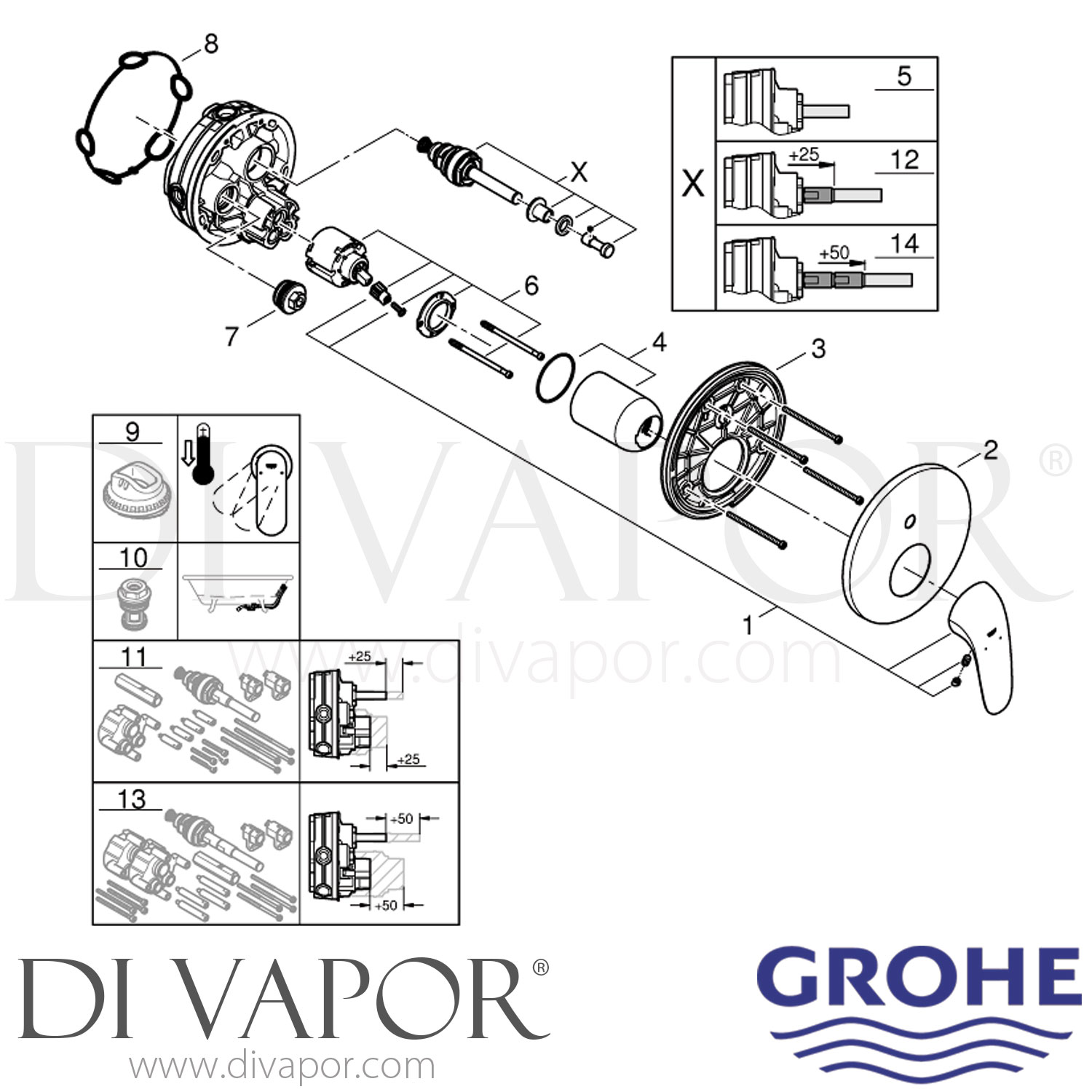

Spares for Grohe 24047003 Eurostyle Single-Lever Mixer with 2-Way Diverter

Set for final installation for Grohe Rapido SmartBox (35 600).

- Grohe SilkMove 46mm Ceramic Cartridge

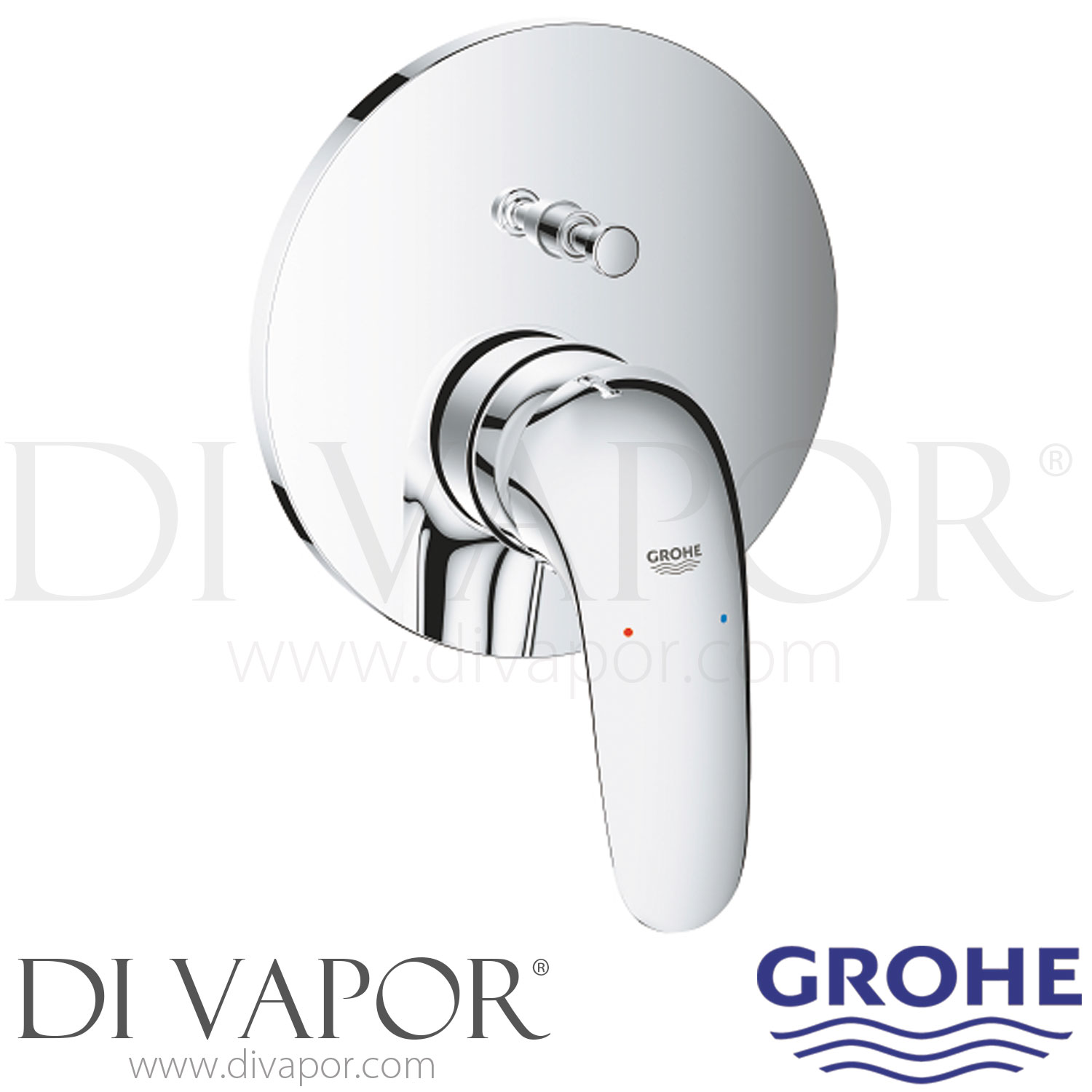

Grohe 24047003 is a Eurostyle concealed single lever mixer trim set in chrome, with an automatic 2-way diverter for selecting between two water outlets. It is designed for installation with the GROHE Rapido SmartBox concealed rough-in system, with the rough-in body ordered separately.

The single lever controls water flow and temperature through the GROHE SilkMove 46mm ceramic cartridge, while the diverter switches the water supply between the two connected outlets. When servicing this installation, selecting Grohe shower spare parts by the exact mixer and component codes helps ensure the correct parts are ordered.

Technical Details

- - Brand: GROHE

- - Range: Eurostyle

- - Category: Bath shower mixer

- - Product code: 24047003

- - Finish: Chrome

- - Control type: Single lever

- - Diverter: Automatic 2-way diverter

- - Cartridge: GROHE SilkMove 46mm ceramic cartridge

- - Escutcheon: Metal

- - Escutcheon diameter: 158mm

- - Overall trim height: 205mm

- - Trim projection shown on the technical drawing: 43mm

- - Installation-dependent overall projection: 122-152mm

- - Outlet B flow rate at 3 bar: 27 litres per minute

- - Outlet C flow rate at 3 bar: 27 litres per minute

- - Recommended flow pressure: 1-5 bar

- - Maximum operating pressure: 10 bar

- - Maximum hot-water supply temperature: 70 degrees C

- - Recommended hot-water temperature: 60 degrees C

- - Rough-in body: Ordered separately

- - EAN: 4005176465321

Confirmed Compatible Models

- - Grohe Rapido SmartBox 35600000 / 35 600

- - Grohe Rapido SmartBox 35604000 / 35 604

Before You Order

Check the mixer code and concealed SmartBox installation before ordering. The trim set is used with the Rapido SmartBox rough-in system, and installation depth can affect whether an extension set is required.
