Mira 1735.120 Diverter
Send a photo of your item and we'll help confirm it.
Summary

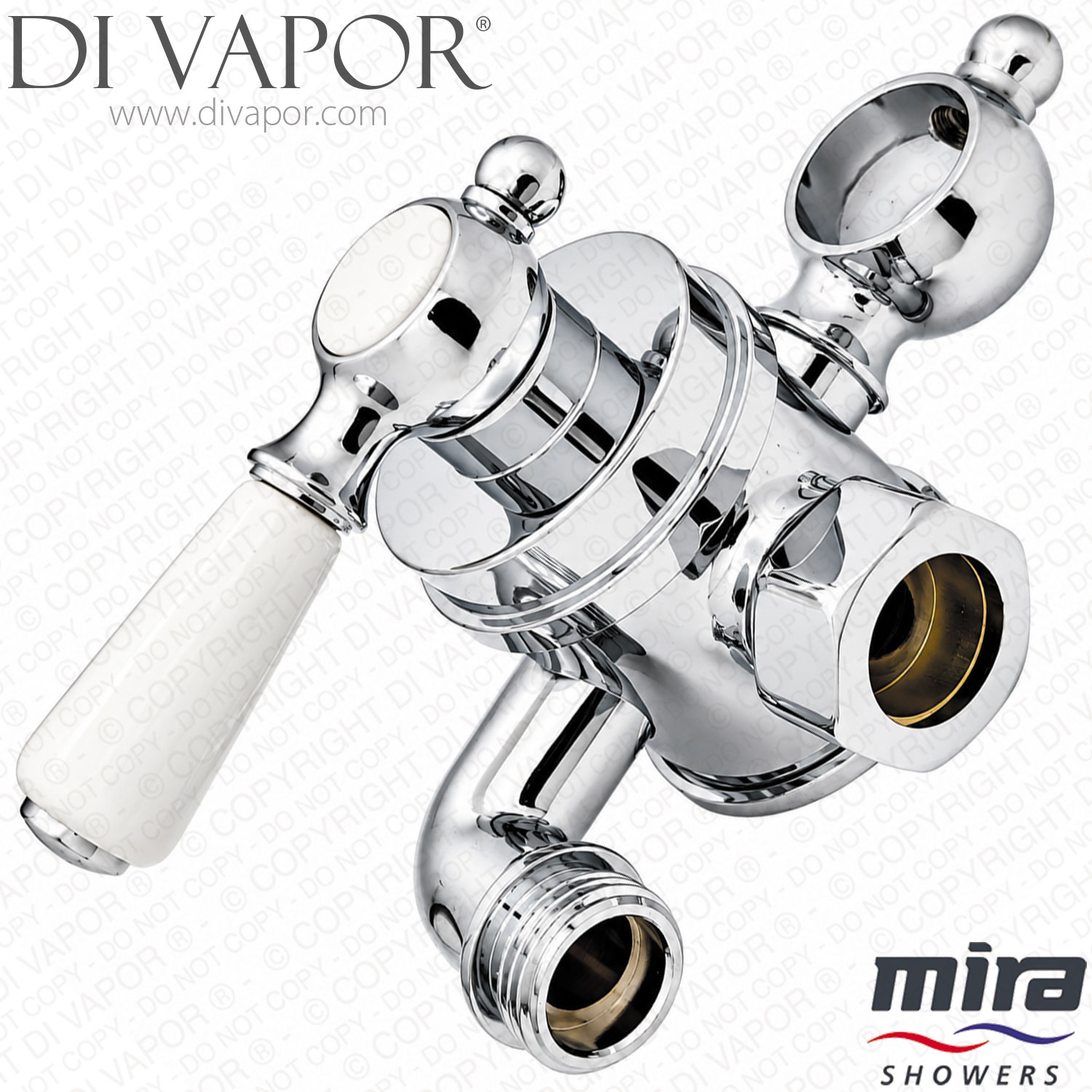

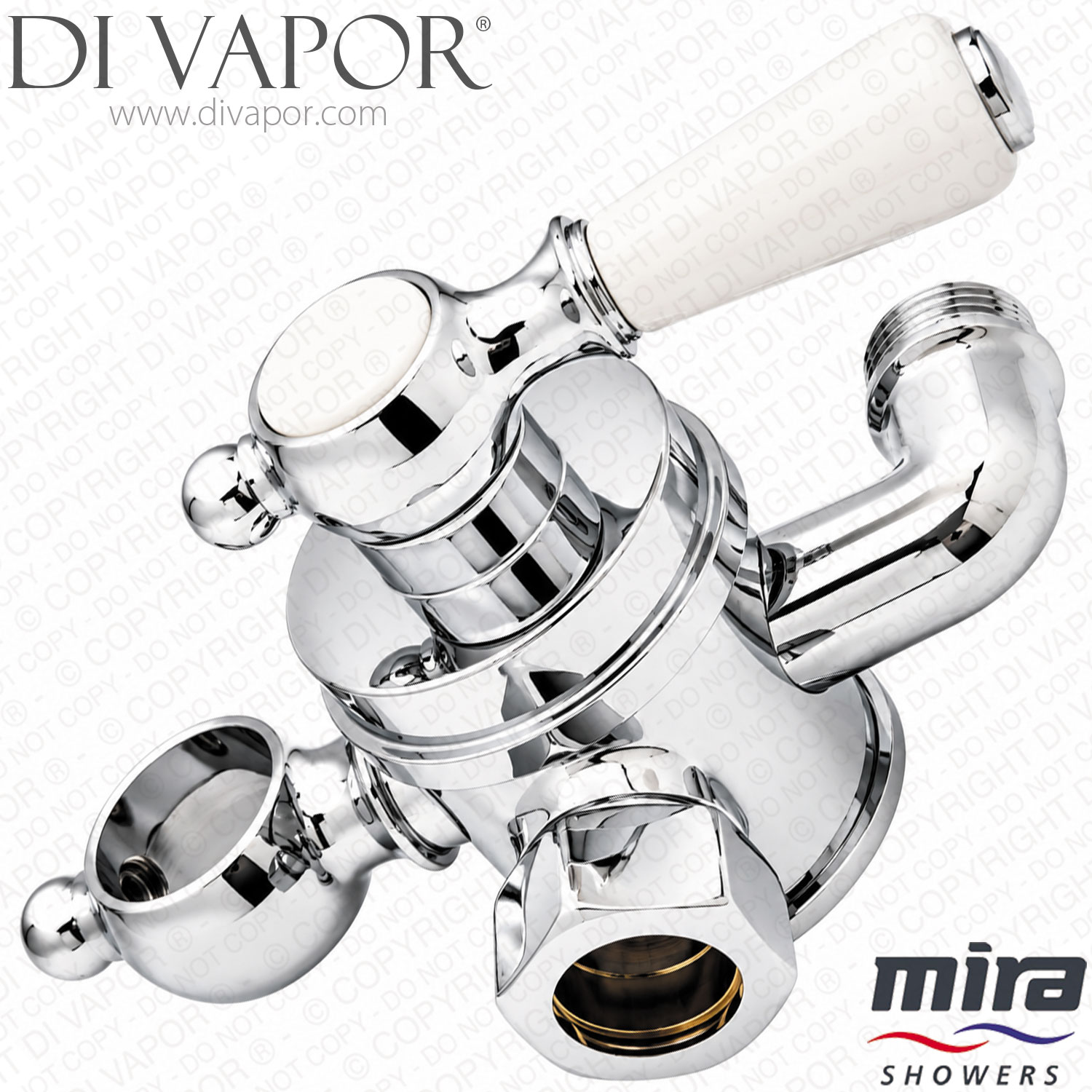

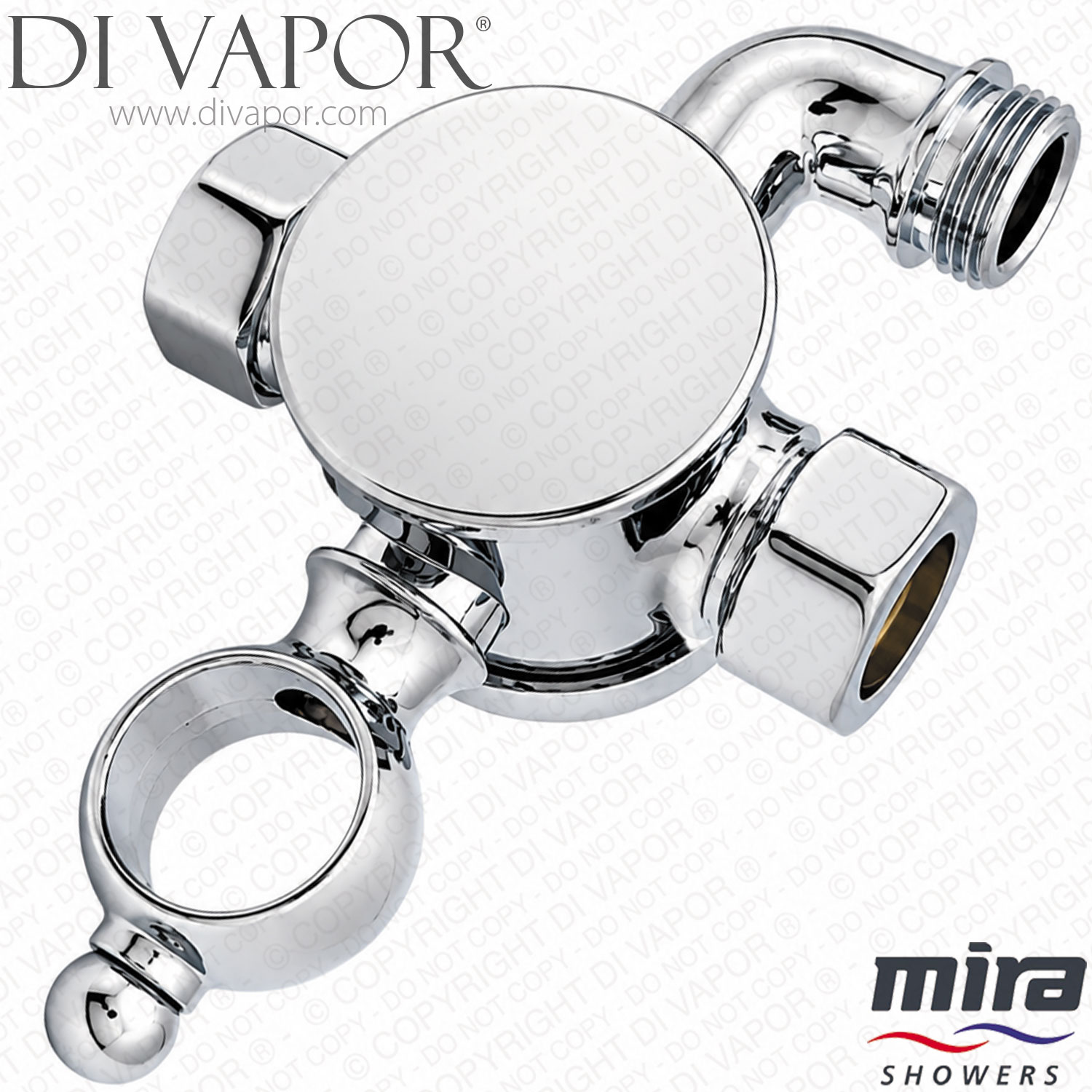

Mira 1735.120 Diverter
The Mira 1735.120 is a diverter assembly for selected Mira thermostatic mixer showers with a diverter outlet arrangement.
This diverter assembly controls outlet selection on the shower valve, allowing water to be directed to the overhead shower, the handshower or both outlets depending on the valve position.
Technical Details
| Brand | Mira |
|---|---|
| Part number | 1735.120 |
| Part type | Diverter assembly |
| Shower type | Thermostatic mixer shower with diverter |
| Diverter outlet positions | Overhead shower, handshower, overhead shower and handshower together |
| Associated system inlet connections | 15 mm compression |
| Associated system outlet connection | 1/2 inch BSP flat face / 15 mm compression |
| Standard associated pipe orientation | Hot left, cold right, outlet top |
No standalone dimensional drawing for the 1735.120 diverter assembly has been verified, so the existing valve and part number should be checked before ordering.
Confirmed Compatible Models
- Mira Realm with Diverter ERD (1.1735.002)
- Mira Virtue ERD Thermostatic Mixer Shower with Diverter (1.1927.001)
Fault Checking
Common symptoms to check before ordering include stiff or ineffective outlet selection, water appearing from the wrong outlet, leakage around the diverter area or dripping from an outlet after the shower has been turned off. Dripping after shut-off can also indicate pressure or thermostatic cartridge issues, so confirm the fault before replacing parts.
