Lefroy Brooks PTS035 Non Return Check Valve Compatible Spare
SUMMARY
Lefroy Brooks PTS035 Non Return Check Valve for Concealed Shower Valves Compatible Spare

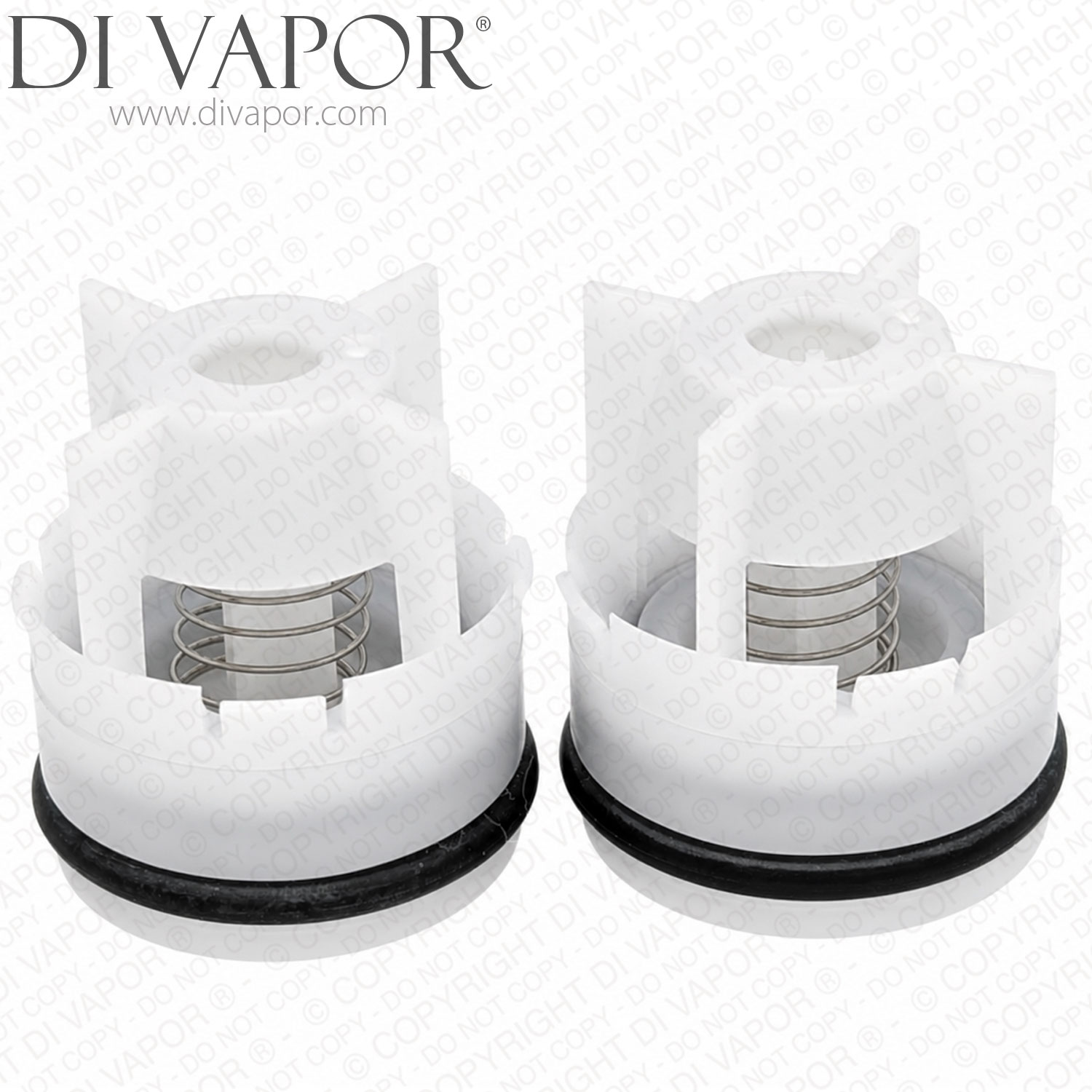

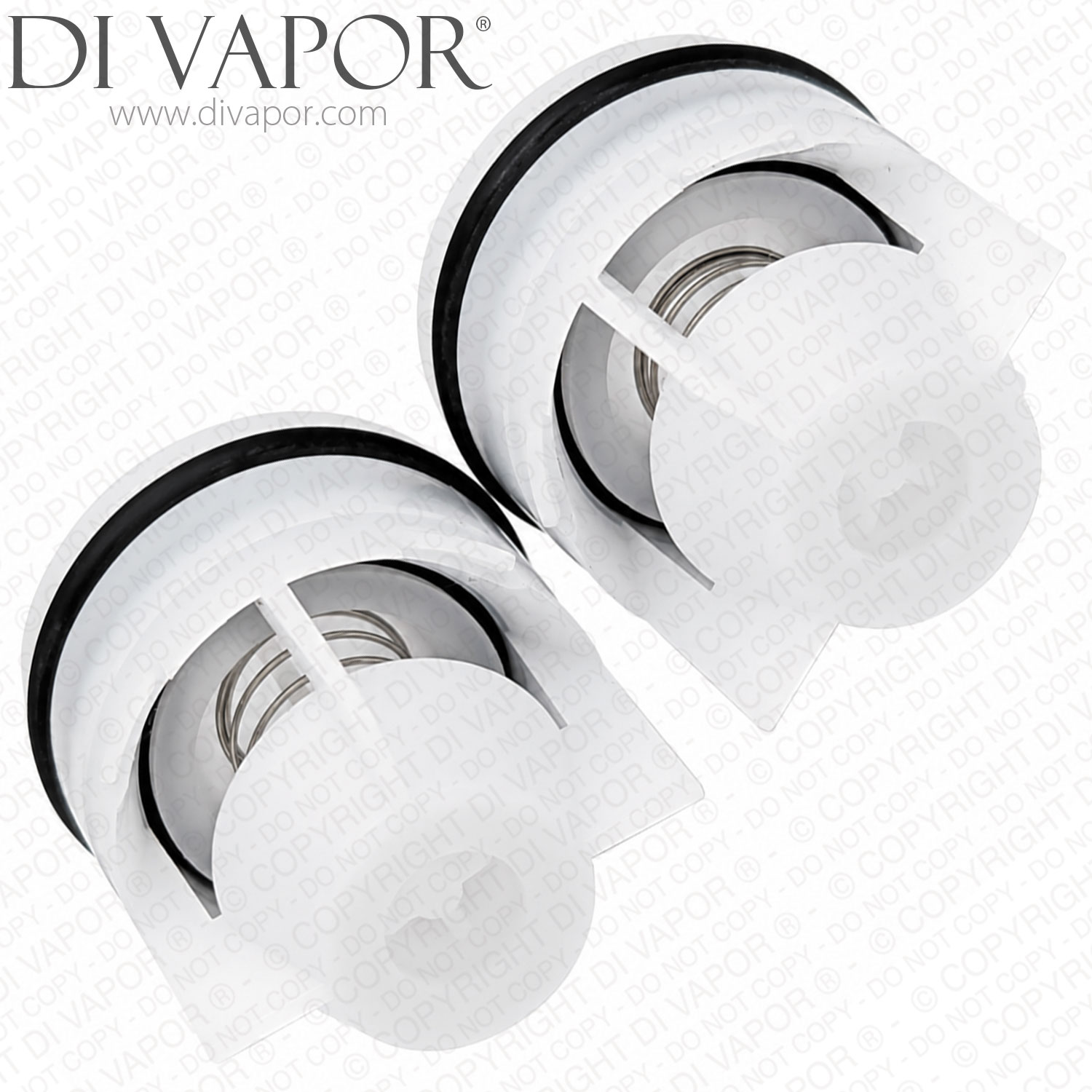

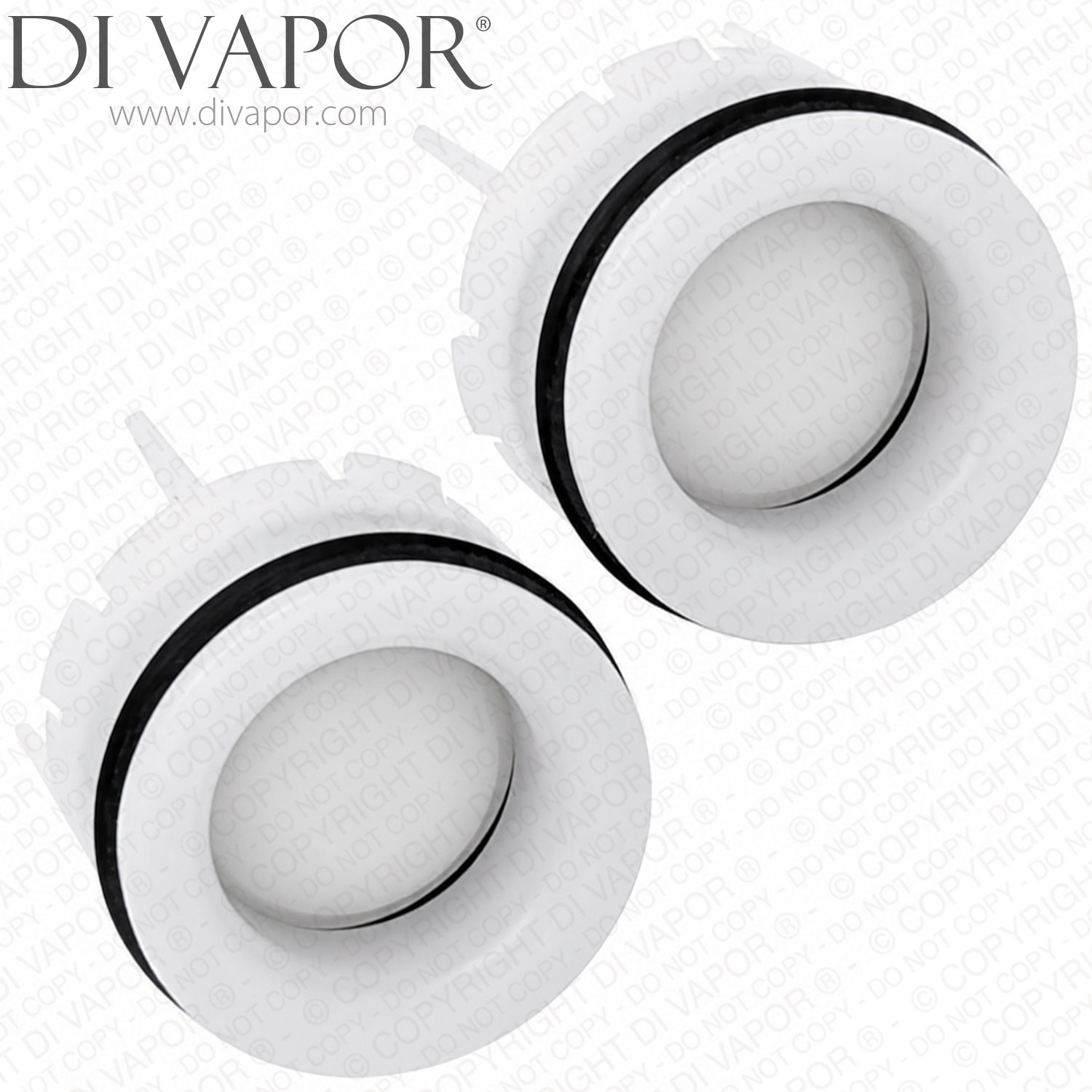

This Lefroy Brooks PTS035-CS non-return check valve is a compatible spare for shower valves that use the Lefroy Brooks PTS035 non-return valve code. It helps prevent reverse flow through the hot and cold supplies inside selected Lefroy Brooks concealed thermostatic shower valve bodies.
Non-return check valves are positioned behind the valve face plate on the relevant concealed valve assemblies and are serviceable from the front of the valve. Match PTS035 or PTS035-CS against the existing valve, original packaging, installation guide or spares diagram before ordering.
Technical Details
- - Brand: Lefroy Brooks
- - Di Vapor Part Number: PTS035-CS
- - Original valve diagram code: PTS035
- - Part type: Non-return check valve
- - Application: Concealed thermostatic shower valves using PTS035 non-return valves
- - Service access: Behind the valve face plate from the front of the valve
- - Service note: The non-return valve covers are removed with a 17mm spanner or socket on documented concealed valve assemblies
- - Fitting note: Isolate the hot and cold supplies before removal, remove the valve cover, extract the non-return valve with long nose pliers or a similar tool, lightly grease the replacement O-ring with silicone grease and reassemble in reverse order
Confirmed Compatible Di Vapor Spares Pages
8706 Concealed Thermostatic Valve Spares Pages
- - Lefroy Brooks Classic Black Concealed Thermostatic Valve BL 8706 Spare Parts
- - Lefroy Brooks Classic Concealed Thermostatic Valve GD 8706 Spare Parts
- - Lefroy Brooks Janey Mac Concealed Thermostatic Valve JM 8706 Spare Parts
- - Lefroy Brooks Classic Concealed Thermostatic Valve With Star Handle LS 8706 Spare Parts
- - Lefroy Brooks Mackintosh Black Concealed Thermostatic Valve MB 8706 Spare Parts
- - Lefroy Brooks Mackintosh Concealed Thermostatic Valve MK 8706 Spare Parts
- - Lefroy Brooks Ten Ten Concealed Thermostatic Valve TT 8706 Spare Parts
8736 Concealed Dual Control Thermostatic Valve Spares Pages
- - Lefroy Brooks Classic Black Concealed Dual Control Thermostatic Valve BL 8736 Spare Parts
- - Lefroy Brooks Classic Concealed Dual Control Thermostatic Valve GD 8736 Spare Parts
- - Lefroy Brooks Janey Mac Concealed Dual Control Thermostatic Valve JM 8736 Spare Parts
- - Lefroy Brooks Mackintosh Concealed Dual Control Thermostatic Valve MK 8736 Spare Parts
- - Lefroy Brooks Ten Ten Concealed Dual Control Thermostatic Valve TT 8736 Spare Parts
Archipelago 8800 Thermostatic Valve Spares Pages
- - Lefroy Brooks Classic Black Archipelago Thermostatic Valve BL 8800 Spare Parts
- - Lefroy Brooks Classic Archipelago Thermostatic Valve GD 8800 Spare Parts
- - Lefroy Brooks La Chapelle Archipelago Thermostatic Valve FR 8800 Spare Parts
- - Lefroy Brooks Ten Ten Archipelago Thermostatic Valve TT 8800 Spare Parts
Archipelago 8801 Thermostatic Valve and Flow Control Spares Pages
- - Lefroy Brooks Classic Black Archipelago Thermostatic Valve and Flow Control BL 8801 Spare Parts
- - Lefroy Brooks Classic Archipelago Thermostatic Valve and Flow Control GD 8801 Spare Parts
- - Lefroy Brooks La Chapelle Archipelago Thermostatic Valve and Flow Control FR 8801 Spare Parts
- - Lefroy Brooks Janey Mac Archipelago Thermostatic Valve and Flow Control JM 8801 Spare Parts
- - Lefroy Brooks Ten Ten Archipelago Thermostatic Valve and Flow Control TT 8801 Spare Parts
Other Confirmed Models
- - Lefroy Brooks Connaught Concealed Thermostatic Valve CT 8706
- - Lefroy Brooks Connaught Concealed Dual Control Thermostatic Valve CT 8736
- - Lefroy Brooks Classic Concealed Dual Control Thermostatic Valve With Star Handle LS 8736
- - Lefroy Brooks Connaught Archipelago Thermostatic Valve CT 8800
- - Lefroy Brooks Janey Mac Archipelago Thermostatic Valve JM 8800
- - Lefroy Brooks Mackintosh Black Archipelago Thermostatic Valve MB 8800
- - Lefroy Brooks Mackintosh Archipelago Thermostatic Valve MK 8800
Before Ordering
Check that the valve diagram or removed component identifies PTS035. Do not order by appearance alone, as other Lefroy Brooks shower valves use different non-return valve codes such as PTS002.
Related Spares You May Need
- - Lefroy Brooks PHL042 Hot 1/4 Turn 3/4 Inch Cartridge - Compatible Spare
- - Lefroy Brooks LB2750 Thermostatic Cartridge Replacement
- - Lefroy Brooks PTS020 Anti-Rotation Washer
- - Lefroy Brooks PTS021 Fitting
- - Lefroy Brooks PTS022 Bathroom Spare Part
- - Lefroy Brooks PTC057 Godolphin Flow Control Lever Assembly - Plated Chrome Handle
- - Lefroy Brooks PTC012 Archipelago Chrome Concealing Plate Faceplate
- - Lefroy Brooks PTS030 Fixing Screw
