INTA YPS085822100 22 Millimeters Y-Pattern Strainer Cartridge 100 Microns
SUMMARY
INTA YPS085822100 22 Millimeters Y-Pattern Strainer Cartridge 100 Microns

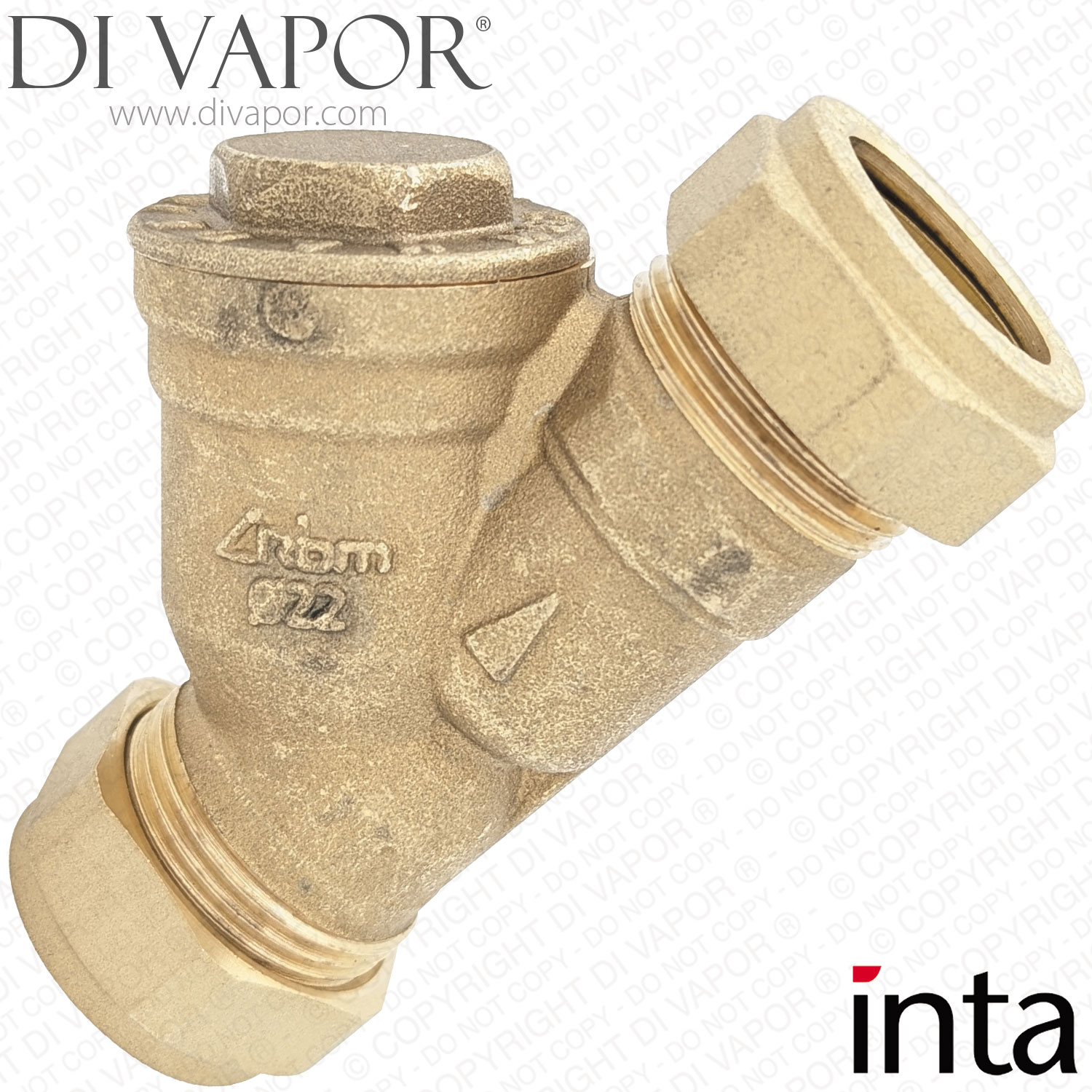

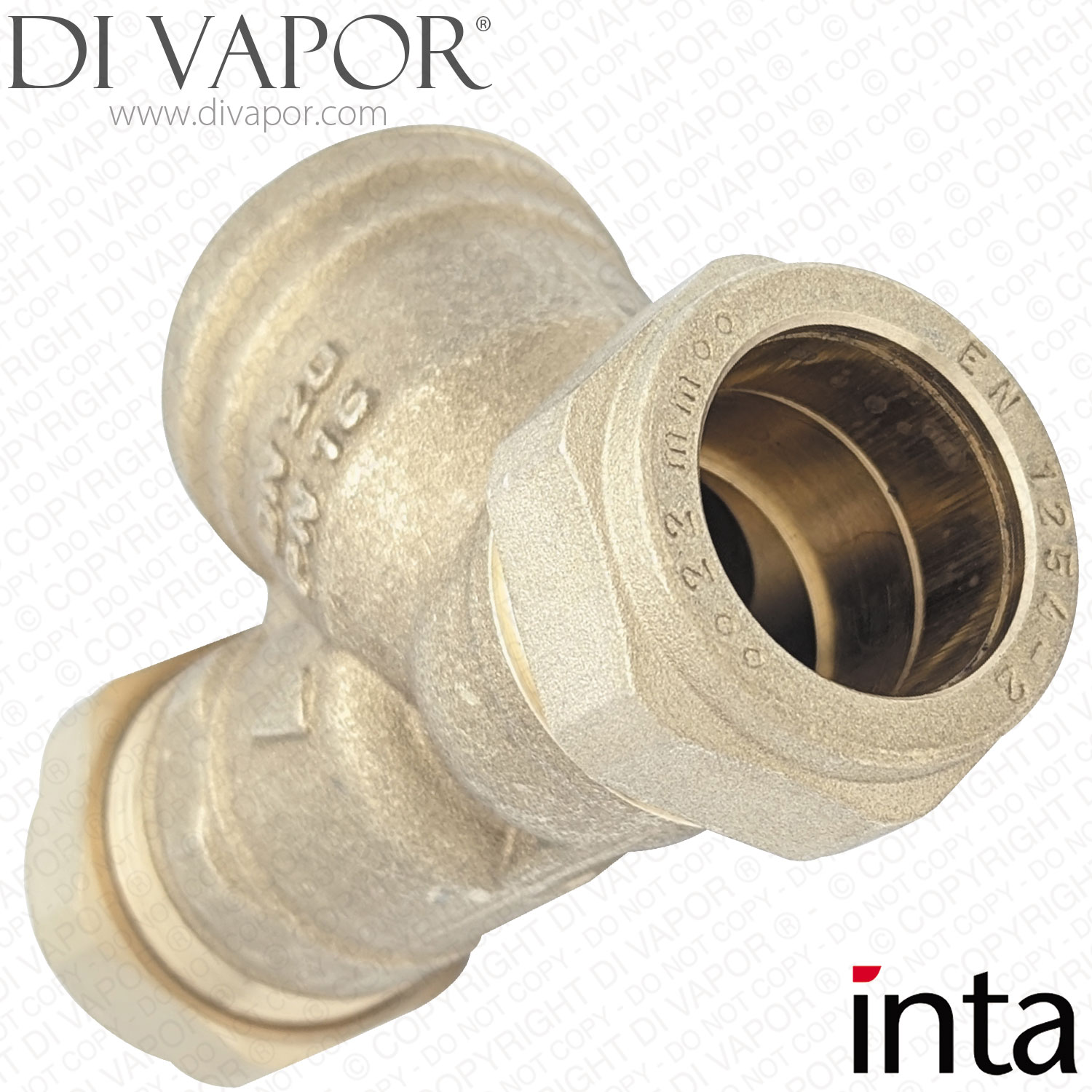

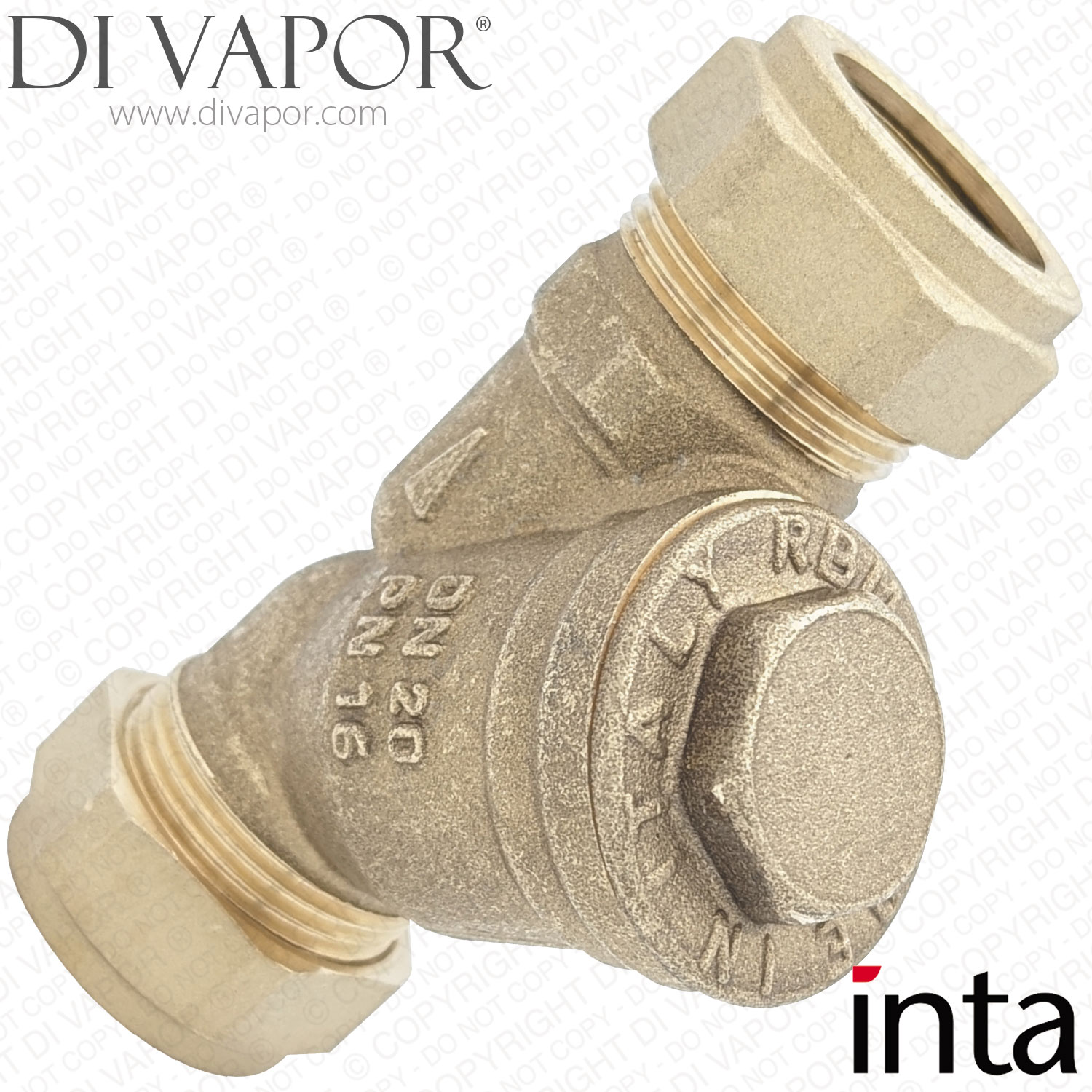

The INTA YPS085822100 is a 22mm Y-pattern strainer for hot or cold water systems. It is used in-line to help protect pipework, valves and downstream components by filtering debris and particles before they continue through the system.
The 100 micron filter collects debris inside the filter port, which can be accessed for cleaning and maintenance. This helps restore normal water flow where trapped particles or installation debris are restricting the water path.
Technical Details
- - Brand: Inta / Intatec
- - Part Number: YPS085822100
- - Connection: 22mm
- - Filter rating: 100 micron
- - Maximum static inlet pressure: 16 Bar
- - Maximum inlet temperature: 100 deg C
- - Seal: NBR O-ring
- - Current Intatec datasheet dimensions: A 93mm and B 70mm
Before Ordering
Check the part code, 22mm connection size, filter rating and available pipe space before ordering. Do not select this item by size alone if the existing strainer has a different part code or micron rating.
Maintenance Note
Before servicing a Y-pattern strainer, isolate the water supply and relieve pressure in the line. Clean trapped debris from the filter port and make sure the seal is correctly seated before restoring the supply.
Related Spares You May Need
- - INTA YPS085828100 28mm Y-Pattern Strainer Cartridge 1000 Micron
- - INTA YPCART2250 22mm Y-Pattern Strainer Cartridge 50 Micron
