Inta TR20003XX Temperature Cartridge for TR20020CP

SUMMARY

Inta TR20003XX Temperature Cartridge for TR20020CP

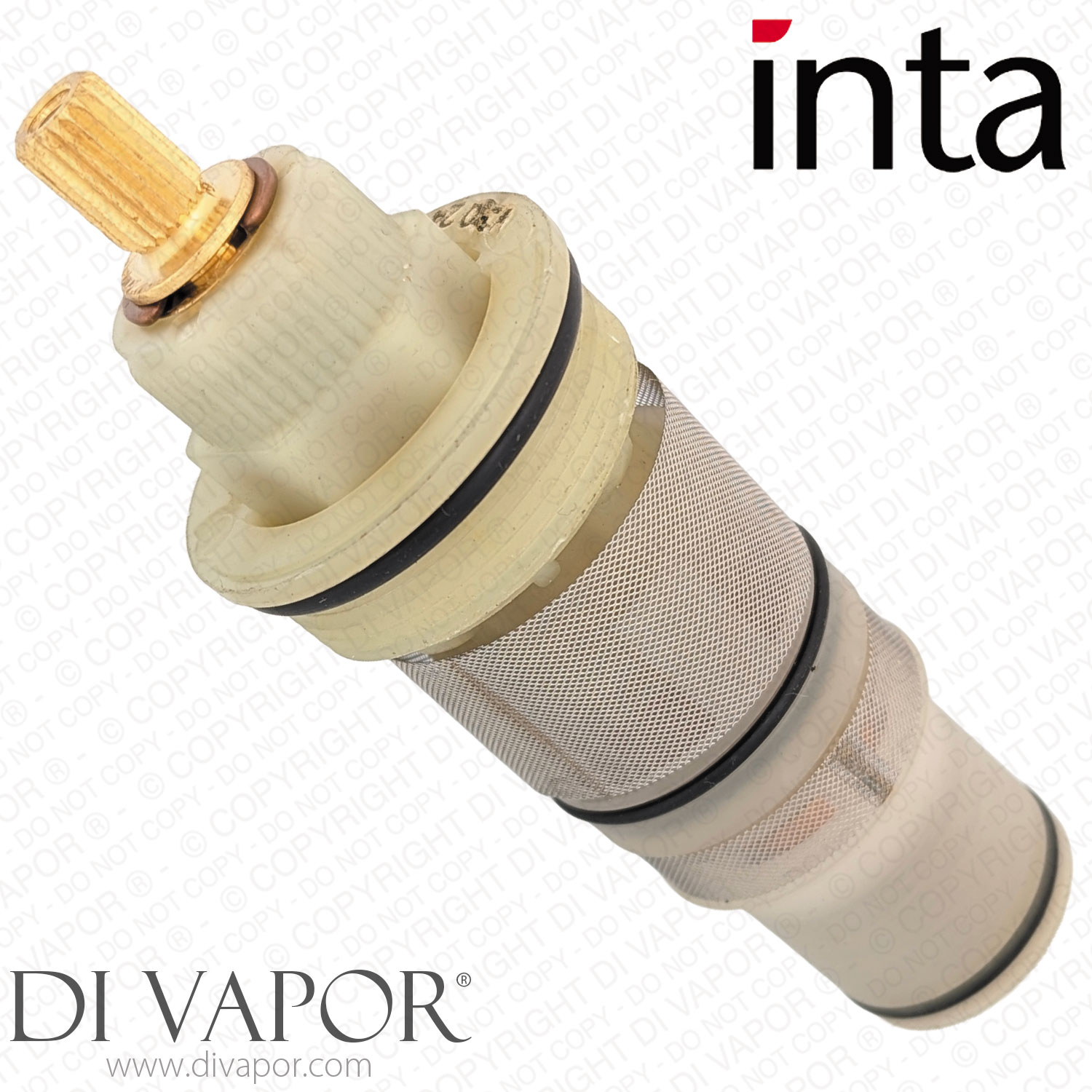

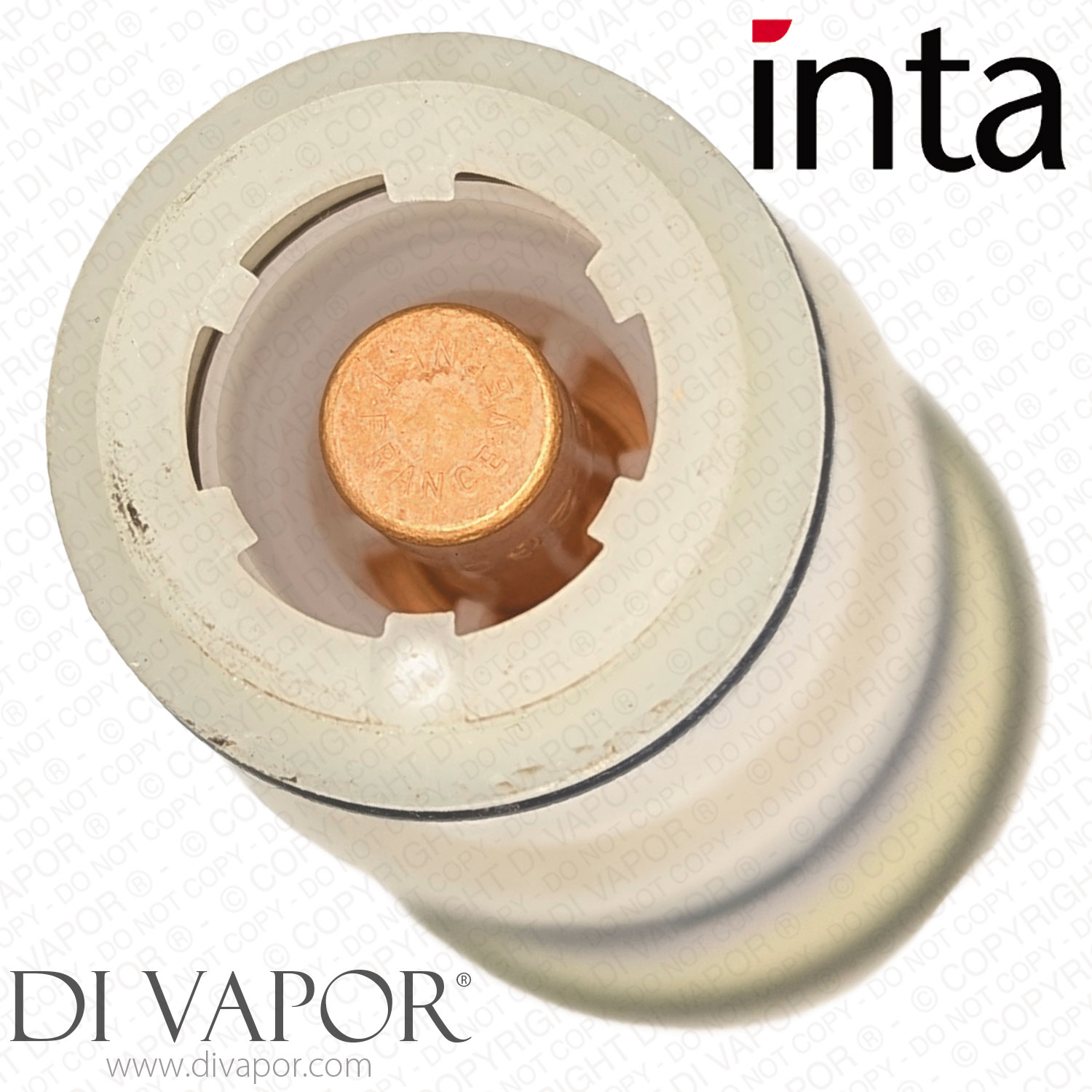

The Inta TR20003XX is a thermostatic temperature cartridge for the Inta TR20020CP Trade-Tec Optimo dual outlet thermostatic bar shower. This cartridge controls the mixed water temperature inside the valve and is used when the shower temperature is difficult to set, unstable, not hot enough or not responding correctly to the temperature control.

The TR20020CP shower is a dual outlet thermostatic shower set with telescopic riser, overhead soaker, multi-function handset and fast fix brackets. The thermostatic cartridge should be checked against the existing valve code before ordering because the matching flow control cartridge for the same shower is a separate part.

Technical Details

- - Brand: Inta / Intatec

- - Part Number: TR20003XX

- - Part type: thermostatic temperature cartridge

- - Shower valve application: TR20020CP Trade-Tec Optimo dual outlet thermostatic bar shower

- - Factory temperature setting for the TR20020CP shower valve: 38C

- - Maximum inlet static pressure for the TR20020CP shower valve: 5 bar

- - Maximum inlet temperature for the TR20020CP shower valve: 80C

- - Minimum operating dynamic pressure for the TR20020CP shower valve: 1.0 bar

- - Body inlet connections for the TR20020CP shower valve: G3/4

- - Outlet connections for the TR20020CP shower valve: G1/2

Fitting and Checking Notes

Isolate the hot and cold supplies before work starts. The TR20020CP service procedure requires removal of the cover, retaining screw, temperature control knob, gear drive and temperature stop ring before the cartridge is unscrewed with a suitable spanner. After replacing the cartridge, the stop ring and controls should be refitted and the shower valve recalibrated.

Common Fault Checks

- - Symptom: shower temperature is not hot enough. Likely Cause: thermostatic cartridge movement may be restricted or calibration may be incorrect. Solution: check supply conditions, clean serviceable areas where appropriate and recalibrate after fitting.

- - Symptom: cold setting is too warm or maximum temperature is incorrect. Likely Cause: the temperature cartridge or stop-ring setting may need attention. Solution: inspect the temperature control assembly and recalibrate the valve after cartridge replacement.

- - Symptom: water passes or drips from the outlet when turned off. Likely Cause: this is more commonly associated with the flow control cartridge rather than the temperature cartridge. Solution: check the related TR20004XX flow cartridge for the same TR20020CP shower.

Confirmed Compatible Models

- - Inta TR20020CP Trade-Tec Optimo Dual Outlet Thermostatic Bar Shower Spare Parts

Related Spares You May Need

- - Inta TR20004XX Flow Cartridge for TR20020CP

- - 150mm Universal Shower Hose - NXT734

Use the Di Vapor part identification service if the existing cartridge, valve code or shower model cannot be confirmed before ordering.
