INTA TF17XXX Cartridge for TF177CP AND TF178CP
SUMMARY
INTA TF17XXX Cartridge for TF177CP AND TF178CP

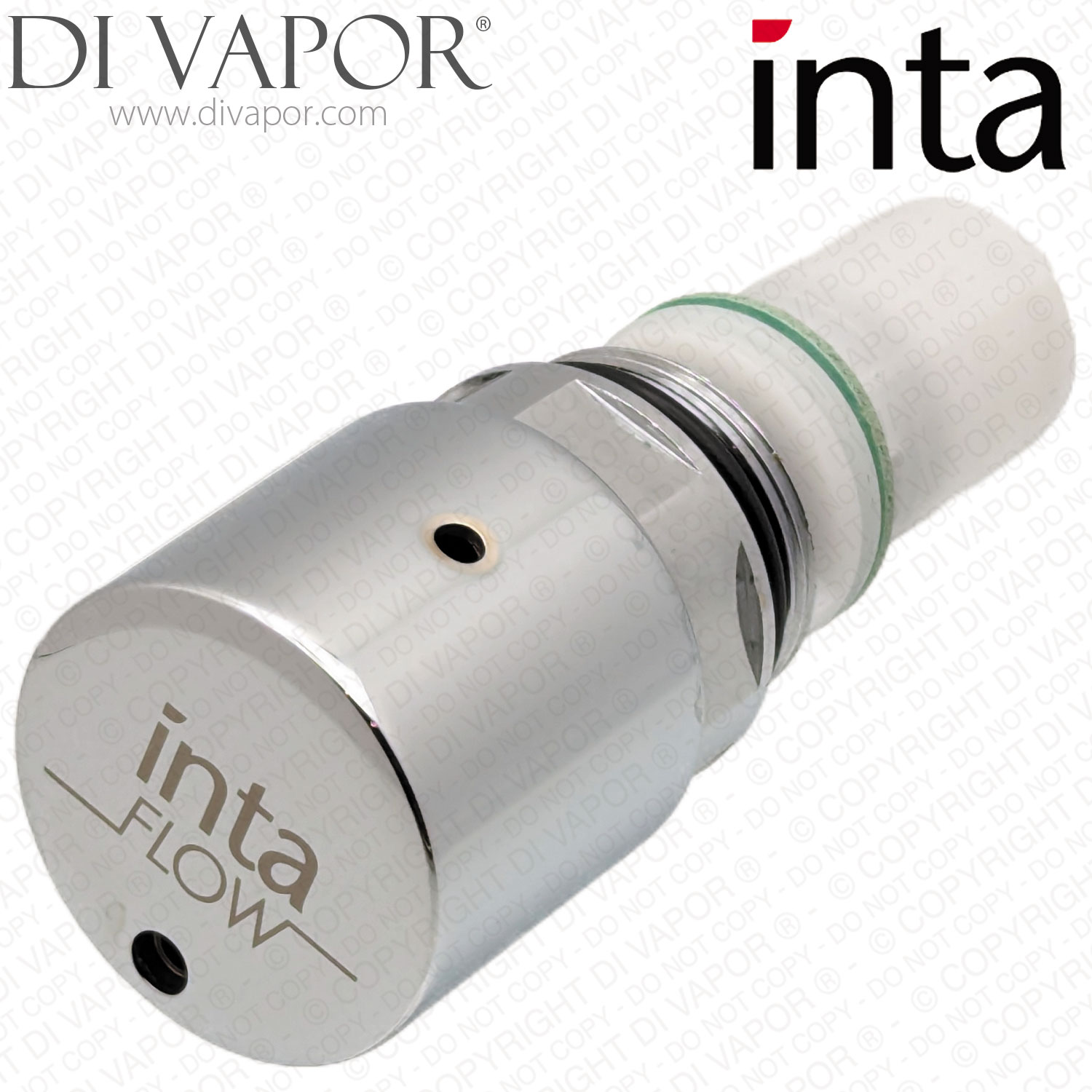

The INTA TF17XXX is an adjustable timed flow shower cartridge for Inta / Intatec non-concussive timed flow shower controls. It is used inside the push-button shower control to manage the timed water run and automatic shut-off on the listed TF177CP and TF178CP shower controls.
This is not a thermostatic cartridge. It is a timed flow control cartridge for shower valves with non-concussive operation and anti-block functionality, helping the shower close automatically after the timed run instead of allowing continuous flow when the button is pressed.
Technical Details
- - Cartridge type: adjustable timed flow shower control cartridge.
- - Part Number: TF17XXX.
- - Used with Inta timed flow shower controls with non-concussive push-button operation.
- - TF177CP and TF178CP shower control operating data includes maximum static inlet pressure of 10 bar, minimum dynamic pressure of 0.5 bar and maximum inlet temperature of 65C.
- - Standard timed flow for the shower control is listed as 15 +/- 5 seconds at 1 bar.
- - Timed flow adjustment is made at the shower control by removing the push button head and adjusting the stop ring with a 1.5mm hex key.
- - Flush the supply pipe before fitting as debris or scale can prevent the timed flow control from operating correctly.
Confirmed Models
- - Inta TF177CP Adjustable Timed Flow Shower Control Exposed with Anti-Block Feature.
- - Inta TF178CP Adjustable Time Flow Shower Control Concealed with Anti-Block Feature Spare Parts.
Before Ordering Check
For TF178CP installations, check the removed cartridge marking before ordering where possible because TF178CP documentation can list an alternative adjustable cartridge code. Match the cartridge body, control type and part marking before purchase, or contact Di Vapor for identification help if the original cartridge is unmarked.
Related Spares You May Need
- - 150mm Universal Shower Hose - NXT734.
