Ideal Standard A962540NU Diaphragm Membrane for A960151NU & Armitage Shanks F961028NU Solenoid Valves
Send a photo of your item and we'll help confirm it.
Summary

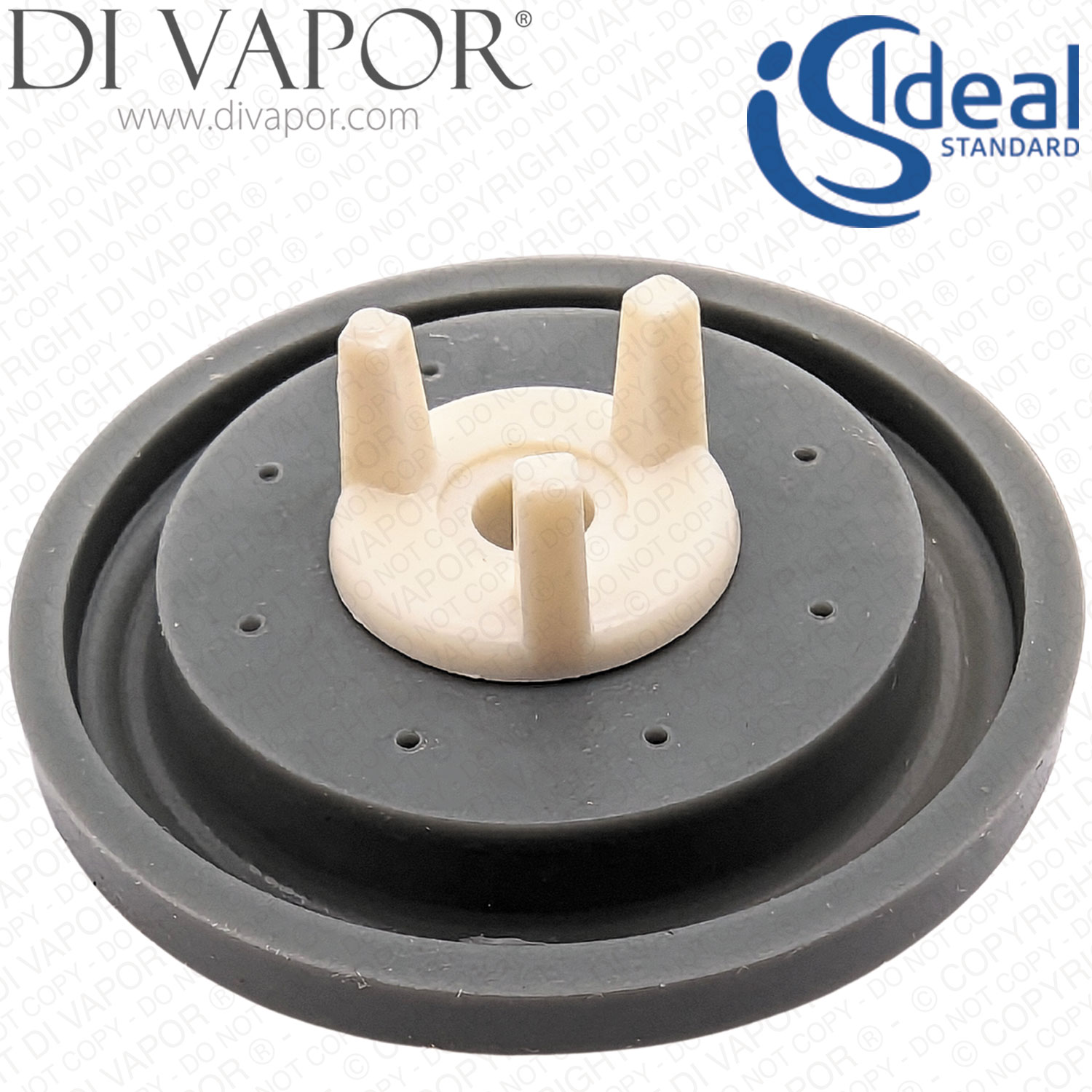

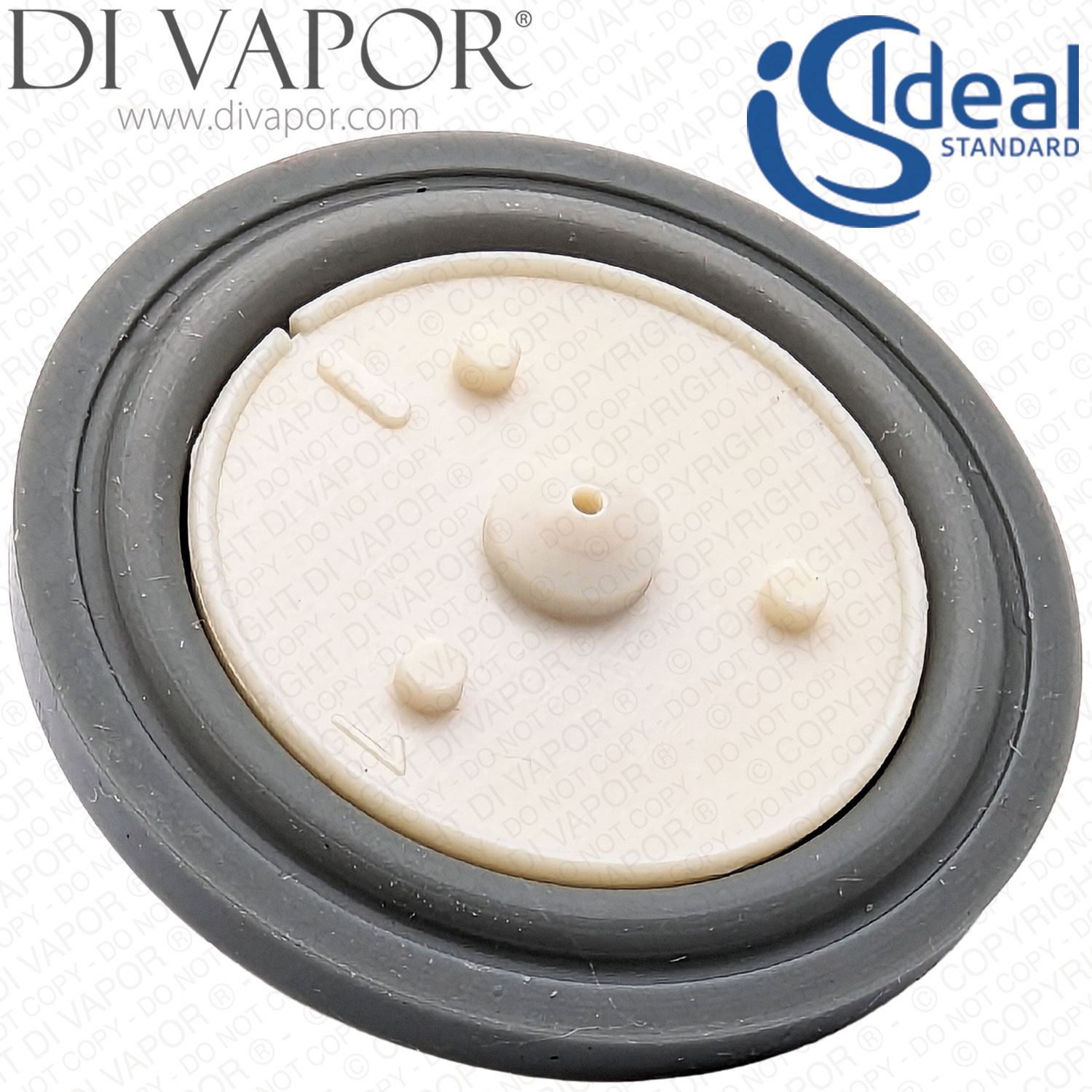

Ideal Standard A962540NU Diaphragm Membrane for A960151NU and Armitage Shanks F961028NU Solenoid Valves
| Widest Diameter | 28.28mm |
|---|---|
| Internal Diameter | 20.08mm |
| Diameter of white plastic in the middle | 10.72mm |
Ideal Standard A962540NU is a diaphragm membrane for servicing selected Ideal Standard and Armitage Shanks solenoid valve assemblies. It is used with the Ideal Standard A960151NU magnet valve solenoid without housing and the Armitage Shanks F961028NU solenoid valve.
This membrane forms part of the electronically operated water-control valve assembly used in sensor-operated tap, shower valve and urinal control systems. It should be checked when a solenoid valve is not opening, closing or controlling flow correctly, or when the existing diaphragm is worn, blocked, split or not sealing as it should.
Technical Details
| Part Number | A962540NU |
|---|---|
| Part type | diaphragm membrane |
| Used with | Ideal Standard A960151NU magnet valve solenoid without housing |
| Used with | Armitage Shanks F961028NU solenoid valve |
- A966604 is shown with the A960151NU solenoid listing as an additional reference
- 745111353 is shown with the F961028NU solenoid listing as an additional reference
Before You Order
- Check the part code on the existing valve or service documentation before ordering
- Do not select this membrane from dimensions alone because similar solenoid diaphragms can differ by valve route and insert style
- If the complete solenoid is damaged or sticking, check the related complete solenoid valve options below
Confirmed Compatible Models
- Ideal Standard A3807NU Ceraplus Basin Electronic Box Kit 1 One Valve Battery Operated
- Ideal Standard A3808NU Ceraplus Basin Electronic Box Kit 1 One Valve AC 220V
- Ideal Standard A3809NU Ceraplus Basin Electronic Box Kit 1 One Valve AC Multi-Box
- Ideal Standard A3810NU Ceraplus Basin Electronic Box Kit 1 Two Valves
- Ideal Standard A3811NU Ceraplus Basin Electronic Box Kit 1 Two Valves AC 220V Operated
- Ideal Standard A3812NU Ceraplus Basin Electronic Box Kit 1 Two Valves AC Multi-Box
- Ideal Standard A3794NU CeraPlus Built-In Part Urinal Electronic Box Kit 1 Battery Operated
- Ideal Standard A3795NU CeraPlus Built-In Part Urinal Electronic Box Kit 1 AC 220V
- Ideal Standard A3796NU CeraPlus Built-In Part Urinal Electronic Kit 1 AC Multi-Box for A3795NU
- Ideal Standard A4151AA Ceraplus Electronic Spout with Battery Tap
- Ideal Standard A4152AA Ceraplus Electronic Mixer with Battery Tap
- Armitage Shanks A4185AA Sensorflow 21 Electronic Concealed Shower Valve and Sensor
- Armitage Shanks S8252AA Markwik Electronic Thermostatic Basin / Sink Mixer with Time Flow Sensor
- Armitage Shanks Markwik Wall Mounted Electronic Thermostatic Basin / Sink Mixer Tap S8252AA GEN1
- Ideal Standard Markwik Timeflow Non Domestic Tap - IDL DV 249
- Armitage Shanks S8244AA Markwik Wall Mounted Electronic Thermostatic Basin / Sink Mixer with Proximity Sensor
