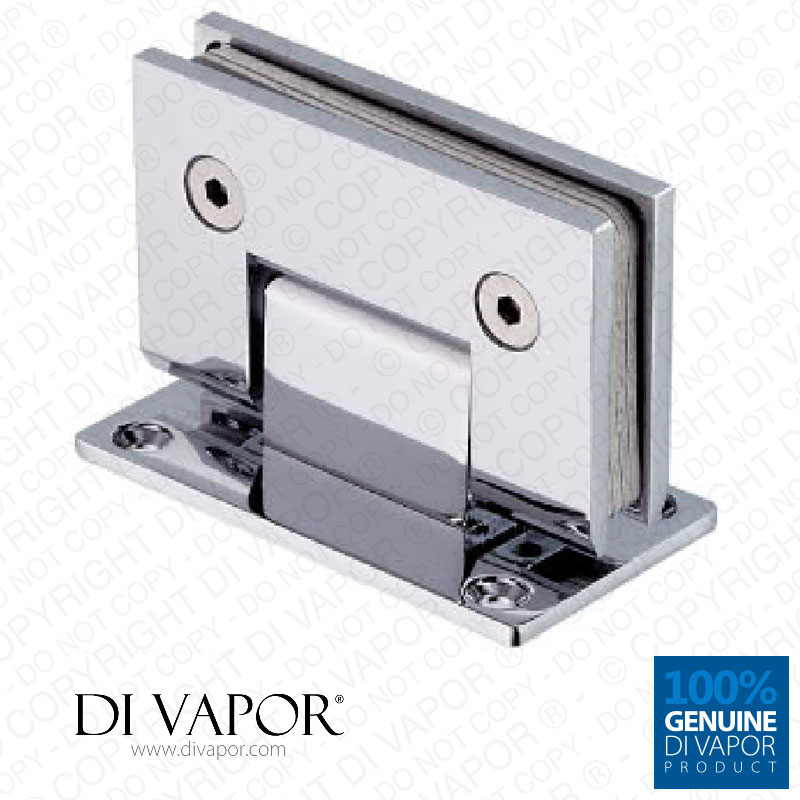

90 Degree Wall Mounted Shower Door Glass Hinge | Double Sided | Chrome Plated Stainless Steel | Square Edges

SUMMARY

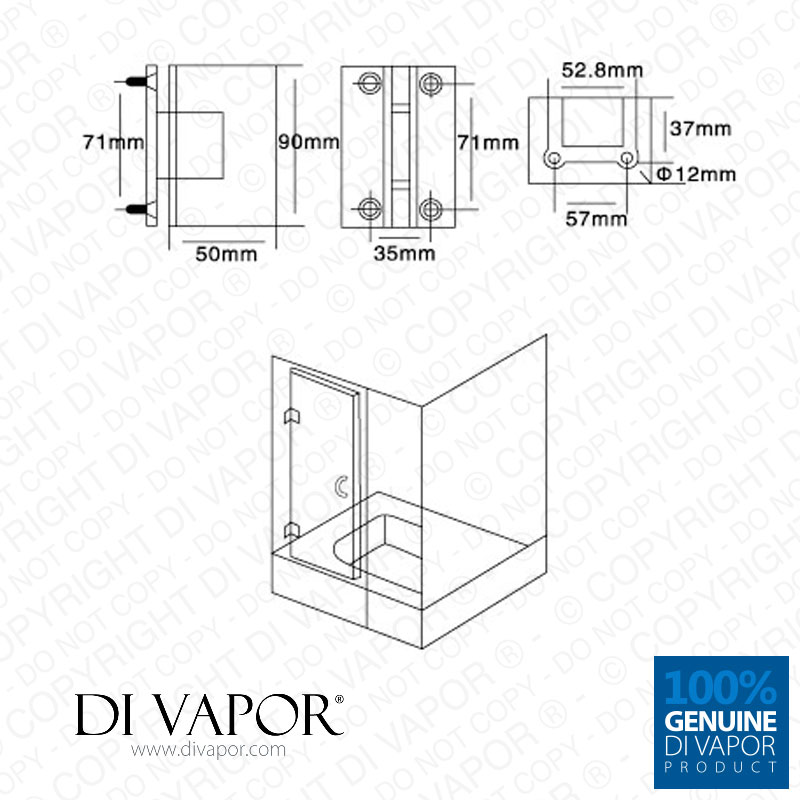

What's includedrn - The copper 90 degree glass hinge (please read description below for how the hinge works)rn - Allen keyrn - 4 x wall fixing screws and 4 x wall plugsrn - 2 x chrome finishing caps to cover the hinge's allen key bolts.rn - Gasket paddings (which will come already inside the hinge)rnrnThe hinge is centred in the middle of the wall mounting plate. If you require the hinge to be offset, we have hinges in our range that are the same design but offset to one side.rnrnUseful Information Regarding this Glass HingernrnHinge Weight: 365g (0.365kg)rnFixing Type: Wall mounted fixing.rnGlass Thickness: 6 - 10mmrnGlass Requirements: Glass cut out is required. Please see technical cut out diagram in photos section for detailed measurements.rnMaterial: CopperrnFinish: Polished chrome (mirror finish)rnWeight Limit and Maximum Glass Panel Size: The load weight on the hinge can be up to 45kg. This weight applies to glass doors which are up to 1 metre in width. The wider the door the more tension and stress is placed on the hinge. Even if the overall weight of the glass remains under 45KG's if the width of the glass door is 1 metres it will place too much strain on the hinges.rnUses: Any glass panel or door. This can be inside or outside the bathroom. Can be in living room or kitchen, the hinge looks great everywhere around the home or office.rnDoor Opening Function: This hinge will swing 180 degrees. That means that it will swing outwards 90 degrees and inwards 90 degrees. The hinge is a snap fixing which means that when it is opened it will automatically want to turn to a 90 degree position.rnDesign Style: Right angled edgesrnrn -- The hinge has been tested to open and close a shower door up to 100,000 times.rn -- Designed to fit onto a glass panel as per the technical diagram.rn -- Glass needs to be tempered safety glass.
