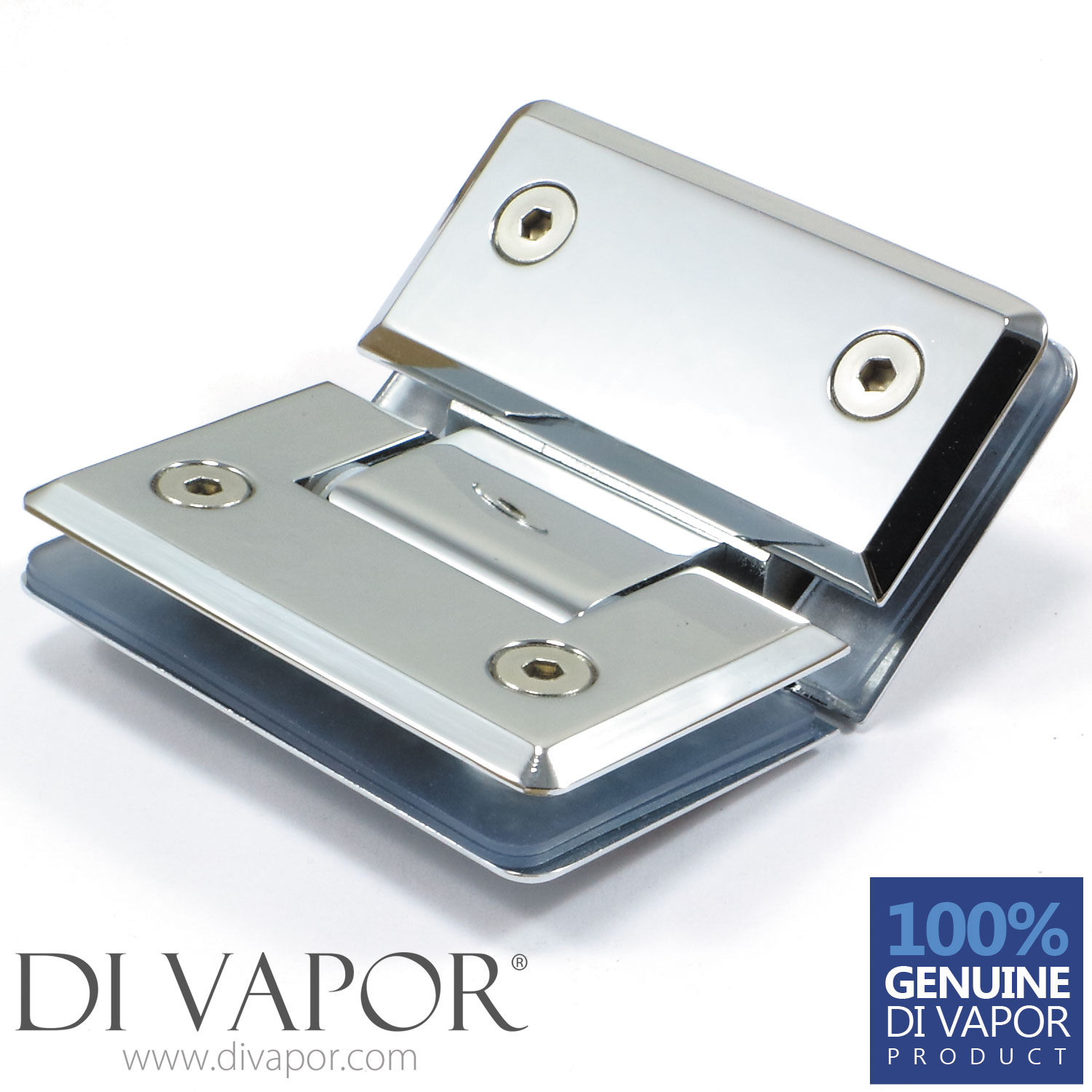

135 Degree Glass to Glass Shower Door Hinge | Chrome Plated | Tapered Edges
Send a photo of your item and we'll help confirm it.
Summary
135 degree door hinge designed to support a variety of large door materials and panels via 2 fixed mounting bolts per side. Can be opened inward or outward depending on fitting requirements. This hinge is designed for shower enclosures and quadrants which have a 135 degree angle between the fixed panel of glass and the glass door.
What's included
- The 135 degree chrome plated glass hinge
- Allen key
- Gasket padding (which will come already inside the hinge)
- Glass cut out measurements tech sheet (please see the glass cut out in the image section)
Self closing when door is open approximately 30 degree
--------------
IMPORTANT Before ordering any custom glass, please ensure that your glazier is able to inspect the hinge in person. Any slight difference in the cutout before the glass is tempered will result in the glass needing to be re-cut. Di Vapor will not be responsible for any costs incurred with re-temper or re-cutting of glass. DO NOT order your glass before you have ordered the hinge(s) and have them to hand.
--------------
Useful Information Regarding this Glass Hinge
| Glass Thickness | 8 - 10mm |
|---|---|
| Glass Requirements | glass cut-out required |
| Material | Chrome Plated Zinc Alloy |
| Finish | Polished Chrome (Mirror Finish) |
| Weight Limit and Maximum Glass Panel Size | The maximum weight limit per hinge is 25kg. We recommend that this weight limit is adhered to and considered when deciding how many hinges are being used per panel. Typical usage for most panels and doors is 2 -3 hinges per side. |
| Door Opening Function | This hinge has dual action springs which means that the door will open 90 degrees outwards and 90 degrees inwards., opening both inwards and outwards (90 degrees in and 90 degrees out). |
| Door Closing Function | Self-closing from approximately 30 degrees |
| Design Style | Smoothed tapered edges |
Manufactured from a chrome plated polished zinc alloy, this heavyweight high quality fixture can be fitted in most environments including the bathroom and kitchen.
Typically fitted directly to a glass door via two mounting bolts included on both sides of the bracket. Please ensure that you have two mounting holes per side - Refer to the technical diagram for more information.
Typically used in pairs.
Sold individually.
