Lefroy Brooks PHL034 Pair of Half Turn Cartridges

SUMMARY

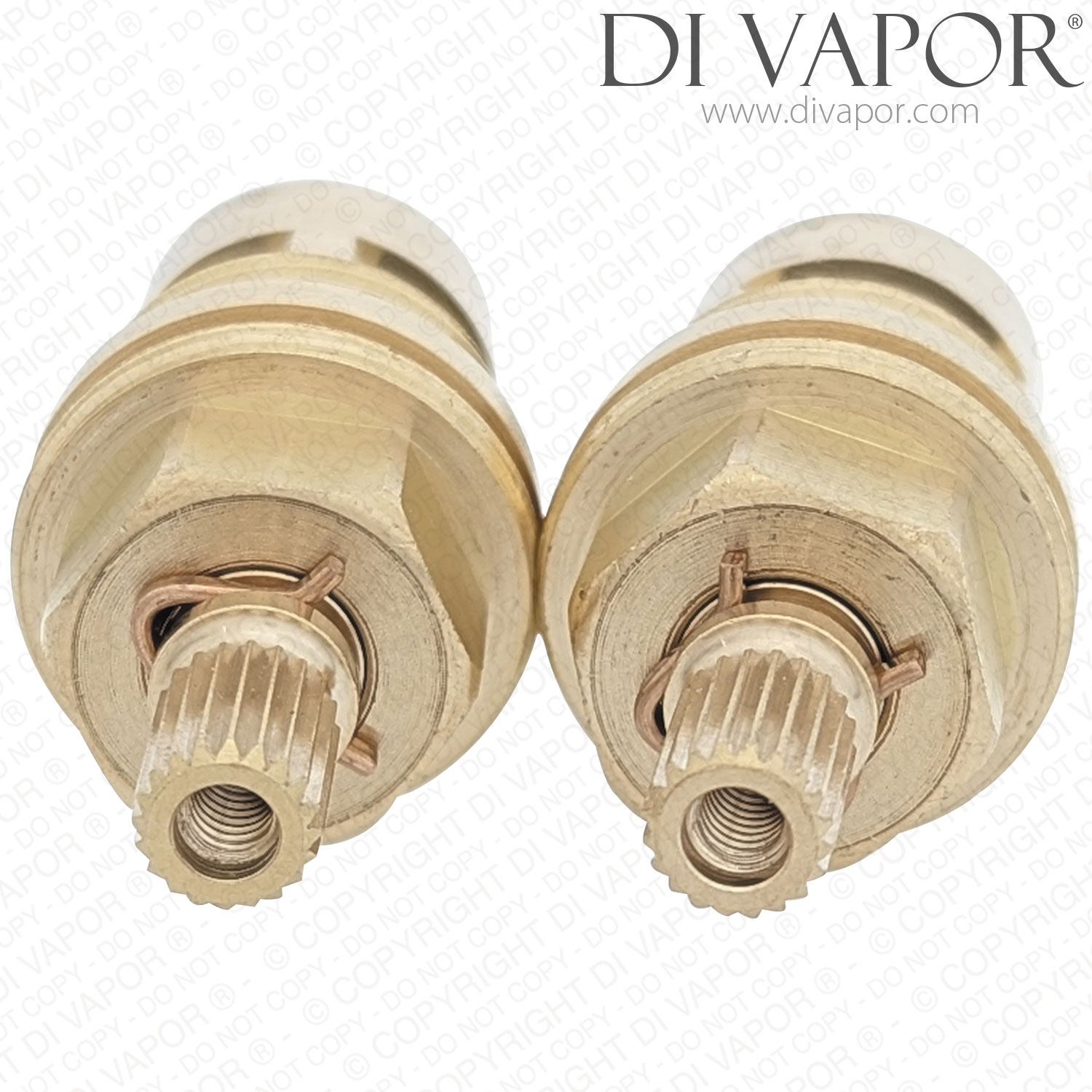

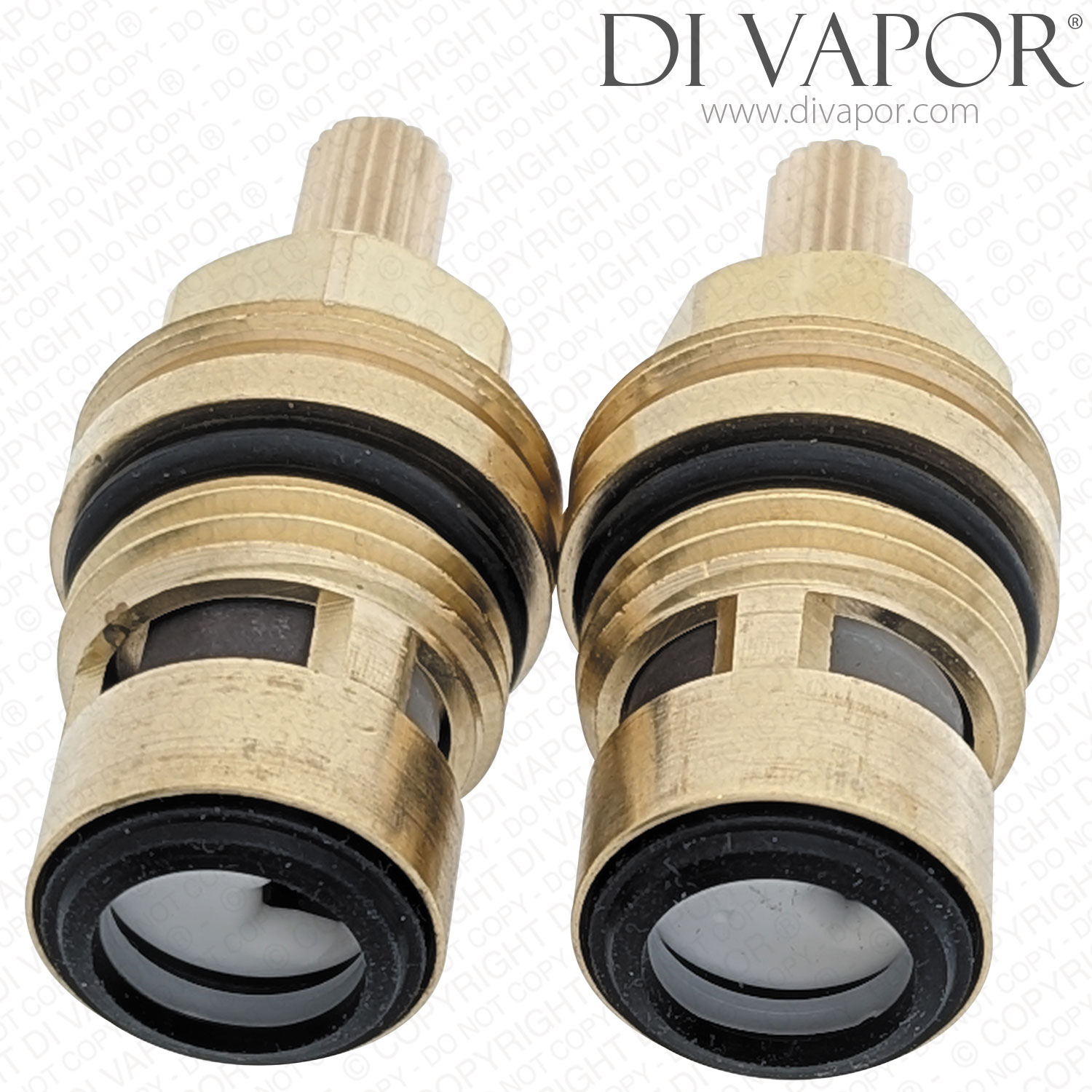

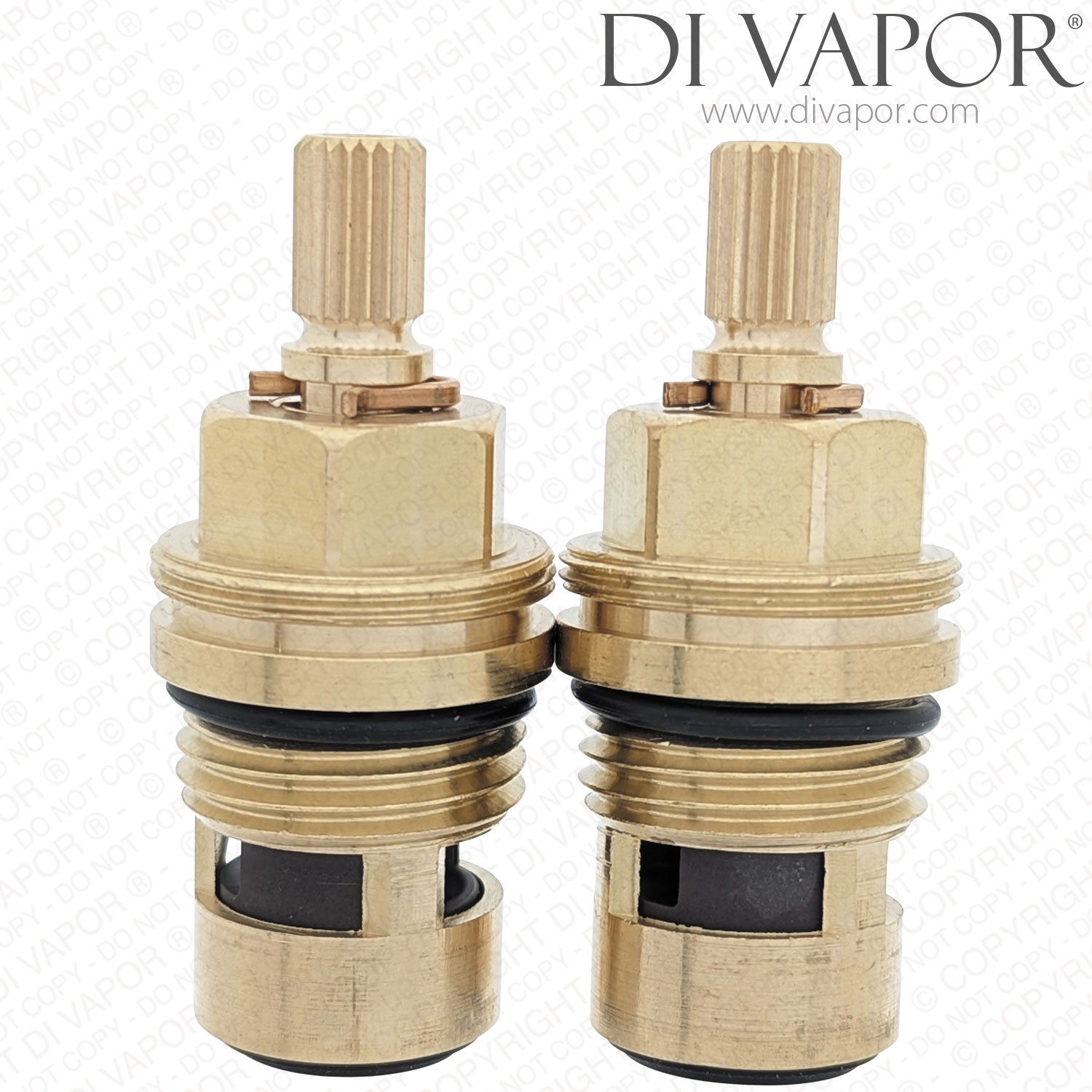

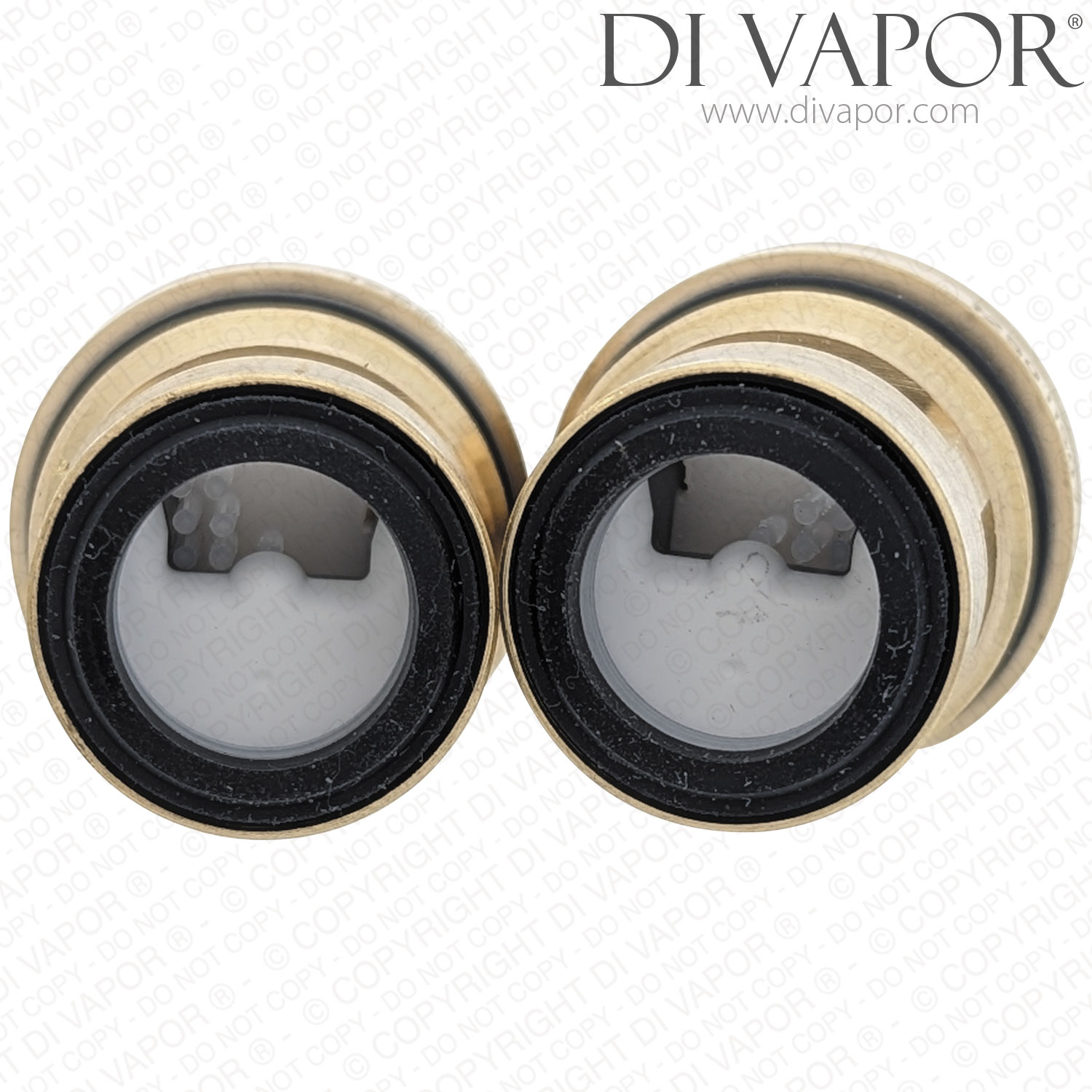

Lefroy Brooks PHL034 Pair of Half Turn Cartridges

The Lefroy Brooks PHL034 is a pair of 1/2 inch half turn ceramic flow cartridges for selected Lefroy Brooks basin taps, bidet mixers, pillar taps, kitchen bridge mixers and deck mounted flow valve applications.

These cartridges control hot and cold water flow through the tap or valve. They are used where the original ceramic cartridges are worn, stiff, seized or allowing water to pass when the tap is turned off. A common failure symptom is water continuing to drip from the spout after the tap or valve has been closed.

Technical Details

- - Part code: PHL034

- - Cartridge type: ceramic flow cartridge pair

- - Size and operation: 1/2 inch x 1/2 turn

- - Application type: Lefroy Brooks handwheel-operated ceramic flow control applications

- - Set contents: pair of cartridges for hot and cold flow control

- - Closing action: clockwise closing in documented handwheel applications

- - Servicing note: isolate and drain the water supplies before removal; support the valve body and use a 17mm spanner to remove the ceramic cartridge counter-clockwise

- - Pre-order check: compare the removed cartridge with the product images and check handle type, turning direction and tap model before ordering

Confirmed Compatible Models

- - Lefroy Brooks Classic Basin Mixer With Pop-up Waste LB 1220

- - Lefroy Brooks Classic Basin Mixer With Star Handles & Pop-up Waste LS 1220

- - Lefroy Brooks Classic Basin Mixer With Connaught Cross Handles And Pop-up Waste CH 1220

- - Lefroy Brooks La Chapelle Basin Mixer With Pop-up Waste FH 1204

- - Lefroy Brooks La Chapelle Basin Mixer With White Torpille Levers & Pop-up Waste FW 1204

- - Lefroy Brooks Janey Mac Basin Mixer With Cross Handles & Pop-up Waste JH 1222

- - Lefroy Brooks Connaught Basin Mixer With Classic Cross Handles And Pop-up Waste LB 1224

- - Lefroy Brooks Mackintosh Basin Mixer With Pop-up Waste MH 1228

- - Lefroy Brooks Mackintosh Basin Mixer With Metal Levers & Pop Up Waste ML 1228

- - Lefroy Brooks Mackintosh Basin Mixer With Classic White Levers And Pop-up Waste WL 1228

- - Lefroy Brooks Connaught Basin Pillar Taps CH 8022

- - Lefroy Brooks Classic Basin Pillar Taps LB 1422

- - Lefroy Brooks Classic Cloakroom Short Nose Pillar Taps LB 1135

- - Lefroy Brooks Classic Long Nose Basin Pillar Taps With White Levers WL 8030

- - Lefroy Brooks Classic Kitchen Bridge Mixer LB 1517

- - Lefroy Brooks Classic Kitchen Bridge Mixer With White Levers WL 1517

- - Lefroy Brooks Connaught Lever Kitchen Bridge Mixer CL 1517

- - Lefroy Brooks Connaught Mono Basin Mixer With Pop-up Waste CH 1189

- - Lefroy Brooks Connaught Mono Basin Mixer With Star Handles & Pop-up Waste LS 1189

- - Lefroy Brooks Connaught Mono Bidet Mixer With Pop-up Waste CH 1199

- - Lefroy Brooks Connaught Mono Bidet Mixer With Star Handles & Pop-up Waste LS 1199

Related Spares You May Need

- - Lefroy Brooks PHL038 Hot Side 1/2 Inch Half Turn Cartridge

- - Lefroy Brooks PHL039 Cold Side 1/2 Inch Half Turn Cartridge

Ordering Help

If you are unsure whether PHL034 is the correct pair for your tap or valve, remove the existing cartridge where possible and compare the cartridge body, spline, thread and turning action before ordering.
