Hansgrohe Kitchen Device Shut-Off Valve 10823000 Shut Off Unit with Non Return Valve 95054000

SUMMARY

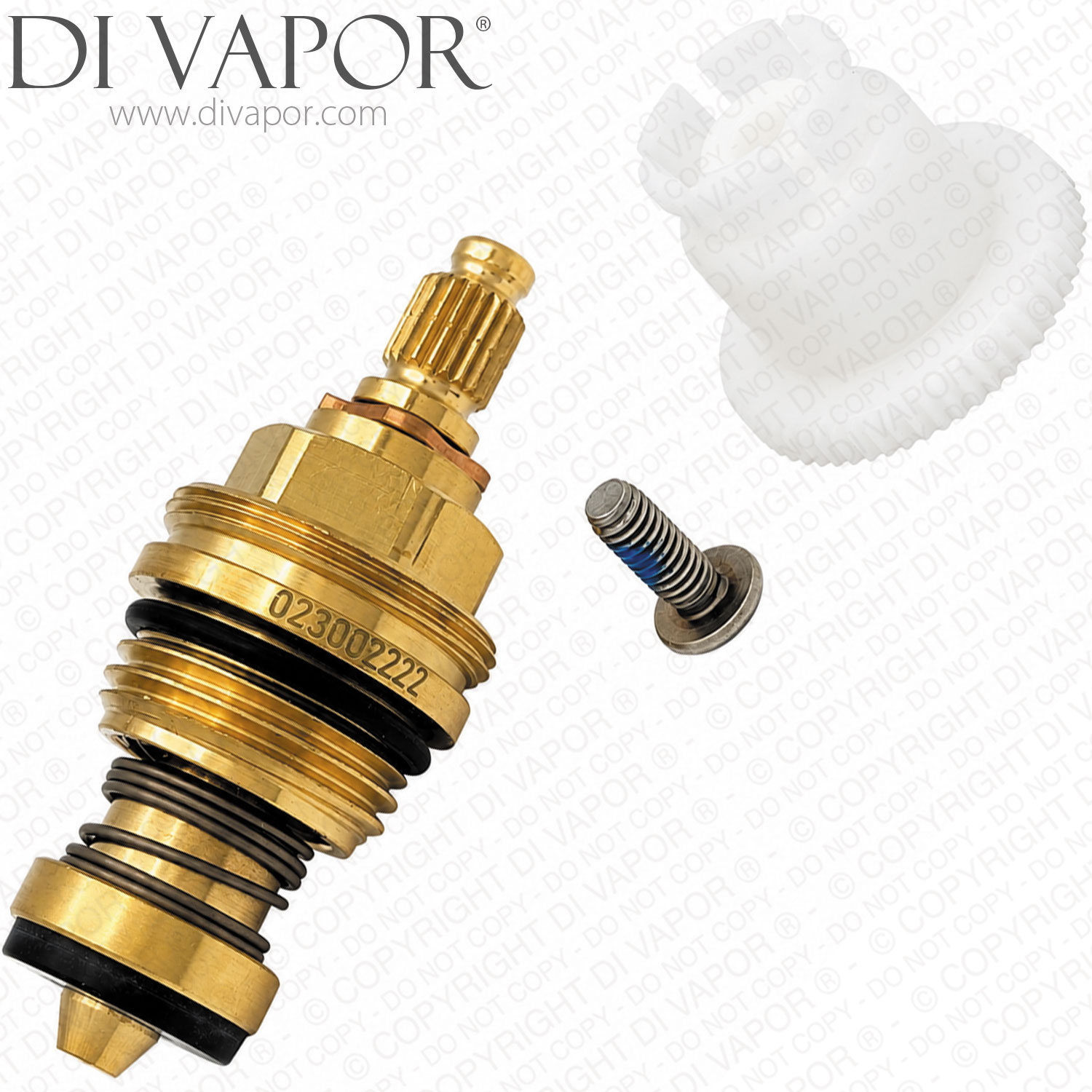

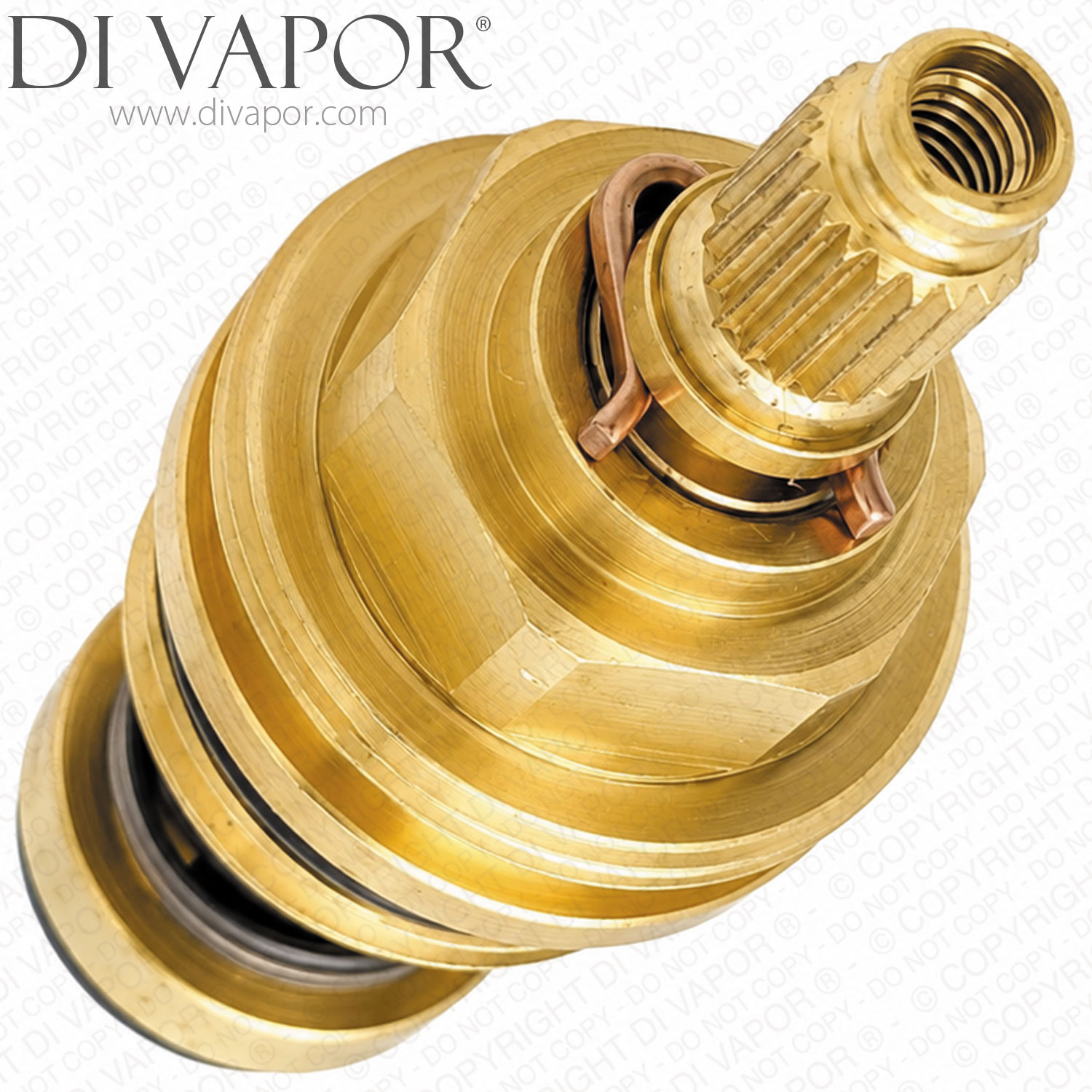

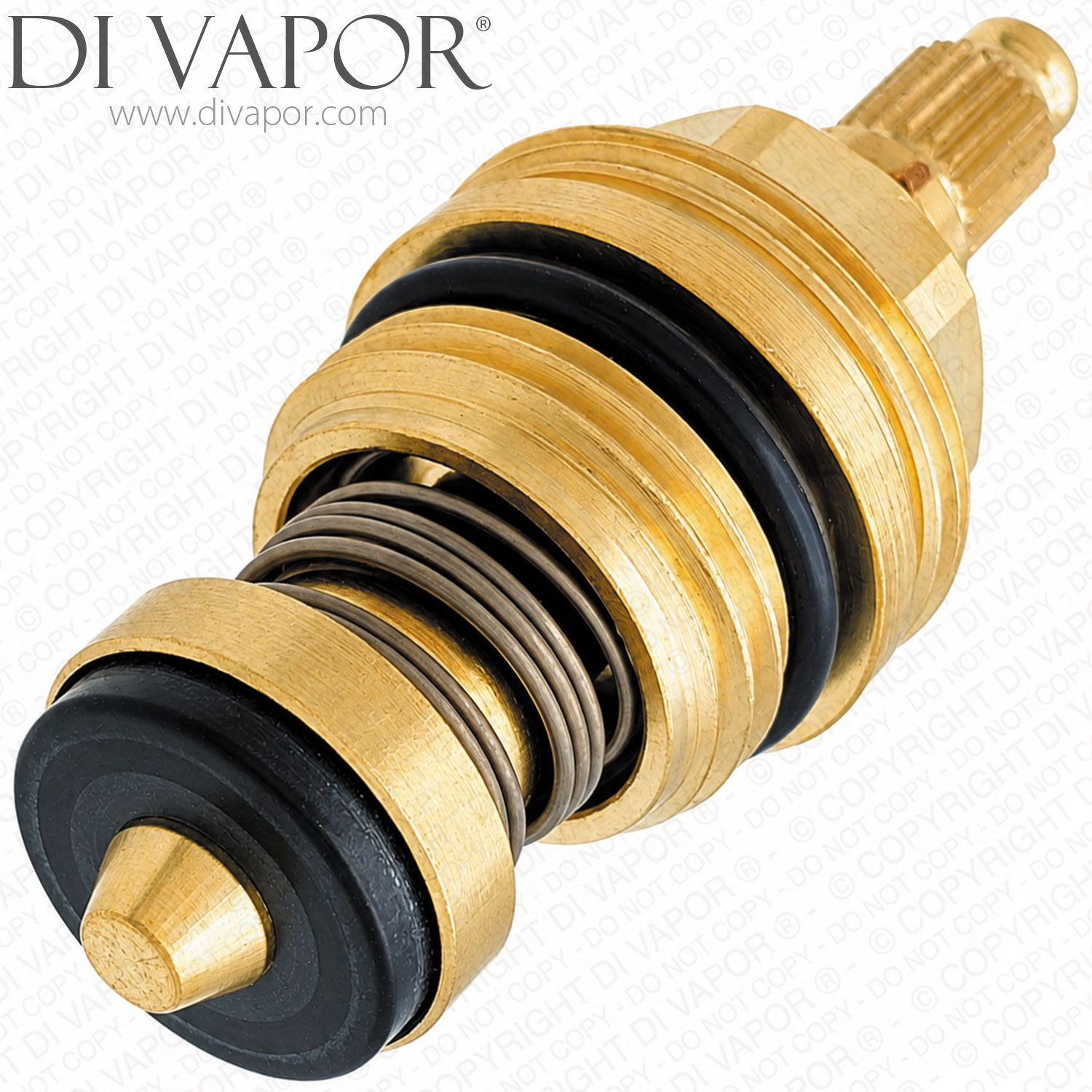

Hansgrohe 95054000 Kitchen Device Shut-Off Unit with Non-Return Valve

The Hansgrohe 95054000 is an internal kitchen device shut-off unit with an integral non-return valve. It is fitted within documented AXOR Starck 10823 and legacy Hansgrohe Allegra 16822 kitchen device shut-off valve assemblies.

The unit sits beneath the control handle and operates the water supply through the device valve. Its integral non-return function helps prevent reverse water flow through the connected supply. The visible handle and escutcheon are separate finish-specific components and are not included with this shut-off unit.

Technical Details

- - Part code: 95054000

- - Part type: shut-off unit with integral non-return valve

- - Application: kitchen device shut-off valve assemblies

- - The internal 95054000 unit is used across documented finish variants while the handle and escutcheon vary by finish

- - No separate dimensional specification for the removable 95054000 unit is provided

Complete AXOR Starck 10823 Valve Assembly Data

The following measurements and operating figures apply to the complete valve assembly rather than the removable 95054000 unit.

- - Flow rate at 0.3 MPa: 12.5 litres per minute

- - Maximum operating pressure: 1 MPa

- - Recommended operating pressure: 0.1 to 0.5 MPa

- - Test pressure: 1.6 MPa

- - Maximum hot-water temperature: 60 C

- - Thermal disinfection: 70 C for 4 minutes

- - Complete assembly connections: G 1/2 and G 3/4

- - Upper body diameter: 40 mm

- - Escutcheon diameter: 53 mm

- - Mounting range: 0-48 mm

- - Do not use silicone containing acetic acid during installation

Confirmed Compatible Models

- - AXOR Starck kitchen device shut-off valve 10823000 - Chrome Plated - construction year after January 2012

- - AXOR Starck kitchen device shut-off valve 10823140 - Brushed Bronze

- - AXOR Starck kitchen device shut-off valve 10823250 - Brushed Gold-Optic

- - AXOR Starck kitchen device shut-off valve 10823300 - Polished Redgold

- - AXOR Starck kitchen device shut-off valve 10823310 - Brushed Redgold

- - AXOR Starck kitchen device shut-off valve 10823330 - Polished Black Chrome

- - AXOR Starck kitchen device shut-off valve 10823340 - Brushed Black

- - AXOR Starck kitchen device shut-off valve 10823800 - Stainless Steel Optic

- - AXOR Starck kitchen device shut-off valve 10823820 - Brushed Nickel

- - AXOR Starck kitchen device shut-off valve 10823830 - Polished Nickel

- - AXOR Starck kitchen device shut-off valve 10823950 - Brushed Brass

- - Hansgrohe Allegra kitchen device shut-off valve 16822000 - Chrome

- - Hansgrohe Allegra kitchen device shut-off valve 16822750 - Alux

- - Hansgrohe Allegra kitchen device shut-off valve 16822810 - Satinox

- - Hansgrohe Allegra kitchen device shut-off valve 16822800

Checks Before Ordering

Confirm the 95054000 code and the complete valve model before ordering. Do not identify this unit from connection size or external dimensions alone. Check whether the fault is within the shut-off unit or in the separate handle adapter handle or escutcheon before dismantling the valve.

Related Spares You May Need

- - Hansgrohe 96495000 Control Handle for 10823000 Valve

- - Hansgrohe 94184000 Handle Fixing Adapter

- - Hansgrohe 16991000 Chrome Handle for Legacy Allegra Shut-Off Valve
