A951131NU11 65mm Ideal Standard / Trevi 1/2" On/Off Flow Cartridge
Send a photo of your item and we'll help confirm it.
Summary

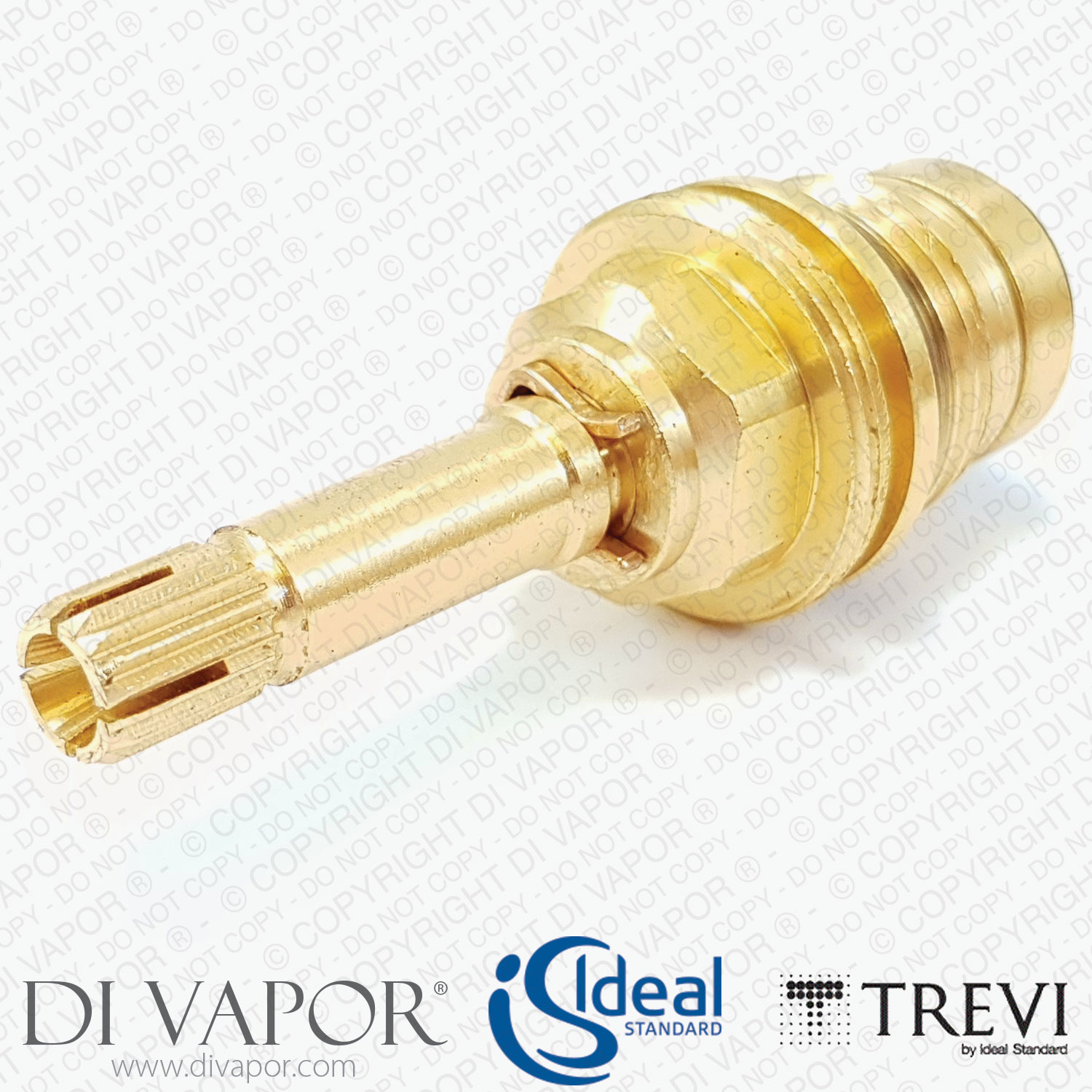

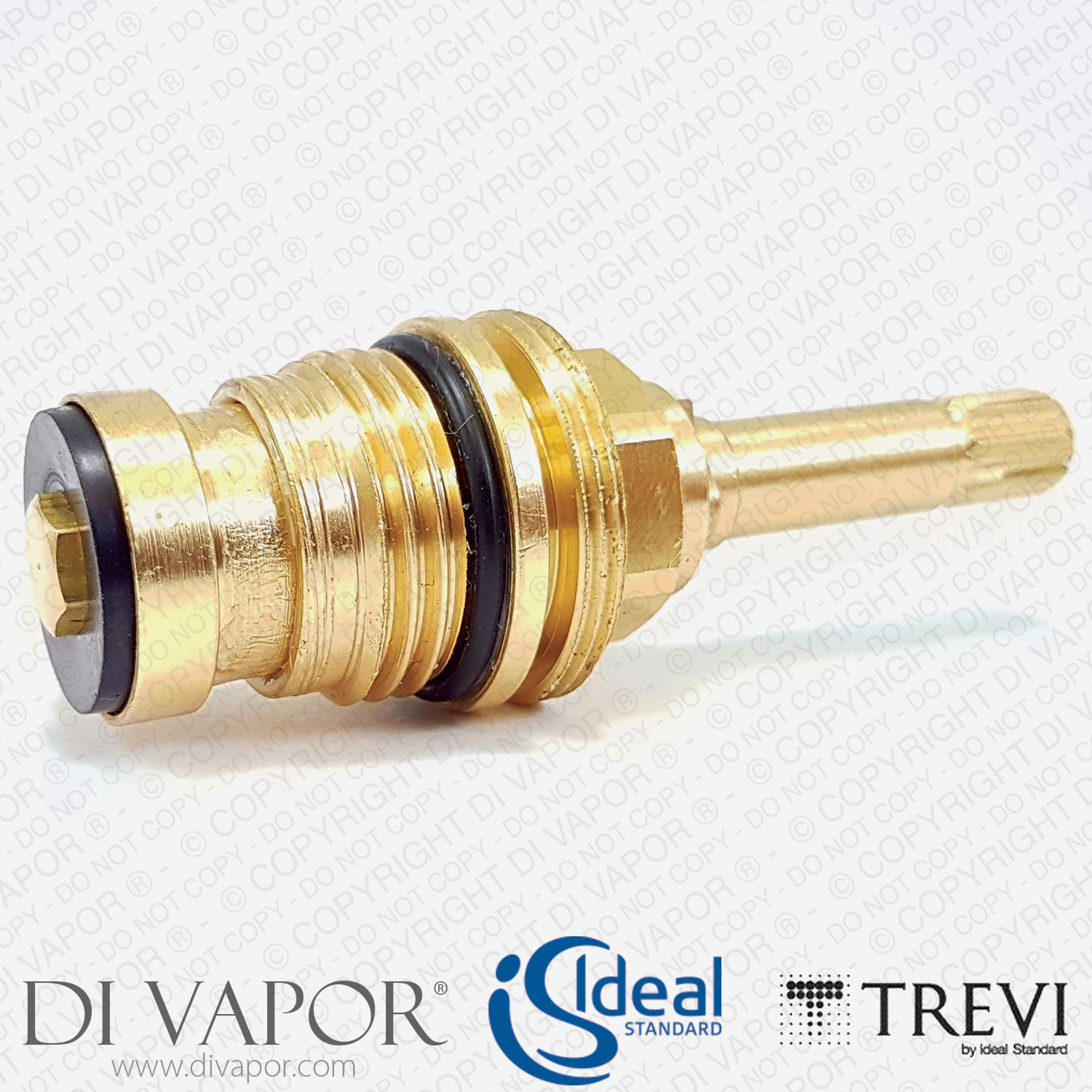

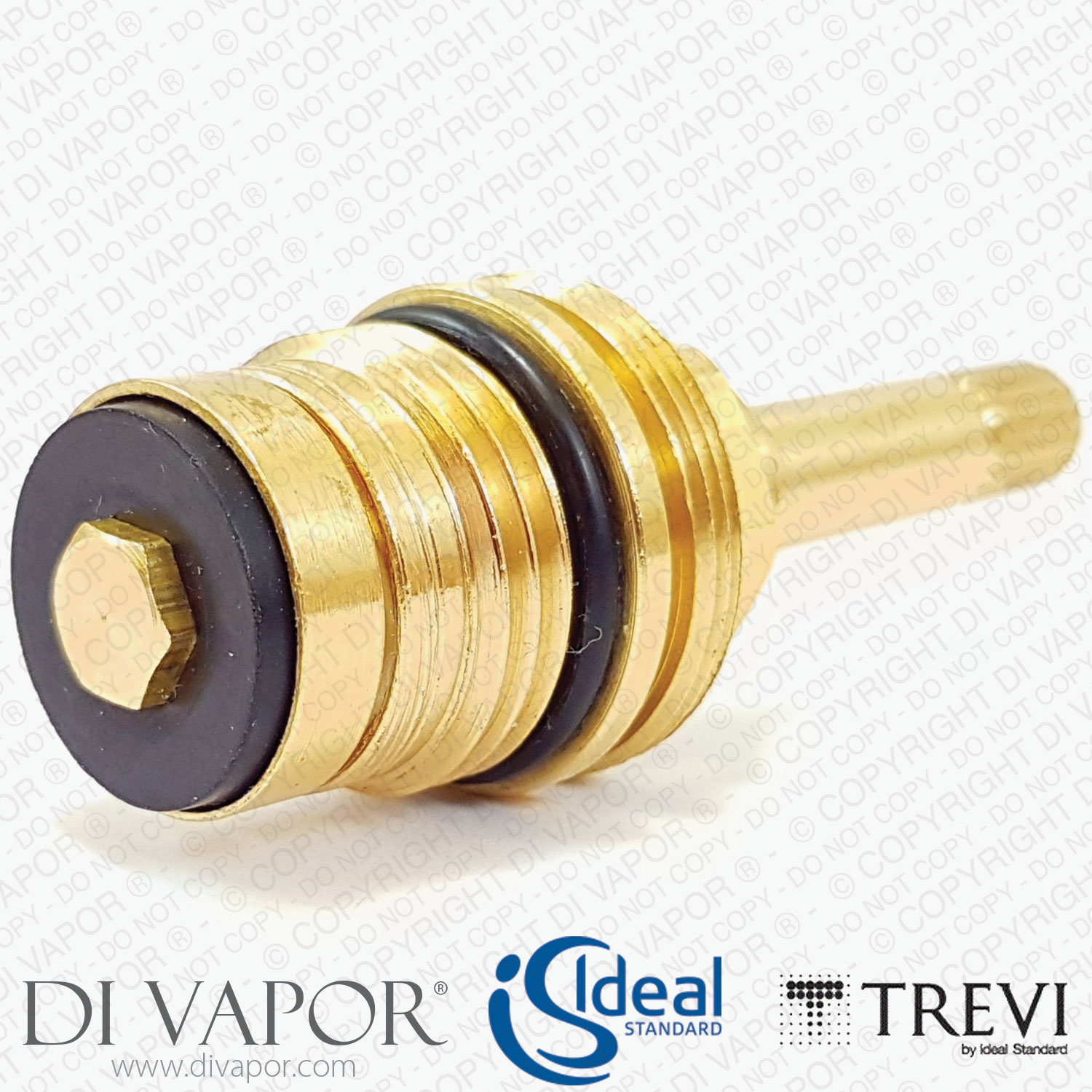

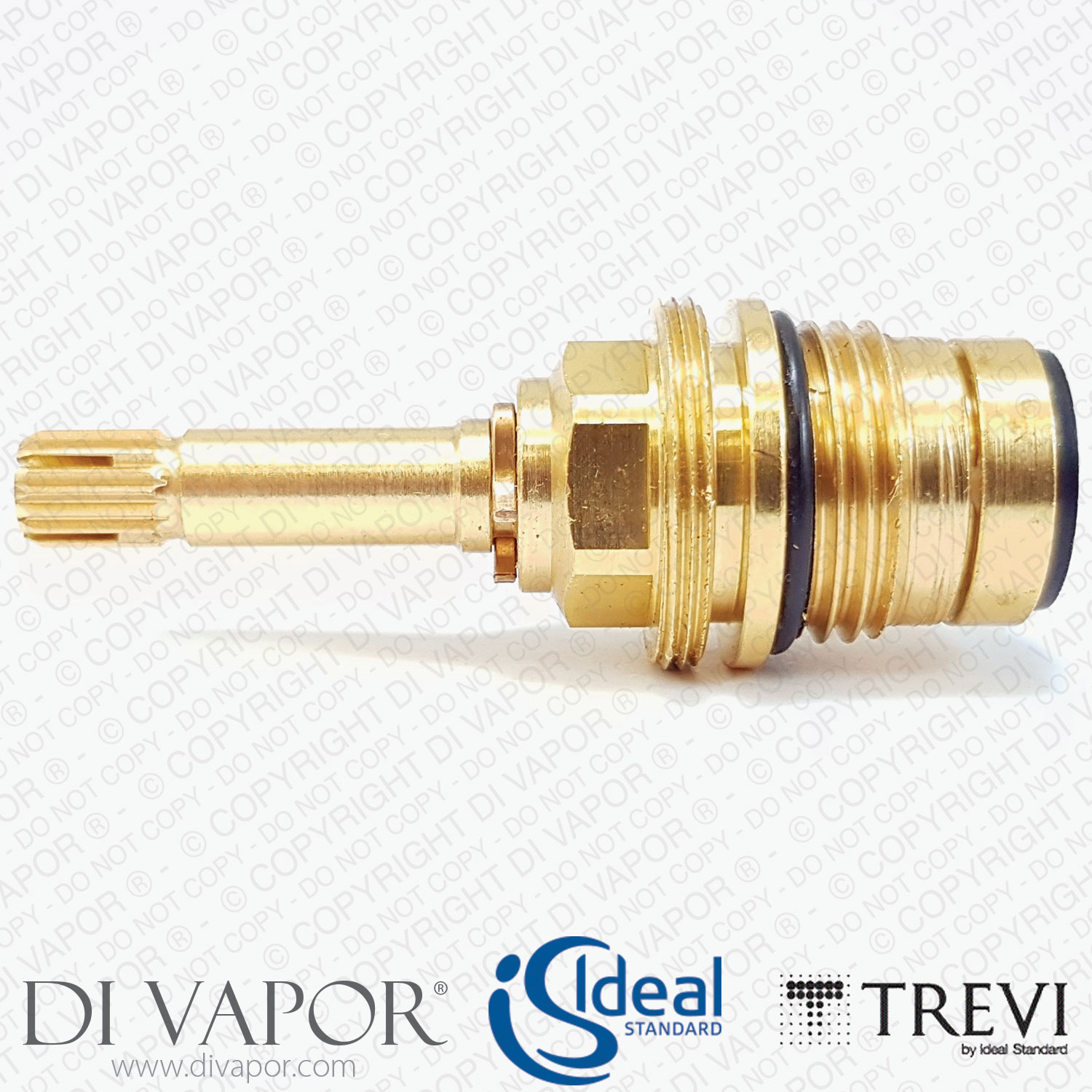

A951131NU11 Ideal Standard / Trevi Kingston 1/2 Inch Rubber Valve Flow Cartridge 65mm

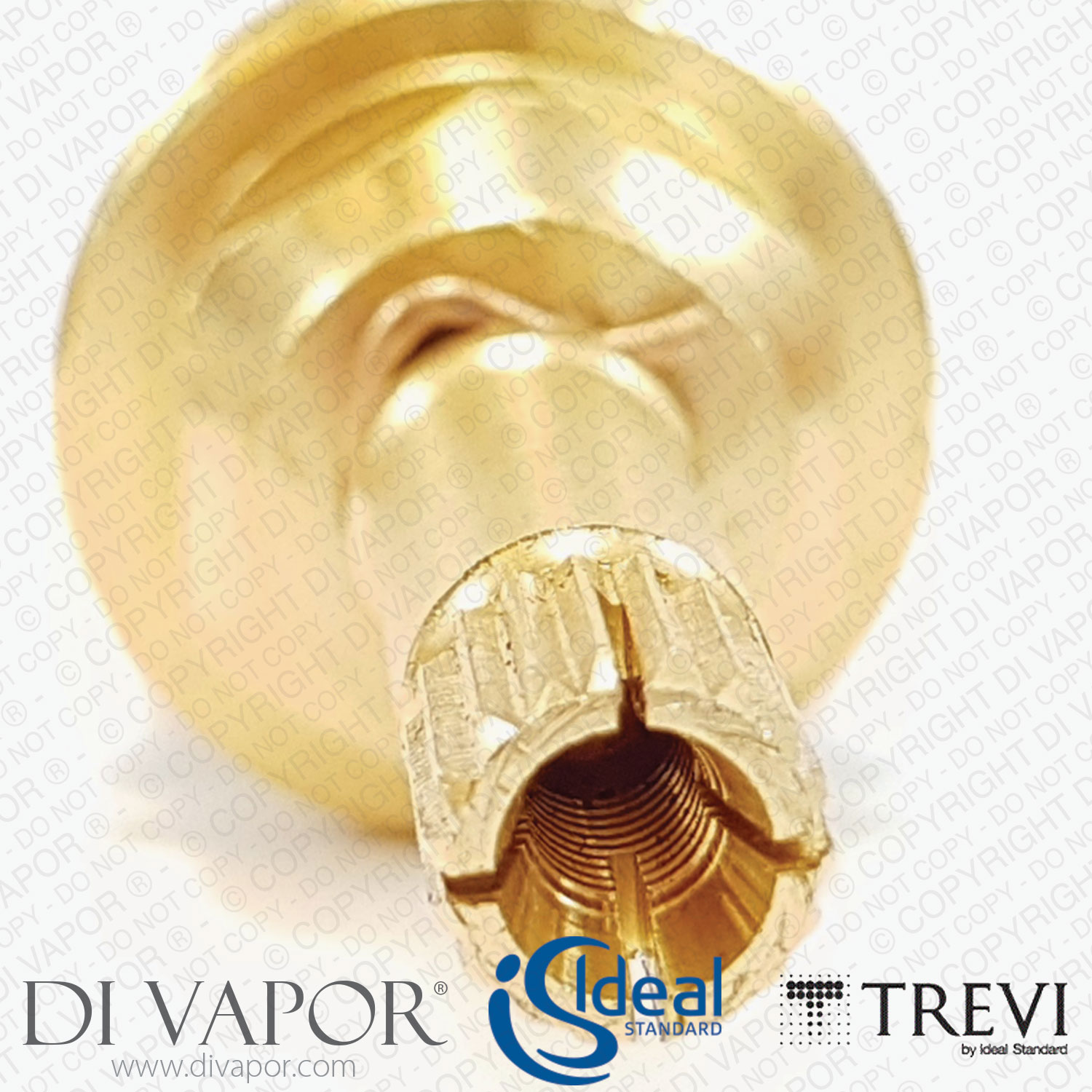

The total height of the cartridge is 65mm. The top part of the cartridge which the handle connects onto has 20 splines.
The Ideal Standard / Trevi A951131NU11 is an 1/2 inch on/off flow cartridge used to control water flow in selected Kingston bath and shower mixers. Ideal Standard describes this part as a Kingston bath shower mixer valve and earlier technical literature identifies it as a 1/2 inch rubber valve.
The cartridge opens and closes the water supply as the tap handle is operated. A worn flow valve can cause poor shut-off or water continuing to drip from the bath spout or shower outlet after the control has been turned off.
Technical Details
| Brand | Ideal Standard / Trevi |
|---|---|
| Part number | A951131NU11 |
| Manufacturer's alternative code format | A 951 131 NU11 |
| Part type | 1/2 inch rubber valve / on-off flow cartridge |
| Manufacturer description | Kingston Bath Shower Mixer Valve |
| Total height | 65mm |
| Handle connection | 20 splines |
| Function | on/off water flow control |
| Manufacturer application | Kingston Bath Shower Mixer post 1997 |
Check the existing valve dimensions and spline arrangement before ordering because visually similar Ideal Standard headworks use different part numbers.
Confirmed Compatible Models
- Ideal Standard Kingston E6125AA Dual Control Two Taphole Bath Shower Mixer
- Ideal Standard Kingston Bath Shower Mixer post 1997
- Ideal Standard Revival post 1997
Related Spares You May Need
- Ideal Standard E912775NU O-Ring 6.00 x 2.00
- Ideal Standard E912773NU O-Ring 14.00 x 1.78
- Ideal Standard EESM40710067 Plastic Tap Backnut 0.75BSP
- Ideal Standard E913212NU Fibre Wash 24x15x2mm
- Ideal Standard EEM134901AA Shower Hose Bracket Chrome
- Ideal Standard EEM13490001 Shower Hose Bracket White
- Ideal Standard S960103AA Kingston Traditional Gallina Handle Pack Chrome
