Hansgrohe 27505000 Shower Elbow Fixfit E Hose Connector
Send a photo of your item and we'll help confirm it.
Summary
Hansgrohe 27505000 Shower Elbow Fixfit E Hose Connector
- Shower system consists of: overhead shower (180 mm diameter), hand shower (110 mm diameter), mixer control, shower rail, shower arm (40 cm), shower holder and an anti-kink shower hose (1.60 m)
- Comfortably switch between 3 different spray modes at the touch of a button on the hand shower: SoftRain, IntenseRain, Massage spray
- Remove limescale easily and fast with your fingertips from the flexible silicone nozzles with the hansgrohe QuickClean technology
- Suitable for high pressure only
- Premium quality in all its finer details - 5 year warranty

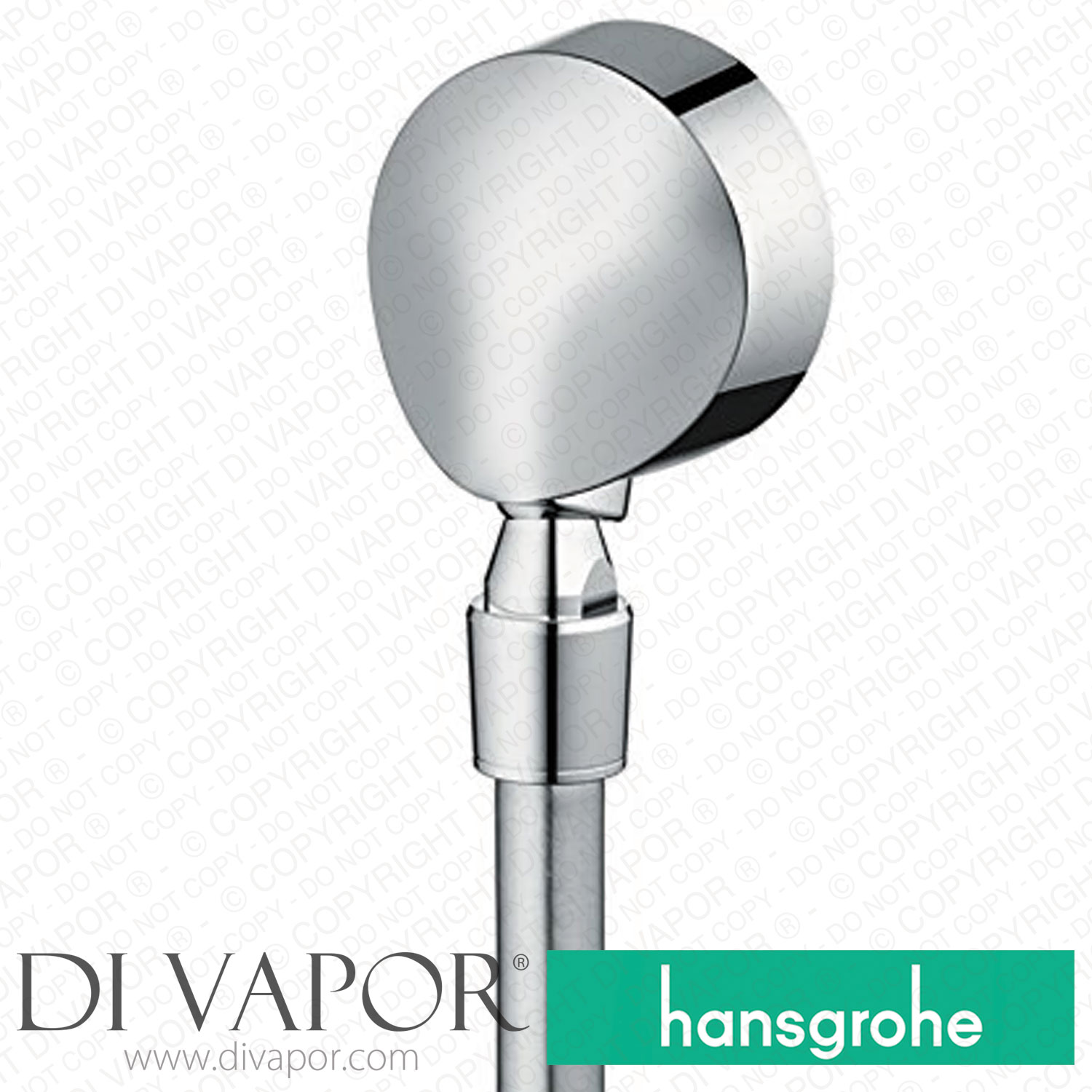

The Hansgrohe 27505000 FixFit E is a chrome wall outlet shower elbow used to connect a shower hose to a concealed water supply outlet. It is designed as a fixed wall-mounted hose connector with an integrated non-return valve and pivoting hose connection.
This FixFit E shower elbow provides the visible wall outlet point for a hand shower hose. The pivot joint helps the hose sit more naturally at the outlet, while the non-return valve helps prevent backflow through the connection.

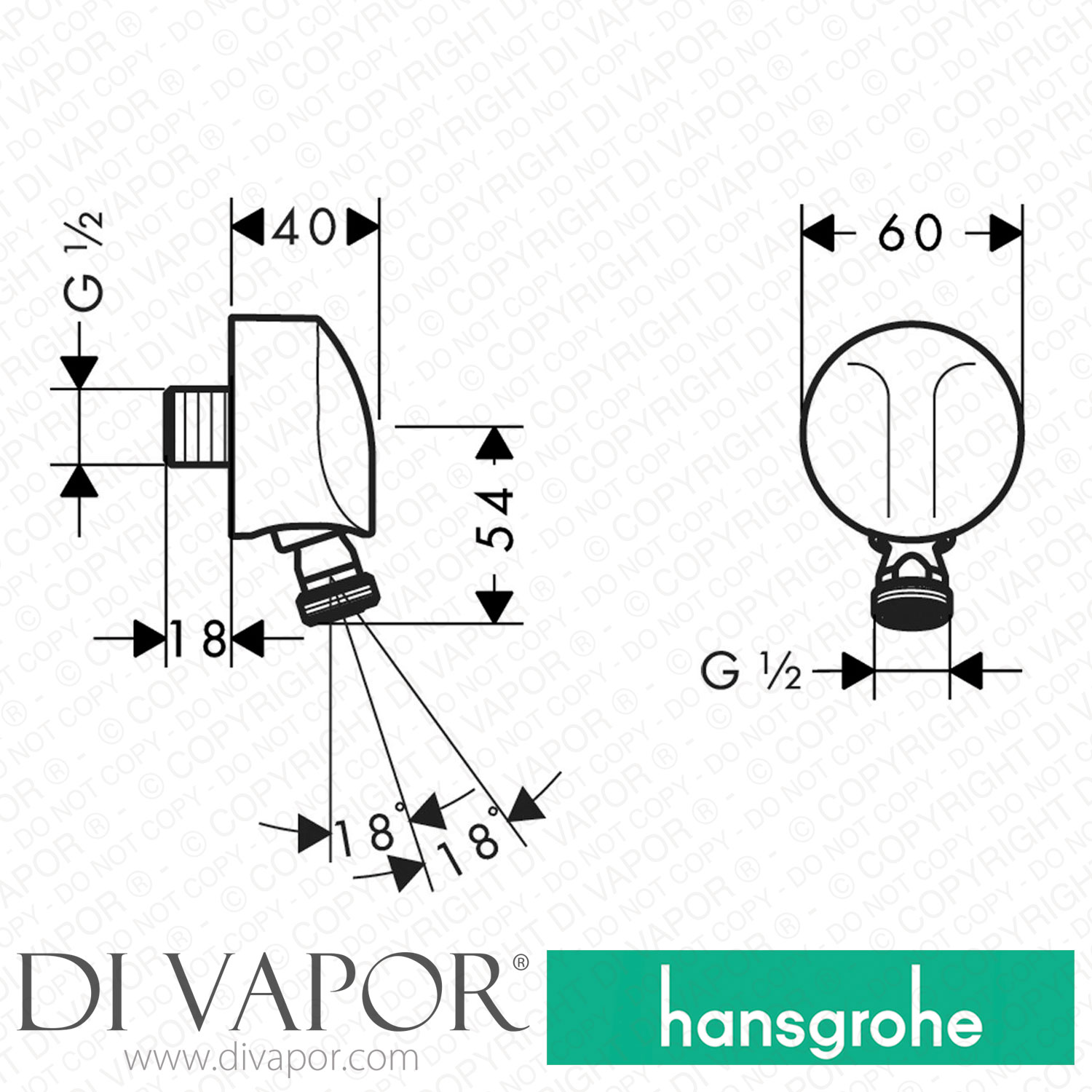

Technical Details
| Brand | Hansgrohe |
|---|---|
| Product code | 27505000 |
| Di Vapor Part Number | HG-27505000 |
| Product type | FixFit E wall outlet shower elbow hose connector |
| Finish | Chrome |
| Hose connection | G 1/2 |
| Wall-side connection | R 1/2 |
| Body projection | 40 mm |
| Features | Non-return valve and pivot joint |
| Hose suitability | For shower hoses with conical or cylindrical nut on both sides |
| Construction detail | Plastic connection angle with metal ball joint and plastic cover |
Ordering Notes
Check the existing wall outlet shape, connection size, finish and available projection before ordering. This part should not be treated as a universal hose outlet based on the G 1/2 connection alone.
Installation Notes
Fit the shower elbow to a correctly prepared 1/2 inch wall outlet. Do not use silicone containing acetic acid during installation. The non-return valve should be checked periodically as part of normal plumbing maintenance.
