Solenoid 6V/​3W Bistabil 60.001.138 - D 11448 - 10375 0.3-10 Bar Max 80C

Summary

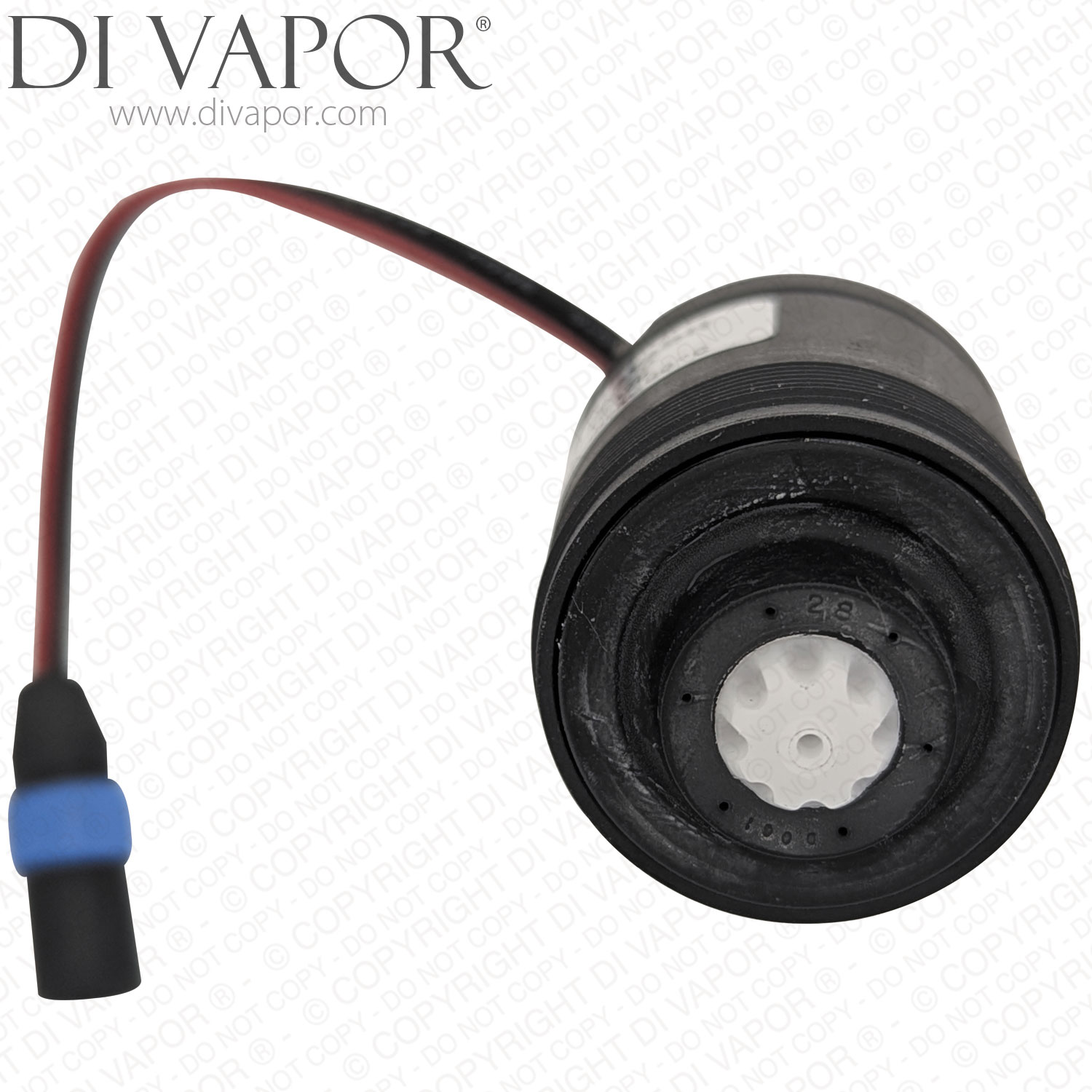

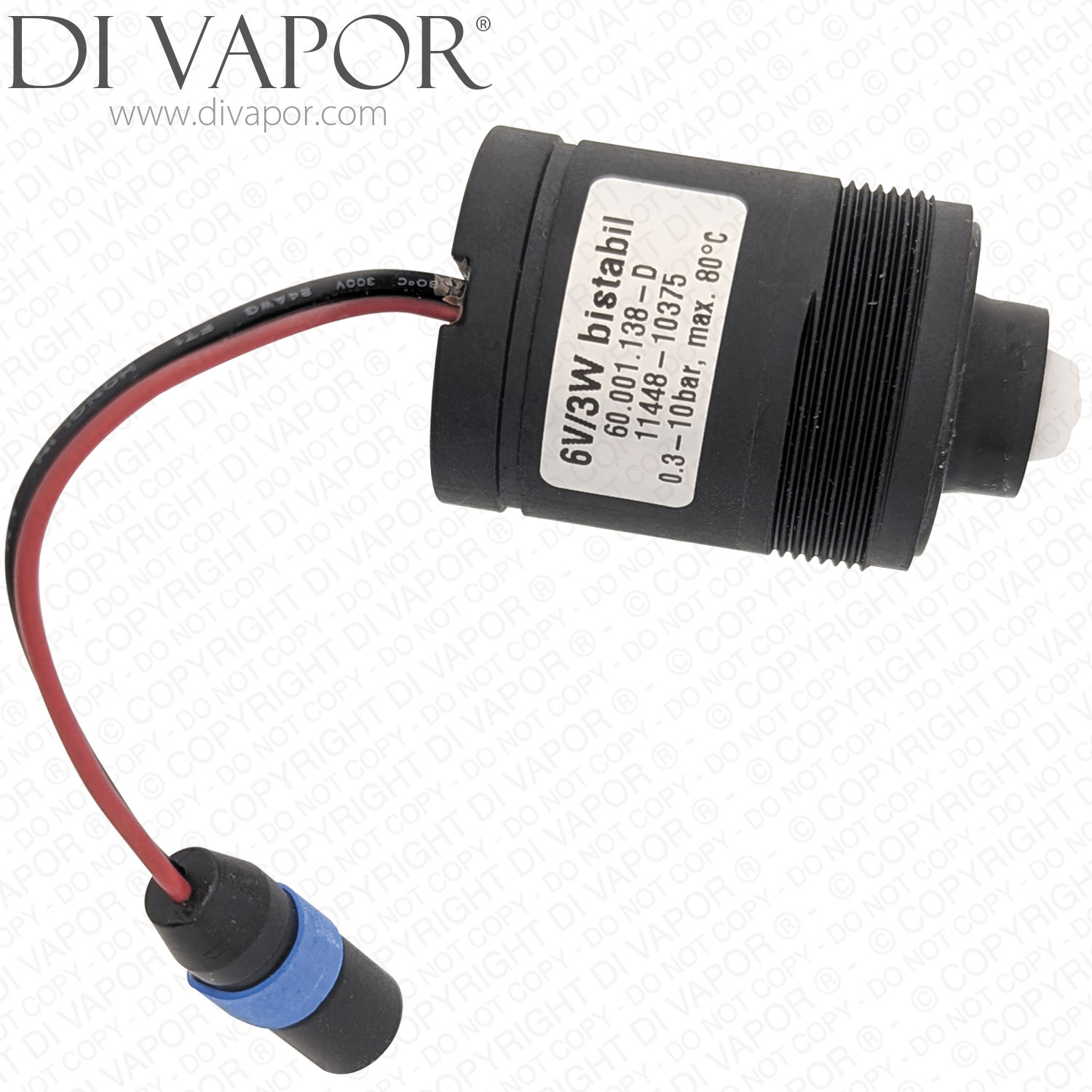

6V 3W Bistable Solenoid Valve 60.001.138

This 6V 3W bistable solenoid valve is designed for electronic water control applications where low power consumption and reliable latching operation are required. It is rated for operating pressures between 0.3 and 10 bar and water temperatures up to 80 degrees Celsius.

Function

The solenoid opens and closes using short electrical pulses rather than continuous current, remaining in position until re-energised. When internal seals or the moving core wear, the valve may fail to latch fully, resulting in water passing when it should be closed or inconsistent flow behaviour.

Application Notes

This solenoid is used in various electronic taps, flushing systems, and control units that specify a 6V bistable solenoid with 3W power rating. Matching voltage, power consumption, pressure rating, and connector configuration is essential before installation.

Installation Notes

Ensure correct flow direction and electrical polarity where applicable. The valve should be flushed prior to installation to reduce the risk of debris affecting operation. After fitting, test repeated open and close cycles to confirm reliable latching.

When Replacement Is Recommended

Replace the solenoid if the system fails to shut off cleanly, if water continues to flow after deactivation, or if response becomes delayed or erratic. A new bistable solenoid restores dependable electronic water control.
