Dornbracht 90230102803-00 Aerator Assembly
Send a photo of your item and we'll help confirm it.
Summary

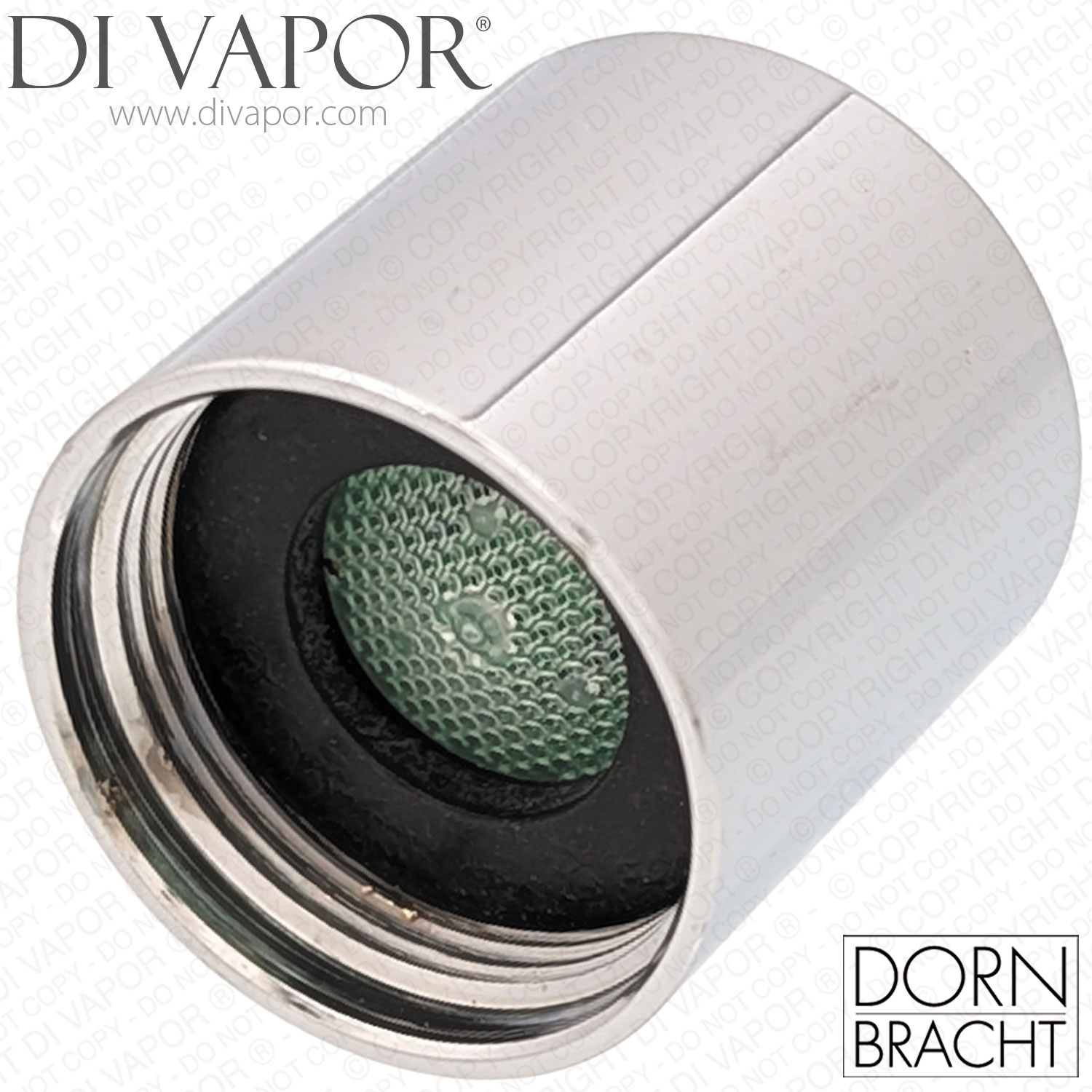

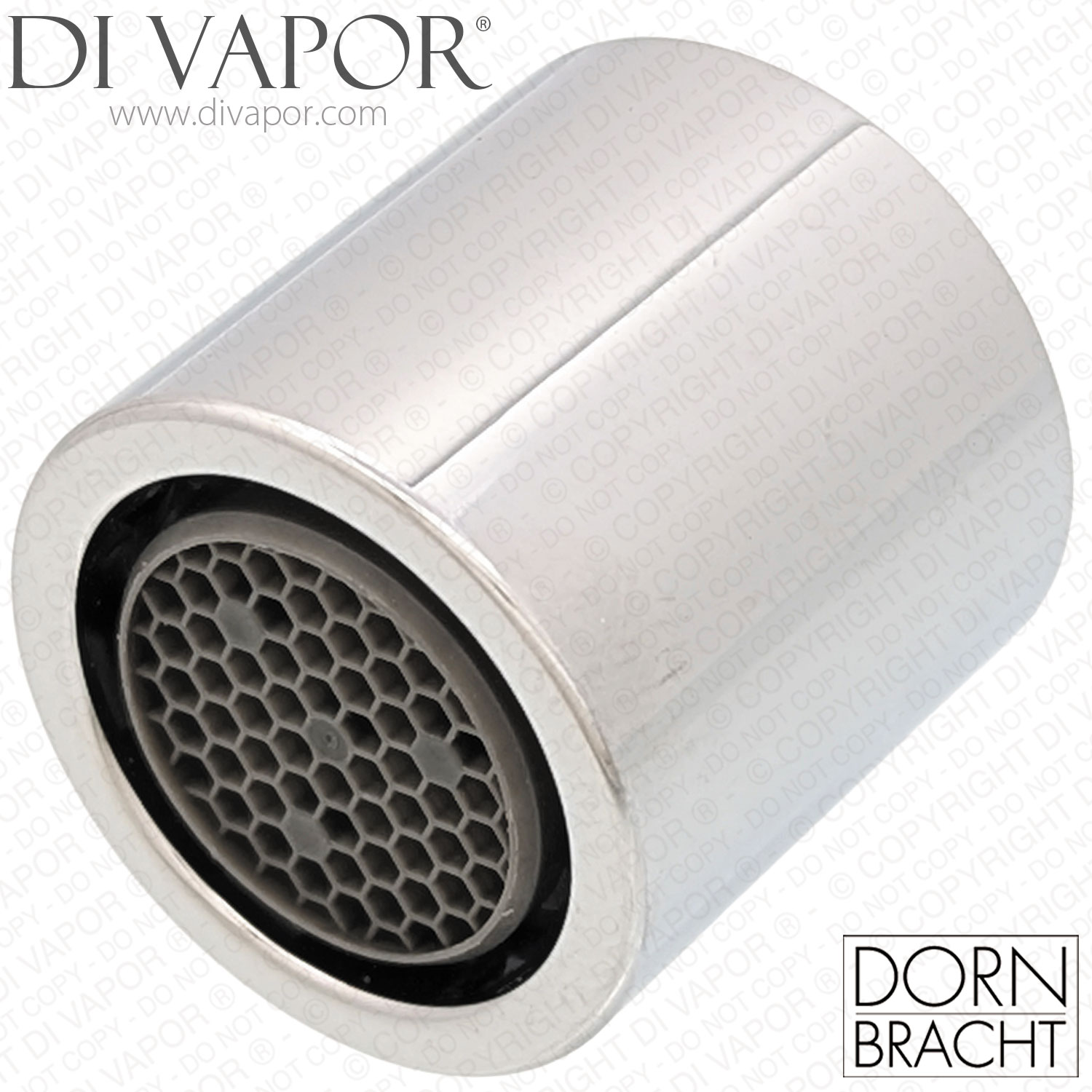

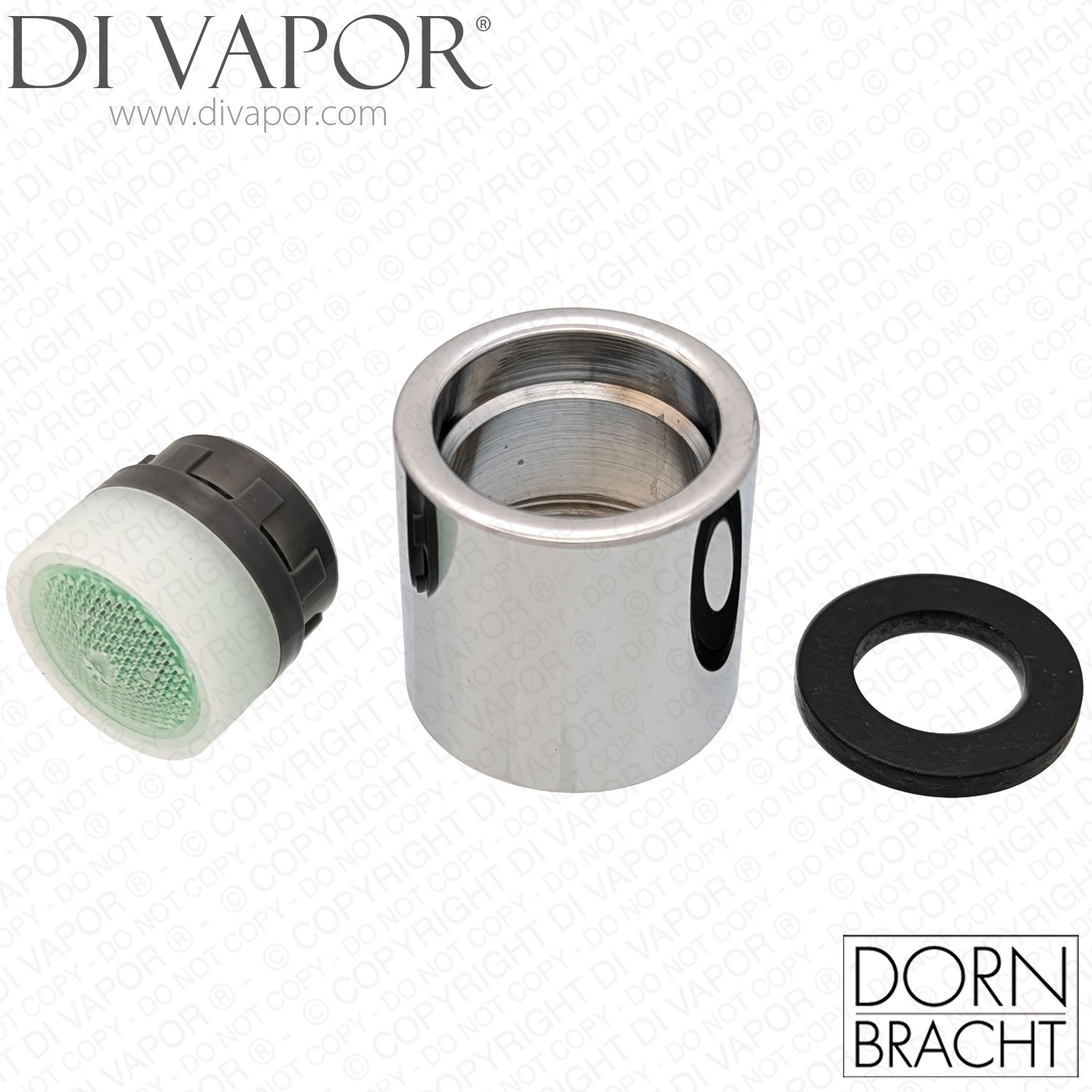

Dornbracht 90230102803-00 is an aerator assembly for selected Dornbracht tap spouts. It fits into the outlet of the tap to help shape and aerate the water stream and should be matched to the exact spare part code or tap spare parts diagram before ordering.
This aerator is used where the Dornbracht spare parts list calls for 90 23 01 028 03-00 or Di Vapor Part Number 90230102803-00. Do not order by diameter alone because visually similar aerators can use different threads, heights or flow specifications.
Technical Details
| Part code | 90230102803-00 |
|---|---|
| Dornbracht spare-list format | 90 23 01 028 03-00 |
| Part type | tap aerator assembly |
| Internal thread diameter | 17.1mm |
| External diameter | 20mm |
| Total height | 19.8mm |
| Thread reference found for this aerator family | M 18 x 1 internal thread |
| Flow reference found for this aerator family | 7.0 l/min |
Confirmed Compatible Models
- Dornbracht Single Lever Mixer 33815888 99 Spare Parts
- Dornbracht Tara Classic single-lever mixer 33 815 888-00
- Dornbracht Tara three-hole basin mixer 20 713 882-00
Before You Order Check
- Match the exact Dornbracht article number and spare diagram for your tap
- Check the removed aerator for thread size, outside diameter and overall height
- Check for limescale build-up, damaged threads or a distorted spray pattern before replacing the aerator
