Dornbracht 90173301700-47 Thermostat Handle 48mm Champagne Gold
Send a photo of your item and we'll help confirm it.
Summary

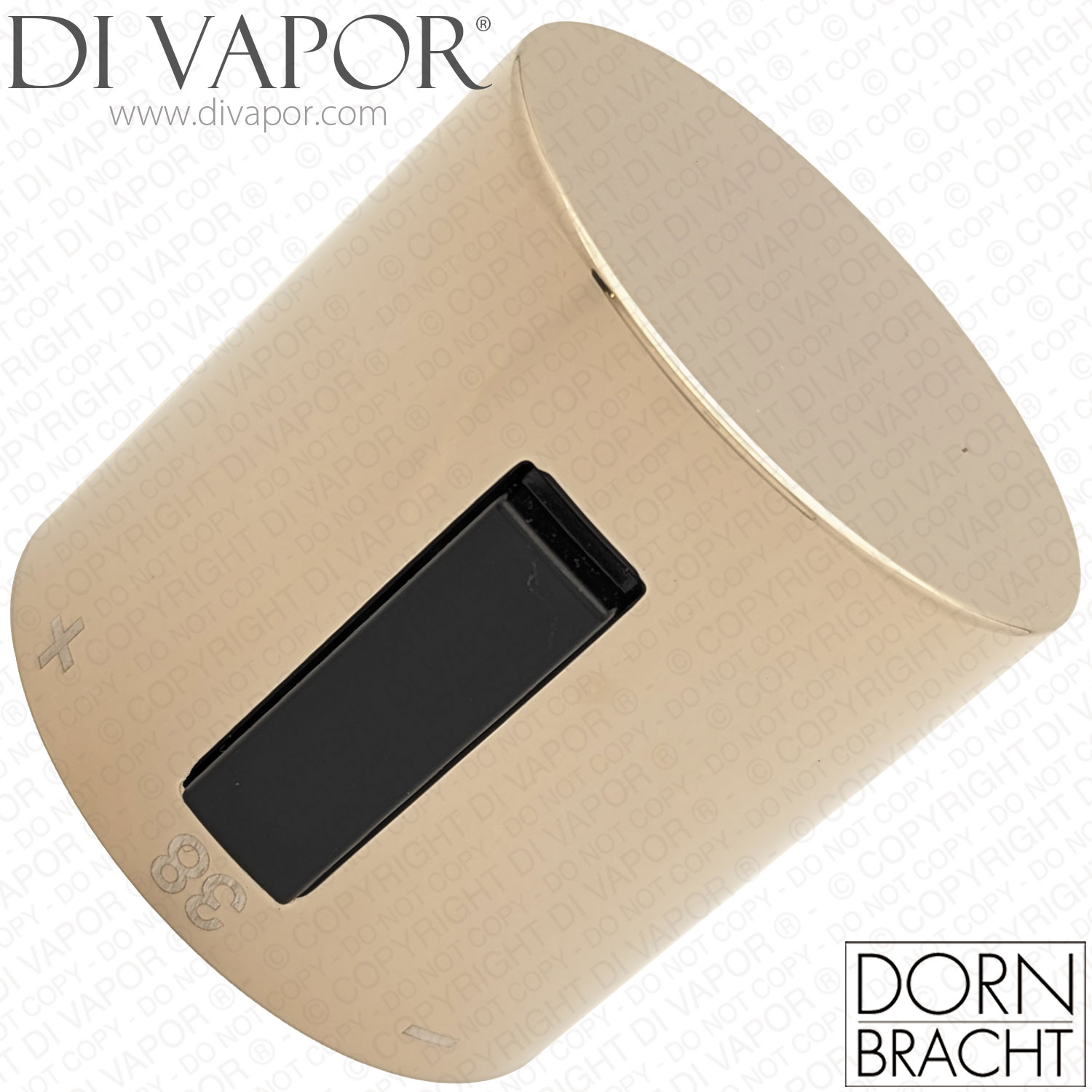

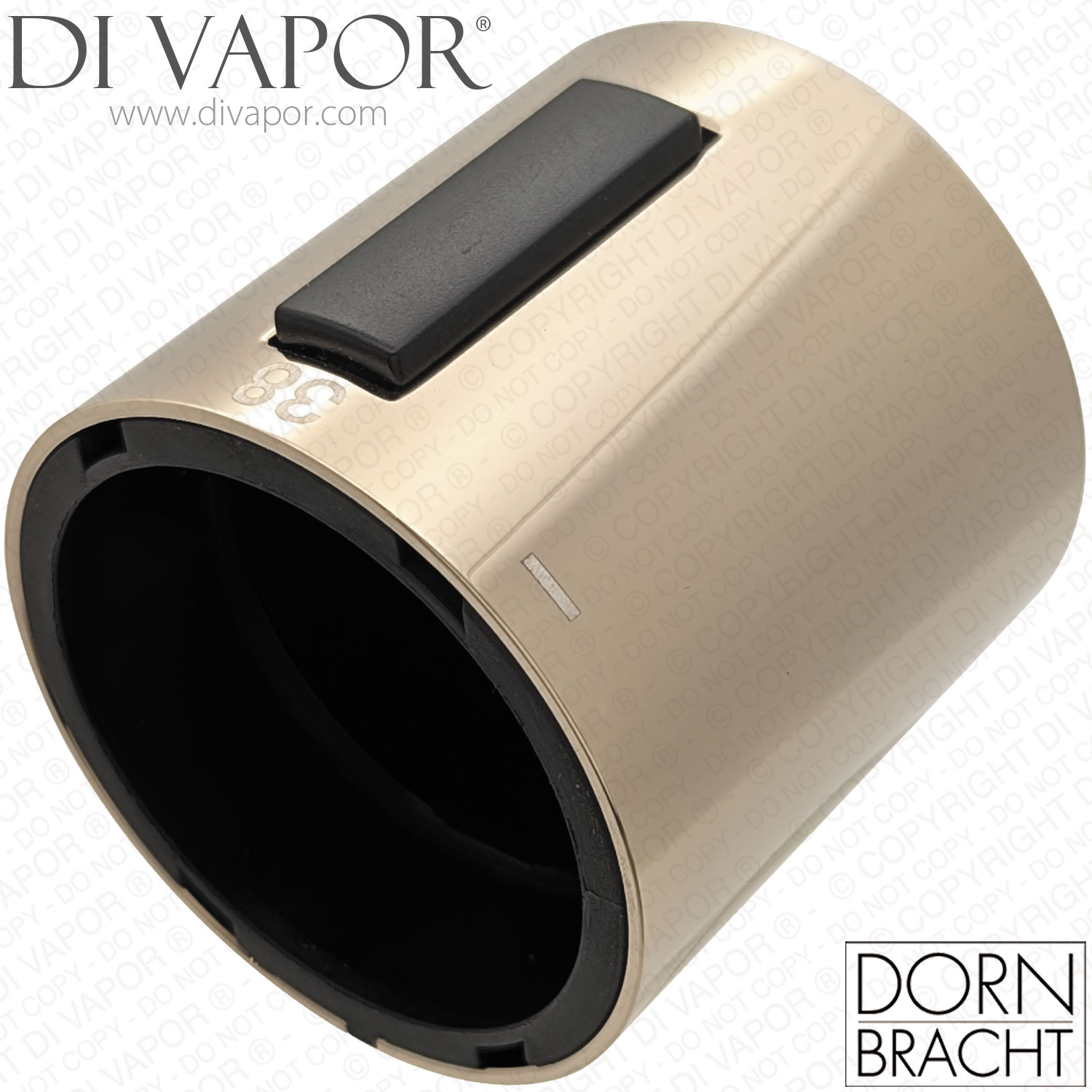

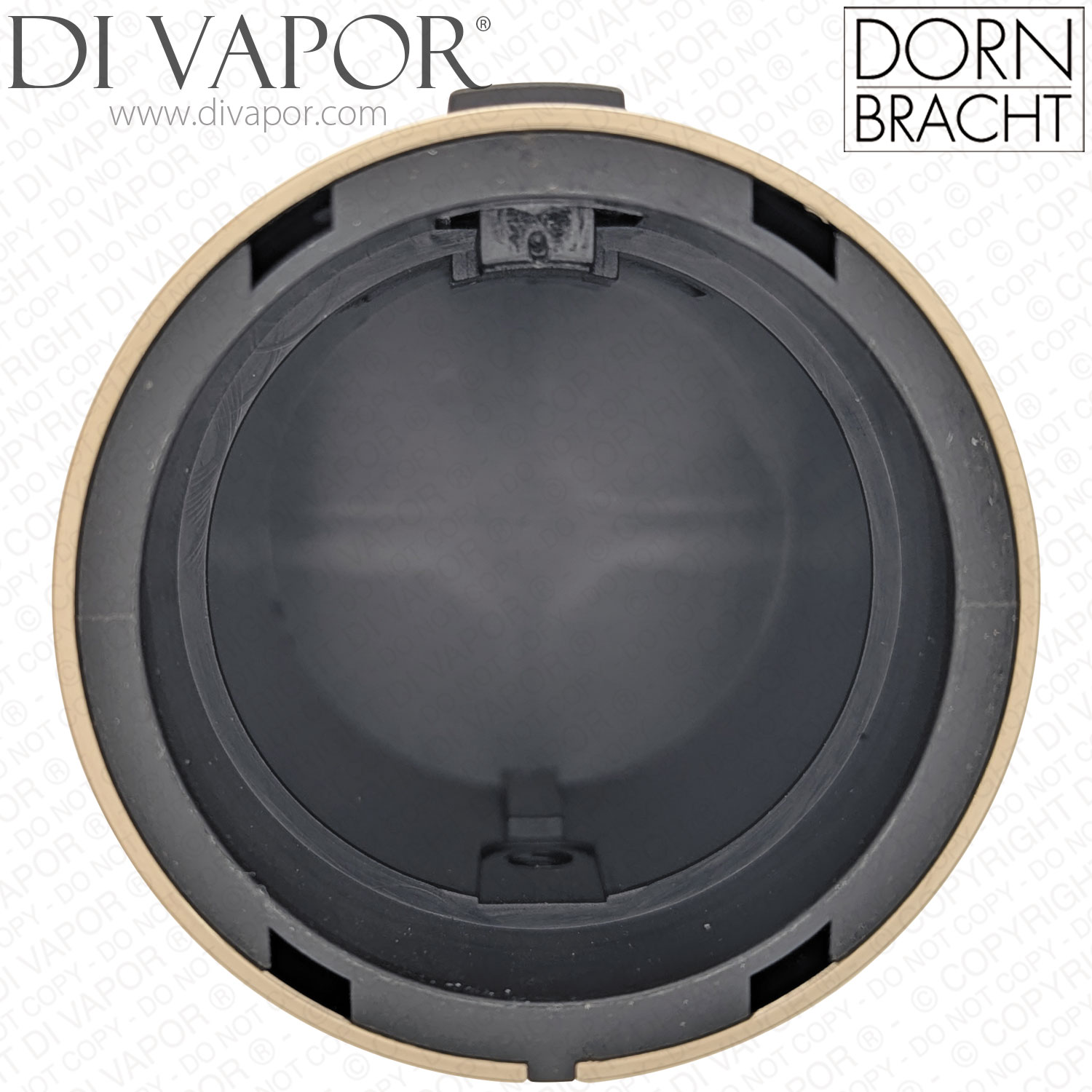

Dornbracht 90173301700-47 Thermostat Handle 48mm Champagne Gold for Concealed Shower Valve
The Dornbracht 90173301700-47 is a 48mm thermostat handle for the temperature-control side of selected Dornbracht concealed thermostatic shower valve trim assemblies. It is the external user handle used to adjust the mixed water temperature and is supplied in the Champagne Gold finish.
This part is the visible thermostat handle only. It is separate from the internal thermostatic cartridge, flow cartridge, diverter cartridge, sleeve, cover plate and handle mounting components used inside the valve assembly.
Technical Details
| Brand | Dornbracht |
|---|---|
| Part Number | 90173301700-47 |
| Manufacturer code format | 90 17 33 017 00-47 |
| Part type | thermostat handle / temperature-control handle |
| Diameter | 48mm |
| Finish | Champagne Gold / Champagne (22kt Gold) |
| Finish suffix | -47 |
| Application | temperature control on selected Dornbracht concealed thermostatic shower valve trim assemblies |
- Not supplied as a thermostatic cartridge, flow cartridge, diverter cartridge or complete valve body
Confirmed Compatible Models
- Dornbracht xTOOL Concealed Thermostat without Diverter - Champagne (22kt Gold) 36 416 979-47
- Dornbracht COYA UP-Thermostat with One-Way Volume Control - Champagne (22kt Gold) 36 425 404-47
- Dornbracht COYA UP-Thermostat with Two-Way Volume Control - Champagne (22kt Gold) 36 426 404-47
Confirmed Replacement Option for Old Handle 90 17 33 004 00-47
- Dornbracht UP-Thermostat with Two-Way Volume Control - Champagne (22kt Gold) 36 426 670-47
- Dornbracht UP-Thermostat with Three-Way Volume Control - Champagne (22kt Gold) 36 427 670-47
Code Notes
- Dornbracht also shows this handle in manufacturer format as 90 17 33 017 00-47.
- For 36 426 670-47 and 36 427 670-47, Dornbracht parts information lists older handle 90 17 33 004 00-47 as no longer available and gives 90173301700-47 as one of the replacement handle options.
Before You Order
- Match the full part code 90173301700-47 or manufacturer format 90 17 33 017 00-47 against the valve parts diagram or the removed handle.
- Check the finish suffix -47, as similar Dornbracht thermostat handles are available in other finishes and are not visually interchangeable.
- Confirm that the fault is with the external temperature handle or button area rather than the internal thermostatic cartridge or another concealed valve component.
