Top Shower Roller | 22mm/23mm/25mm Wheel Diameter
Send a photo of your item and we'll help confirm it.
Summary
Priced per item.| Will Post Worldwide? | Yes |
| Roller Diameter | As selected Above |
| Number of Wheels / Rollers | 1 |
| Orientation (Top or Bottom of Shower Door) | Top |
| Glass Thickness | 4-6mm |
| Colour | Grey |
| Body Material | Plastic, Nylon, Zinc Alloy, Stainless Steel |
| Wheel Style | Fixed |
| Max Roller Installation Adjustment | n/a |
| Possibly used on some of the following brands and ranges: • Online Showers • Bathroom Luxury • Sovereign • Cascade • Coram | |
| Further Information: | |
Does your shower screen have a thickness of 4 to 6 millimeters? Does it have a 10mm fixing hole diameter? Are you looking for a replacement top shower door roller? This top part shower door wheel fits the bill.
The single spring shower wheel bottom counterpart is spare part number 1001TG22.
A set of 4 rollers (2 pairs) can be found here.

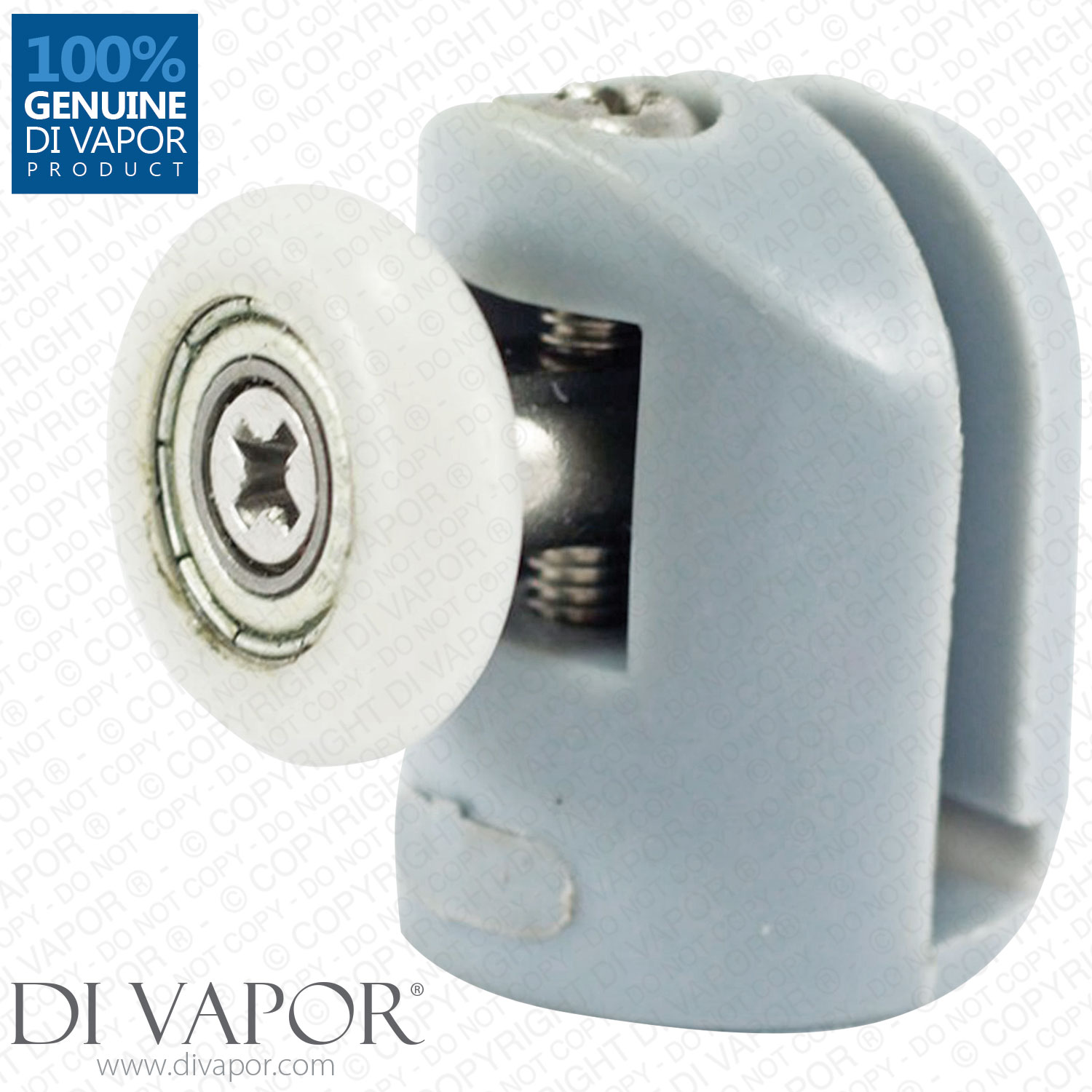

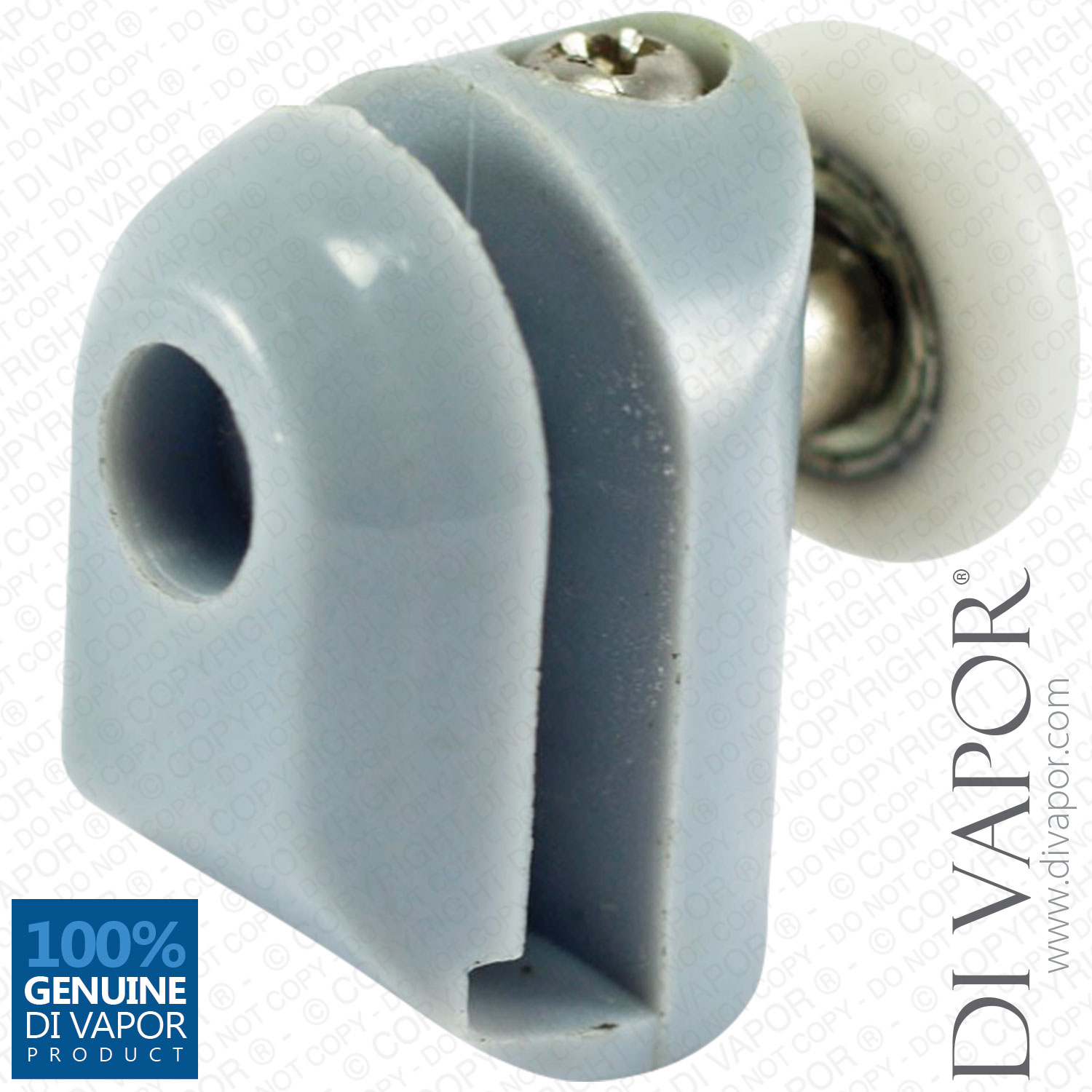

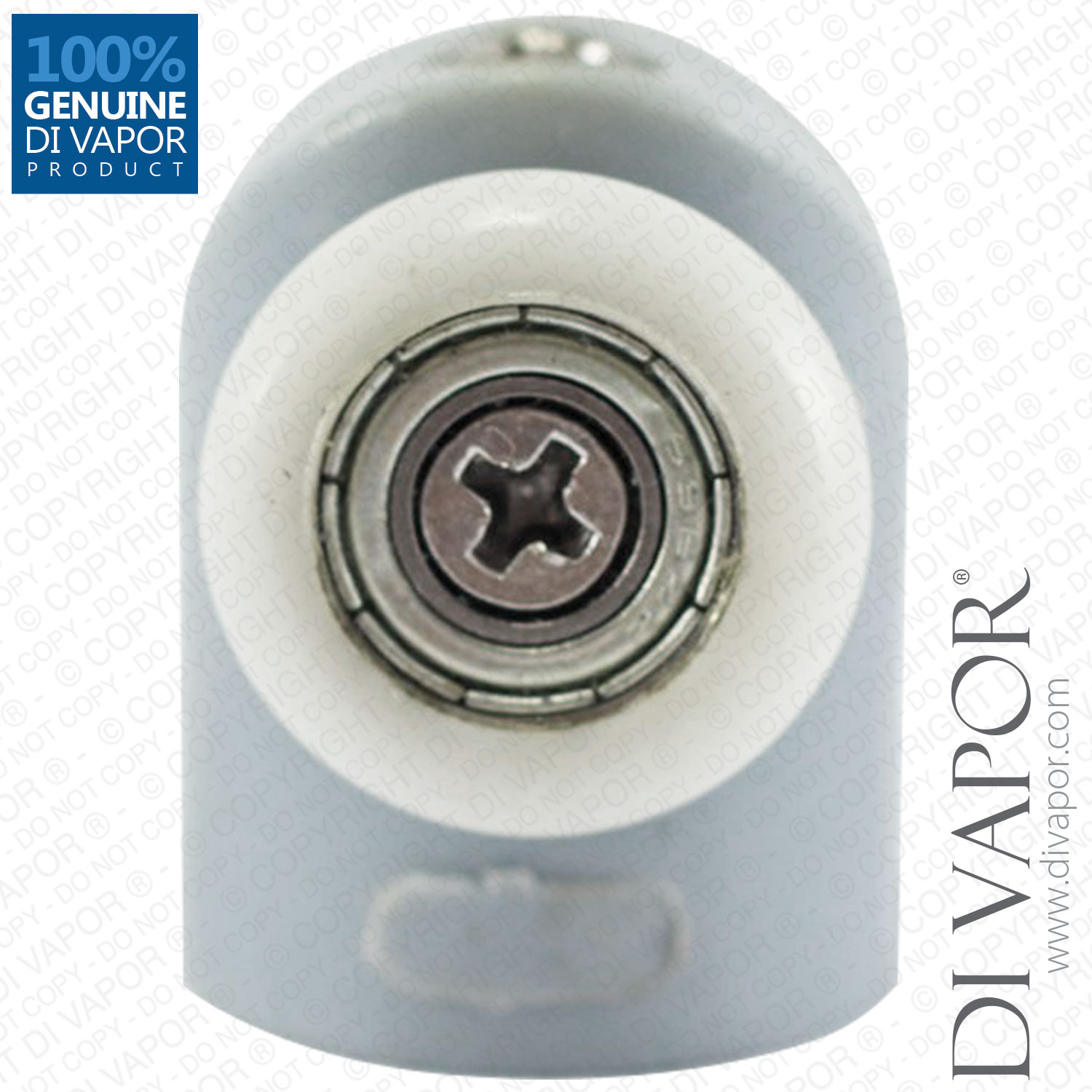

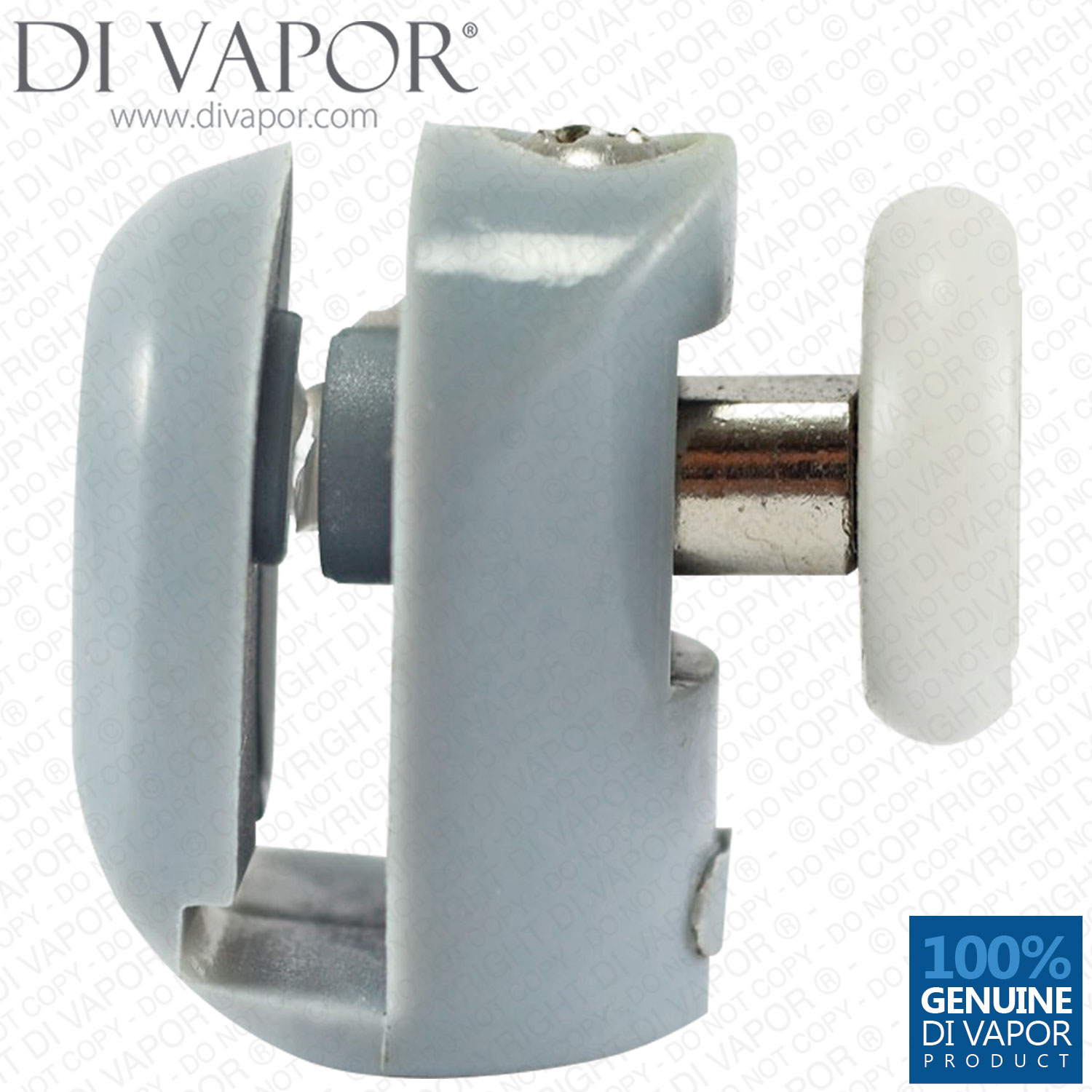

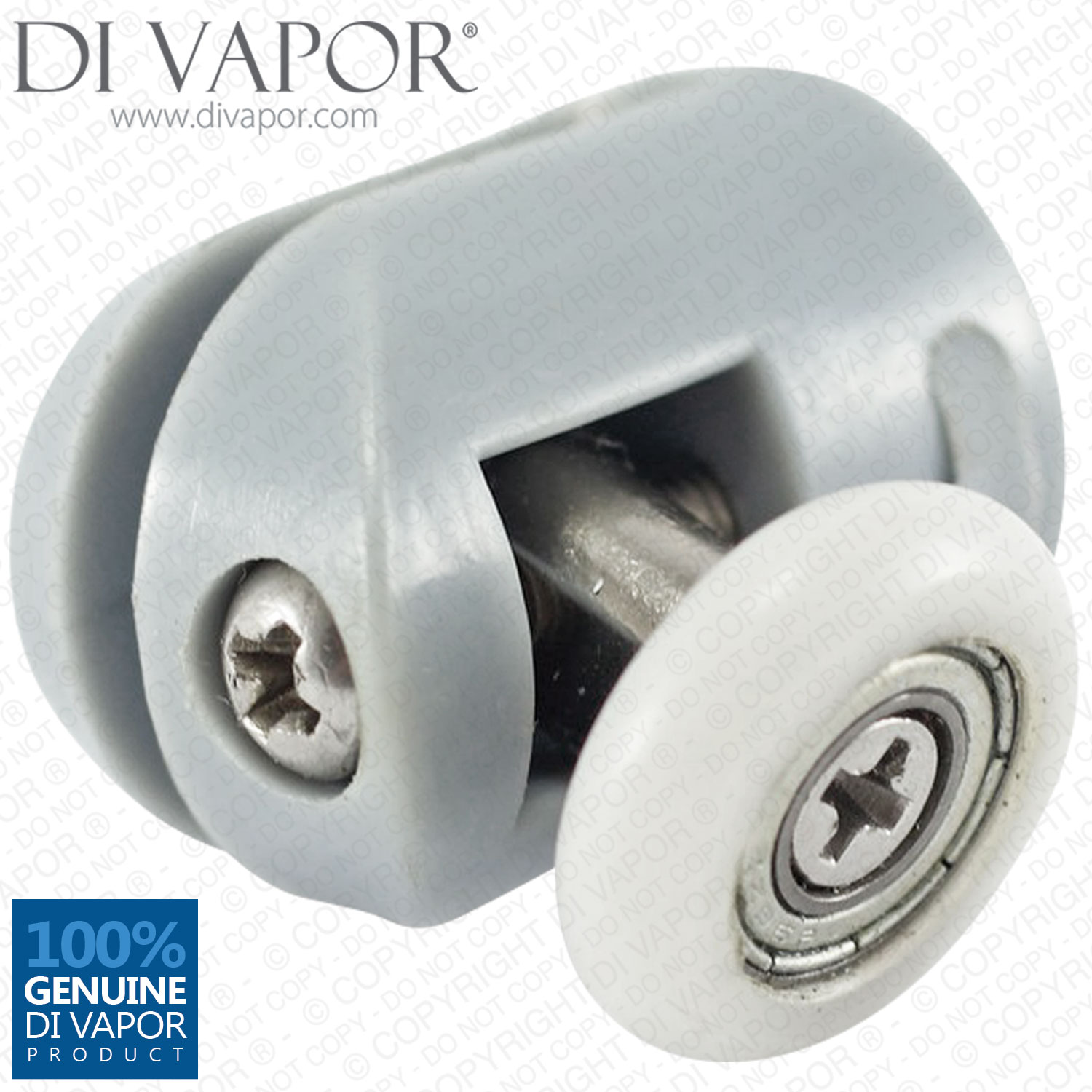

1001BG22 Single Top Shower Door Roller Characteristics
Shower door spare roller/wheel part number 1001BG22 is made from heavy-duty ABS plastic with a nylon roller. It can easily slide on the door’s track as you open and shut your shower screen. The wheel can accommodate curved or straight door tracks. You can choose between 22mm, 23mm, and 25mm wheel diameter depending on the size you need. For further queries, please do not hesitate to contact us.

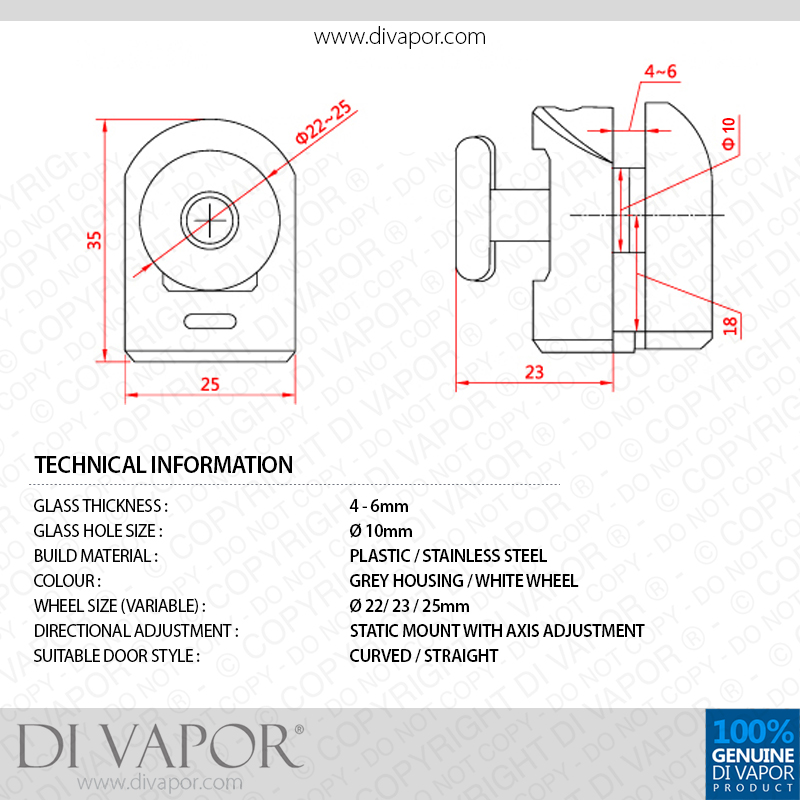

This roller fits not only shower doors from brands like Bathroom Luxury and Cascade. Being a universal shower door runner, it can be appropriate for a broad spectrum of shower enclosure doors given the measurement requirement is met. A diagram of the measurement can be found in the second photo above.
The upper shower door roller replacement part can be adjusted using a Phillips screwdriver.
Advantages include:
- Smooth opening and shutting of shower screen.
- Hassle-free installation.
- Easy to adjust.
- Same day dispatch when ordered before the 3:00 PM cutoff (weekdays only).
Simple Steps to Install the Top Shower Door Roller
Step One
Detach the bottom roller by pressing the push button.
Step Two
Lift the glass door to remove it from the upper track.
Step Three
Set the door down on a padded surface.
Step Four
Undo the screw at the back of the top roller. Remove.
Step Five
Attach the replacement shower door roller. Tighten the screw.
Step Six
Return the glass shower door on its track. Clamp the bottom roller on the bottom track.
Step Seven
Adjust the top roller using a screwdriver.
