Top Double Shower Runners | 22mm/23mm/25mm Wheel - 1006TG
Send a photo of your item and we'll help confirm it.
Summary
Priced per item.| Will Post Worldwide? | Yes |
| Roller Diameter | As selected Above |
| Number of Wheels / Rollers | 2 |
| Orientation (Top or Bottom of Shower Door) | Top |
| Glass Thickness | 4-8mm |
| Colour | Silver |
| Body Material | Plastic, Nylon, Zinc Alloy, Stainless Steel |
| Wheel Style | Fixed |
| Max Roller Installation Adjustment | n/a |
| Possibly used on some of the following brands and ranges: • Coram • Simpsons • Sovereign • Novellini • Homebase Haze | |
| Further Information: | |

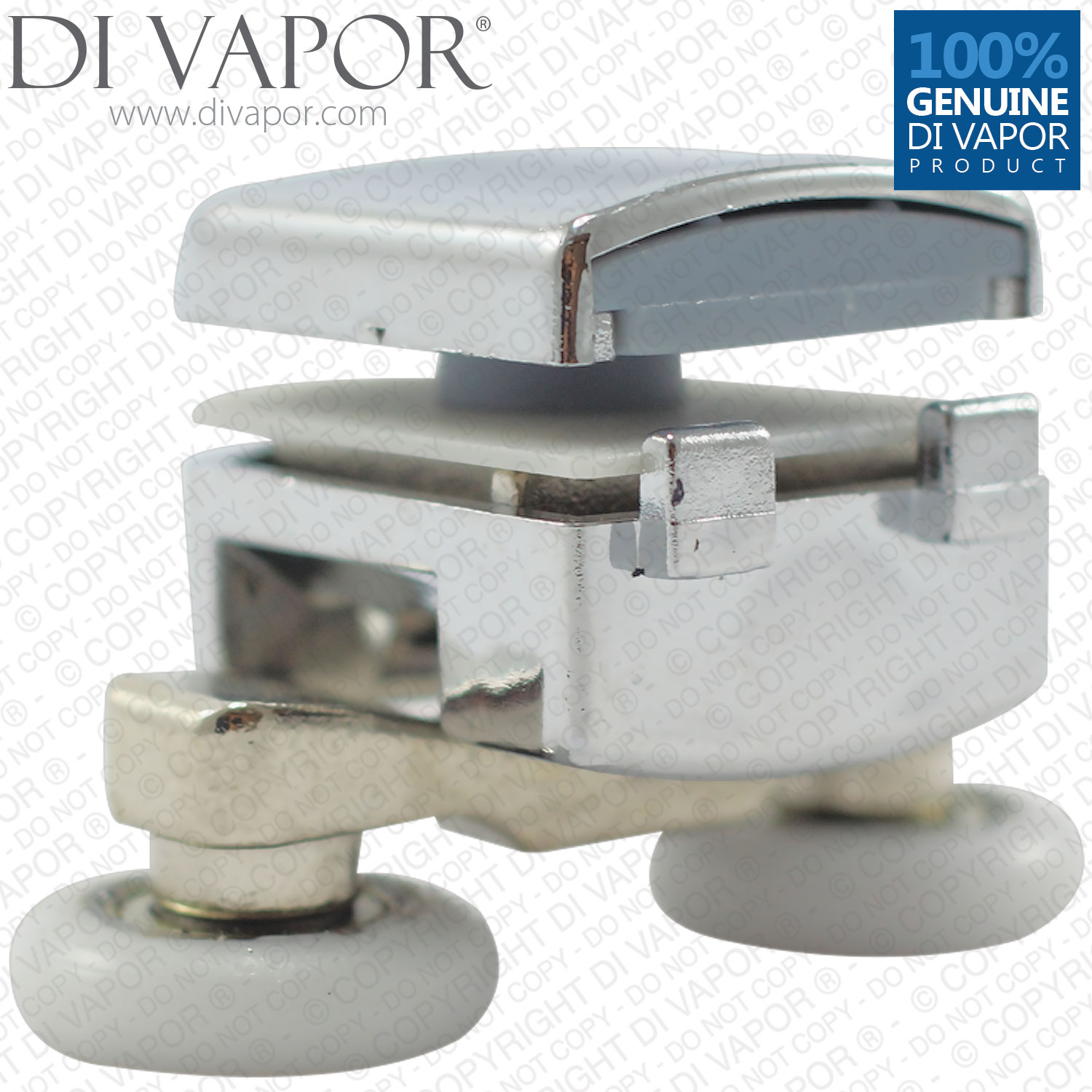

Top Double Shower Runners | 22mm/23mm/25mm Wheel
Selecting Compatible Top Double Wheel Shower Runners
Each kind of shower door runners can have different specifications and capacities. Some come with one wheel while others two. It can be for curved and/or straight doors. This is a simple guide to help you choose the right runners for your shower door.

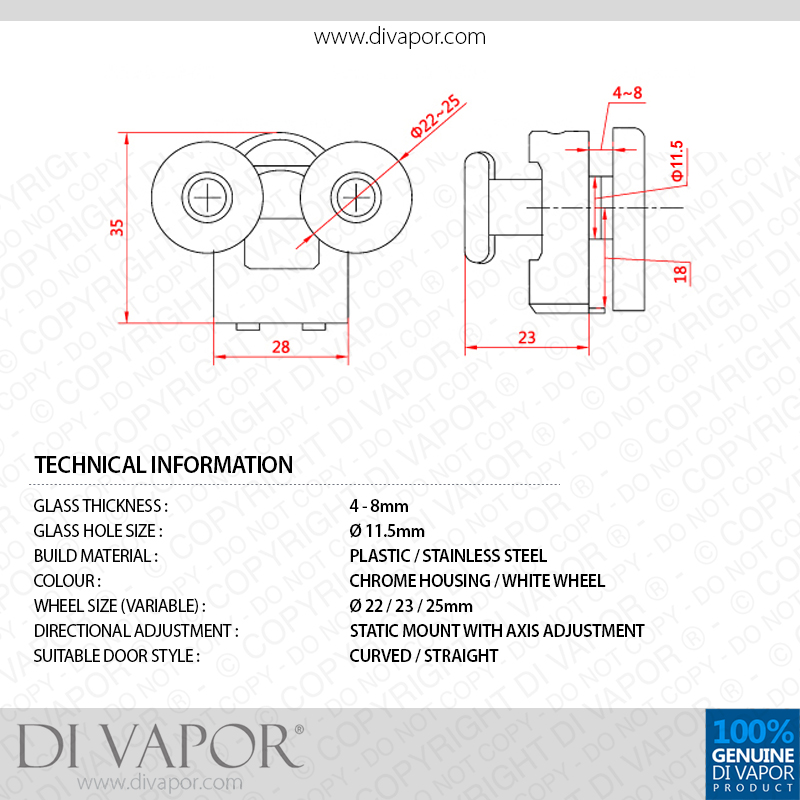

As with finding the right spare parts, measurements are important. Please see the second image in the gallery above for the blueprint of this chrome-coloured two-wheeled shower door runners.
Door Thickness:
The thickness of shower doors can vary. So, measure its thickness. This replacement shower door runner can be fitted on shower doors 4mm to 8mm thick.
Diameter of the Screw Holes in the Shower Door:
The bolt of this double shower door runners is 11.5mm in diameter. The diameter of the screw hole pre-drilled in your shower door should not be smaller than this size or it will not fit.
The distance between the center of the bolt to the top of the runner is 18mm.
Width and Height:
Measure the width and height of the shower door runners you need to replace. This can tell you if this spare part will fit on the tracks for the shower door. The width of this wheel runner is 28mm. The height is about 35mm. The thickness of the front body is 23mm.
Wheel Size:
You can choose the wheel size of the top double shower door runner you will purchase in the drop-down menu above. The available wheel diameter is 22mm, 23mm and 25mm.
Orientation:
This shower door runner rolls on top of the shower door and its track. The top double runner is a static mount. On the other hand, the double bottom runner is a spring mount.
Contact Us:
Are you unsure if this is the runner you need for your shower door? You are very welcome to get in touch with one of our super-friendly spares experts.
+ Please hop on to our Find a Part service page where you can send us an email.
+ Or you can chat with us on WhatsApp (contact number: 07754 173340).
Di Vapor is here for your spares needs!
Tip:
Once the runner is installed, you can adjust its fit by loosening or tightening the screw under the runner. Spray lubricant on the shower door track to help the new part glide smoothly.
