Jacuzzi Arina JBRARI401 Shower Valve Diverter Cartridge Assembly - JBRARI401TQY

SUMMARY

Jacuzzi Arina JBRARI401 Shower Valve Diverter Cartridge Assembly - JBRARI401TQY (JBRAR1401-Hm08)

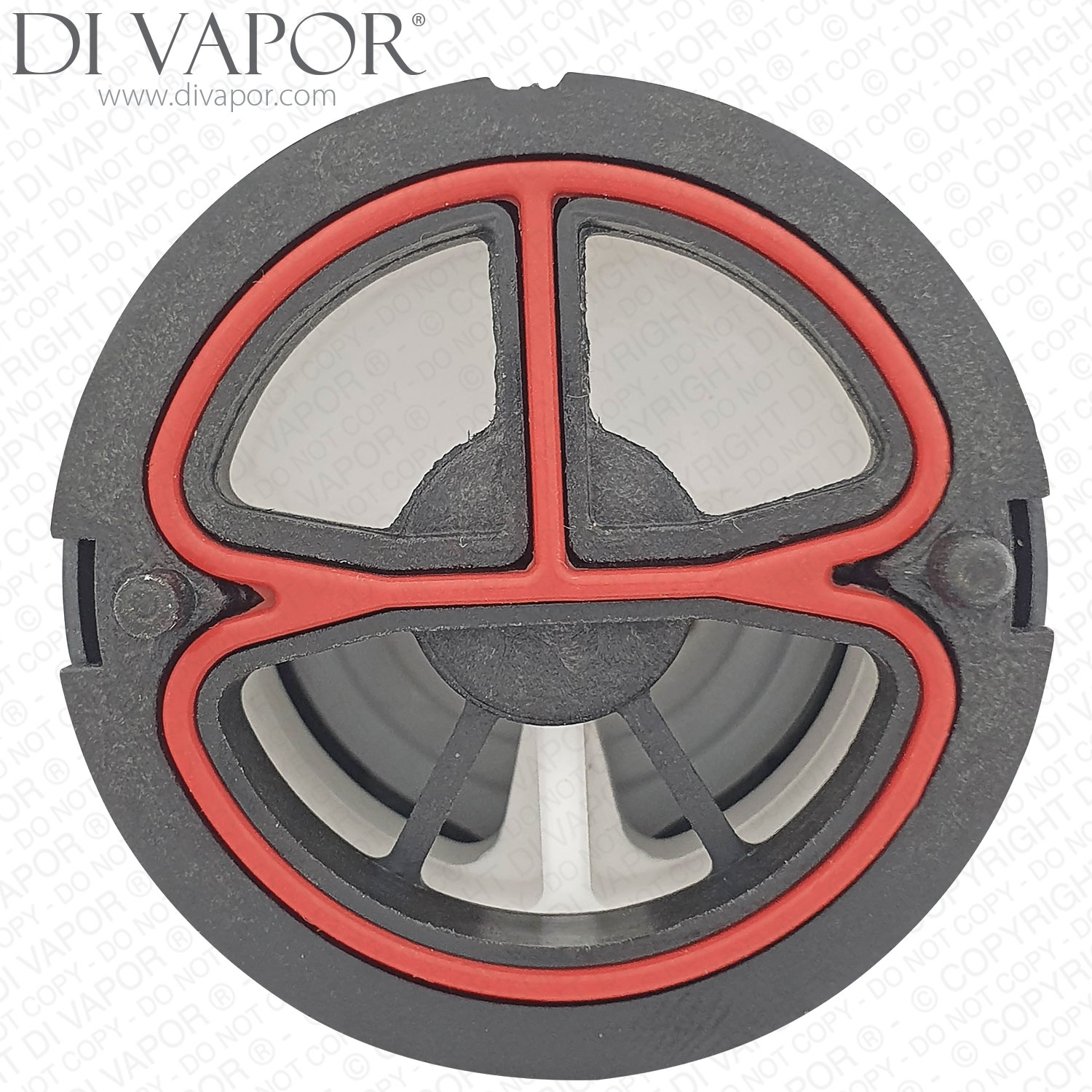

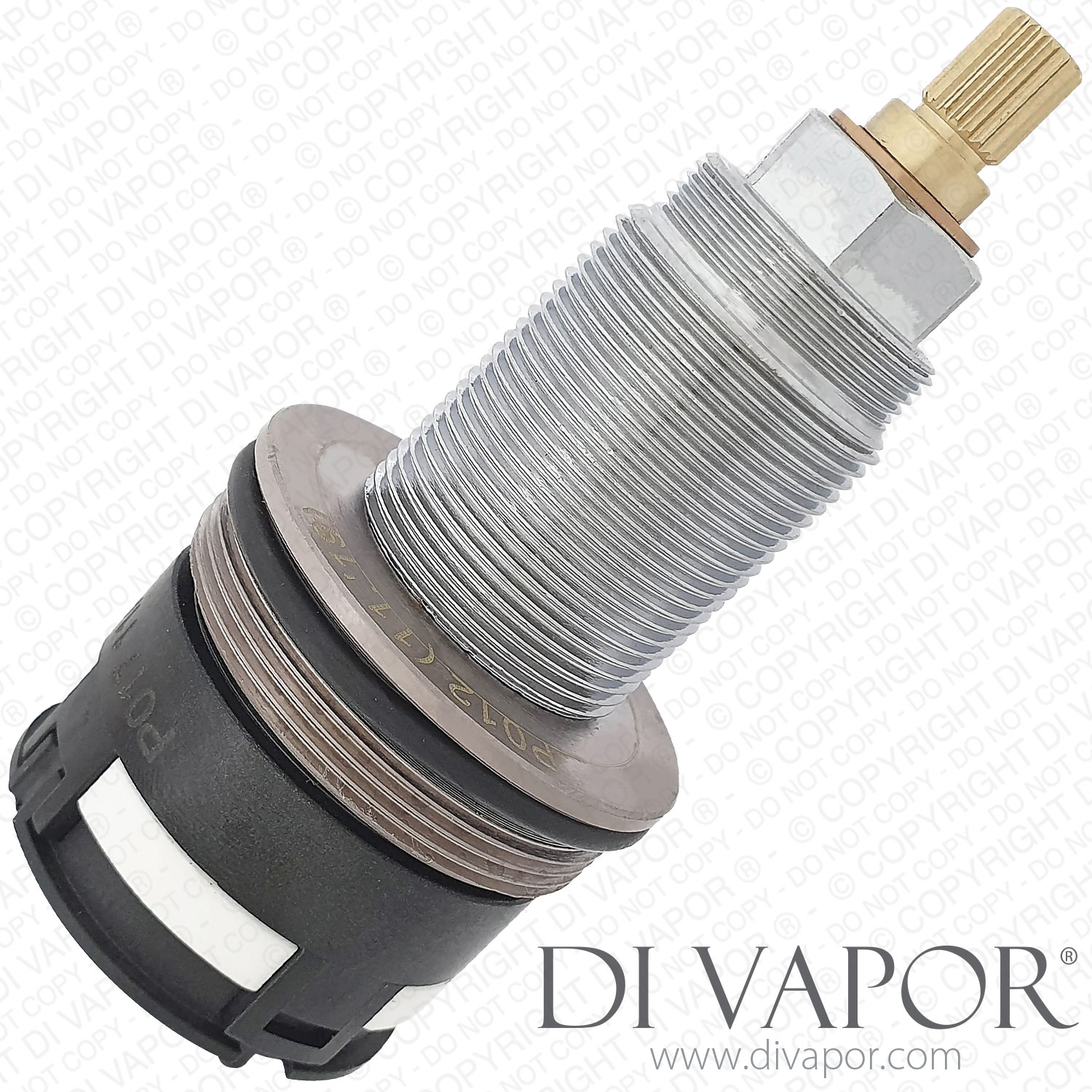

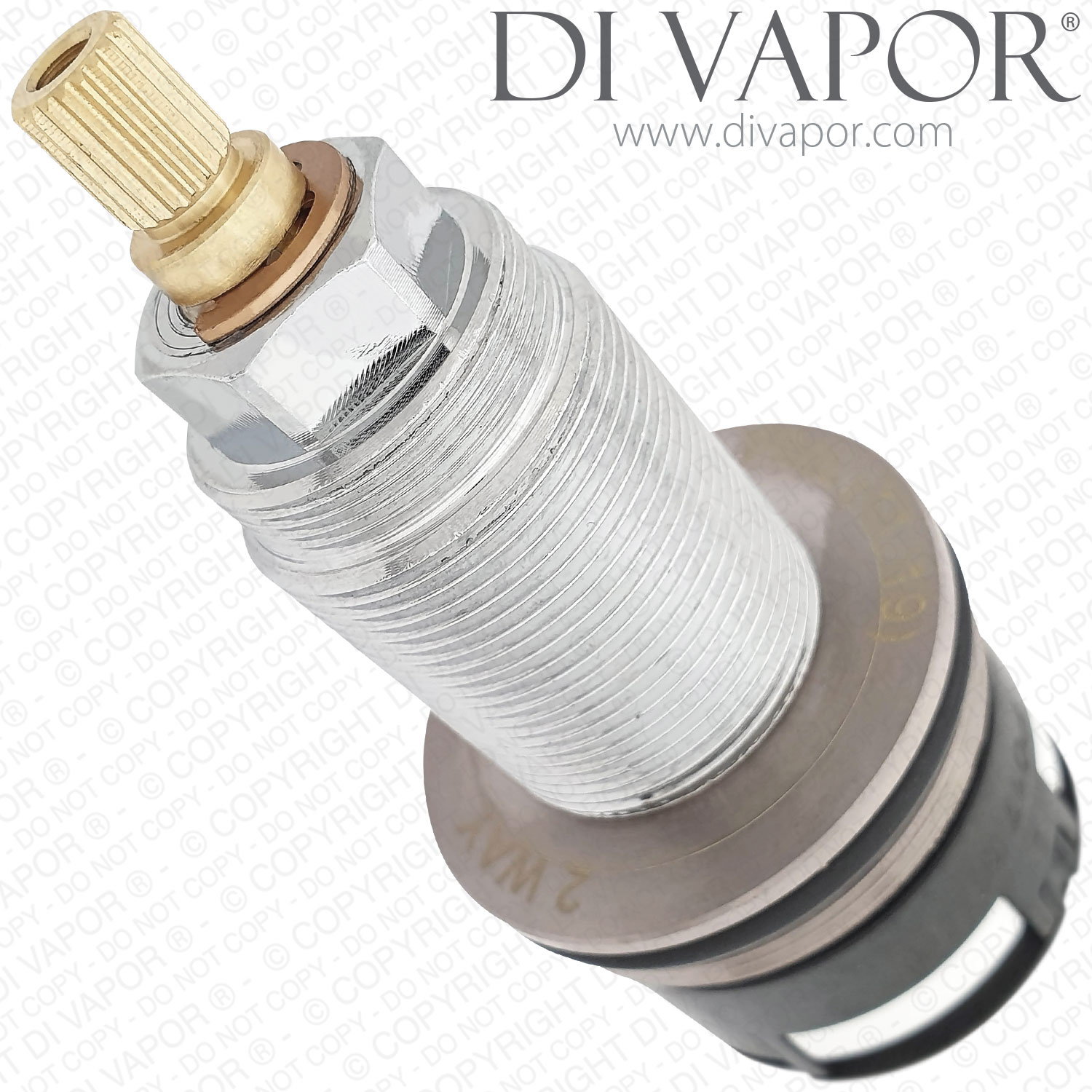

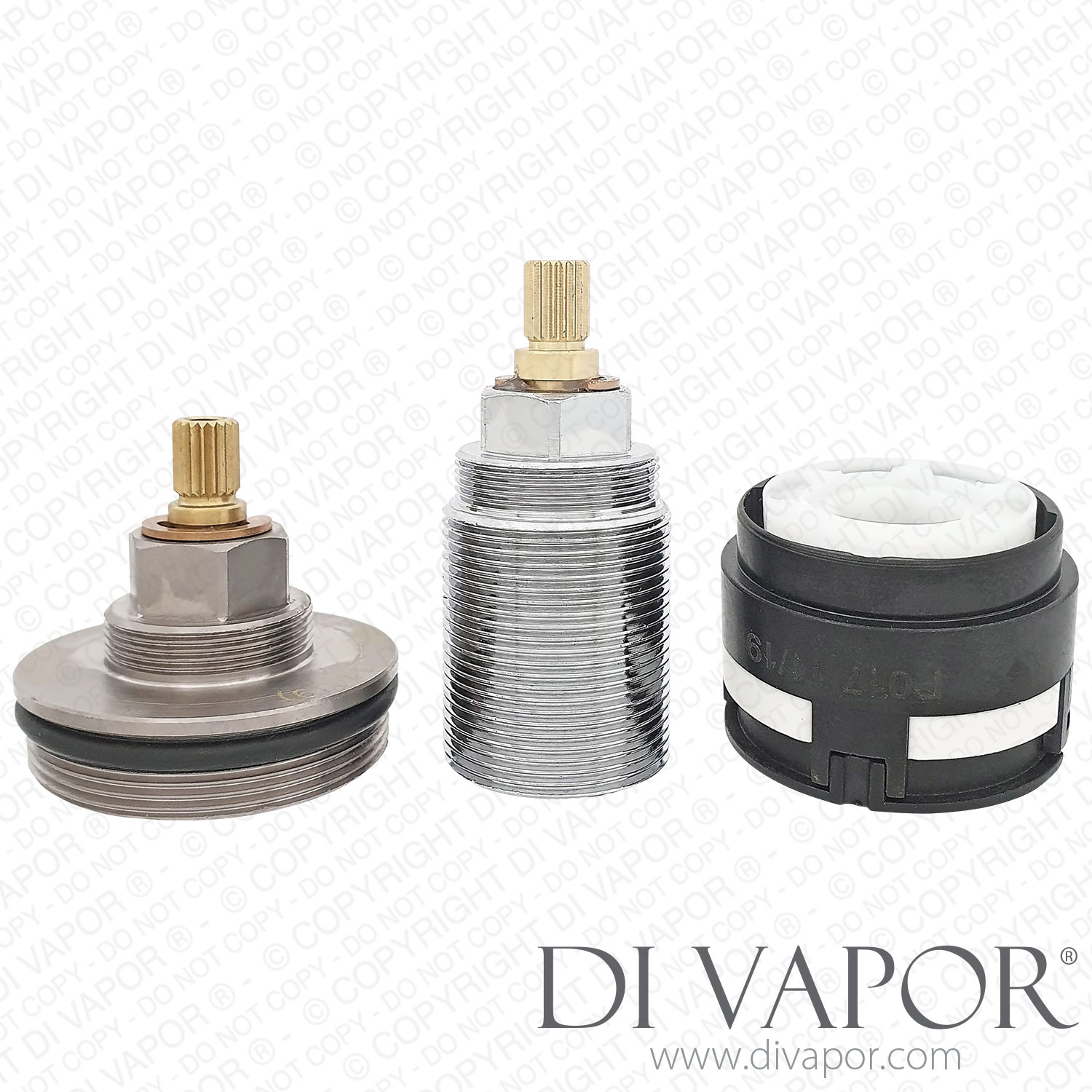

The Jacuzzi Arina JBRARI401TQY is a diverter cartridge assembly for the Jacuzzi Arina JBRARI401 concealed thermostatic shower valve with diverter. It is the internal diverter component used to control outlet selection within the valve body.

This part is intended for restoring diverter operation where the shower valve is not selecting outlets correctly, feels stiff at the diverter control, allows water to pass to the wrong outlet, or continues to drip from a shower head or spout when the valve is turned off. Check the existing cartridge code and valve layout before ordering.

Technical Details

- - Part type: shower valve diverter cartridge assembly

- - Di Vapor Part Number: JBRARI401TQY

- - Additional reference shown for this item: JBRAR1401-Hm08

- - Valve application: Jacuzzi Arina JBRARI401 concealed thermostatic valve with diverter

- - Valve installation depth: 65mm to 85mm

- - Valve mixer ports: 3/4 inch BSP threads

- - Valve temperature control preset: 38 degrees C

- - Valve automatic stop: 43 degrees C

- - Maximum operating pressure: 5 bar

- - Minimum operating pressure: 0.1 bar

- - Maximum hot water supply temperature: 85 degrees C

Confirmed Compatible Models

- - Jacuzzi Arina JBRARI401 concealed thermostatic shower valve with diverter

Fitting Notes

Shut off both inlets before removing the diverter cartridge. The valve instructions show removal of the control parts before the flange is unscrewed with a 19mm spanner. Clean the cartridge housing and apply suitable silicone grease to the cartridge O-rings before refitting.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Jacuzzi Arina JBRARI401 Shower Valve Thermostatic Cartridge - JBRARI401AGS
