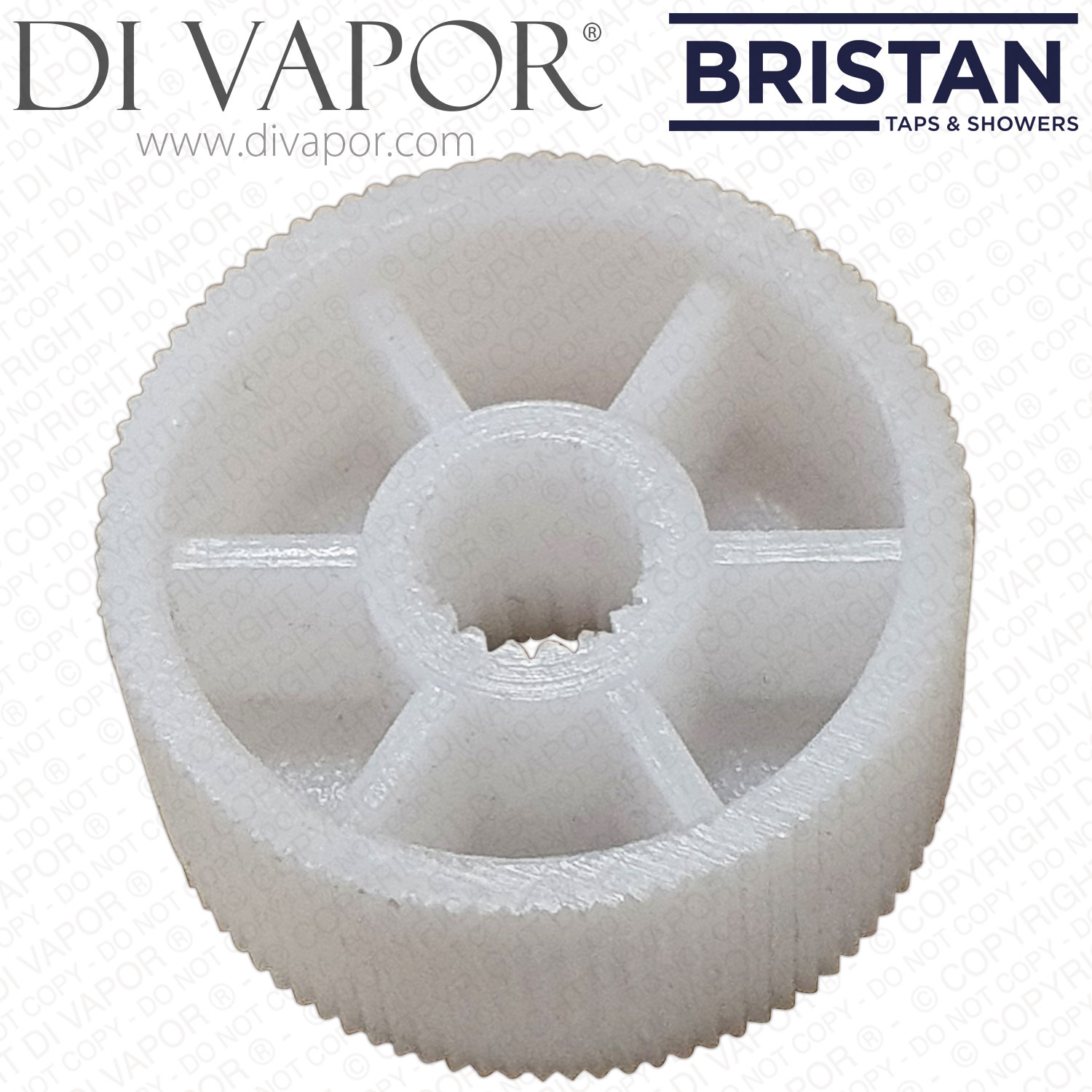

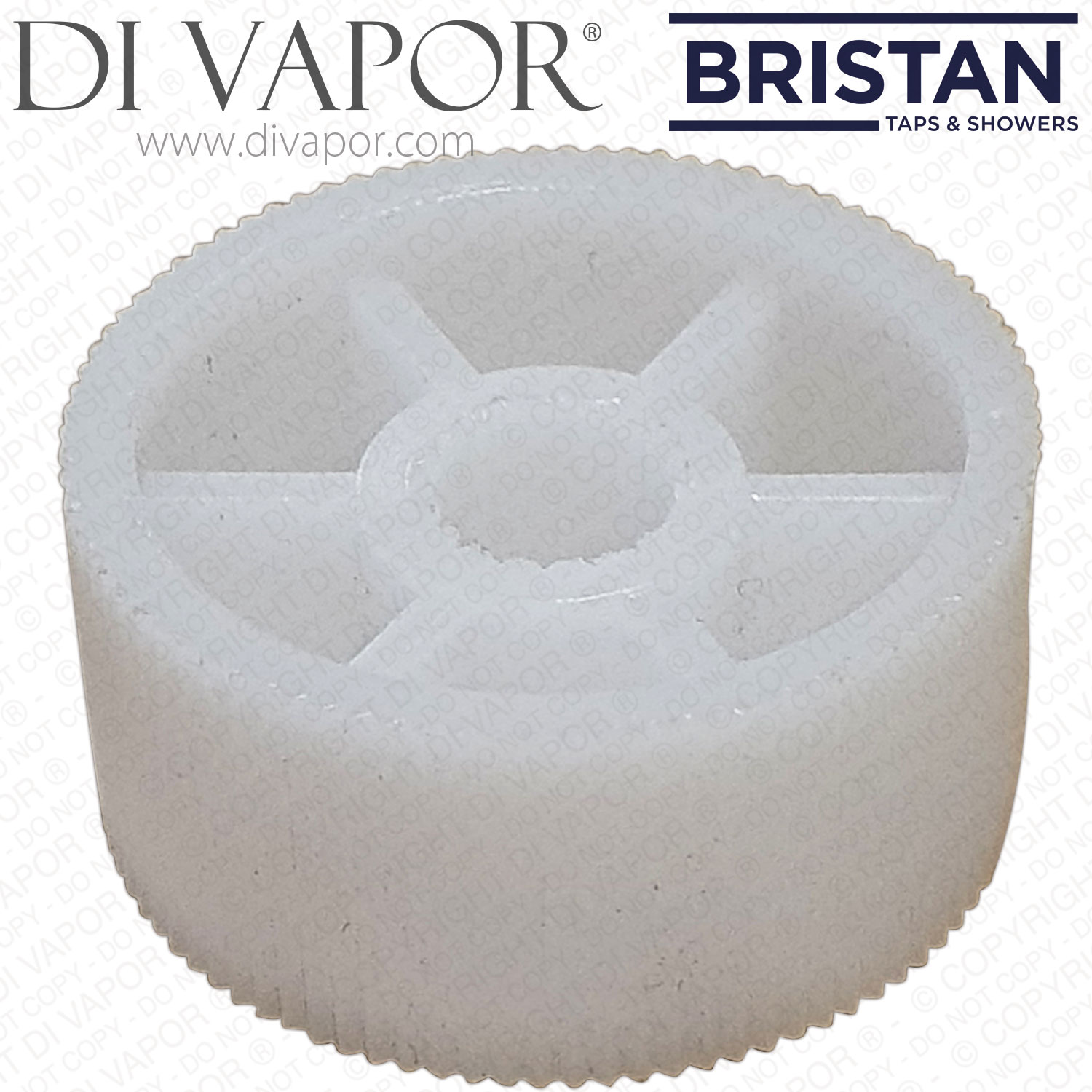

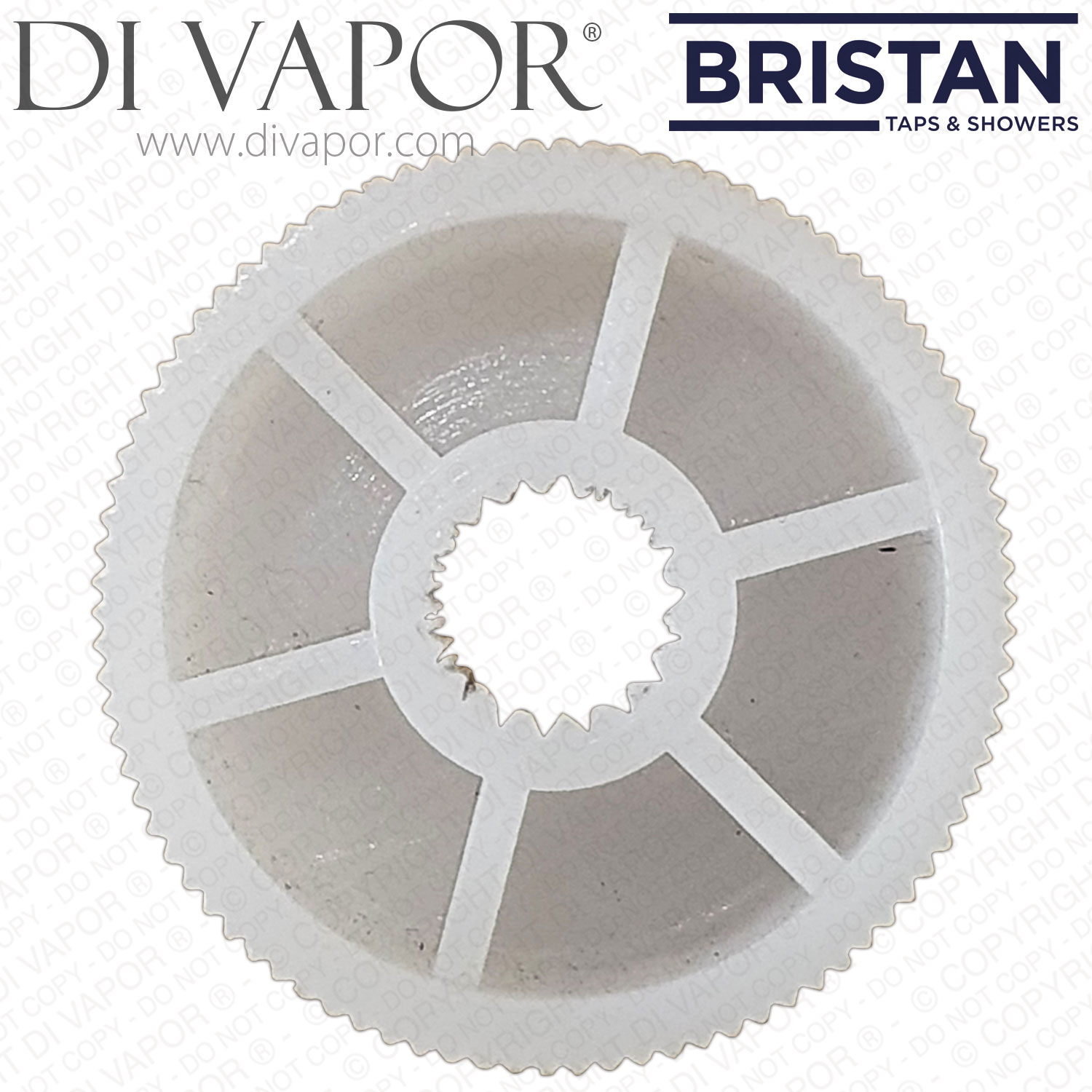

Bristan T54504044007 Spline Adaptor (x20 splines)
SUMMARY
Bristan T54504044007 Spline Adaptor (x20 splines)
Bristan T54504044007 is a 20 spline adaptor used between the handle and valve assembly on verified Bristan Descent bath tap applications. This adaptor is used to transfer handle movement to the valve spindle and is positioned beneath the handle before the valve is accessed.
The adaptor is suitable to check when the tap handle has been removed for maintenance and the handle connection parts are worn, damaged or missing. Confirm the existing adaptor code, spline count and valve arrangement before ordering, especially where the Bristan product is an earlier revision.
Technical Details
- - Brand: Bristan
- - Part Number: T54504044007
- - Part type: spline adaptor
- - Spline count: x20 splines
- - External diameter: 28.25mm
- - Location in assembly: beneath the tap handle and above the valve
- - Typical access requirement: remove the handle cap and loosen the grub screw before removing the handle and adaptor
Confirmed Model Use
- - Bristan DSC BF C Descent Bath Filler Tap
- - Bristan DSC BSM C DESCENT Bath Shower Mixer
Related Spares You May Need
- - Bristan BLH85 3/4" Gold Metal Backnuts with Washers
- - Bristan Z05550726017 Handle Assembly for Descent BF and BSM - Pair

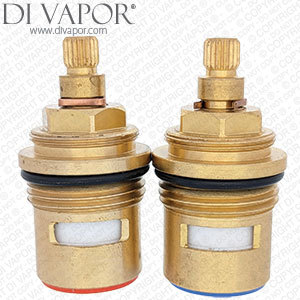

- - Bristan Z52020100007 3/4 CD Valve Cartridges 1/4 Turn - Pair
- - Bristan J00502801017 Hose Outlet
- - Bristan Z50340100007 Spline Adaptor
Before You Order
Remove the handle and compare the old adaptor with the product images, spline count and 28.25mm external diameter. Do not order from spline count alone if the tap revision or valve arrangement is uncertain.
