Bristan 691044073002 Handle Assembly
SUMMARY
Bristan 691044073002 handle assembly for the Bristan FRZ 1/2 C Frenzy Basin Taps. This spare handle is used on the basin tap pair and is identified as the handle in the FRZ 1/2 C spare-parts breakdown.
The handle operates the tap valve through the spline adaptor and is part of the external control assembly. Check the handle code 691044073002 against the existing tap and confirm the tap model is FRZ 1/2 C before ordering.
Technical Details
- - Brand: Bristan
- - Part Number: 691044073002
- - Part type: handle assembly
- - Used on: Bristan FRZ 1/2 C Frenzy Basin Taps
- - Parent tap inlet connection: 1/2 inch BSP
- - Parent tap outlet connection: M18 flow straightener
- - Parent tap valve type: 1/2 inch ceramic disc valve with 1/4 turn operation
When carrying out maintenance on the tap, isolate the water supply first. The handle assembly is removed from the control side to access the spline adaptor and valve area.
Confirmed Product
- - Bristan FRZ 1/2 C Frenzy Basin Taps Spare Parts
Related Spares You May Need
- - Bristan 602003732011 Spline Adapter BF-BSM - Sold Individually

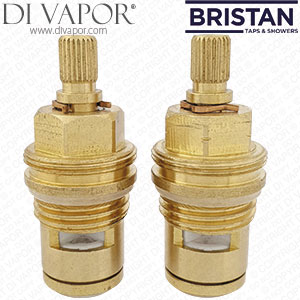

- - Bristan Frenzy 691044373098 Valve Cartridge - Pair
- - Bristan 691044473002 Plinth
- - Bristan BLH84 1/2 Metal backnut with Washers
- - Bristan 01.5501.0.0001 M18 Slim Laminar Honeycomb Aerator with Key Notches
