Bristan 5504467 3/​4Inch CD Valve Cartridge 1/​4 Turn

SUMMARY

Bristan 5504467 3/4Inch CD Valve Cartridge 1/4 Turn for Bright Bath Filler and Bath Shower Mixer Taps

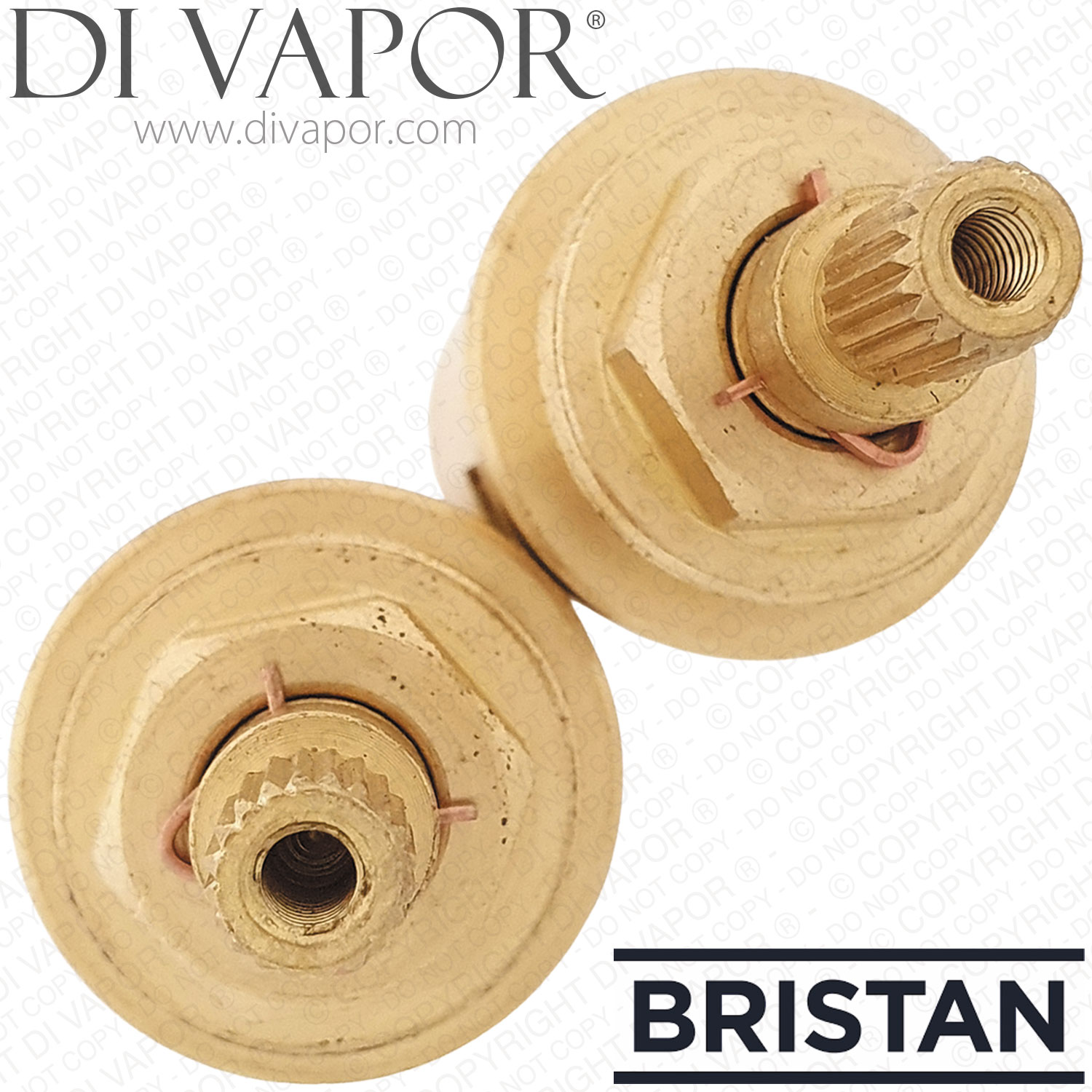

The Bristan 5504467 is a 3/4Inch CD valve cartridge with 1/4 turn operation for selected Bristan Bright bath tap controls. It is used as the ceramic disc valve inside the tap handle assembly to control water flow on verified Bright bath filler and bath shower mixer products.

This cartridge is suitable for replacing a worn or faulty flow control valve where the existing part code and valve layout match 5504467. A common symptom of ceramic disc valve wear or debris inside the valve is continued dripping from the tap spout after the tap has been turned off.

Technical Details

- - Part number: 5504467

- - Valve type: 3/4Inch CD valve cartridge

- - Operation: 1/4 turn

- - Application: Bristan Bright bath filler and bath shower mixer tap flow control

- - Verified Bright bath filler and bath shower mixer inlet connection: 3/4" BSP threaded tail

- - Minimum working pressure for verified Bright bath filler and bath shower mixer models: 0.3 bar

- - Maximum working pressure for verified Bright bath filler and bath shower mixer models: 5.0 bar

- - Maximum static pressure for verified Bright bath filler and bath shower mixer models: 10 bar

Confirmed Compatible Models

- - Bristan BRG BF C Bright Bath Filler Chrome Tap - 30/03/2015 - Spares

- - Bristan BRG BSM C Bright Bath Shower Mixer Spare Parts

Before You Order

Check the existing valve code where available and compare the cartridge position, handle connection and tap model before ordering. Do not select this part by the 3/4Inch size alone because Bristan used different 3/4Inch CD valve cartridges across different tap ranges and models.

Installation and Maintenance Notes

Isolate both water supplies before removing the handle or valve. The Bright tap instructions specify loosening the handle grub screw with a 2.5mm hexagonal key before removing the handle and unscrewing the valve with a suitable spanner. Clean debris from the valve with clean running water and use silicone grease only on the seal if servicing the valve.

Troubleshooting

- - Symptom: Water continues dripping from the tap after use

- - Likely Cause: Debris or limescale build-up inside the ceramic disc valve

- - Solution: Isolate the water supplies, remove the valve, clean it and replace the valve if the ceramic discs or seals are worn

Related Spares You May Need

- - Bristan 5027049 Spline Adaptor (20-19 splines)

- - Bristan 5502139 Handle Assembly - Pair

- - Bristan 5504469 Diverter for Bright Valve

- - Bristan BLH85 3/4" Gold Metal Backnuts with Washers

Use the Di Vapor Part Finder or contact us with photos of the tap, handle, existing cartridge and any visible codes if you are unsure whether 5504467 is the correct valve cartridge for your Bristan tap.
