Aqualisa 910595 Quartz Smart Valve Gravity Pumped Digital Shower Processor
Send a photo of your item and we'll help confirm it.
Summary

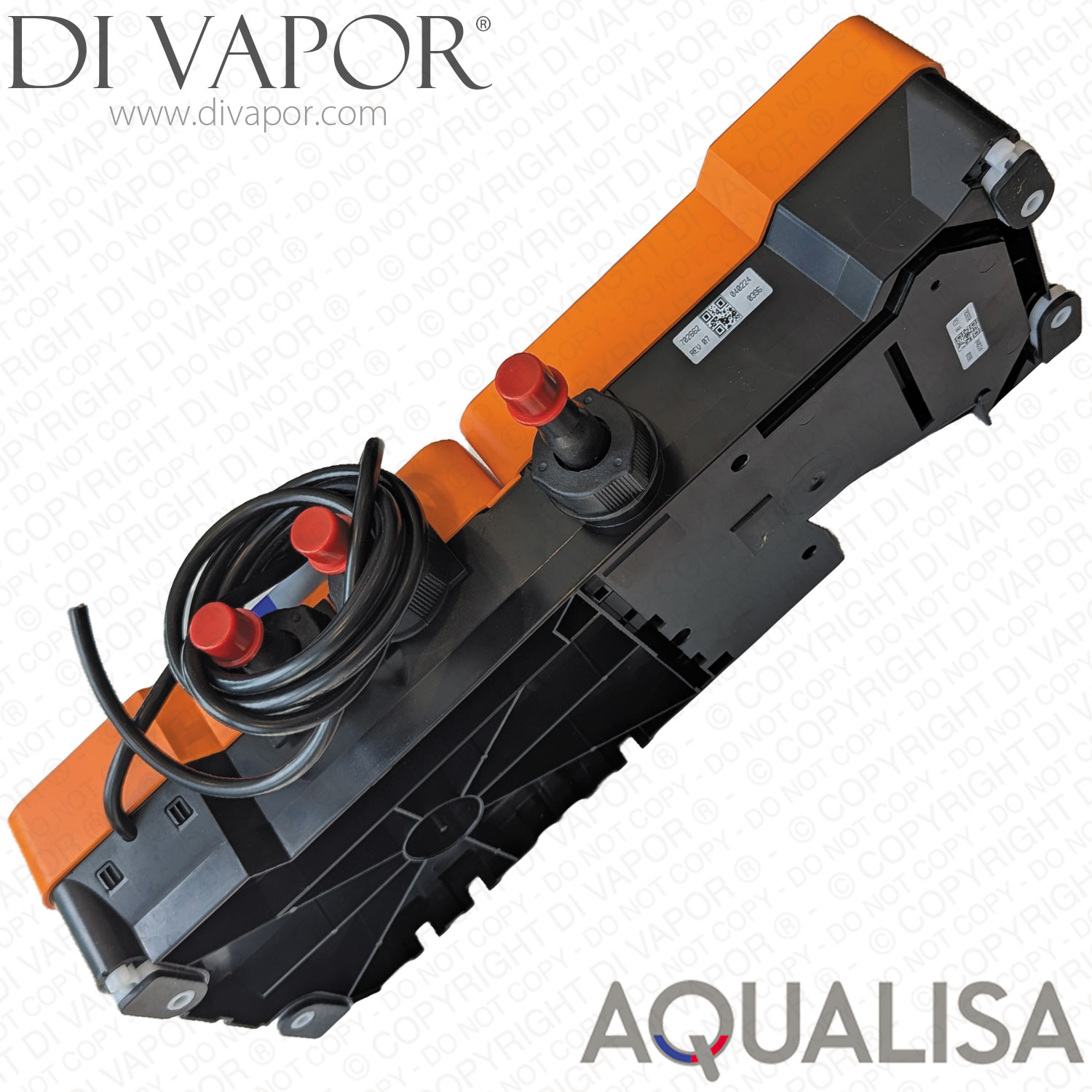

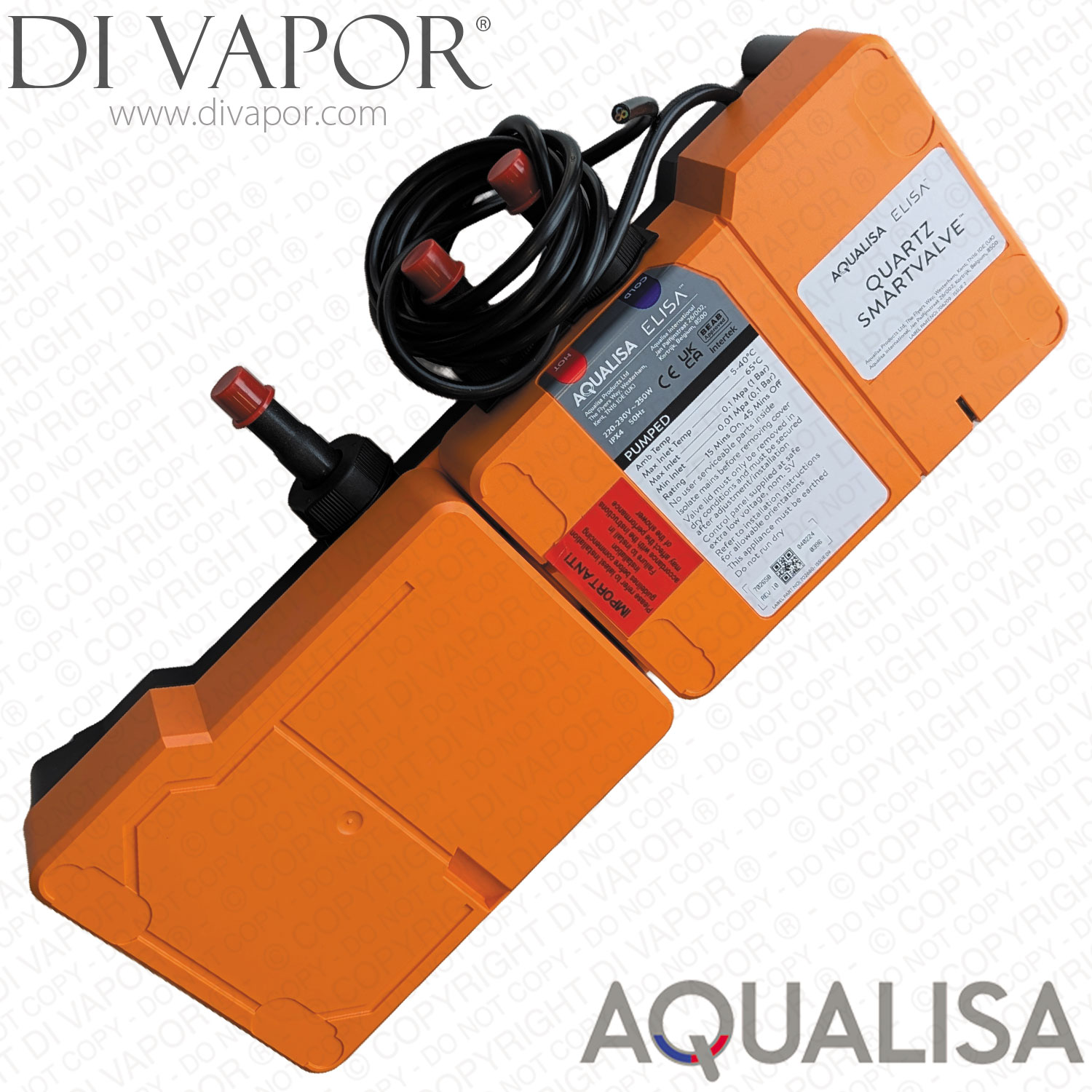

Aqualisa 910595 is the Quartz Smart Valve digital processor for gravity pumped and low-pressure Aqualisa digital shower systems. It is the main mixing and control box that manages water delivery to the shower and is used where 910595 is the specified gravity pumped processor.
This smart valve is designed for gravity pumped installations only and should not be used on high-pressure or combi-fed systems. In dual outlet installations it works with a separate digital diverter to switch flow between outlets.
Technical Details
| Part Number | 910595 |
|---|---|
| System type | gravity pumped / low pressure |
| Maximum pressure | 1 bar |
| Connections | 15 mm push-fit inlet and 15 mm push-fit outlet |
| Inlet centres | 48 mm |
| Inlet orientation | hot right cold left |
| Controller to valve data cable | 10 m |
| Cold inlet range | 1 C minimum to 15 C maximum |
| Hot inlet temperature | 65 C maximum |
| Factory maximum blended outlet temperature | 45 C |
| User adjustable temperature range | 35 C to 55 C |
- Typical installation locations include a loft airing cupboard or under-bath position where service access is retained
Before You Order
- Check your shower is the gravity pumped / low-pressure version and not the high-pressure version
- Check the processor label or existing part number reads 910595
- Check your installation uses the gravity pumped SmartValve rather than the high-pressure processor 910594
Confirmed Compatible Models
Aqualisa ISD.A2.BFW.21 iSystem Smart Concealed Shower with Wall Fixed Head Gravity Pumped
Aqualisa ISD.A2.BV.21 iSystem Smart Concealed with Adjustable Head Gravity Pumped
Aqualisa ISD.A2.EV.DVFC.21 iSystem Smart Exposed Shower Valve Gravity Pumped
Aqualisa ISD.A2.EV.DVBTX.14 iSystem Digital Exposed Dual Outlet Shower Valve Gravity Pumped
Related Spares You May Need
Aqualisa 910594 Digital Processor - High Pressure - high-pressure counterpart for non-gravity systems
Aqualisa 223012 QUARTZ FILTERS X 2 (SPARES) - inlet filters for the processor water connections
Aqualisa 223013 QUARTZ SPIGOT ASSEMBLY 3 PACK (SPARES) - replacement processor spigot assembly set
Aqualisa 223010 QUARTZ CONTROL CABLE 10M (SPARES) - 10 metre control cable for compatible Quartz digital installations
Aqualisa 223011 QUARTZ CHECK VALVES X 2 - pair of non-return check valves for compatible processor installations
Aqualisa 223030 QTZ ISOLATION VALVE 15MM (SPARES) - 15 mm isolation valve used on compatible Quartz digital pipework

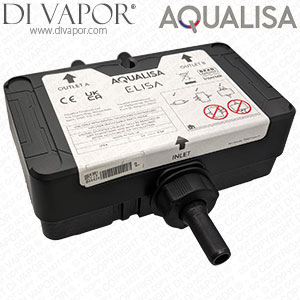

Aqualisa Digital Diverter Replacement Assembly - 910031 - required on compatible dual outlet digital shower systems to route flow between outlets
