Bristan CART06710 40mm Lever Replacement for Prism, Java & Colonial Manual Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
Bristan CART06710 40mm Lever Replacement for Prism, Java & Colonial Manual Shower Valves

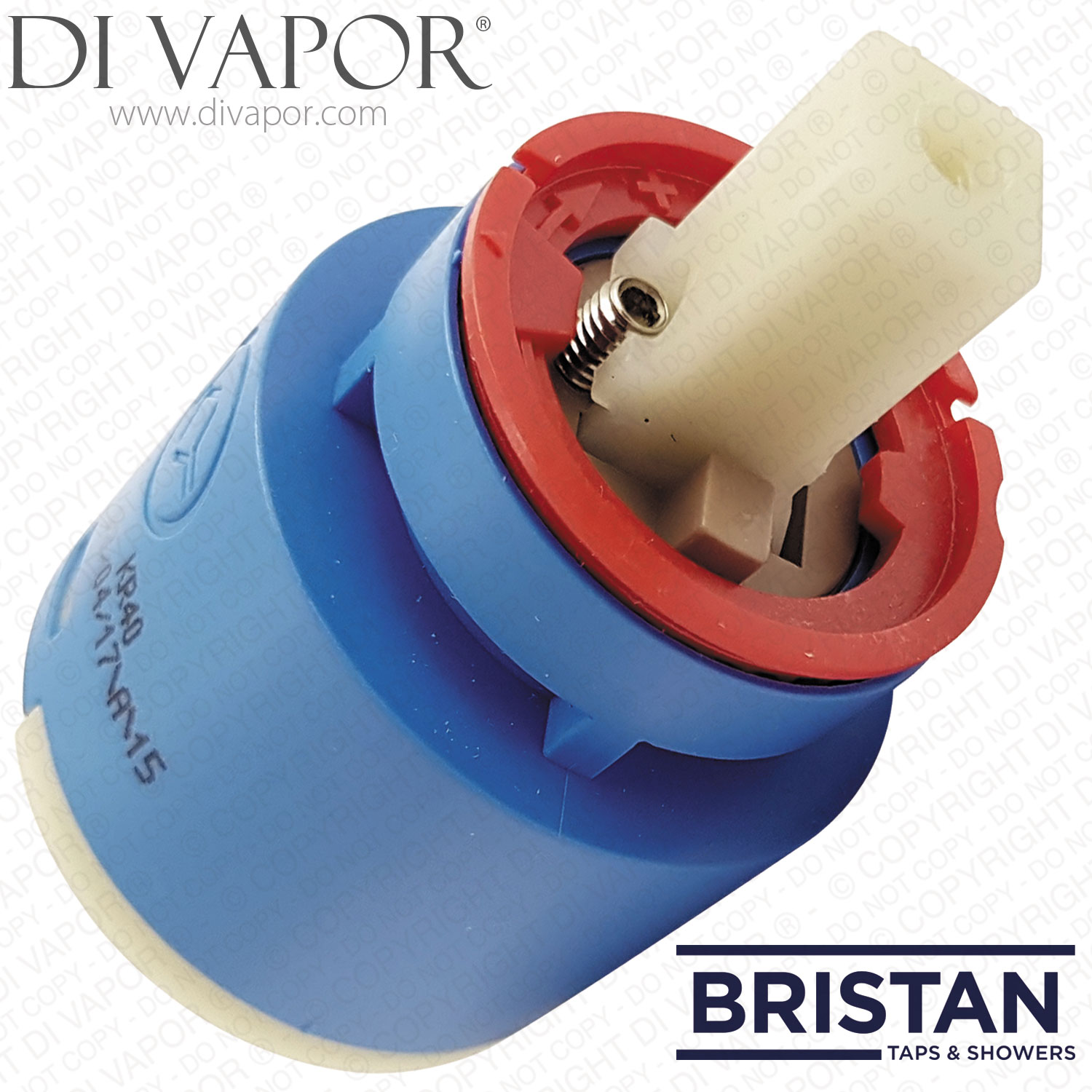

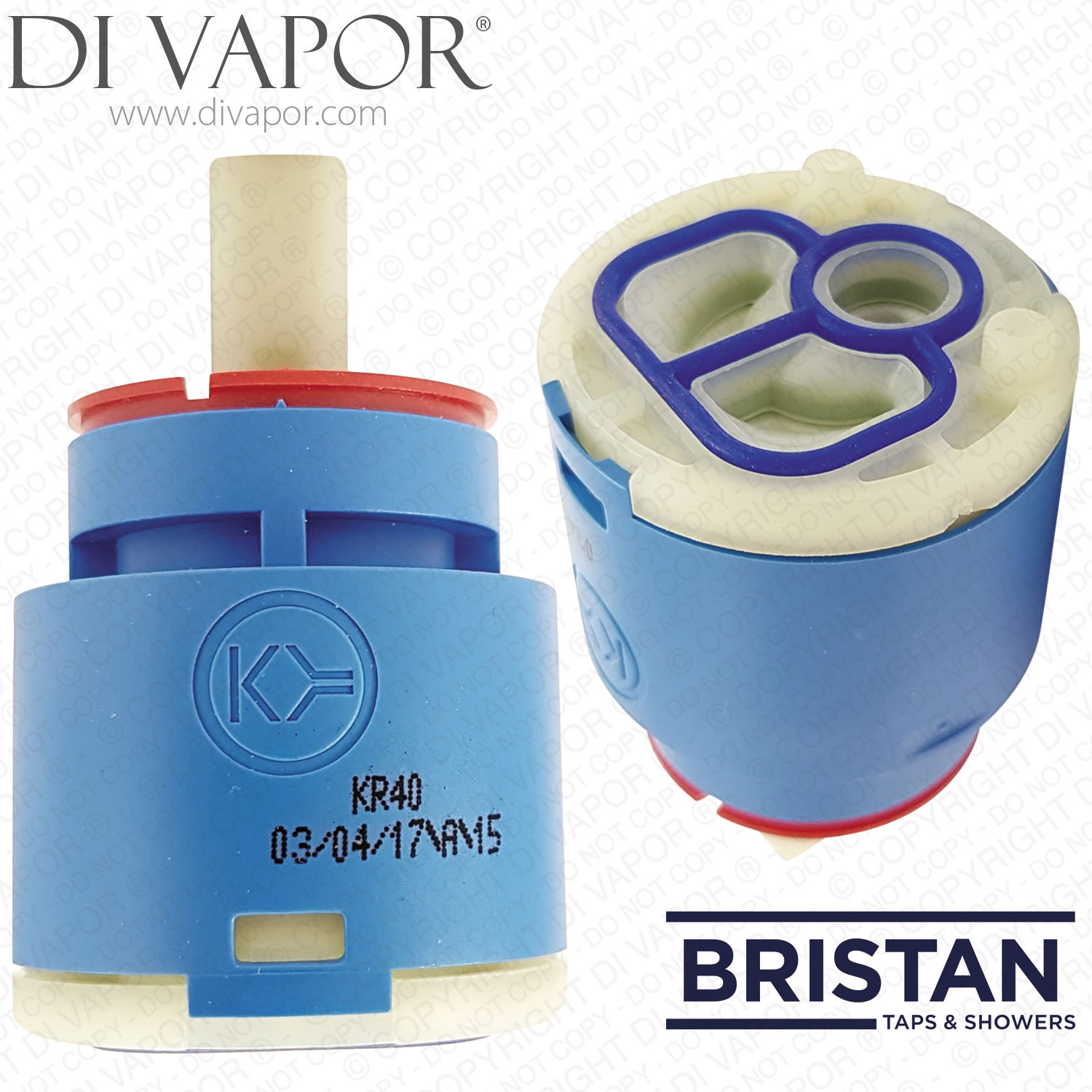

NOTE: The design of this cartridge has changed and will no longer reflect the photos.
Bristan CART06710 is a 40mm manual lever cartridge used in selected older Bristan Prism Java and Colonial shower valves. It is the internal operating cartridge for the manual shower control and is used to restore correct valve operation when the existing cartridge has become worn or damaged.
The supplied CART06710 design has changed over time and may no longer look the same as older cartridge photographs. Identification should therefore be based on the shower model and cartridge code rather than appearance or diameter alone.
A worn manual cartridge can cause poor lever operation or difficulty shutting the water off fully. Water continuing to drip from the shower head when the control is turned off can also indicate a fault in the cartridge although the valve and seals should be checked before ordering.
Technical Details
| Brand | Bristan |
|---|---|
| Part Number | CART06710 |
| Part type | manual lever shower valve cartridge |
| Nominal cartridge size | 40mm |
| Legacy CART06710 diameter | approximately 40.1mm |
| Legacy CART06710 length | approximately 63.4mm |
- Earlier CART06710 versions were recorded with a blue plastic body and one O-ring
- The current supplied design may differ from the earlier version and older photographs
- Do not identify this cartridge from the 40mm diameter alone because other Bristan 40mm cartridges use different designs and applications
Confirmed Models
- Bristan J SHUMAR C Java Manual Concealed Shower Valve
- Bristan Java Manual Surface Shower Valve BR DV 206
- Bristan K SHXAR CS Colonial Manual Surface Mounted Shower with Adjustable Riser BR DV 309
- Bristan Prism Recessed Manual Shower Valve with Adjustable Riser Chrome Plated
Before Ordering
Check the existing shower model and cartridge code before ordering. Bristan has produced several visually similar manual cartridges and different revisions of a shower can use different internal parts.
If you are unsure which cartridge you need use the Di Vapor Part Identification Service and we can help identify it.
Related Spares You May Need
- Bristan HD 05525CRBSET-BL Handle For Java Manual DA-23
- Bristan SHD 04775C Shroud
- Bristan NUT 04335CSET-BL Compression Nut & Olive
- Bristan FX 06529 Fixing Kit
- Bristan WSHR 08211 Washer - Fibre 3/4
- Bristan WSHR 27073 Grey Wall Outlet Washer MZ
- Bristan WSHR 08210 Washer - Fibre 1/2
- Bristan S16073 Multi Function Handset for GL/JOY Chrome
- 150mm Universal Shower Hose - NXT734
