Grohe Minta Single-Lever Sink Mixer (1/2 Inch) - 2005 to 2016 - Spare Parts 32511000 GEN1
Send a photo of your item and we'll help confirm it.
Summary

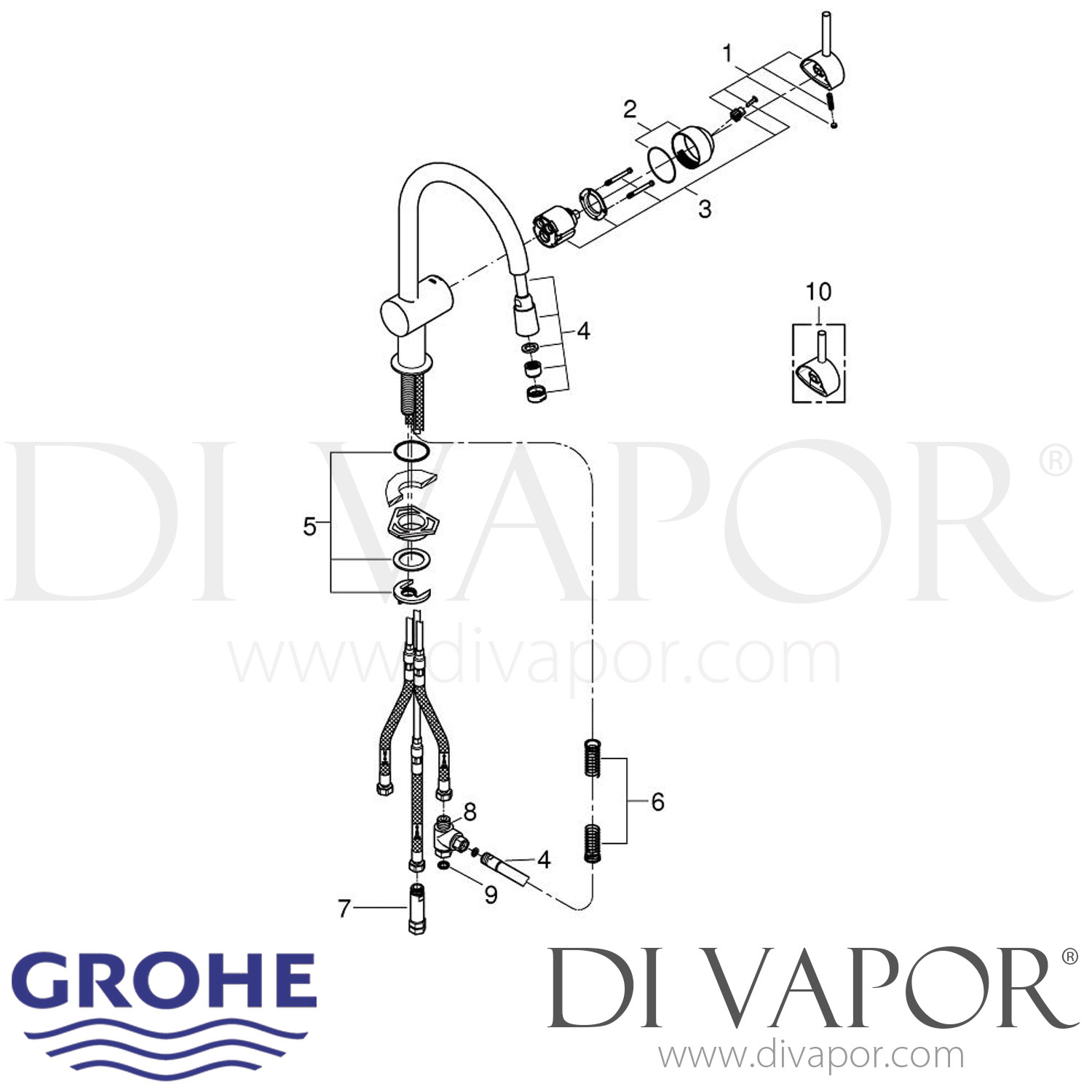

Spares for Grohe 32511000 Minta Single-Lever Sink Mixer 1/2 Inch
Year: 2005 - 2016

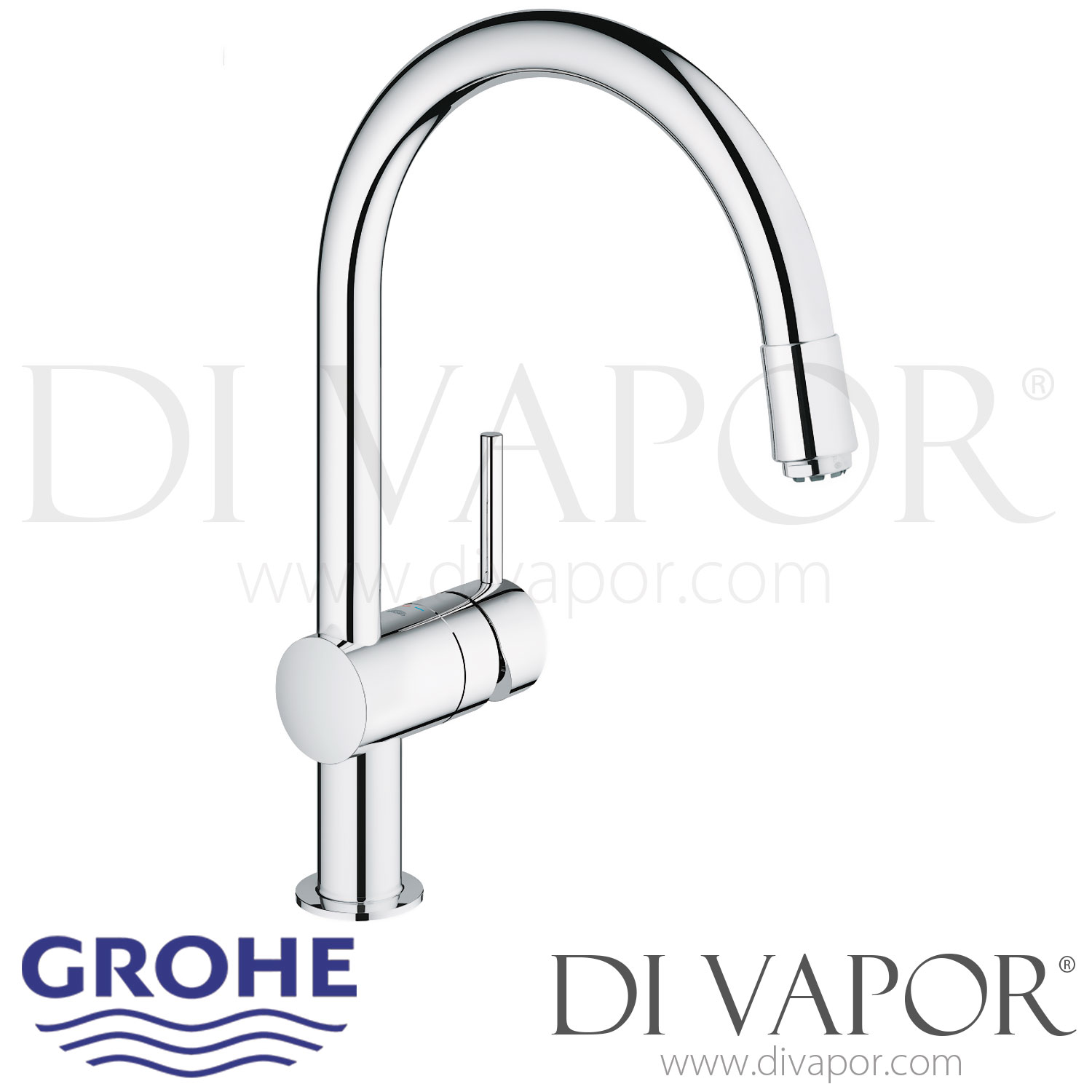

The Grohe Minta 32511000 GEN1 is the 2005-2016 generation of the single-lever 1/2 inch kitchen sink mixer. This low-pressure kitchen tap is designed for use with an open or displacement water heater and has a high C-shaped spout with a pull-out outlet.
The single lever controls water flow and temperature through the internal cartridge. When servicing this mixer, Grohe spare parts should be selected against the exact 32511000 model code and generation because a later service generation is also available under the same model number.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Minta |
| Category | Kitchen tap |
| Model code | 32511000 |
| Generation | GEN1 |
| Service period | 2005-2016 |
| Type | Single-lever sink mixer 1/2 inch |
| Installation | Single-hole |
| Application | Low-pressure kitchen tap for an open or displacement water heater |
| Finish | Chrome |

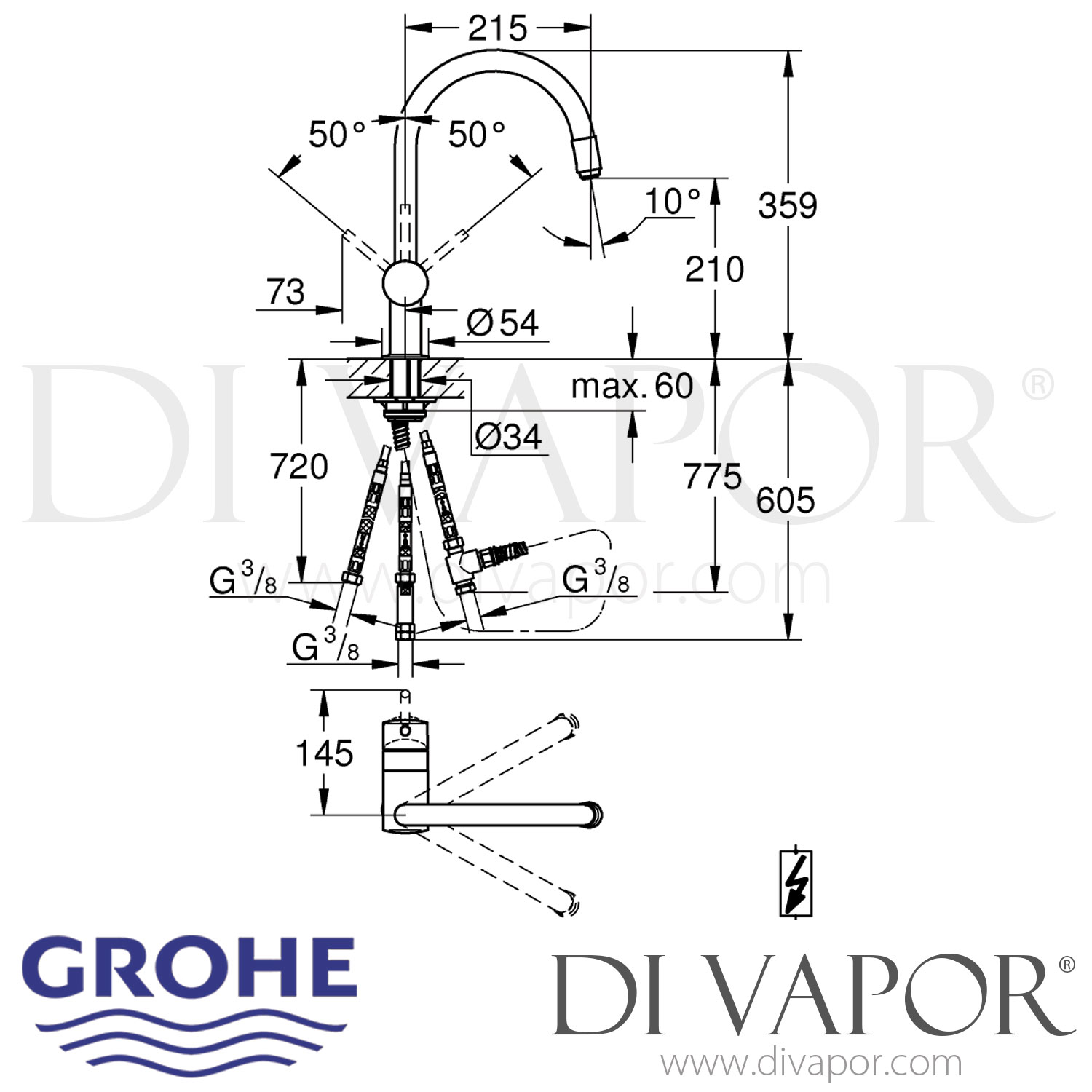

| Overall mixer height | 359 mm |
| Spout reach | 215 mm |
| Outlet height | 210 mm |
| Main body diameter | 54 mm |
| Mounting hole diameter | 34 mm |
| Maximum mounting thickness | 60 mm |
| Hose connections | G3/8 |
| Outlet head angle | 10 degrees |
| EAN | 4005176295621 |
Other Available Generations
Before you order check
Check that the mixer code is 32511000 and that the tap belongs to the 2005-2016 GEN1 service period. A later generation uses the same 32511000 model code, so confirming the installation period and tap configuration helps ensure that you are reviewing the correct spare-parts generation.
GROHE 46409000 46mm Low-Pressure SilkMove Ceramic Cartridge for Single-Lever MixersUsed in - - Grohe 1/2" Euroeco Special 33123 Basin MixerGROHE 46409000 is a 46 mm low-pressure ceramic cartridge used as the main operating cartridge in selected GROHE single-lever basin and sink m...
