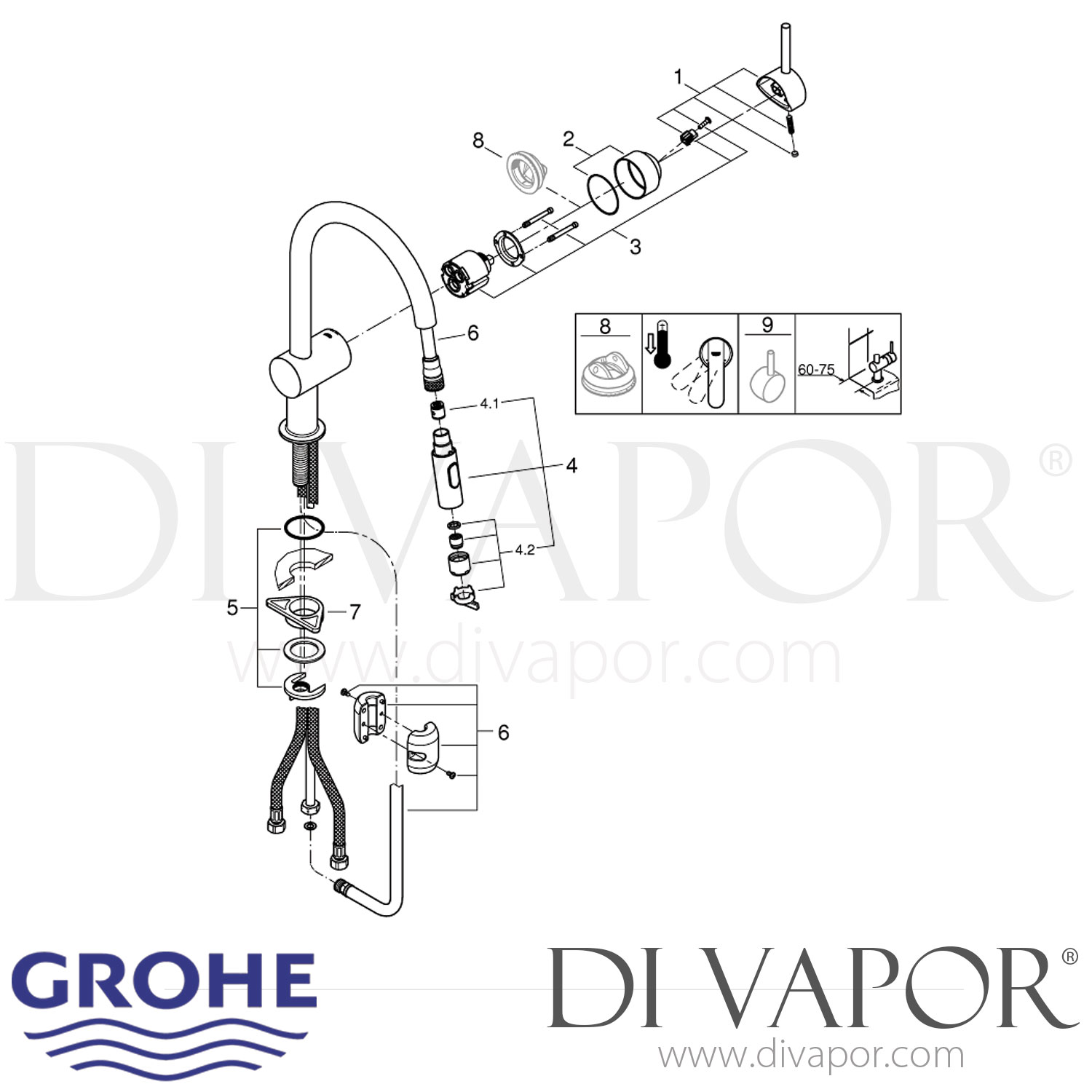

Grohe 32321002 Minta Single-Lever Sink Mixer (1/​2 Inch) Spare Parts

SUMMARY

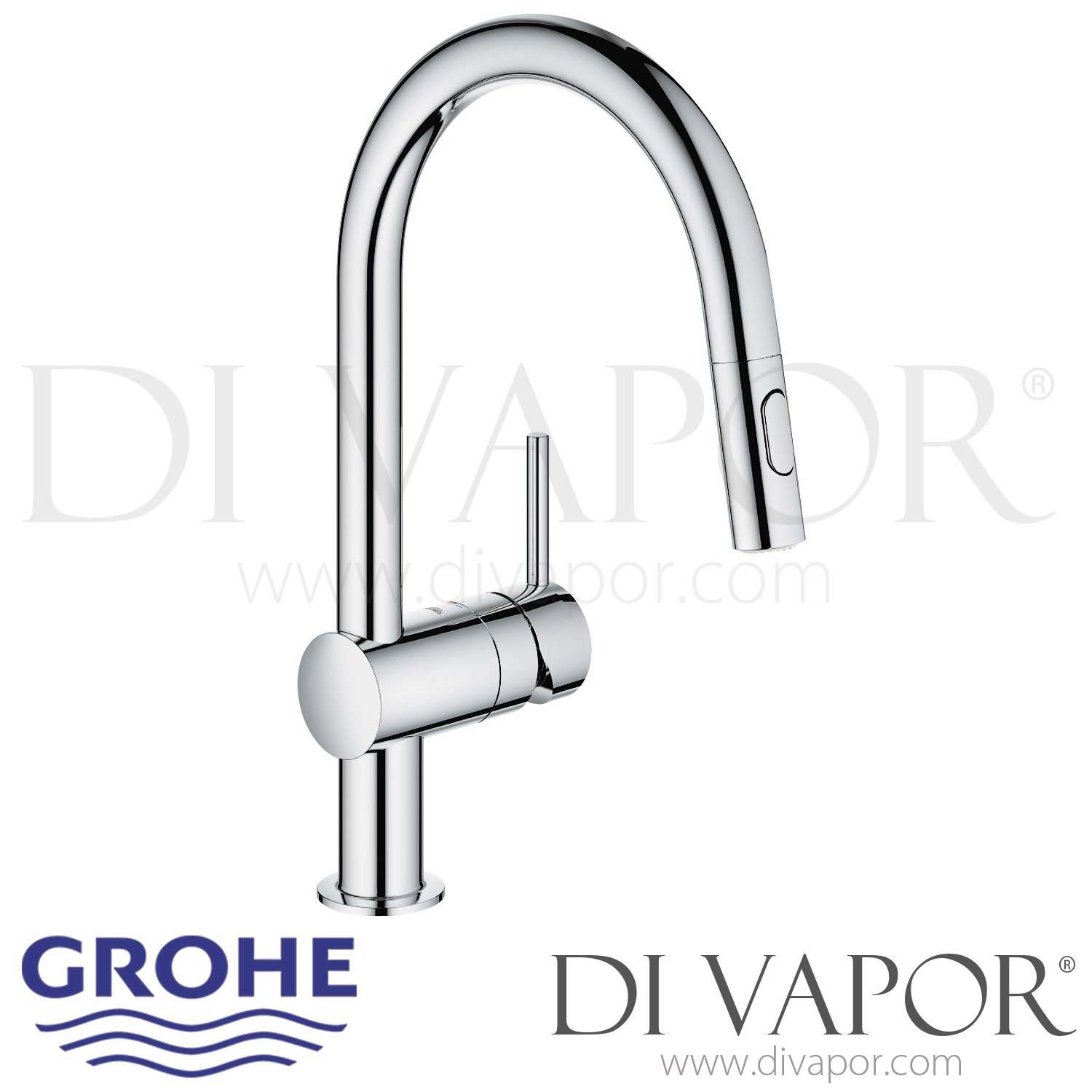

Spare parts for the Grohe 32321002 Minta single-lever sink mixer 1/2 inch kitchen tap. This chrome Minta mixer uses a high C-spout with a pull-out dual-spray outlet and a single lever for controlling water flow and temperature.

The pull-out outlet provides a laminar spray and a SpeedClean shower jet, while the 360-degree swivel spout gives a wide working range around the sink. The mixer uses a 46mm ceramic cartridge and incorporates backflow protection. These Grohe spares allow individual serviceable components of the 32321002 tap to be replaced without changing the complete mixer.

Technical Details

- - Brand: Grohe

- - Range: Minta

- - Category: Kitchen tap

- - Product code: 32321002

- - Tap type: Single-lever sink mixer

- - Finish: Chrome

- - Spout type: High C-spout with pull-out dual spray

- - Spray functions: Laminar spray and SpeedClean shower jet

- - Spout swivel range: 360 degrees

- - Main cartridge: 46mm ceramic cartridge

- - Maximum flow rate: 9 litres per minute at 3 bar

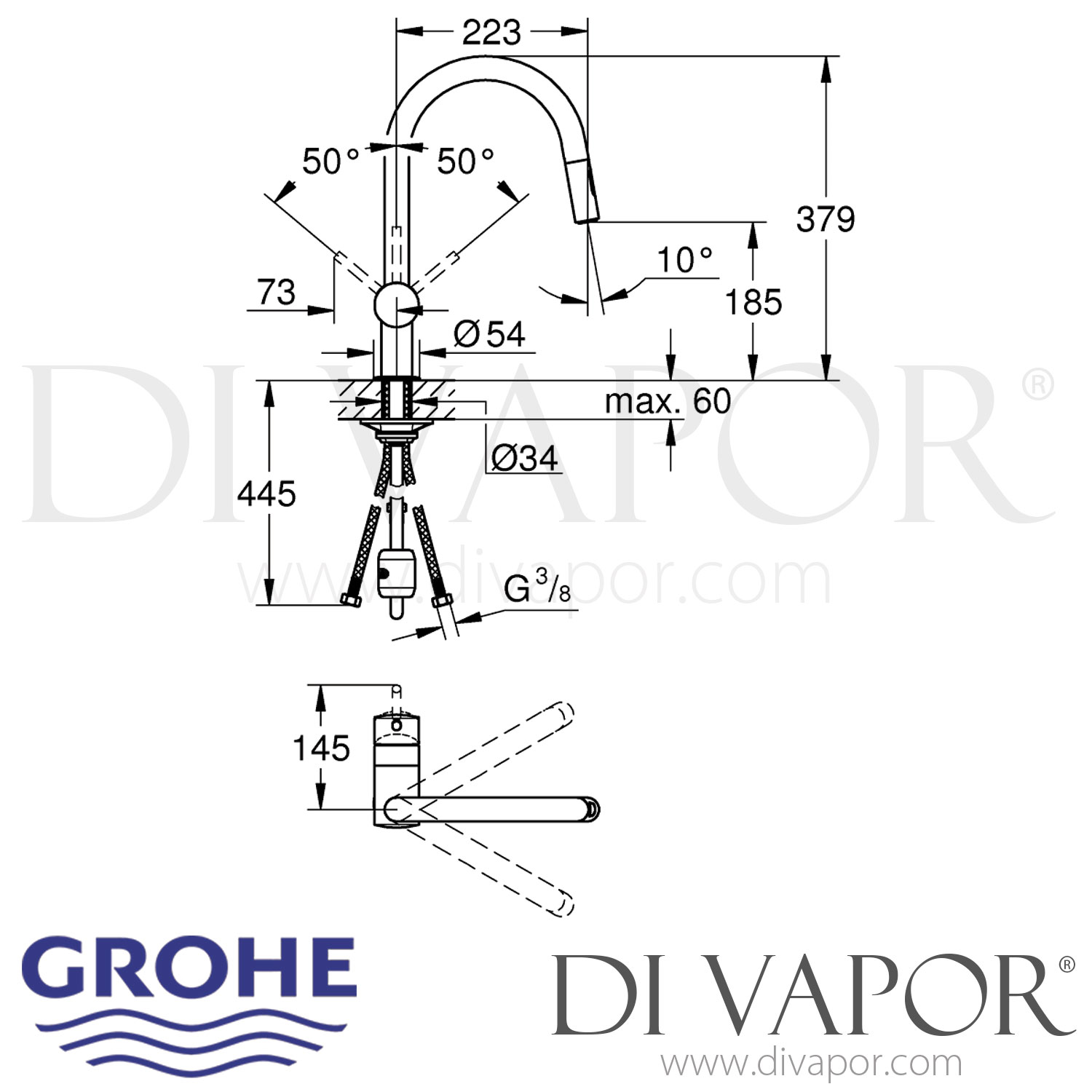

- - Overall height: 379mm

- - Spout reach: 223mm

- - Outlet height above mounting surface: 185mm

- - Base diameter: 54mm

- - Mounting hole diameter: 34mm

- - Maximum mounting surface thickness: 60mm

- - Flexible connection length shown: 445mm

- - Supply connection: G3/8

- - EAN: 4005176465109

Before you order check

Check that the tap is marked 32321002 and is the Minta version with a pull-out dual-spray outlet. The separate 32321000 Minta mixer is a different product code and should not be treated as another generation of 32321002.
