Grohe 31212003 Concetto Single-Lever Sink Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 31212003 Concetto Single-Lever Sink Mixer from 2020 to Present (June 2021)

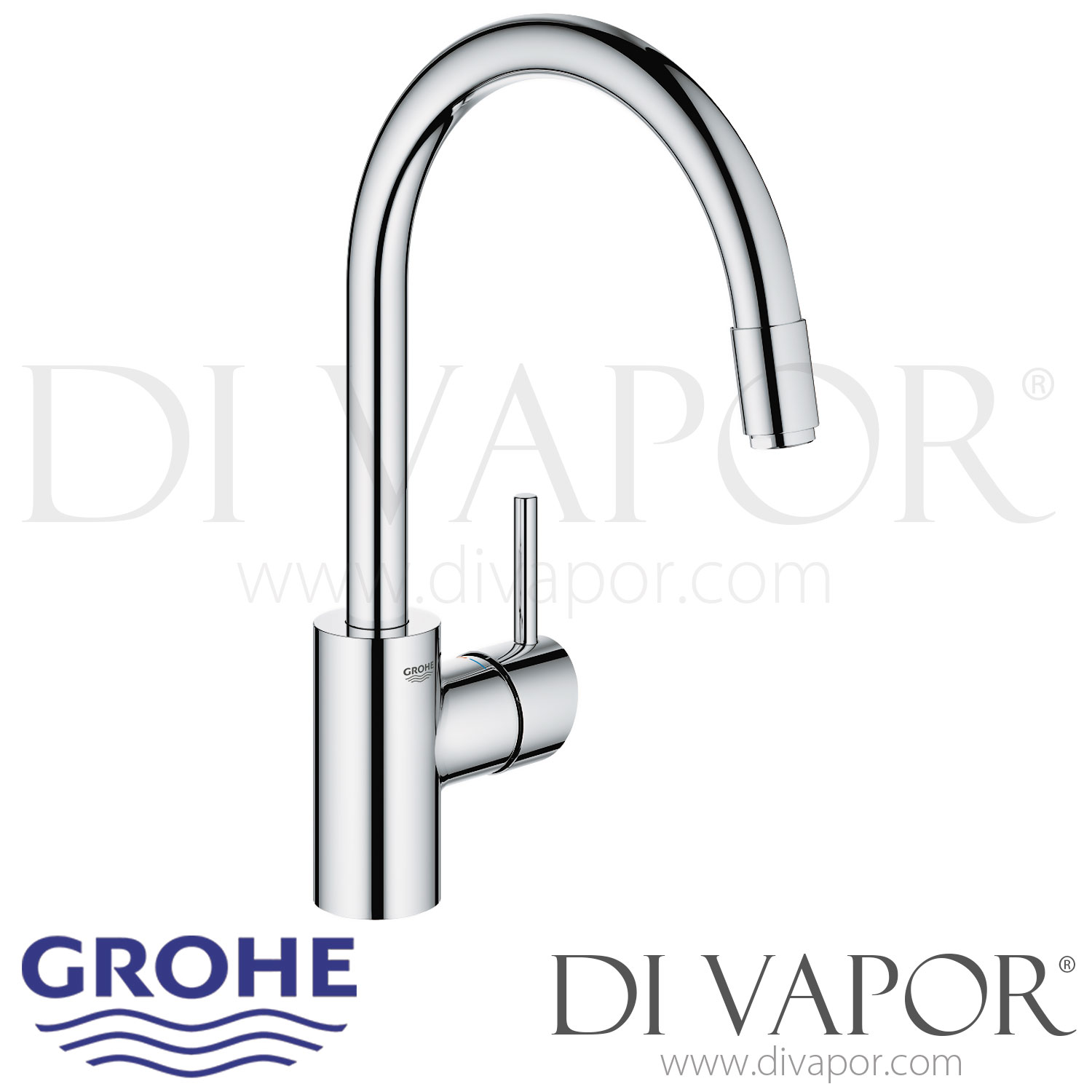

Spare parts for the Grohe 31212003 Concetto single-lever sink mixer 1/2 inch, a chrome low-pressure kitchen tap designed for use with an open water heater. The mixer combines single-lever flow and temperature control with a high swivel spout and pull-out outlet.

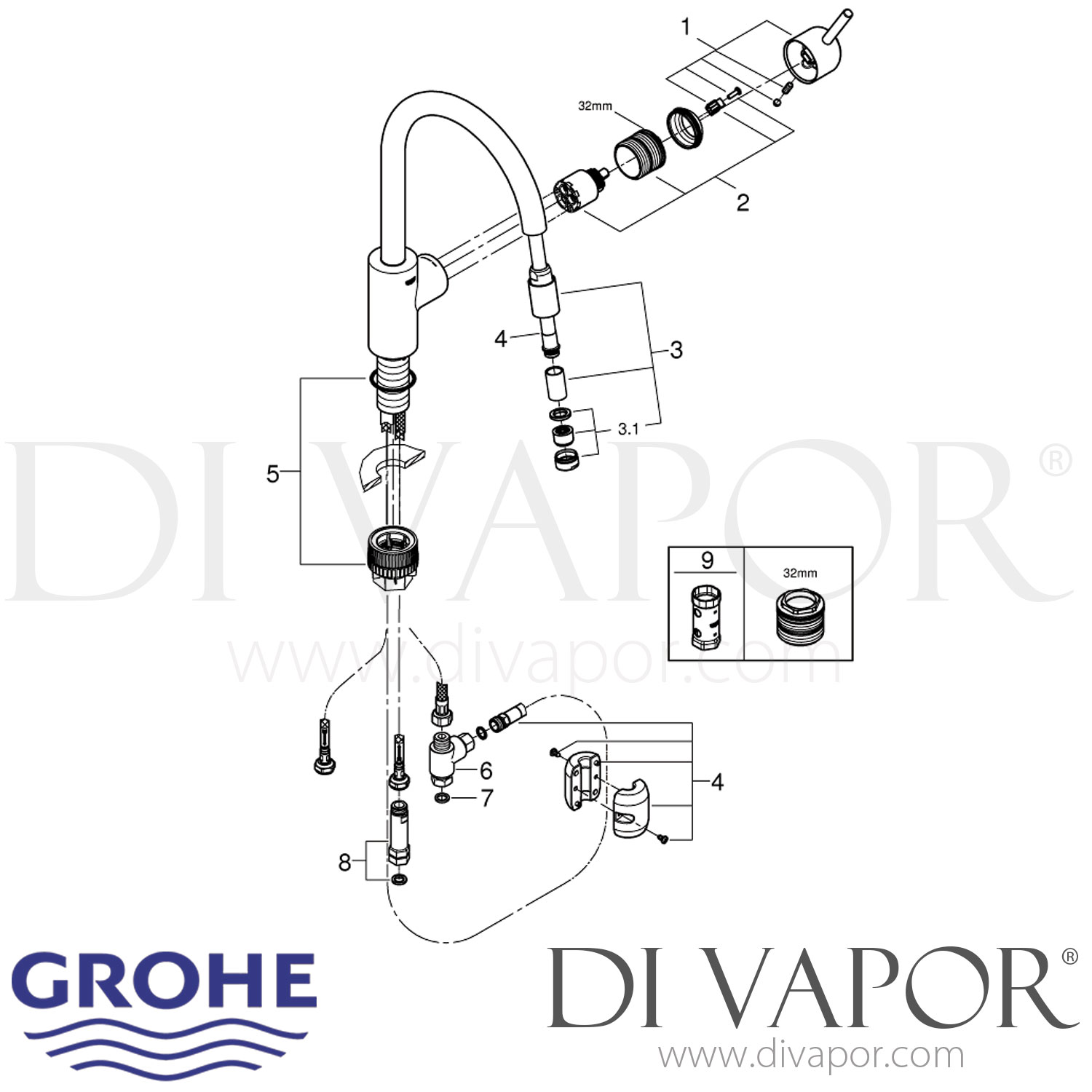

The 31212003 uses a 35 mm GROHE SilkMove ceramic cartridge for controlling water flow and temperature. Grohe spares available for this mixer include the low-pressure cartridge, tap hose, mounting set and service tool listed below. Check the production period and existing spare part code before ordering because GROHE has revised some internal parts while retaining the 31212003 mixer code.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Kitchen tap |
| Product code | 31212003 |
| Type | Single-lever sink mixer |
| Installation | Single-hole installation |
| Water system | Low-pressure installation for an open water heater |
| Finish | Chrome |
| Cartridge | 35 mm GROHE SilkMove ceramic cartridge |
| Spout | High tubular swivel spout with pull-out laminar outlet |
| Swivel range | 360 degrees |

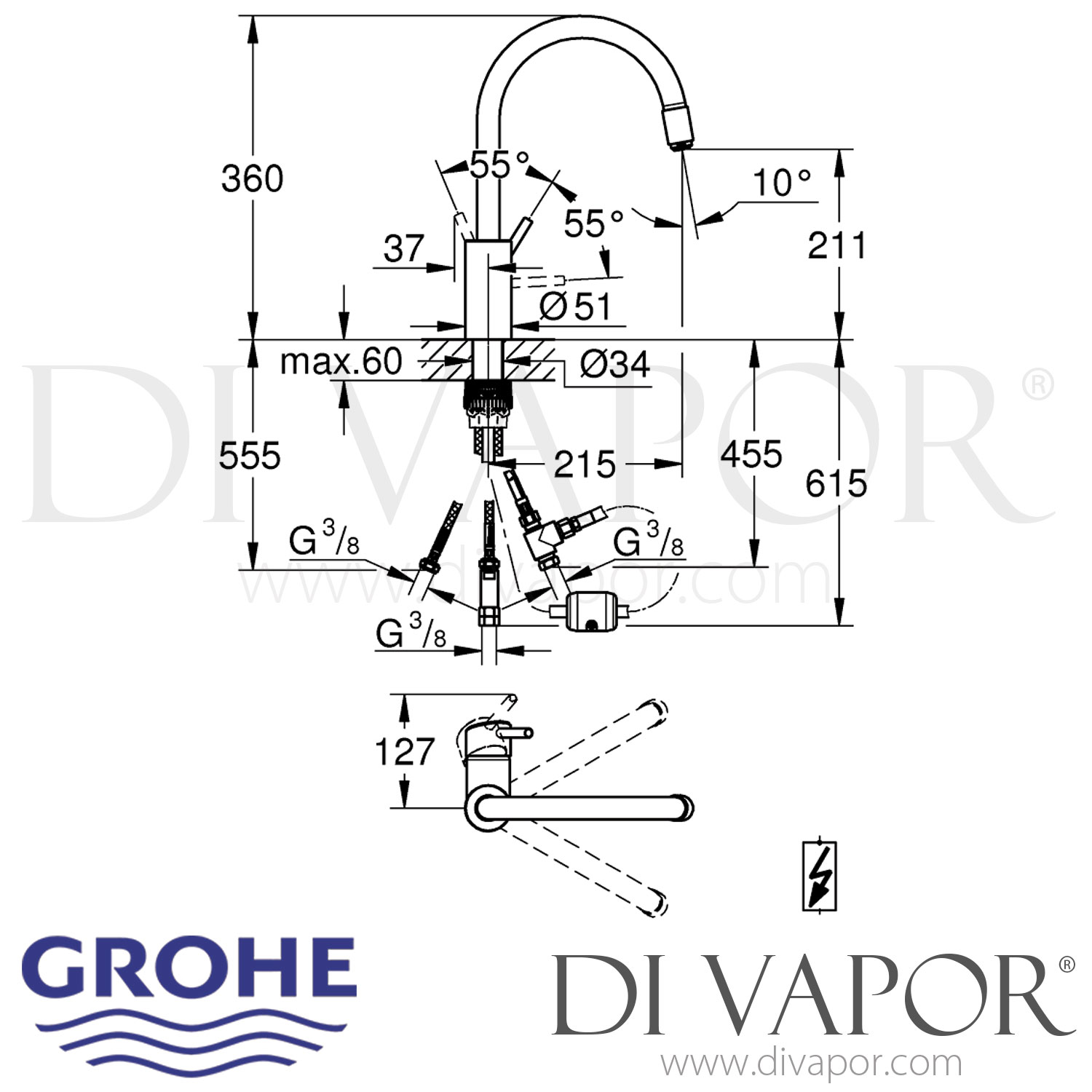

| Overall height | 360 mm |
| Spout outlet height | 211 mm |
| Spout projection | 215 mm |
| Mounting hole | 34 mm diameter |
| Body diameter at base | 51 mm |
| Maximum mounting surface thickness | 60 mm |
| Connection hoses shown in the technical drawing | G 3/8 |
| EAN | 4005176466762 |
Before You Order
Check the 31212003 model code, production period and the code on the part being replaced. The Di Vapor spares page covers the post-2020 mixer, but GROHE has subsequently revised the spare-parts schedule under the same 31212003 product code. In particular, 48293000 is the pull-out tap hose used on earlier post-2020 versions up to February 2026, while GROHE specifies 45352000 for the February 2026-onward version.
